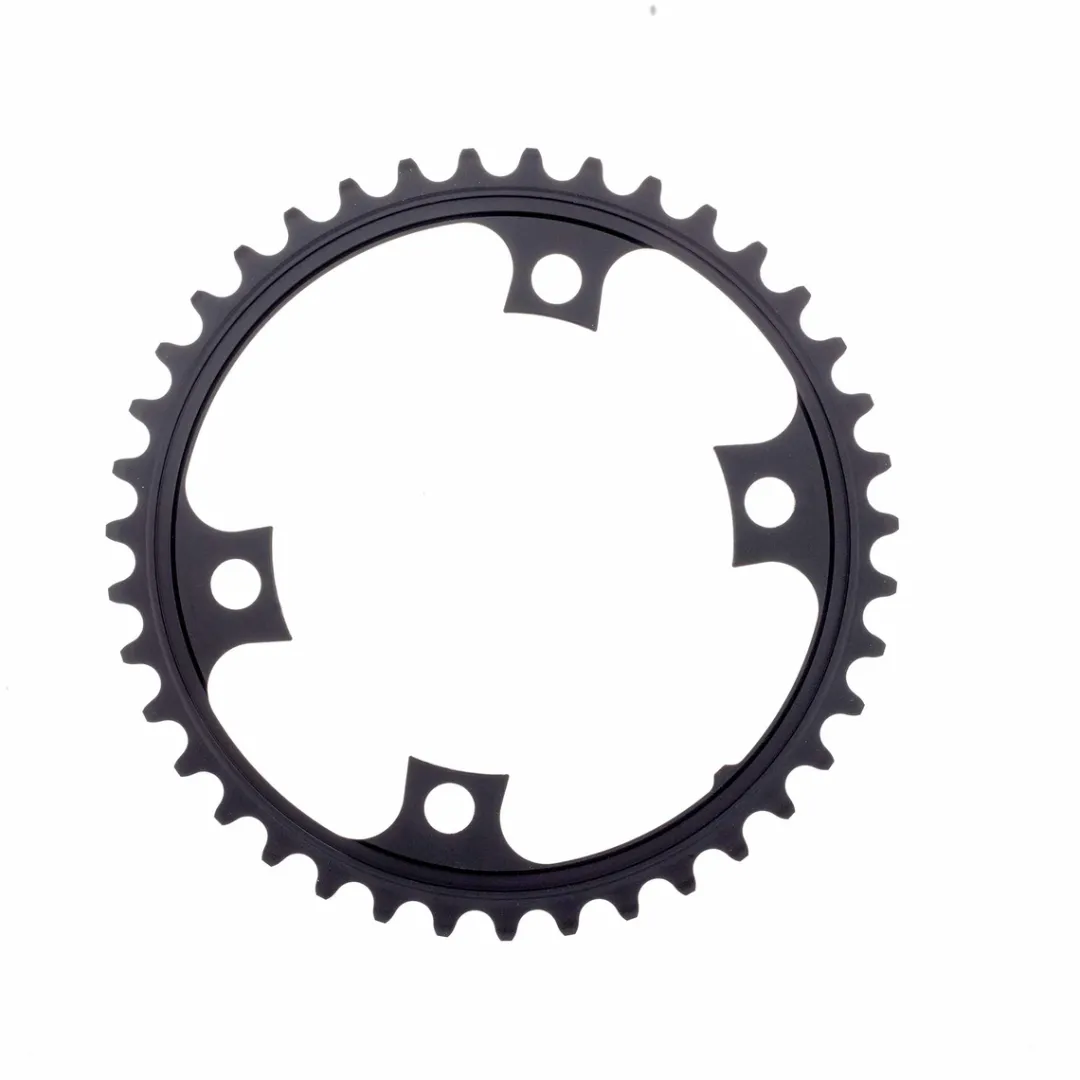

ROSE Bikes 105 FC-5800 chainring| Chainrings

Shimano chainring for FC-5800 Hollowtech II cranksets.

Compatible with 11-speed/double
Bolt circle Ø: 110 mm
Bolt spacing: 65 mm
Material: aluminium

53 MD teeth black / manufacturer’s ref.: Y-1PH98130
39 MD teeth black / manufacturer’s ref.: Y-1PH39000

52 MB teeth black / manufacturer’s ref.: Y-1PH98110
36 MB teeth black / manufacturer’s ref.: Y-1PH36000

50 MA teeth black / manufacturer’s ref.: Y-1PH98030
34 MA teeth black / manufacturer’s ref.: Y-1PH34000

53 MD teeth silver / manufacturer’s ref.: Y-1PH98140
39 MD teeth silver / manufacturer’s ref.: Y-1PH39010

52 MB teeth silver / manufacturer’s ref.: Y-1PH98120
36 MB teeth silver / manufacturer’s ref.: Y-1PH36010

50 MA teeth silver / manufacturer’s ref.: Y-1PH98100
34 MA teeth silver / manufacturer’s ref.: Y-1PH34010

Also compatible with the following cranks:
FC-6800

For the manufacturer’s code for the crank, please see the inside of the right crank arm at the same height as the pedal thread (FC-XXXX)!

Note: To guarantee smooth shifting, you must only combine chainrings of the same type, e.g. MA!
