ROSE Bikes 12mm Conversion Kit| Accessories

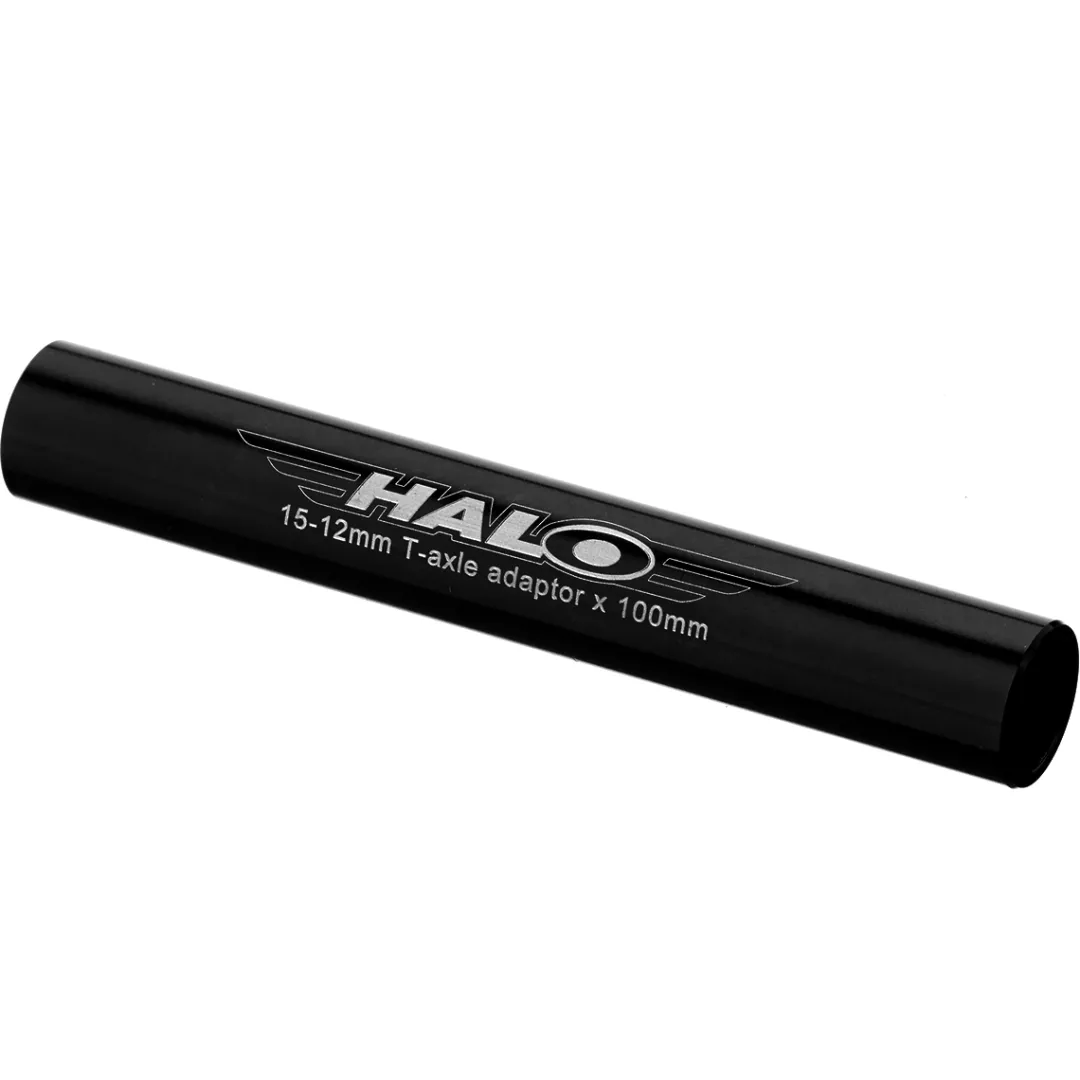

The Halo thru axle adapter helps you convert your 15mm thru axle hub to fit 12mm thru axle forks.

Required hub standard:
15 x 100 mm TA

Converts to:
12 x 100 mm (12×100 mm TA)

Material: aluminium 7075-T6, anodised black
Dimensions: 12 x 98.5 mm
CNC machined
Weight: approx. 17 g

In the box: Thru axle adapter

Tip: Apply a bit of grease before installation!

Note: Some road and cross bike forks have a hub contact surface of Ø 19 mm on the inside, while many 15 x 100 mm wheels have a diameter of 21 mm. Therefore, those forks require hubs with a diameter of max. 19mm as standard. Even though the adapter sleeve would convert the axle to 12 mm, the hub end caps wouldn’t fit into the narrow fork dropout due to their diameter.
Please check before installation (e.g. by holding a 5 euro cent coin into the hub mount).
