ROSE Bikes 1X Race w chain guide| Chain Guides

Your bike frame does not have a derailleur mount, but you still want to use a chain guide for your singlespeed crankset? The 1X Race w chain guide from K-Edge makes exactly this possible: It is attached to the bottle cage threads on the seat tube and can therefore be fitted to practically any bike.

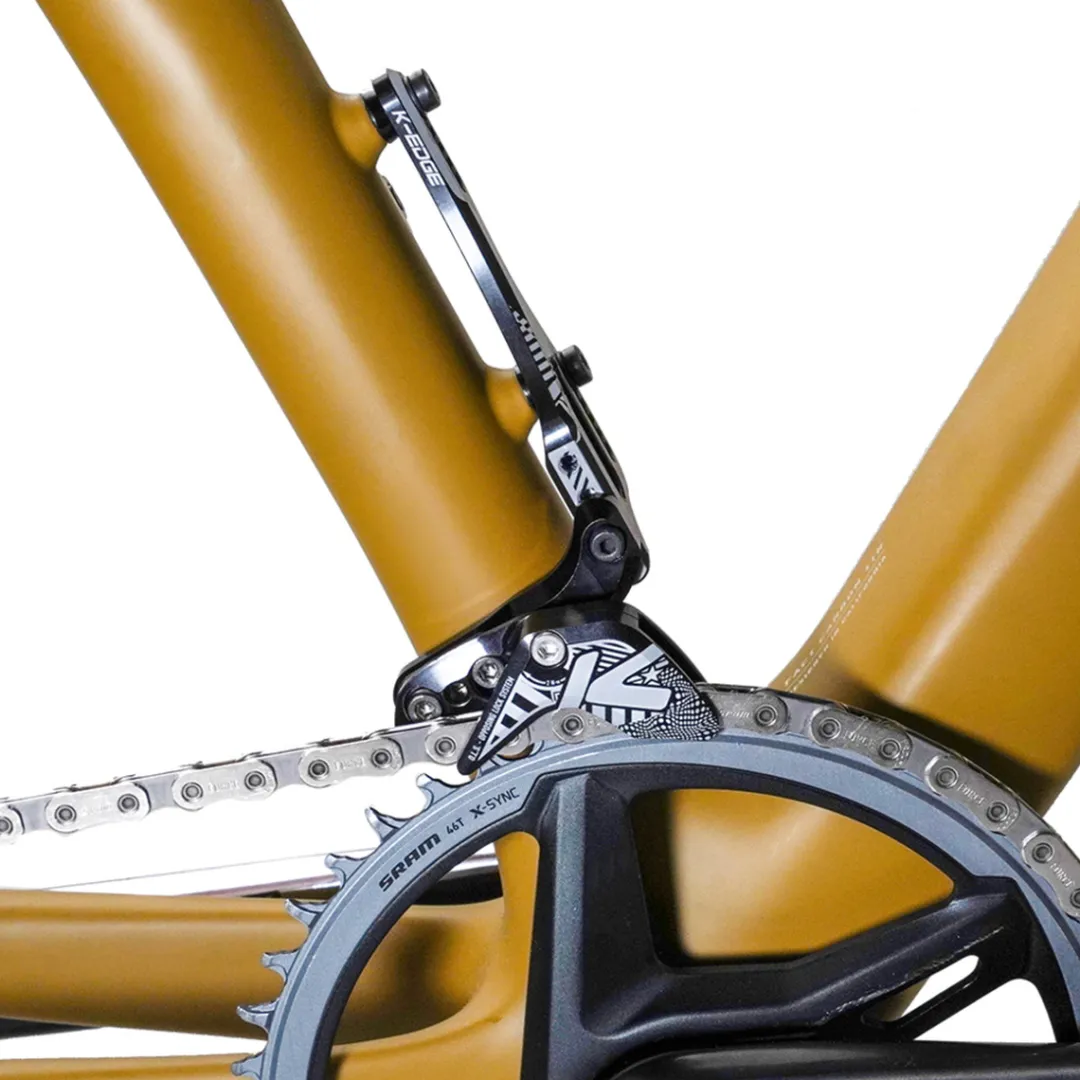

Whether you ride one-by on a road bike, gravel bike or cross bike – the chain guide from K-Edge ensures that the chain stays on the chainring.

Details:
Chain guide for bikes without derailleur mount

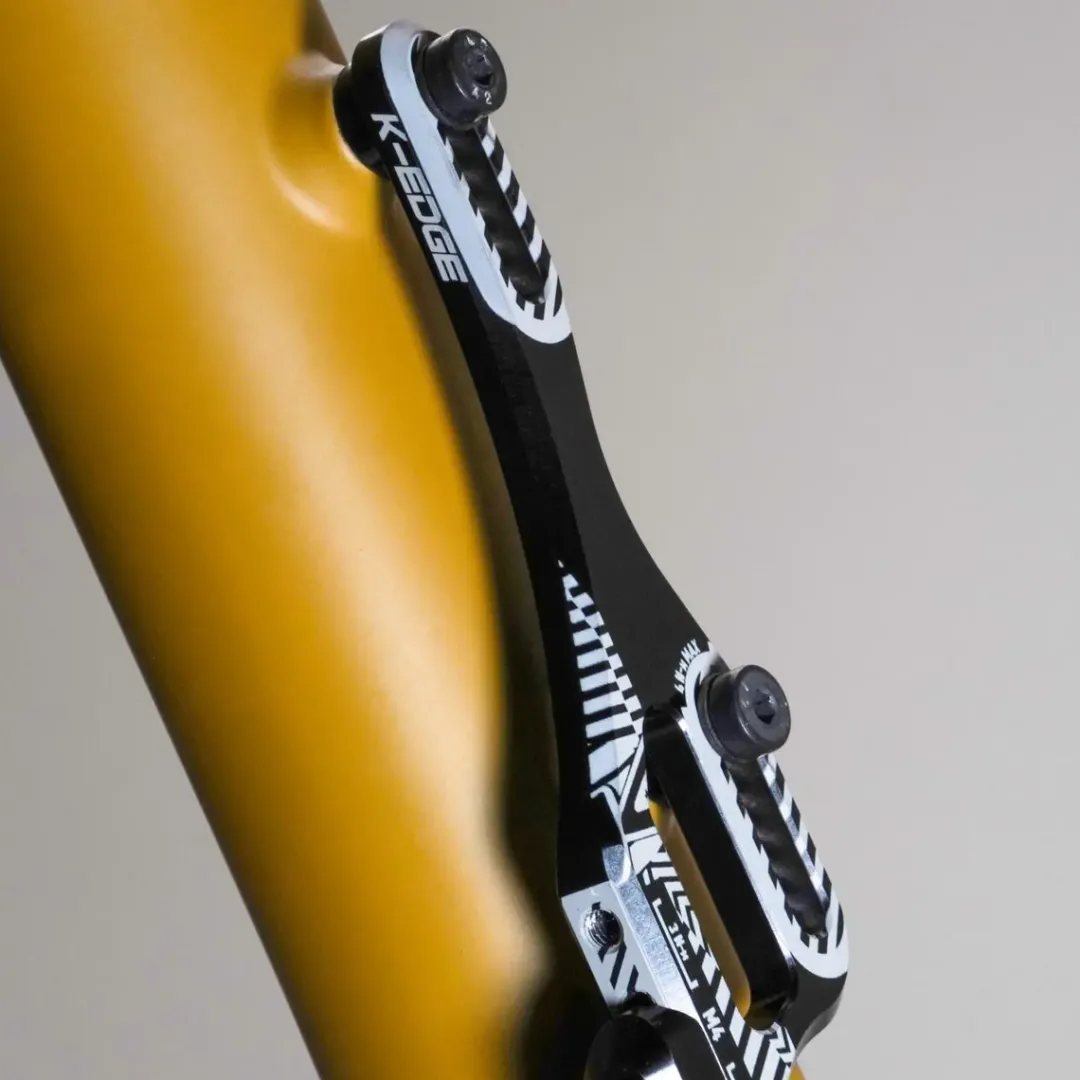

Is screwed to the bottle cage threads on the seat tube
Prevents chain dropping with singlespeed cranks
Optimised for round chainrings with 36 to 54 teeth (11/12-speed drivetrains)
Suitable for road, gravel and cross bikes
Compatible with many bicycle frames and frame sizes from 54 to 61 cm
Incl. two support arms for adapting to different frame sizes
Simple height adjustments thanks to slotted holes
Angle-adjustable for optimum alignment
Individually adaptable to chain line

Technical details:
Material: 6061 T6 aluminium, steel
For cranks: singlespeed (one chainring)
For chainring: 36 to 54 teeth
Weight: approx. 62 g

In the box:
1 K-Edge 1X Race w chain guide

Tip:
If you want to mount the chain guide together with a bottle cage, you will need mounting bolts of the appropriate length.

Note:
NOT suitable for cranks with oval chainrings.
