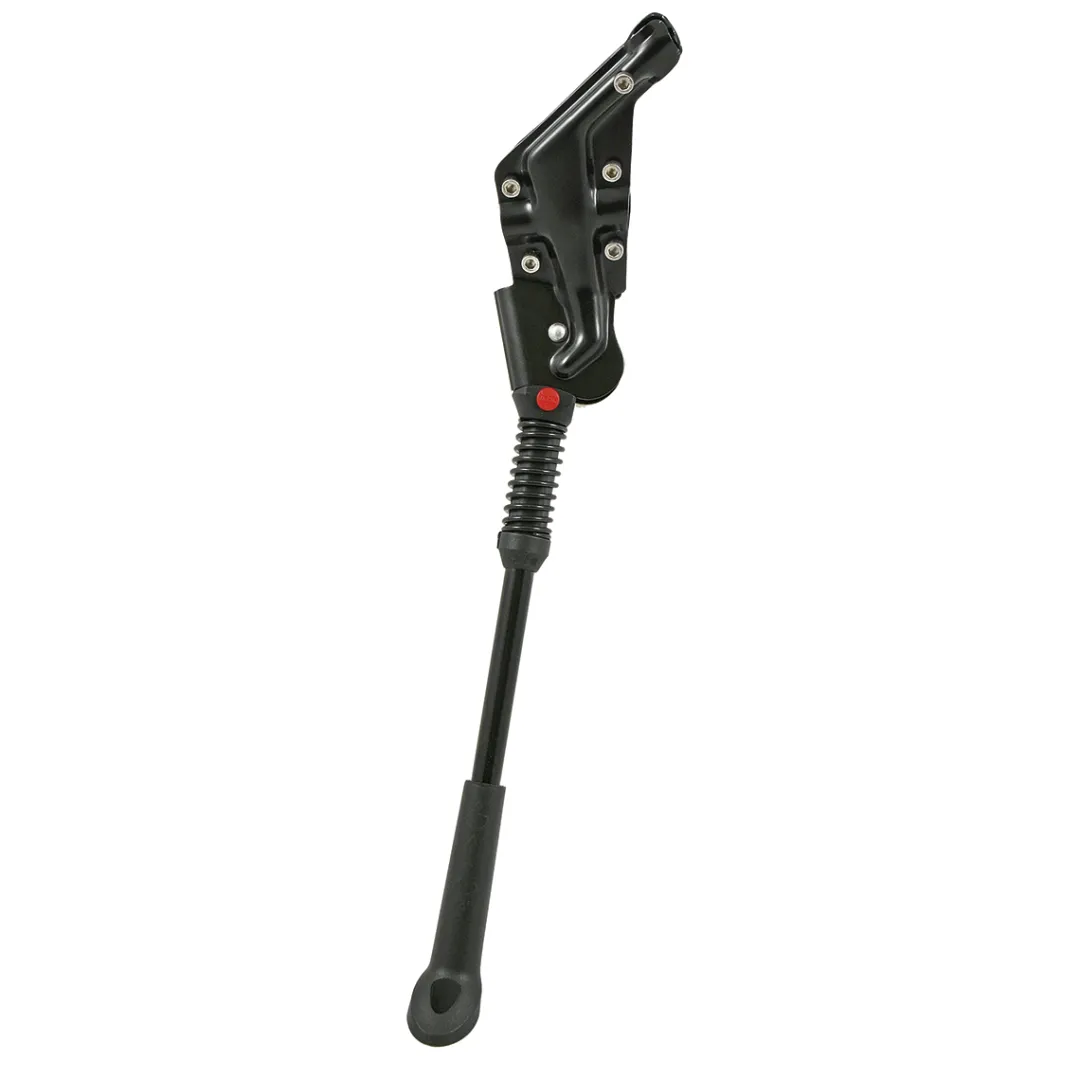

ROSE Bikes 611 FOXs Rear Mount Kickstand| Frame Mount

The 611 FOXs rear kickstand from Hebie is the perfect solution for all bikes that do not have a factory-fitted kickstand mount.

It is mounted via a clamp on the chain stay and seat stay in the lower rear triangle of the frame. This attachment creates a solid connection that gives the 611 FOXs a load capacity of up to 25 kg enabling your bike to be parkes safely.

The wide plastic base provides stable support on a variety of surfaces and also functions as a continuously rotatable length adjustment.

Details:
Sturdy rear kickstand for bikes without a kickstand mount
Easy mounting due to clamping on chain and seat stay
Suitable for steel or aluminium frames with round tubes and without disc brakes
Suitable for 26” to 28” bikes
Tool-free height adjustment thanks to swivelling stand
Proven Hebie spring mechanism for smooth operation

Technical details:
Material: aluminium, steel
For bike size: 26” to 28”
Compatible bicycle frame tube material: steel, aluminium
Compatible clamping diameter chainstay (non-drive side): max. Ø 22 mm
Compatible clamping diameter seatstay (non-drive side): max. Ø 19 mm
Max. load: 25 kg
Weight: approx. 510 g (incl. fixing material)

In the box:
1 Hebie 611 FOXs rear kickstand

Note:
The 611 FOXs is designed exclusively for mounting on steel or aluminium frames with round tubes. The rear kickstand must not be attached to carbon frames. In addition, the stand is NOT compatible with bicycles that have a rear disc brake. Please read the installation instructions from Hebie before you start installing the 611 FOXs rear kickstand on your bike.
