ROSE Bikes 663 T E Fix 18 T Rear Mount Kickstand 26“-28“ KSA 18| Frame Mount

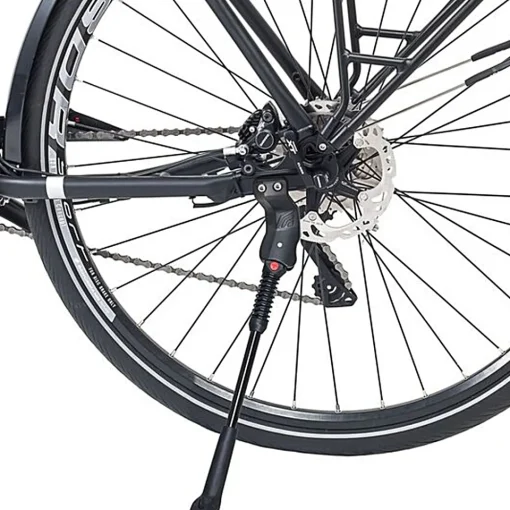

The lowered rear mount kickstand version Fix 663 T E Fix 18 T provides more space underneath the axle of 26 to 28 inch bikes. The longer head with a folding mechanism has a much larger distance to the centre of the rear axle. Therefore, it is the ideal solution in combination with coupling systems of bike trailers and additionally offers more foot space.

This kickstand is a form-fit stand solution for bikes with KSA 18mm dropout device on the chain stay. Black, simple, robust. Thanks to direct dropout mounting, the centre of gravity is directly above the high-strength kickstand – especially when using panniers or e-bike batteries – which ensures a secure stand, even on softer ground.

The broad, abrasion-resistant plastic foot reaches far up the tube and protects the tube coating when using Hebie’s folding mechanism. Besides, it helps you adjust the length of the stand to suit 26 to 28 inch bikes.

Details:
Robust kickstand with longer head
Also suitable for e-bikes
Increases the distance to the rear axle to approx. 70 mm
For direct dropout mounting KSA 18
Form fit installation on rear stays
Bolt spacing 18 mm
Large steel head, 3mm thick
Broad plastic foot
Low-maintenance spring mechanism
Tool-free tube length adjustment
For 26“ to 28“ bikes
Max. load: 50 kg
Corrosion-resistant coating
Weight: approx. 340 g (incl. mounting material)
Material: steel, plastic
Incl. Niro bolts M6 x 25
