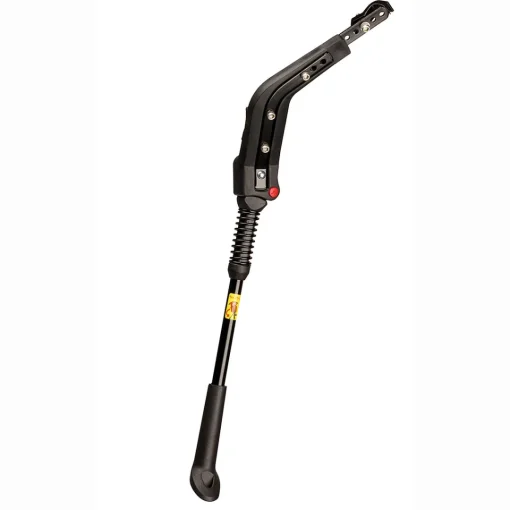

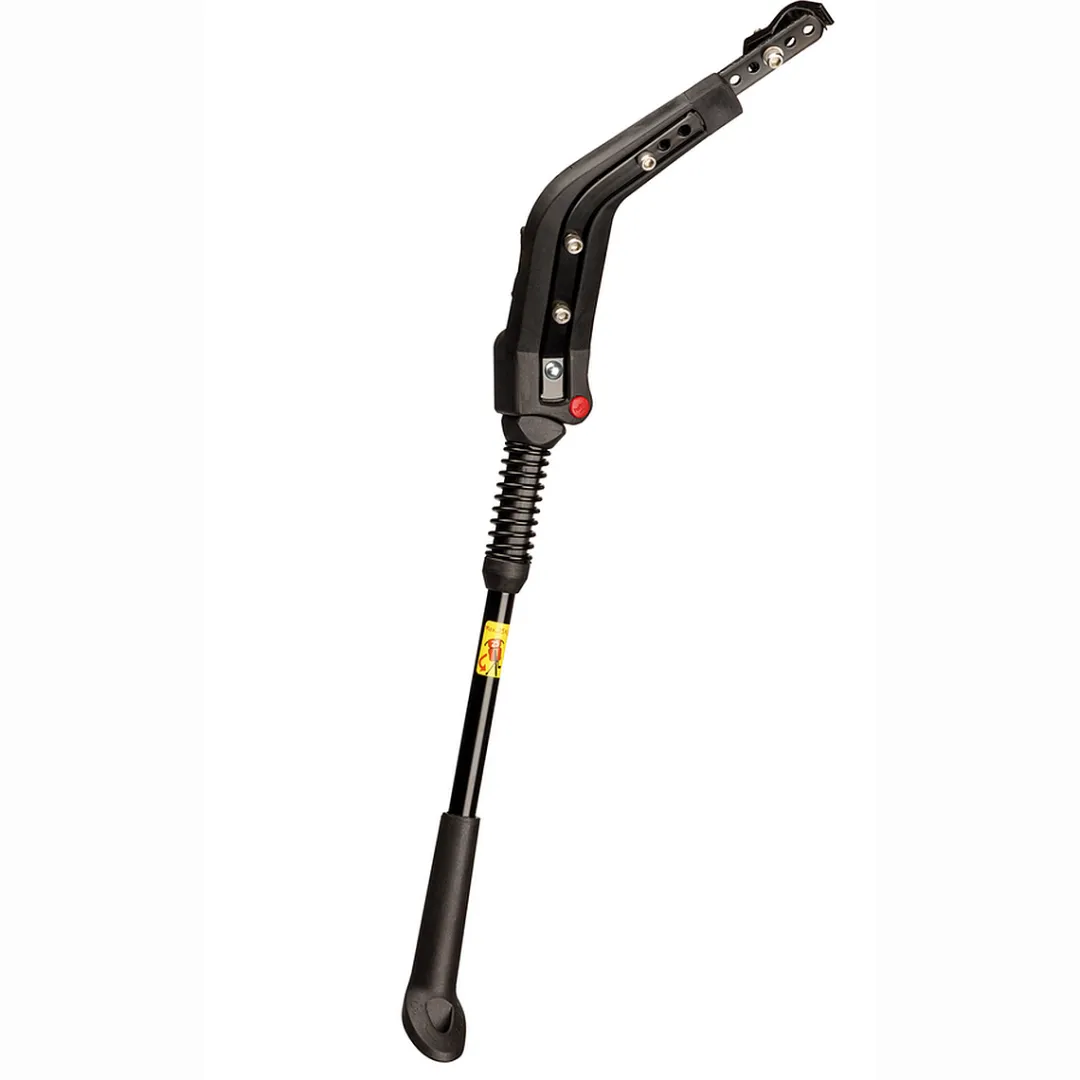

ROSE Bikes 672V FOX L rear kickstand| Frame Mount

The 672V FOX L rear kickstand from Hebie is the almost universal solution for all bikes that do not have a factory-fitted kickstand mount.

This is made possible by the clamp mounts, which can be attached to round, oval and even square tubes. The 672V FOX L can be adapted to different rear triangle geometries thanks to the length-adjustable clamp for the seat stay. It can also be mounted on bicycles with disc brakes. Once attached, the rear kickstand can be loaded with up to 25 kg.

The wide plastic base provides stable support on a variety of surfaces and also functions as a continuously rotatable length adjustment.

Details:
Almost universal rear kickstand for bikes without a kickstand mount
Easy mounting due to clamping on chain and seat stay
Compatible with round, oval and square tubes (prism mount)
Suitable for bikes with disc brakes
Suitable for 26” to 28” bikes
Sturdy GRP/steel construction for loads of up to 25 kg
Tool-free height adjustment thanks to swivelling stand
Proven Hebie spring mechanism for smooth operation

Technical details:
Material: steel, GFK
For bike size: 26” to 28”
Compatible bicycle frame tube material: steel, aluminium
Compatible clamping diameter chainstay (non-drive side): max. Ø 25 x 27 mm (oval tube)
Compatible clamping diameter seatstay (non-drive side): max. Ø 22 mm (round tube)
Max. load: 25 kg
Weight: approx. 420 g (incl. fixing material)

In the box:
1 Hebie 672V FOX L rear kickstand

Note:
The 672V FOX L is designed exclusively for mounting on steel or aluminium frames. The rear kickstand must not be attached to carbon frames.
Please read the installation instructions from Hebie before you start installing the 672V FOX L rear kickstand on your bike.
