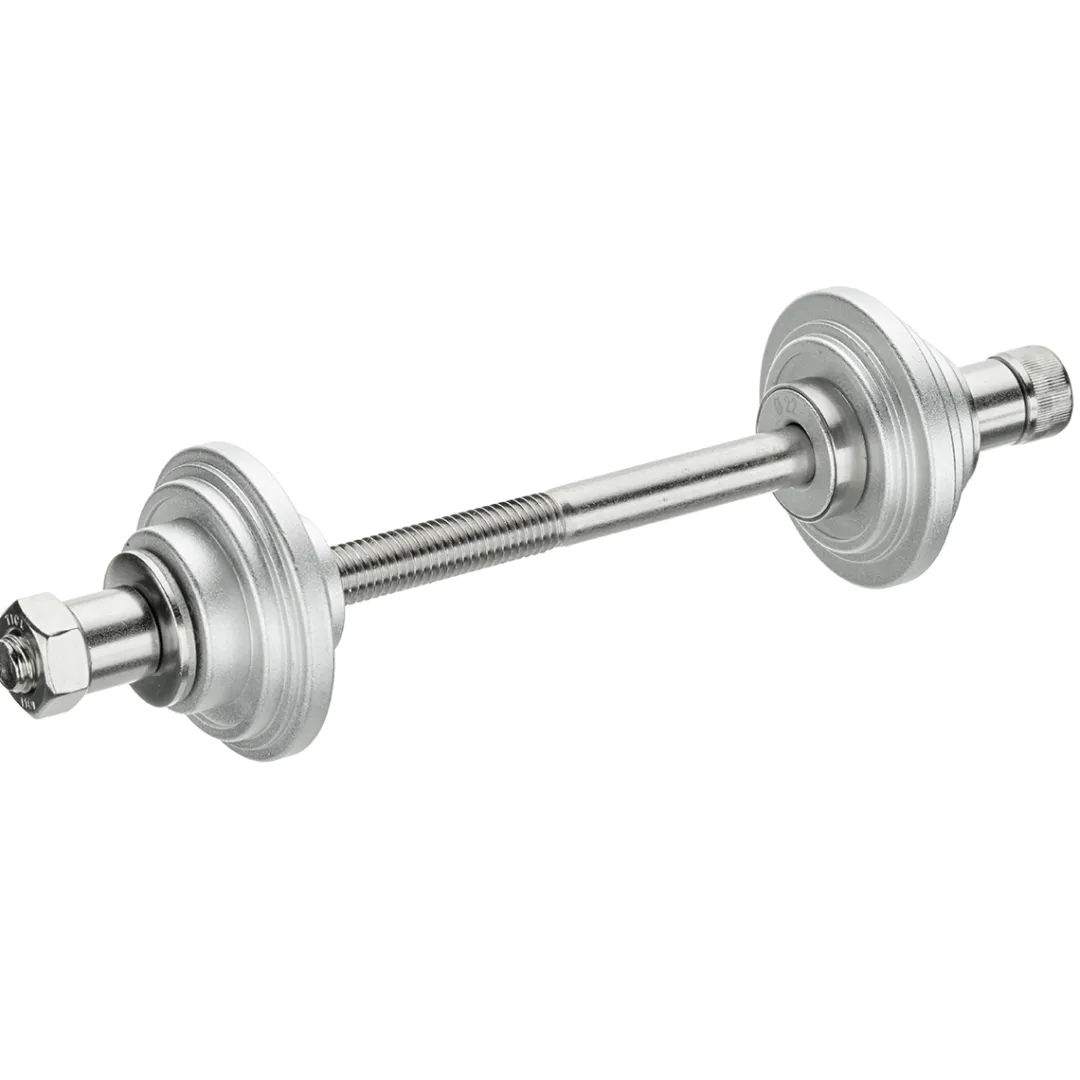

Our ROSE tool for installing Pressfit and BB30 bottom brackets is just as simple as effective and should be part of every hobby workshop.
A 10 mm thick threaded rod made from stainless steel and high-quality aluminium press rings guarantee a clean installation of the bottom bracket cups without risking damage to the frame’s bottom bracket housings.
Compatible bottom bracket with 24 and 30 mm spindle:
BB86
BB92
BB90
BB95
BB30
PressFit 30
BB 386 EVO
PressFit GXP (ATTENTION: remove spacer ring! Spindle Ø of the non-drive side 22 mm!)
Specs:
Material: stainless steel (threaded rod, sleeves, washers, nut); aluminium (press rings)
Tool mount: 17 mm open-end or box wrench, 8 mm hex wrench (NOT included)
Dimensions: approx. 200 x 51 mm
Weight: approx. 307 g
In the box:
1 x ROSE bottom bracket press
