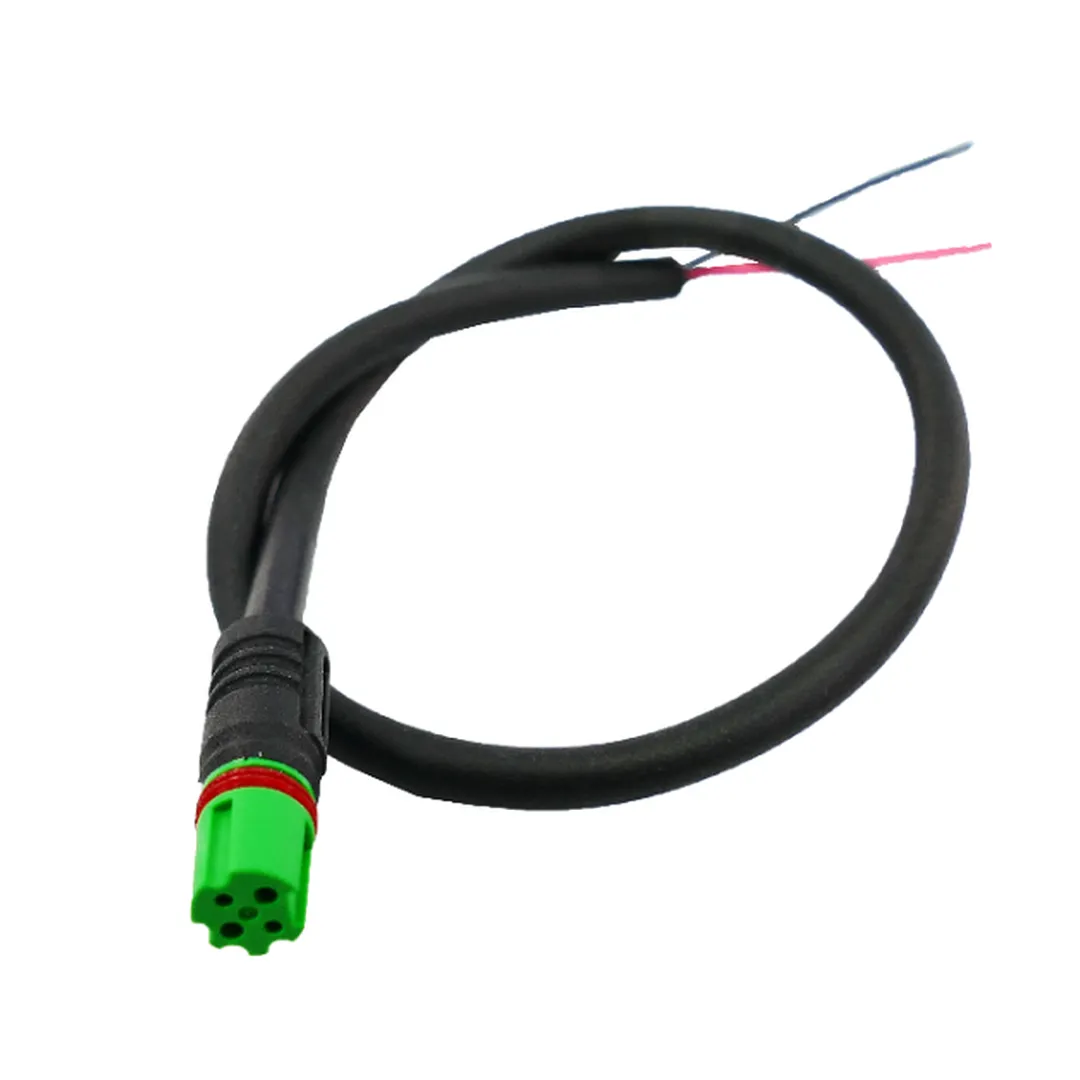

ROSE Bikes Cable for Bosch BES3 system for connection to low or high power port| Accessories

This cable is equipped with a plug that can be plugged into the low or high power port of a motor from the Bosch eBike Smart System 3. The other connection side of the cable has open ends and can be connected to compatible consumer electronics, such as the B+M Turntec direction indicator.

Technical details:
Length: approx. 20 cm
Compatibility Bosch drive: Bosch eBike Smart System 3
Connection side 1: plug for LPP/HPP connection
Connection side 2: open cable end

In the box:
1 B+M cable for Bosch BES3 system for connection to low or high power port

Note:
Please check in advance whether the selected port on your Bosch e-bike motor is enabled and whether the connection is not already occupied by a consumer electronic (e.g. ABS).
The low and high power ports each supply a voltage of 12 V DC and 1 ampere of current (continuous output). The connected consumer must be compatible with it.
