ROSE Bikes CDN S150 Crankset with Sprocket 50 T| City And Touring

Being a bike drive system of a special kind, the Gates Carbon Drive belt system stands out for smooth running and low maintenance. With the CDN S150 crank, Gates offers a plug-in solution, allowing for easier installation and high reliability of belt drives with 50 teeth.

This model serves as an inexpensive entry into Gates technology. The drive combination was specially developed for use on city and everyday bikes that are ridden in all types of weather and are often standing outside. Benefit from the quiet, low-maintenance drive for bikes in urban everyday life where reliability is particularly important.

Details:
• CDN version (low-priced CenterTrack version)
• Suitable for urban settings and paved roads
• Open tooth profile (mudports) for unimpeded functionality
• Integrated CenterTrack belt guide
• Sprocket made of heavy-duty high-tech plastic
• Cold forged aluminium crank with anodised finish

Technical details:
• Intended use: city and urban bikes, as well as e-bikes with front- or mid-drive motor
• System Gates CDN
• Material: 6061 aluminium, plastic
• For a shell width of: 68 mm
• Crank arm length: 170 mm
• Belt line: depending on the system
• BB standard: square JIS (required axle length depends on the system)
• Number of teeth: 50
• Tooth pitch: 11 mm
• Sprocket mount (number of holes): 5-bolt
• Bolt circle: Ø 130 mm (130 BCD)

In the box:

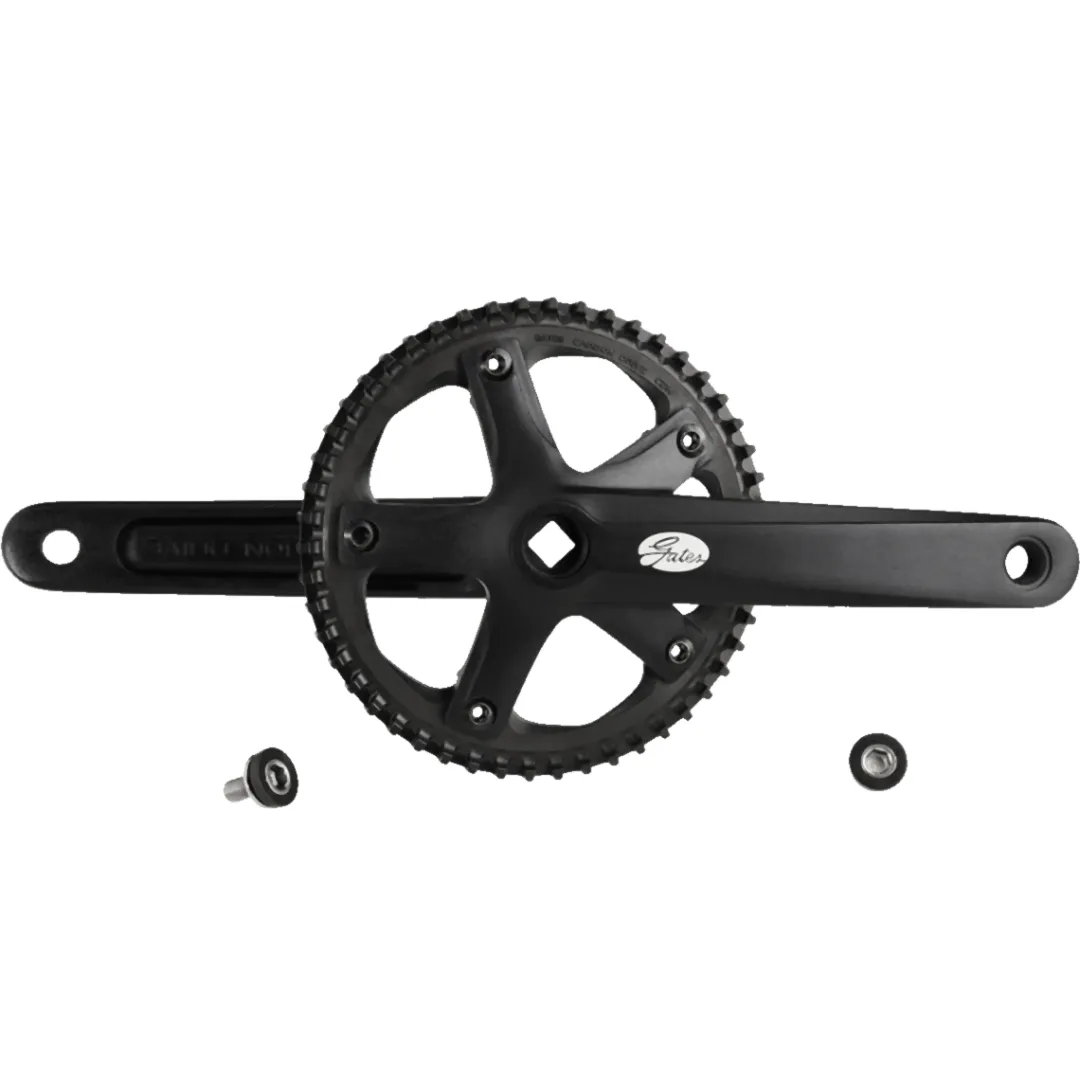

• 1 Gates Carbon Drive CDN S150 crankset
• 1 Gates Carbon Drive CDN sprocket 50 T, pre-installed
• 2 crank mounting bolts
WITHOUT bottom bracket!

Note:
For the matching bottom bracket for BSA thread with square JIS standard (e.g. SHIMANO BB-UN300) see prod. code: 2299038. ATTENTION: The required axle length depends on the system!

For the recommended CDN belt see prod. code 1597120001.

Gates CDN cranksets with sprocket are NOT approved for MTB riding or touring (increased wear)! Also NOT approved for e-bikes with mid-drive motors.

Manufacturer: GATES CORPORATION, 1144 FIFTEENTH STREET SUITE 1400, CO 80202 Denver, USA, de.gatescarbondrive.com/
Responsible person: GATES GMBH, EISENBAHNWEG 50, 52068 Aachen, Deutschland
