ROSE Bikes Classic T-10| Accessories

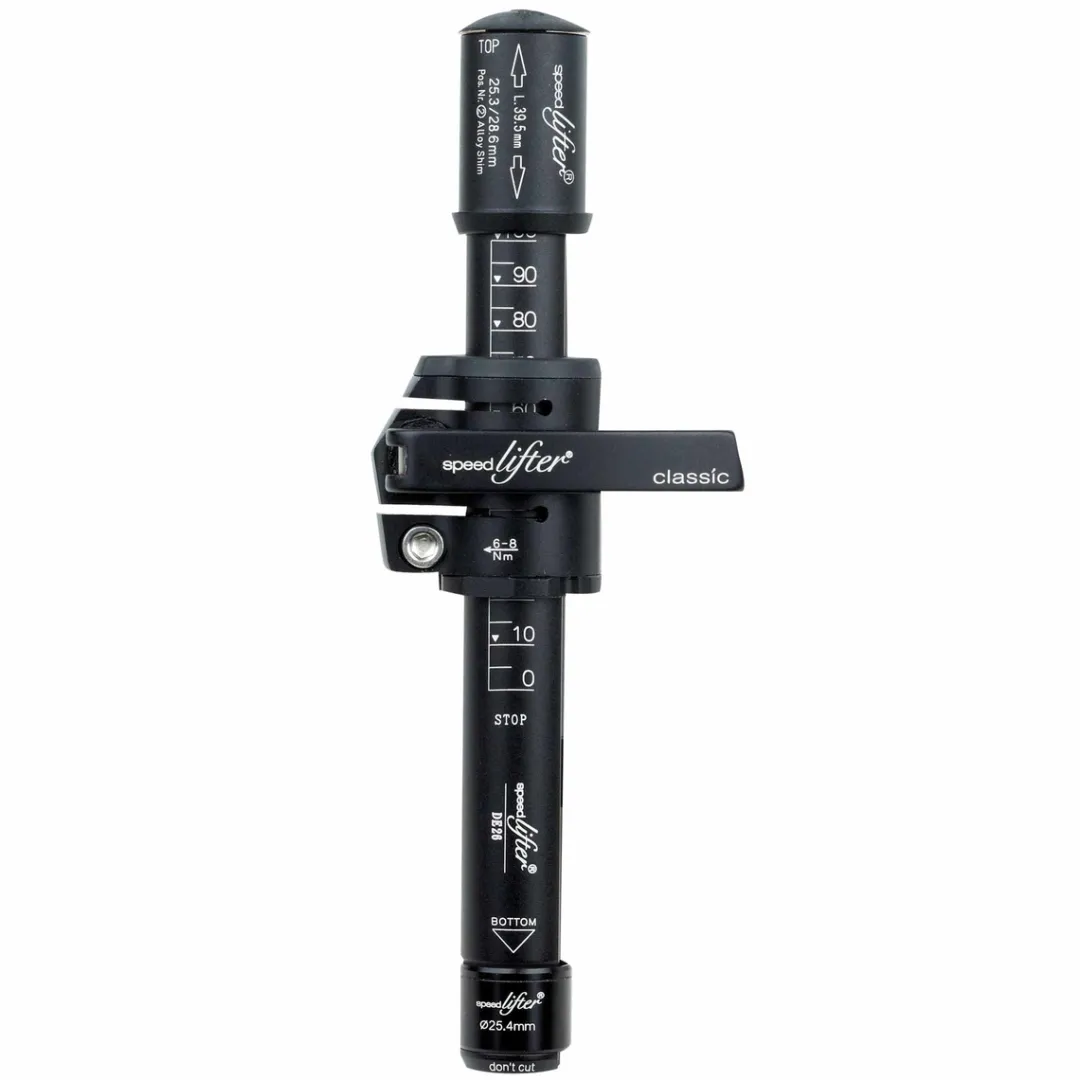

The Speedlifter Classic from by,schulz is the solution for quick and easy handlebar height adjustment on your bike!

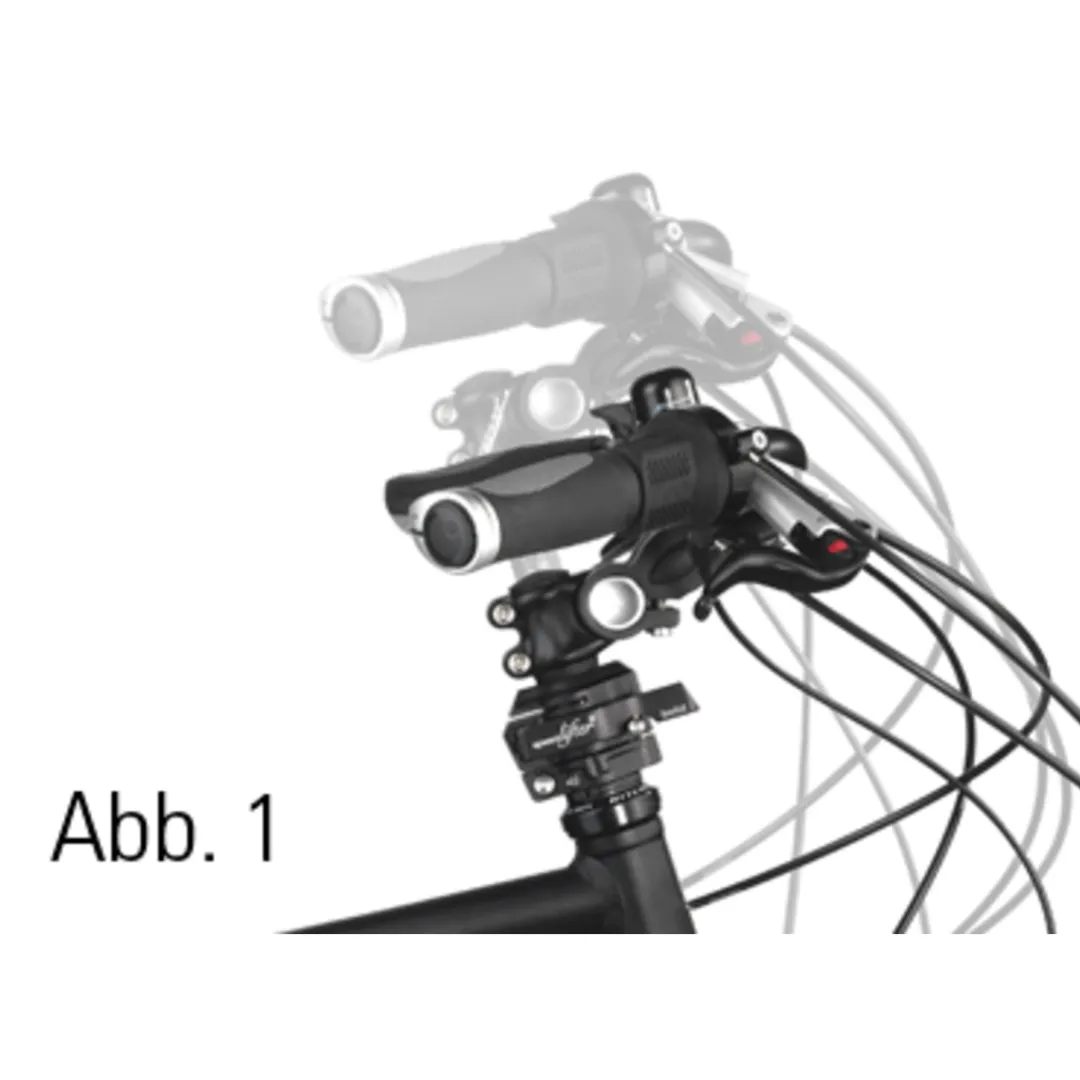

The T-10 version of the practical handlebar lift has an upward extension of up to 100 mm. This works within a matter of seconds and without any tools. Simply open the quick-release – pull up – close the quick-release – done!

Details:
Version for threadless steel steerer tubes (!)
Precise, tool-free height adjustment of the handlebar in just a few seconds thanks to the quick-release lever
Safe, permanent anti-twist protection for the handlebar unit
Individually adjustable in the stand without tools
E-bike ready

Technical details:
Material: 6061-T6 Aluminium
For steerer tube material: Steel (!)
Required steerer tube length: min. 46 mm above top edge of headset
Pull-out height: 100 mm (T-10)
For steerer tube outer Ø: 28.6 mm (1 1/8″)
For steerer tube inner Ø: 25.4 mm
For stems with shaft clamp Ø: 28.6 mm (1 1/8″)
Height of the reduction sleeve (clamping surface for the stem): 39.5 mm
Weight: approx. 325 g

In the box:
1 by,schulz Speedlifter Classic T-10

Note:
The steerer tube must be drilled and slotted for installation!

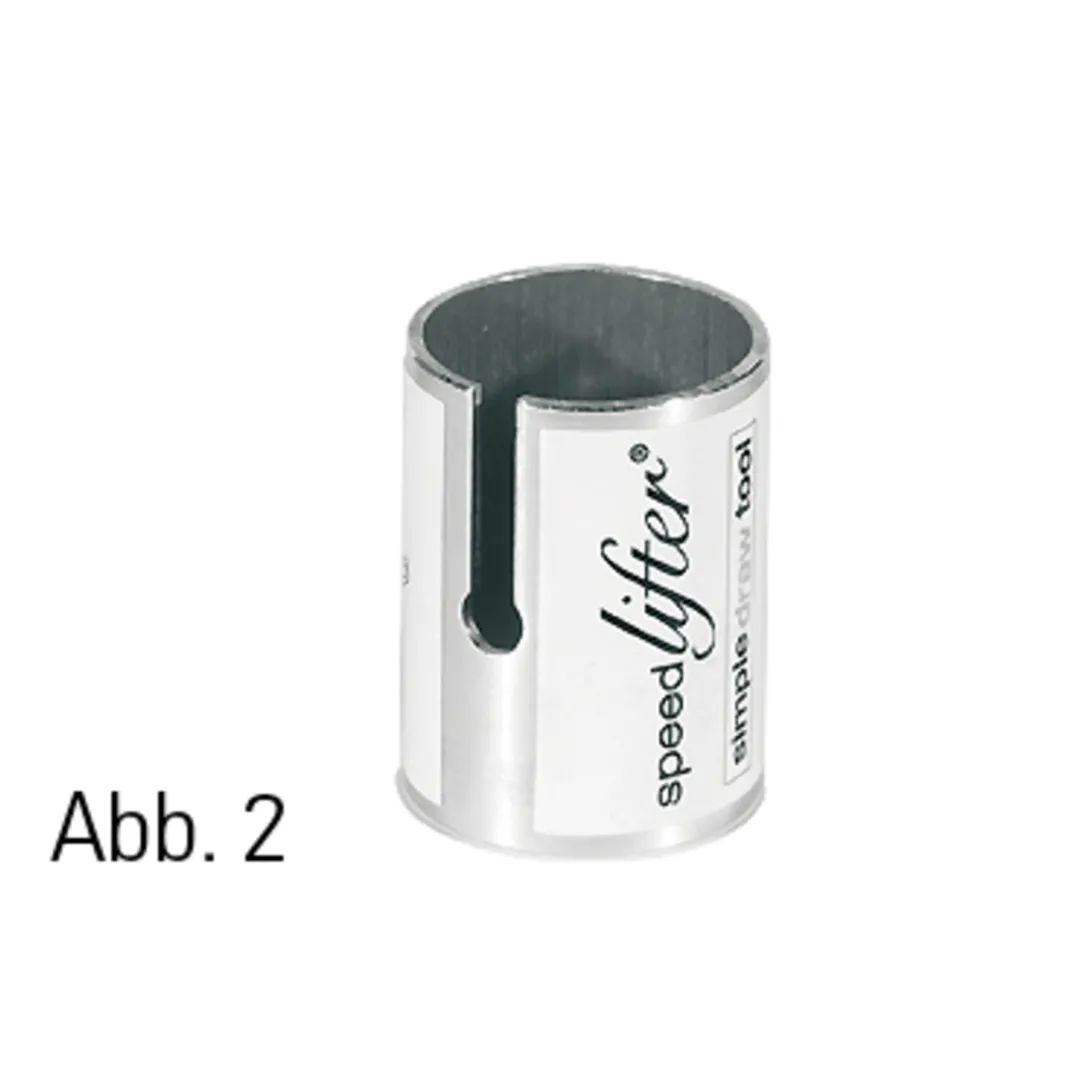

To mark the slots and holes on the steerer tube, we recommend the optionally available SimpleDraw tool (prod. code: 221689) or the Profi-Cut tool for professional use (prod. code: 199100).
