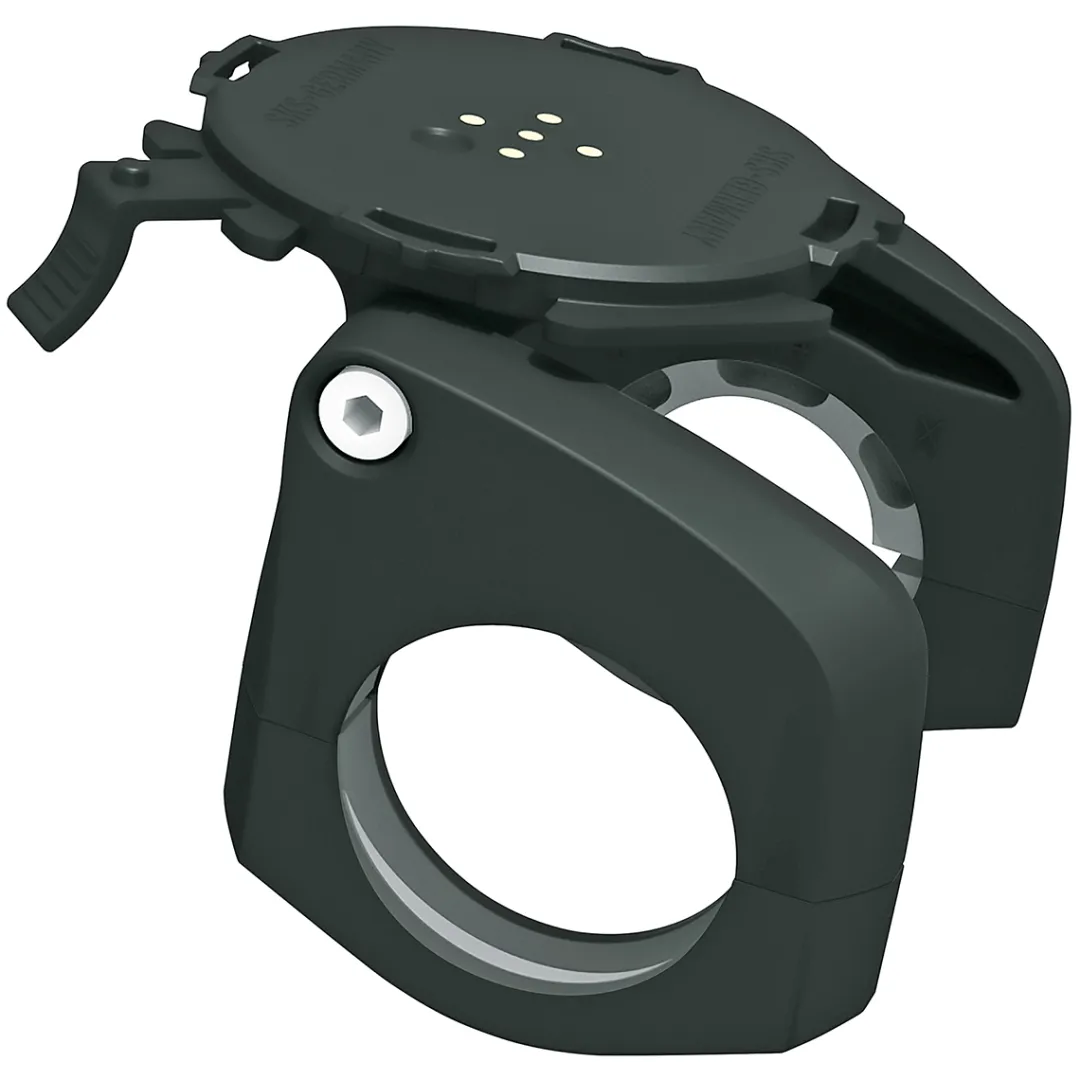

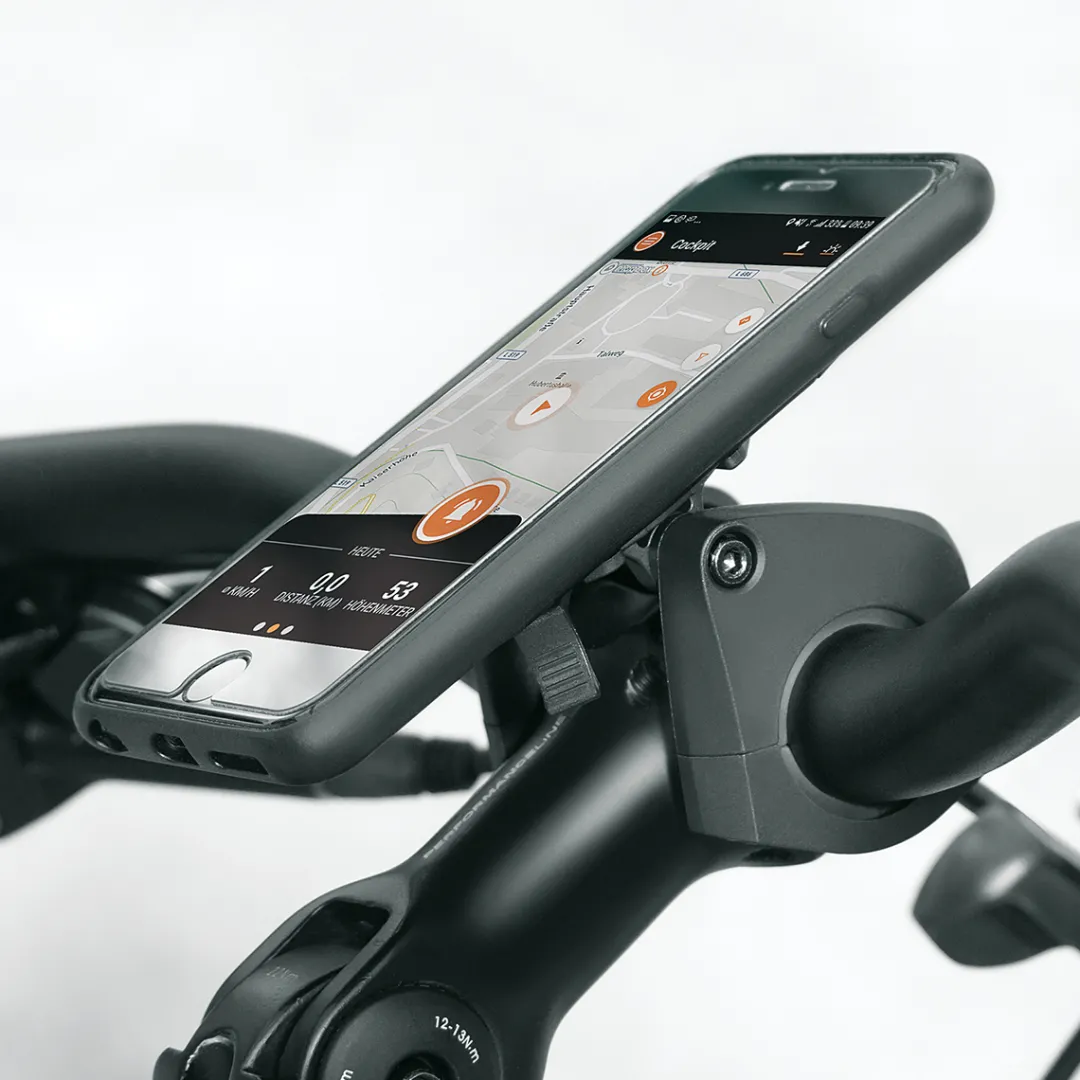

With this COMPIT mount, SKS offers a stable mounting base for SKS COMPIT series smartphone covers and bags. This allows you to safely mount your mobile phone on the handlebars of almost any bike. With just one motion, you can place your mobile phone on the holder in portrait or landscape format, and it can be removed just as quickly – thanks to the docking station with a bayonet lock. You can also adjust the angle of the holder for better readability of the mobile phone display.

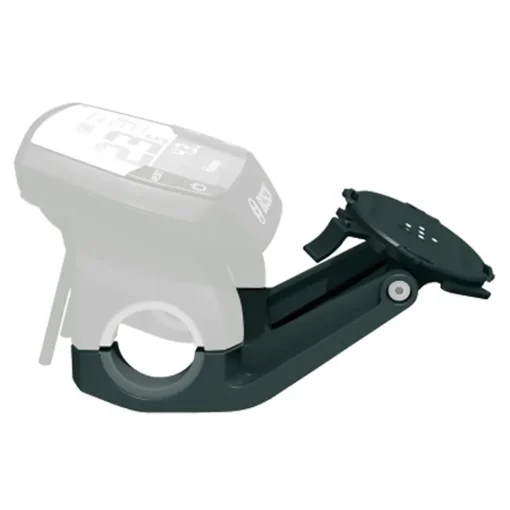

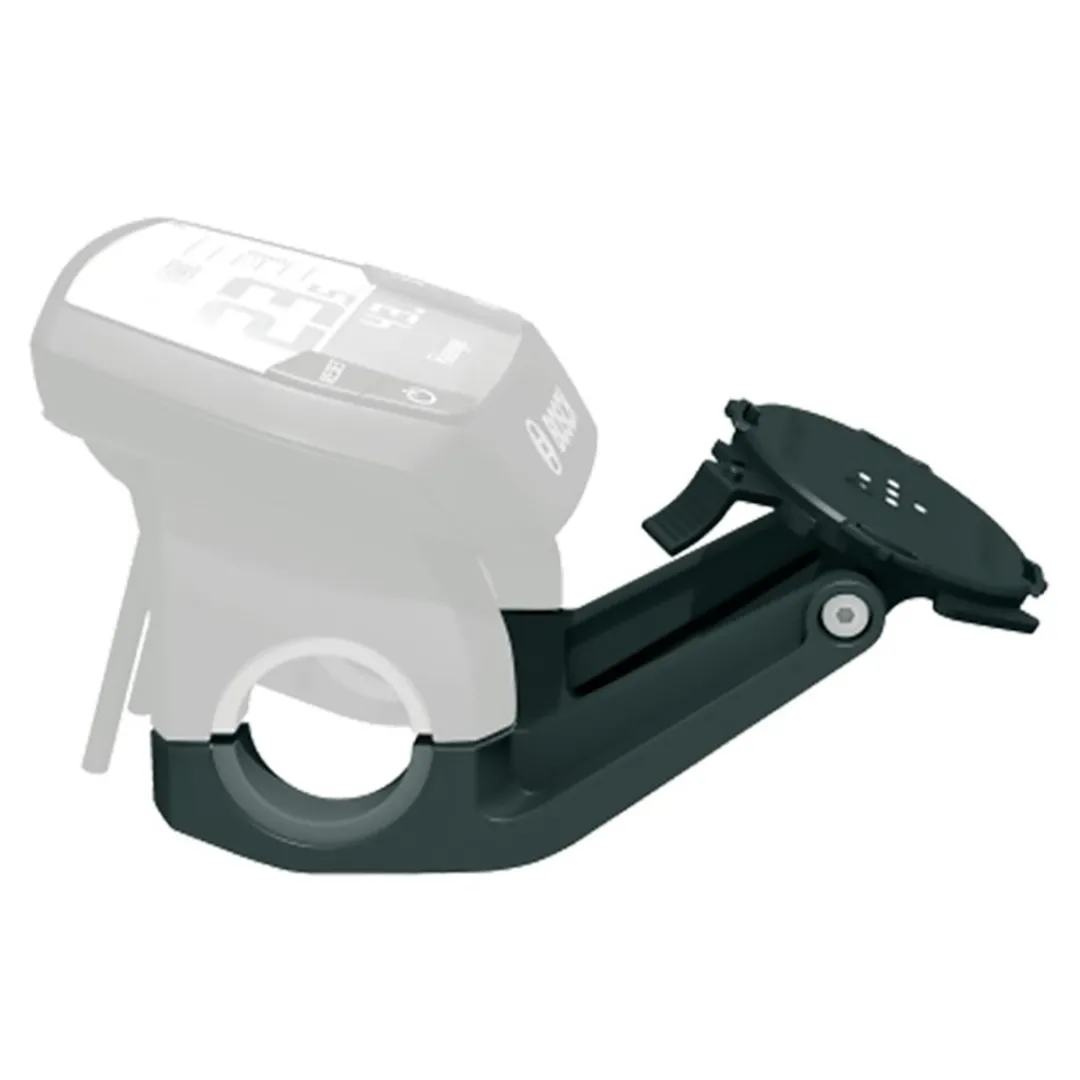

Different from its predecessor, this bracket offers you an additional mounting option for e-bikes with a centre display. For this purpose, two clamping arms are included in the scope of delivery, with which you can mount the docking station further back. This enables both devices to be attached at the same time.

Details:
Smartphone holder from the SKS COMPIT system
Enables secure mobile phone attachment to the handlebar (requires COMPIT cover or bag, see below)

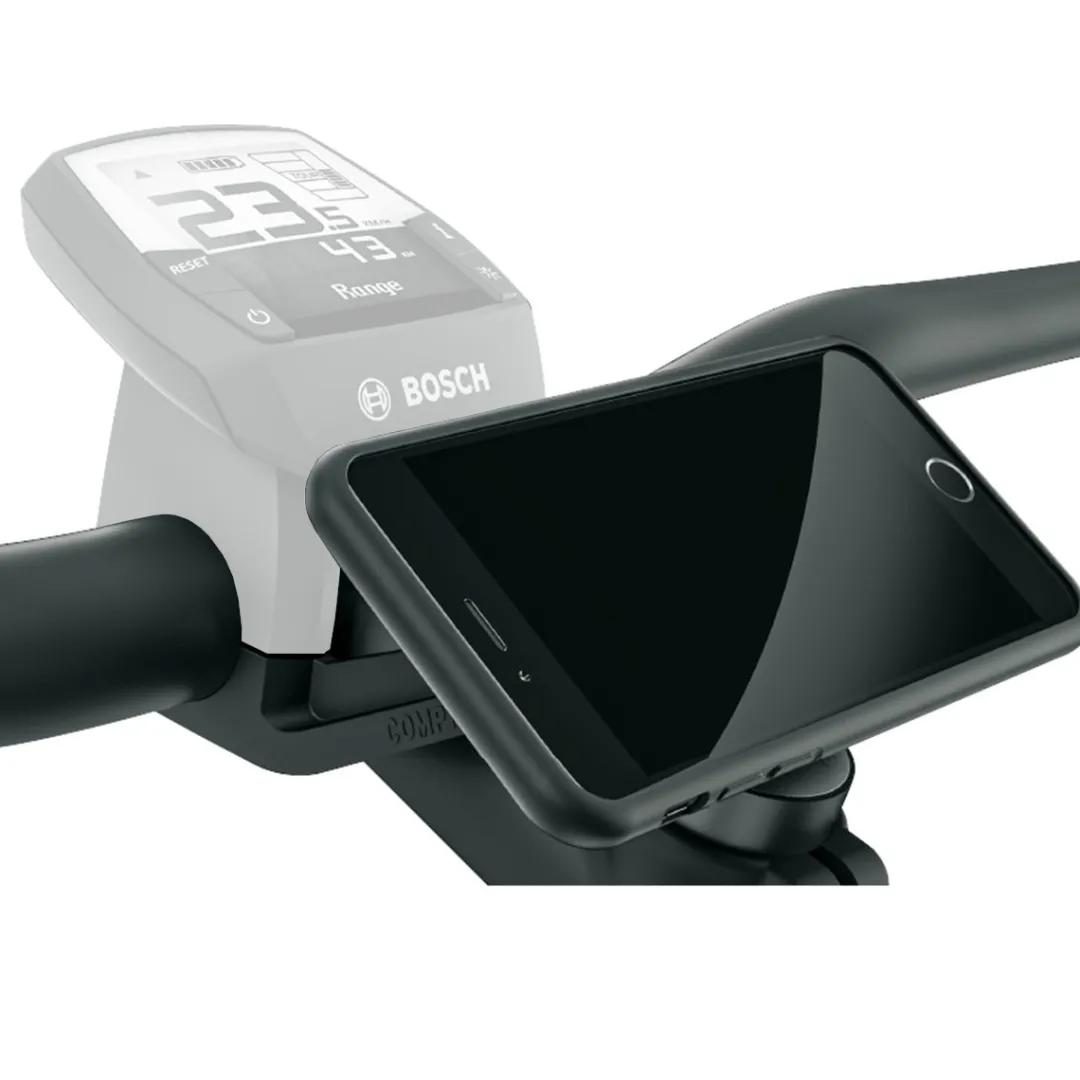

Additional mounting options for e-bikes with centre display (e.g. Bosch Intuvia/Nyon)*
Smartphone attachment possible in portrait or landscape format*
Tilt adjustable to optimise display readability
Suitable for all common handlebar diameters (adapter included)
Can be combined with SKS COMPIT Action Cam Adapter* (prod. code: 2280856)

Technical details:
Material: plastic
Fits handlebar diameters: Ø 22.2 mm / Ø 25.4 mm / Ø 31.8 mm
Stem clamp width: max. 49 mm (without clamping arms and spacers)
Distance between clamping arms: max. 80 mm (with spacers)

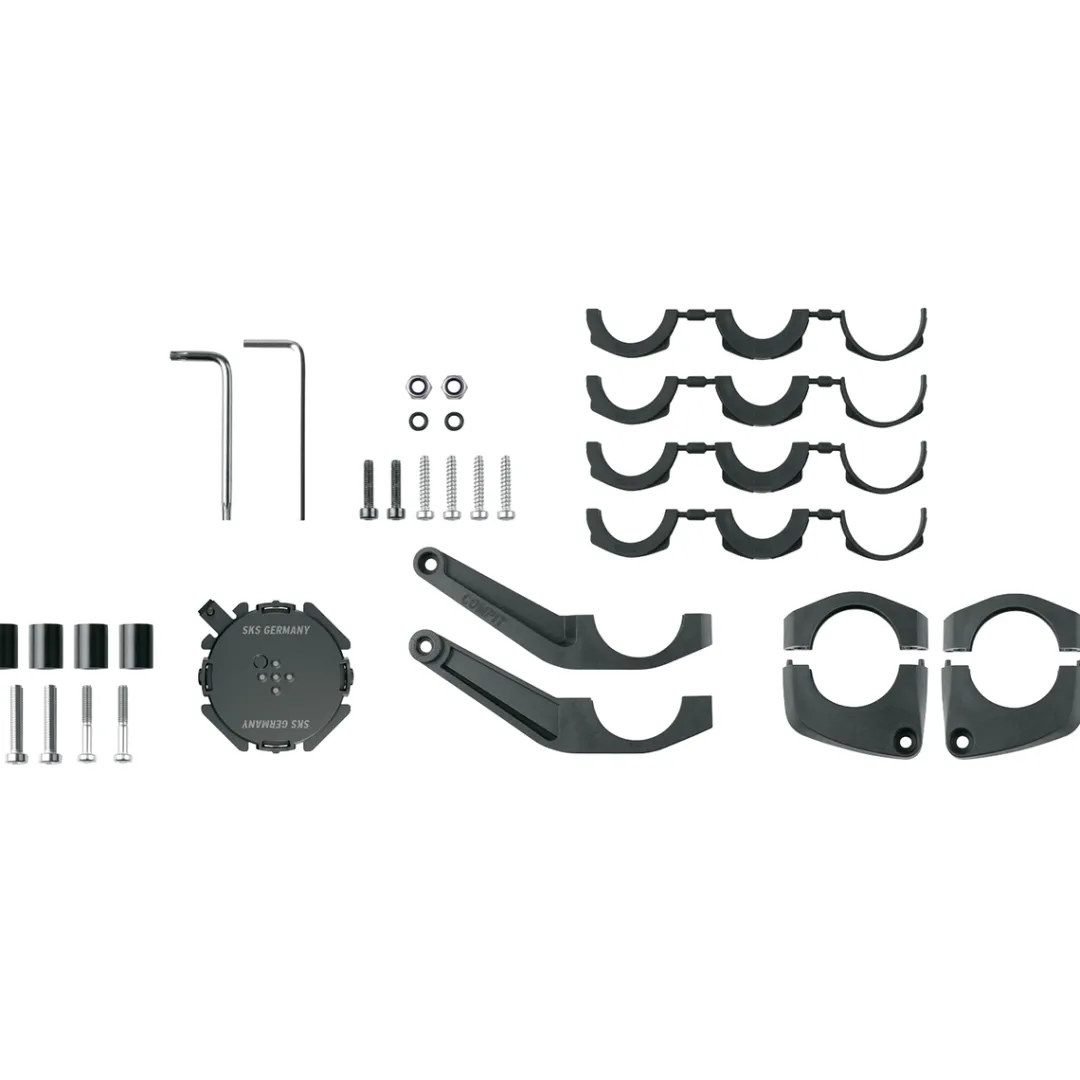

In the box:
1 SKS GERMANY COMPIT smartphone holder
4 reducer sleeves (for handlebar Ø 31.8 mm)
4 reducer sleeves (for handlebar Ø 25.4 mm)
4 reducer sleeves (for handlebar Ø 22.2 mm)
2 clamping arms incl. mounting material (for when there is an e-bike centre display)
4 spacers (for when there is an e-bike centre display)
1 hex wrench (3 mm)
1 star wrench (TX20)

Compatible SKS smartphone cover and bags available at ROSE:
SKS GERMANY COMPIT smartphone cover (prod. code: 227862313)
SKS GERMANY COM/Smartbag Universal smartphone bag (prod. code: 2307468)

*Attention:
With the Bosch Intuvia or Nyon display (up to model year 2020), you can mount the enclosed clamping arms directly on the display holder. With other centre displays, you can mount the clamping arms to the right and left of the handlebars. The distance between the clamping arms must not exceed 80 mm. Please check in advance how wide your centre display is, including the bracket on the handlebar.

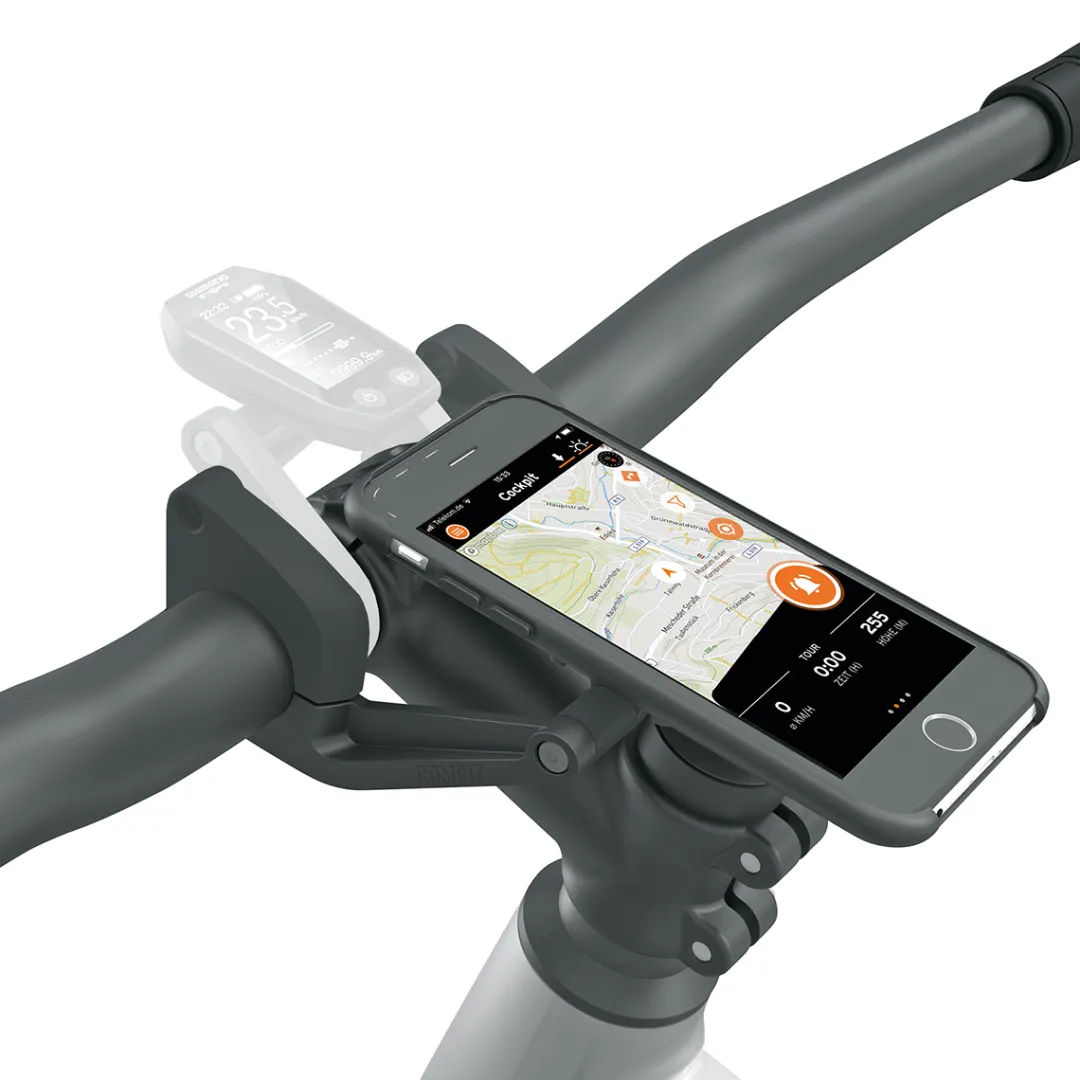

If your e-bike display is mounted on the stem/headset (e.g. Bosch Kiox), you can instead mount the COMPIT clamping arms facing forwards.

Depending on the individual mounting option, the size of your smartphone, and possibly the length of the stem, it may be advisable or necessary to mount your mobile phone in landscape format to ensure a clear view of both devices (smartphone and e-bike display).

Tip:
For bikes and e-bikes without a centre display, you can instead mount the clamping arms facing forwards in order to attach the separately available SKS COMPIT Action Cam Adapter (prod. code: 2280856).

If you are looking for a power bank for your smartphone in addition to the holder, which integrates seamlessly into the COMPIT system, you can find the matching set from SKS under prod. code: 2322735. The powerbank can also be ordered individually under prod. code: 2278622.
