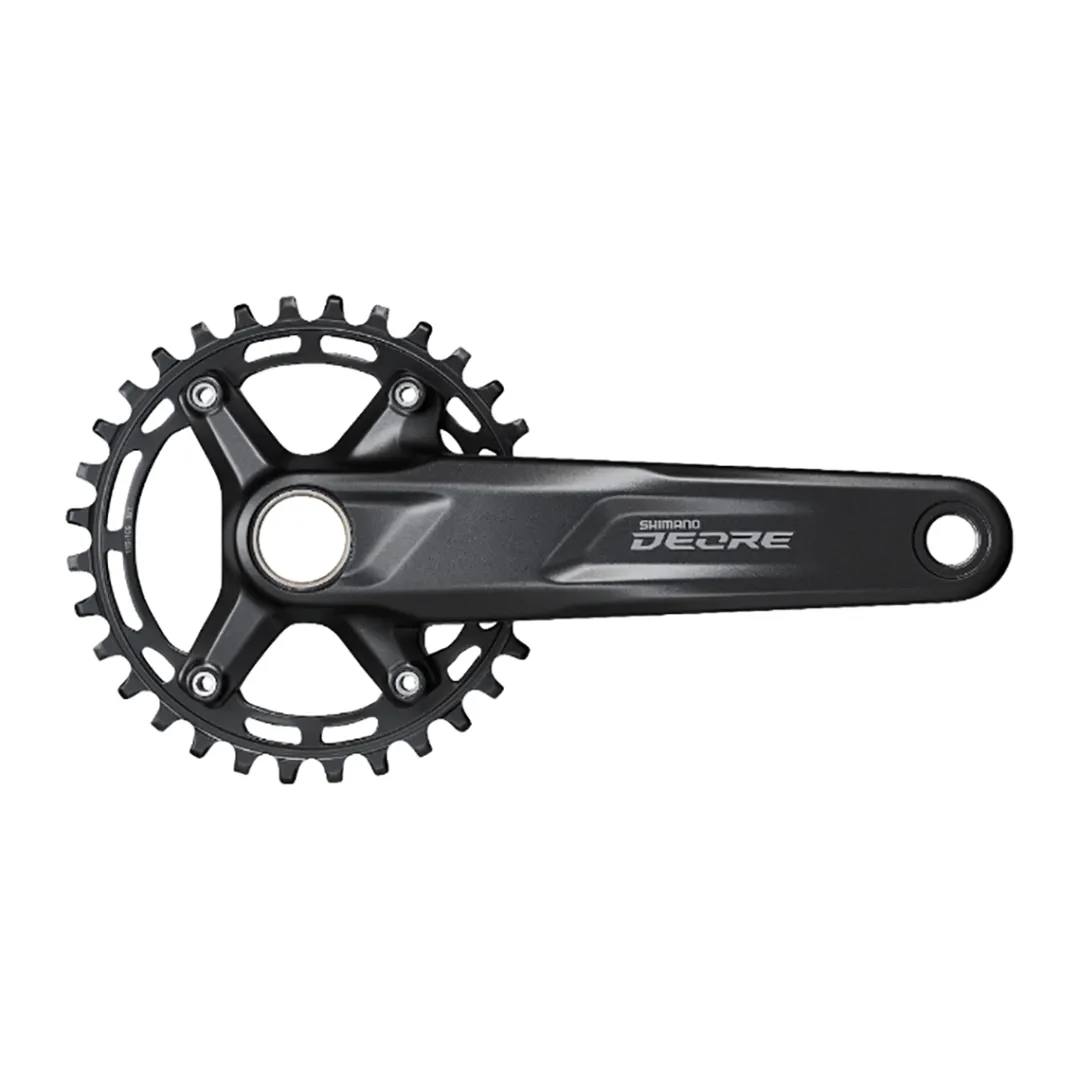

ROSE Bikes DEORE FC-M5100-1 Hollowtech II MTB Crankset 1 x 11/10-speed| MTB

The SHIMANO DEORE FC-M5100-1 MTB-crankset provides a reliable chainring setup with excellent chain guiding for 1 x 11-speed and 1 x 10-speed drivetrains. These two-piece cranks offer a chainring with either 30 or 32 teeth and a chainline of 52 mm, which is compatible with both 135/142 mm frame locknut dimensions and 148 mm frame locknut dimensions (BOOST).

Details:
1 x 11/10-speed crankset with integrated axle (Hollowtech II)
Two-piece crankset increases the stiffness of the chainset with low weight and ensures efficient pedal force transference

Specs:
Intended use: MTB
Series: DEORE
Model: FC-M5100-1
Type: Hollowtech II
Gear steps front: singlespeed
Gear steps rear: 11-speed or 10-speed
Gear ratio: 30- or 32-tooth chainring
Bolt circle: 96 mm (4-hole, asymmetric)
Chainline: 52 mm (for 135/142 mm locknut dimensions (non-BOOST) and 148 mm for locknut dimensions for BOOST)
Q factor: 178.5 mm
Compatible chains: SHIMANO 11-speed HG-X and SHIMANO 10-speed HG-X

Available in the following versions:
170 mm crank arm length, 30-tooth chainring
170 mm crank arm length, 32-tooth chainring
175 mm crank arm length, 30-tooth chainring
175 mm crank arm length, 32-tooth chainring
Please indicate your choice.

In the box:
1 SHIMANO DEORE FC-M5100-1 Crank 1 x 11/10-speed
Note: WITHOUT bottom bracket!

Optional bearing cups:
BSA: SM-BB52 (product code: 2058694)
PressFit: BB-MT500 (product code: 2234036)
