ROSE Bikes DEORE FC-M6000 Chainwheel 2 x 10-speed| Chainrings

Original SHIMANO chainwheel for the DEORE FC-M6000 crankset for 2 x 10-speed drivetrains.

Details:
Intended use: MTB

for SHIMANO Crankset:
DEORE FC-M6000-2 crankset (product code: 2260530)

SHIMANO part: Y-1WD24000

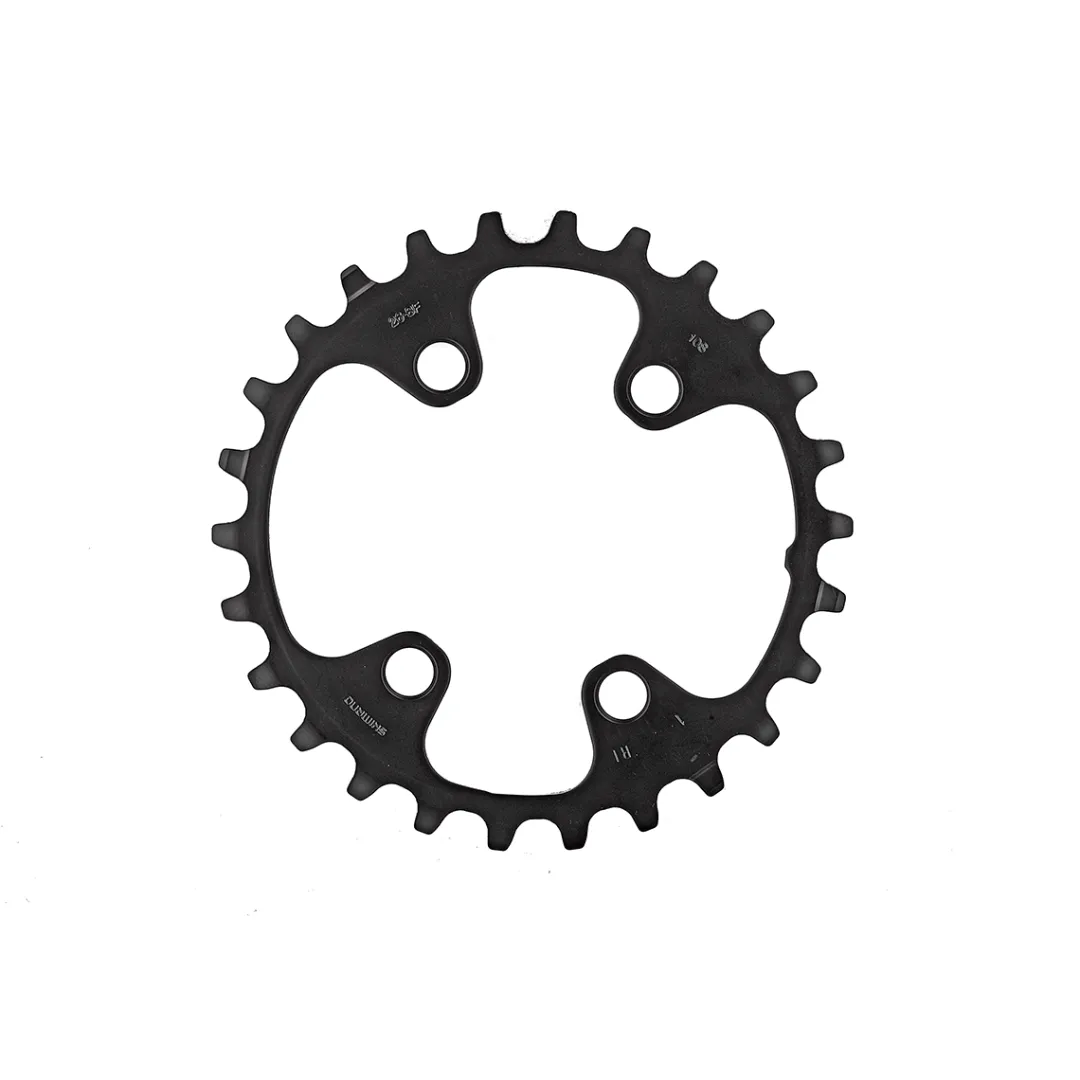

Gear ratio: 24 teeth (for a large chain wheel with 34 teeth)
Material: steel
Compatibility: 10-speed / double
Attachment: 4-bolt spider
Bolt circle: 64 mm
For chainline: 48.8 mm
Type: BE

SHIMANO part: Y-1WD26000
Gear ratio: 26 teeth (for a large chain wheel with 36 teeth)
Material: steel
Compatibility: 10-speed / double
Attachment: 4-bolt spider
Bolt circle: 64 mm
For chainline: 48.8 mm
Type: BF

SHIMANO part: Y-1WD28000
Gear ratio: 28 teeth (for a large chain wheel with 38 teeth)
Material: steel
Compatibility: 10-speed / double
Attachment: 4-bolt spider
Bolt circle: 64 mm
For chainline: 48.8 mm
Type: BG

SHIMANO part: Y-1WD98040
Gear ratio: 34 teeth (for a small chain wheel with 24 teeth)
Material: aluminium, fibreglass reinforced plastic
Compatibility: 10-speed / double
Attachment: 4-bolt spider
Bolt circle: 96 mm
For chainline: 48.8 mm
Type: BE

SHIMANO part: Y-1WB98010

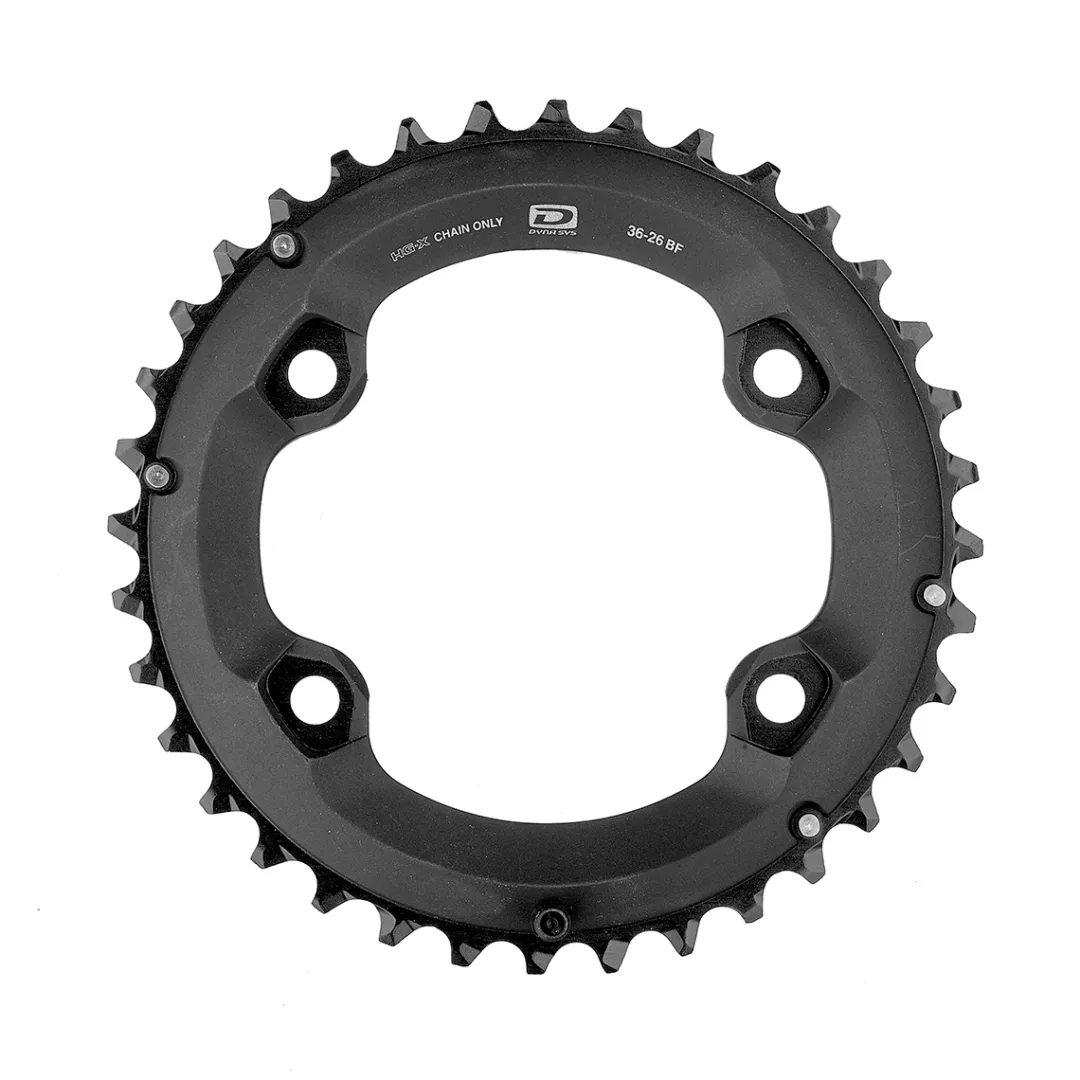

Gear ratio: 36 teeth (for a small chain wheel with 26 teeth)
Material: aluminium, fibreglass reinforced plastic
Compatibility: 10-speed / double
Attachment: 4-bolt spider
Bolt circle: 96 mm
For chainline: 48.8 mm
Type: BF

SHIMANO part: Y-1WD98030
Gear ratio: 38 teeth (for a small chain wheel with 28 teeth)
Material: aluminium, fibreglass reinforced plastic
Compatibility: 10-speed / double
Attachment: 4-bolt spider
Bolt circle: 96 mm
For chainline: 48.8 mm
Type: BG

In the box:
1 SHIMANO DEORE FC-M6000 2 x 10-speed Chainwheel
