ROSE Bikes DEORE FC-MT500 Chainwheel 3 x 10-speed| Chainrings

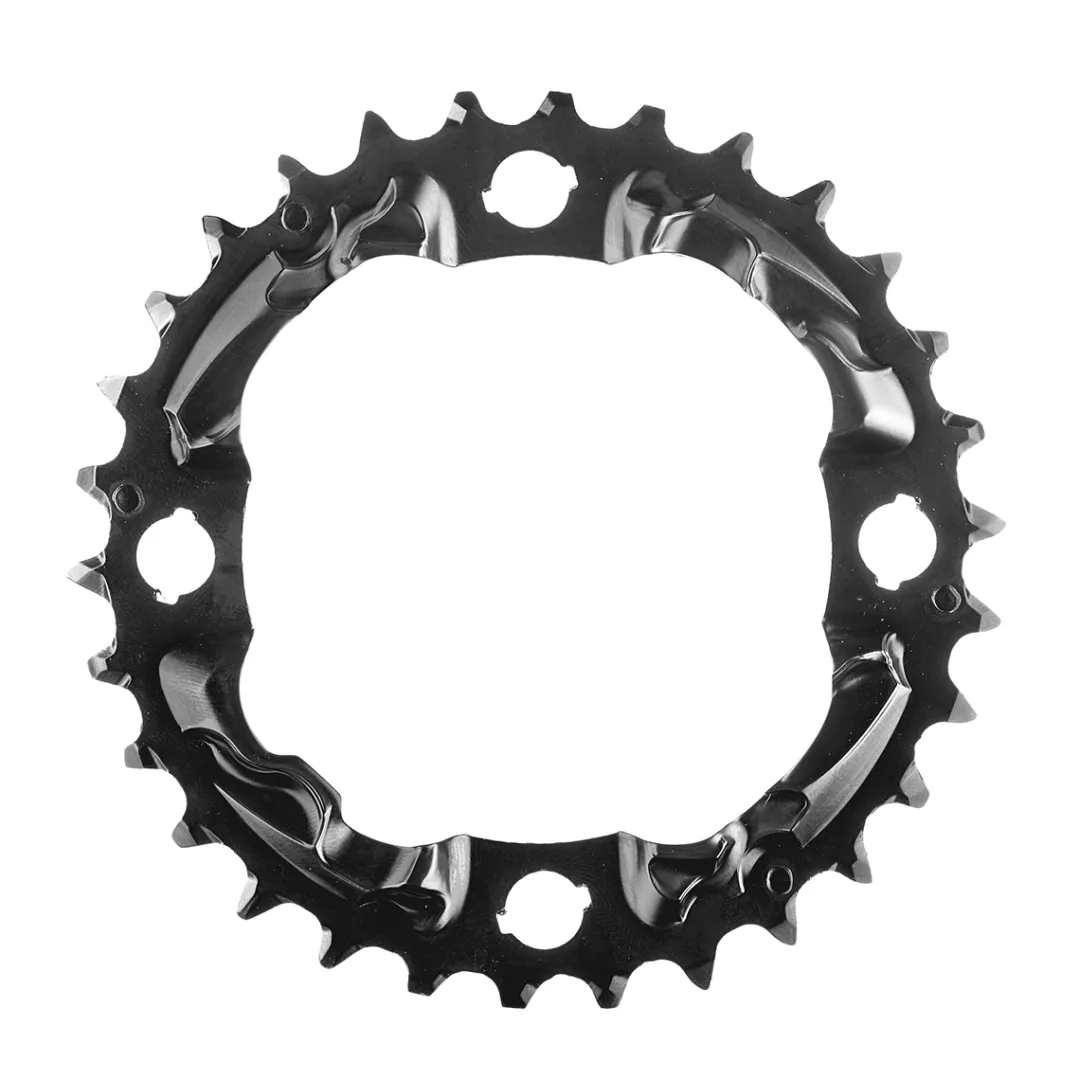

Original SHIMANO chainwheel for the DEORE FC-MT500 crankset for 3 x 10-speed drivetrains.

Details:
Intended use: MTB

For SHIMANO Crankset:
DEORE FC-MT500 crankset (product code: 2234276)

Also fits these cranks:
FC-M612
FC-M523

SHIMANO part: Y-1VB98020
Gear ratio: 40 teeth (for 40-30-22 teeth gear combination)
Material: aluminium
Compatibility: 10-speed / triple
Attachment: 4-bolt spider
Bolt circle: 96 mm
For chainline: 50 mm
Type: AN
Compatible with chain guard: no

SHIMANO part: Y-1VB98010
Gear ratio: 30 teeth (for 40-30-22 teeth gear combination)
Material: steel
Compatibility: 10-speed / triple
Attachment: 4-bolt spider
Bolt circle: 96 mm
For chainline: 50 mm
Type: AN

In the box:
1 SHIMANO DEORE FC-MT500 3 x 10-speed chainwheel

Note:
The small 22 teeth chainwheel for the SHIMANO DEORE FC-MT500 crankset can be found under product code 2001340.
The 40 teeth chainwheel for the DEORE FC-MT500 with chain guard can be found under product code: 2300800.
