For the connection to the Bosch Kiox 300/500 display or the SmartphoneGrip from the Bosch eBike Smart System, the display mount is required as an adapter to be able to attach the components to the handlebar mount.

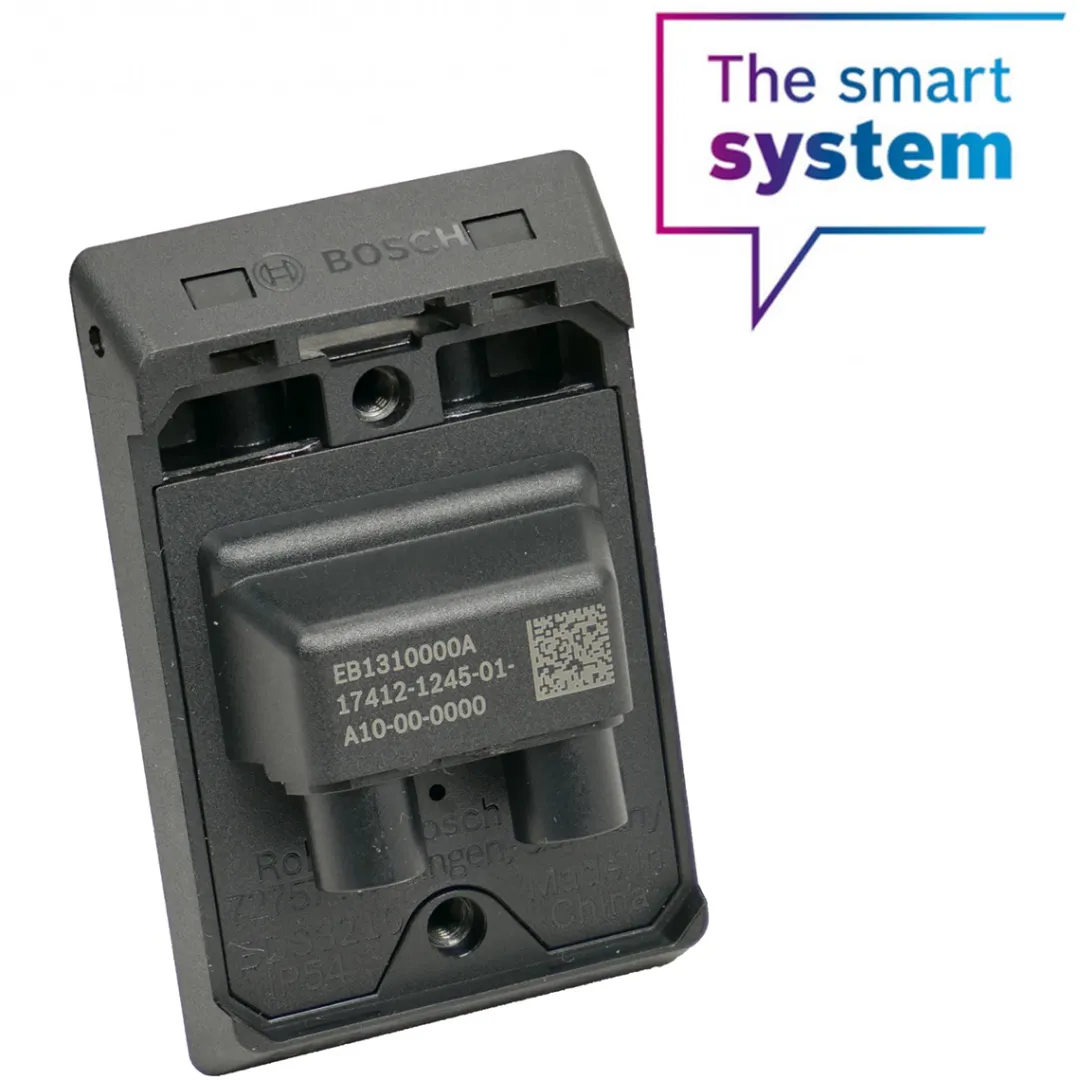

To connect the LED Remote and motor control, the Smart System display cables are plugged into the two connection sockets on the back side. Depending on the positioning of the holder and the cable routing, the Bosch display holder is available in two connection versions, one connecting at the back and one at the front (prod. code 2330999).

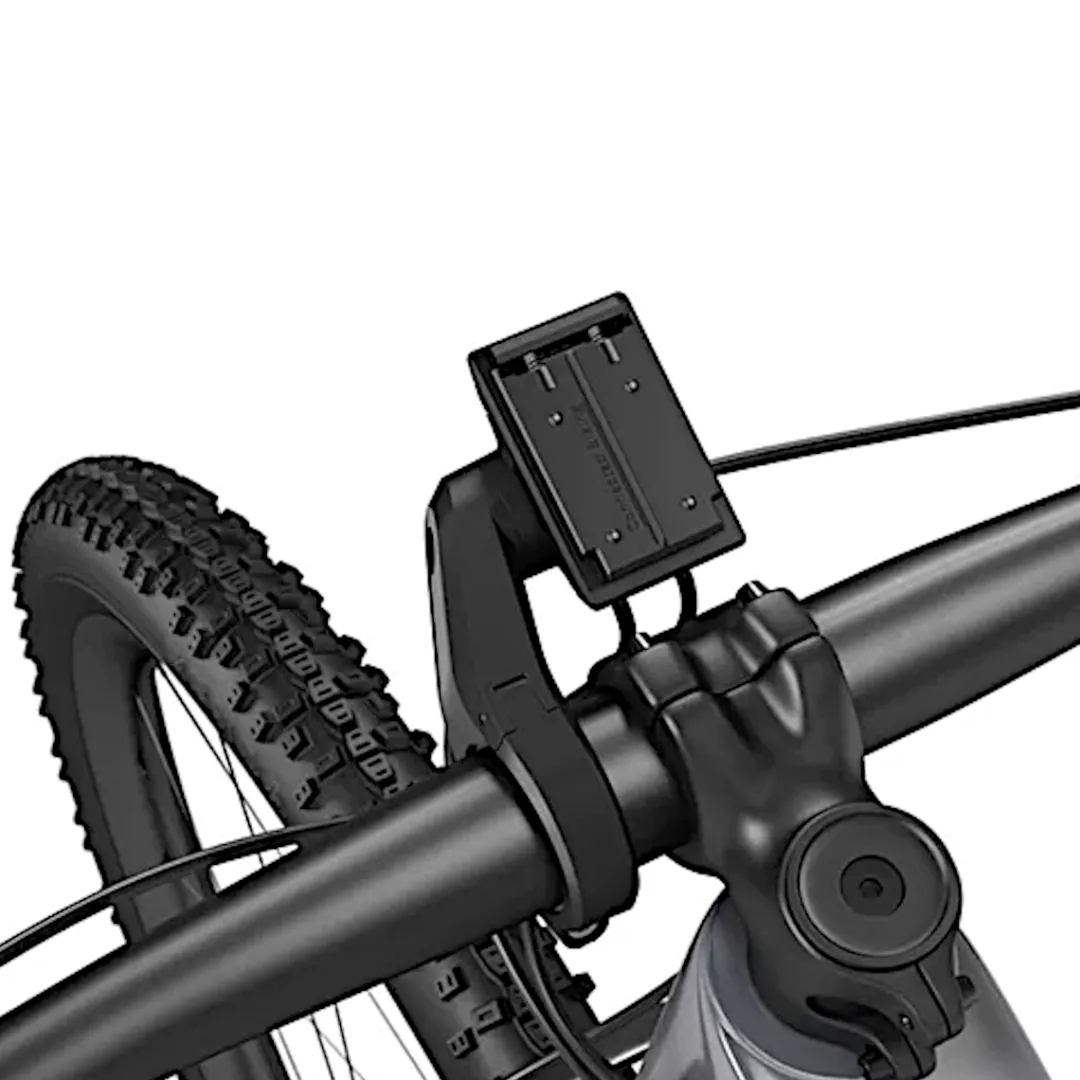

The adapter version with cable going out the back (against the direction of travel) is suitable for cable routing with the holder positioned in front of the handlebar. The spring mechanism and the Bosch logo always point in the direction of travel.

Details:
Display mount for Bosch eBike Smart System BES3
Enables the use of Kiox 300/500 e-bike displays or SmartphoneGrip (BSP3200)
For e-bikes with the 2022 Bosch Smart System or later
Cable outlet for routing to the rear
Screws onto the Bosch handlebar bracket

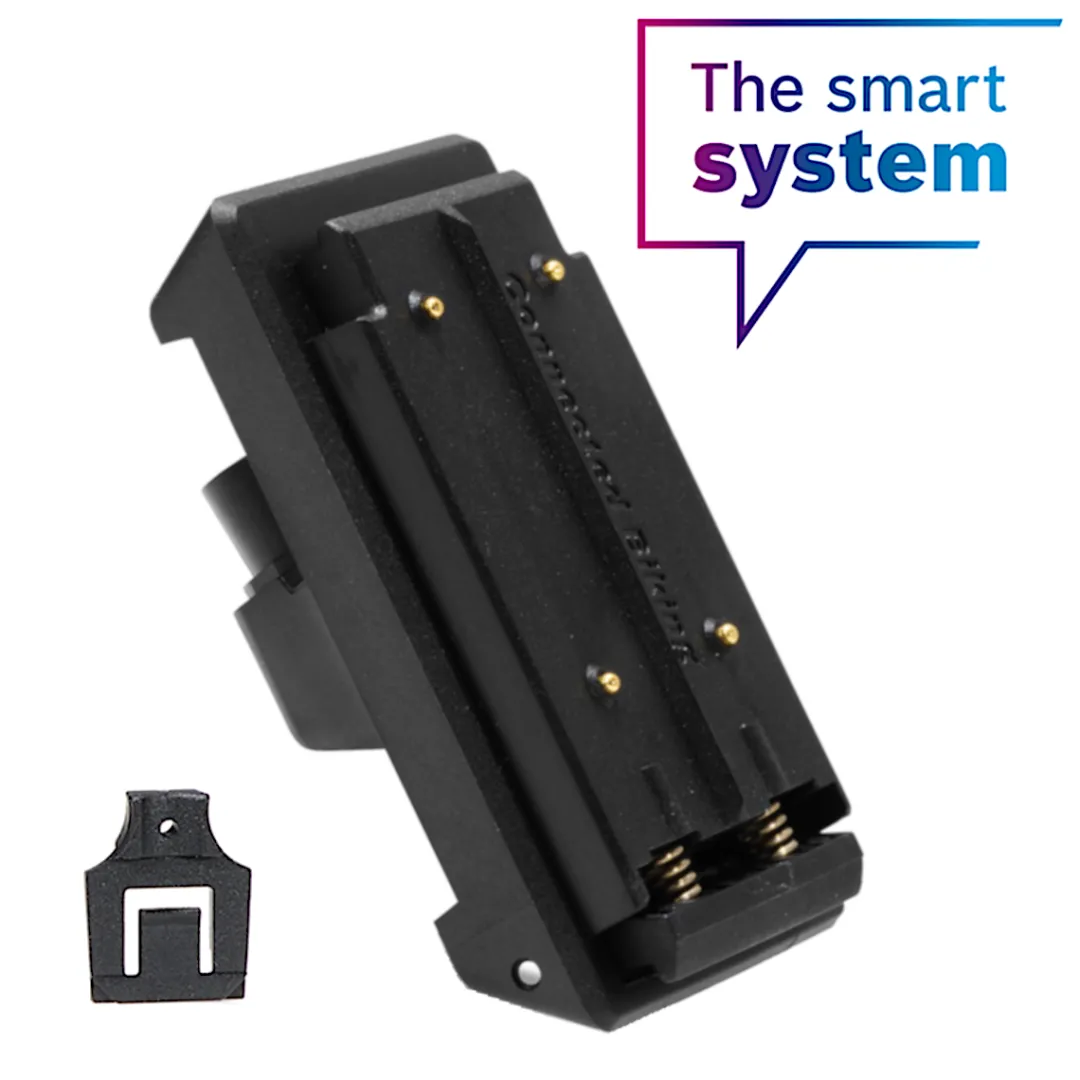

Spring release for easy detachment and attachment of the display
Incl. screwable removal lock for the Kiox 300/500 display
Power supply via the e-bike on-board network
System connection and control via the LED Remote

Technical details:
Intended use: E-bike
Model: BDS3210
Material: plastic, metal
Compatibility: Holder for display mount (BDS3620/ BDS3630); Kiox 300/500 (BHU3600/ BHU3700); SmartphoneGrip (BDS3630)

In the box:
1 Bosch display mount adapter, rear cable outlet
Comes with a safety plate

Note:
The Bosch display mount is NOT compatible with the Kiox display BUI330 and the Compact control unit.
