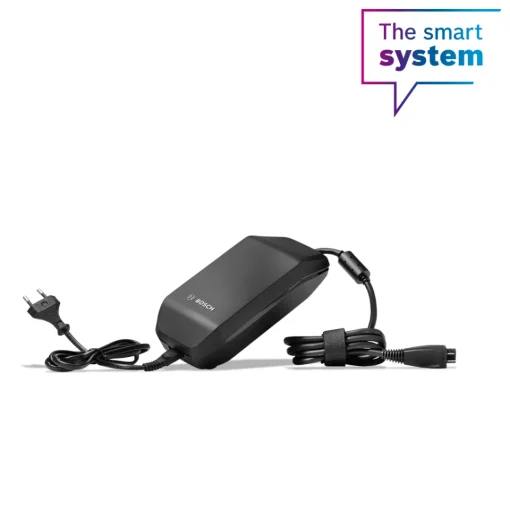

ROSE Bikes E-bike Charger 4 A for Smart System| Battery Accessories

Original Bosch e-bike charger for the smart system from model year 2022.
The 4 A Charger can be used to charge the Bosch PowerTube & PowerPack Frame batteries from the Smart System. Older batteries, both PowerTubes and PowerPacks, are NOT compatible.

Details:
Original Bosch e-bike charger
Compatible with Bosch Smart System and PowerTube batteries 500/625/750 as well as PowerPack Frame batteries 545/725 (from model year 2022)

Compatible ROSE e-bikes:
ROSE MAYOR PLUS (from model year 2022)

Technical details:
Voltage: 220 – 240 V AC
Maximum charging current: 4 A
Operating temperature: 0 to +40 °C
Storage temperature: +10 to +40 °C
Dimensions: approx. 202 × 90 × 53 mm (L × W × H)
Cable lengths: mains cable approx. 1.5 m; battery cable approx. 1.0 m
Weight: approx. 700 g

Charging times:
PowerTube 500 (for Smart System): 50% in approx. 1.7 h; 100% in approx. 4.5 h
PowerTube 625 (for Smart System): 50% in approx. 2.1 h; 100% in approx. 5.4 h
PowerTube 750 (for Smart System): 50% in approx. 2.3 h; 100% in approx. 6 h
PowerPack 545 Frame (frame battery for Smart System): 50% in approx. 1.8 h; 100% in approx. 4,9 h
PowerPack 725 Frame (frame battery for Smart System): 50% in approx. 2.3 h; 100% in approx. 6 h

In the box:
1 Bosch e-bike charger 4 A for Smart System
incl. EU mains cable and operating instructions.

ATTENTION:
NOT compatible with Bosch eBike System 2 batteries!
