ROSE Bikes EU Trailer Hitch| Bike Trailers

The Weber bicycle hitches, which have been tried and tested for years, impress with their high level of safety and unbeatable ease of use thanks to the practical bayonet closure system.

This special version of the e-hitch is for use on bikes with special Ursus stand (fitted on Derby, Kalkhoff, Rixe and Raleigh). The hitch can also be fitted to the Hebie FIX 663 rear kickstand KSA 18 (if necessary with additional optional accessories).

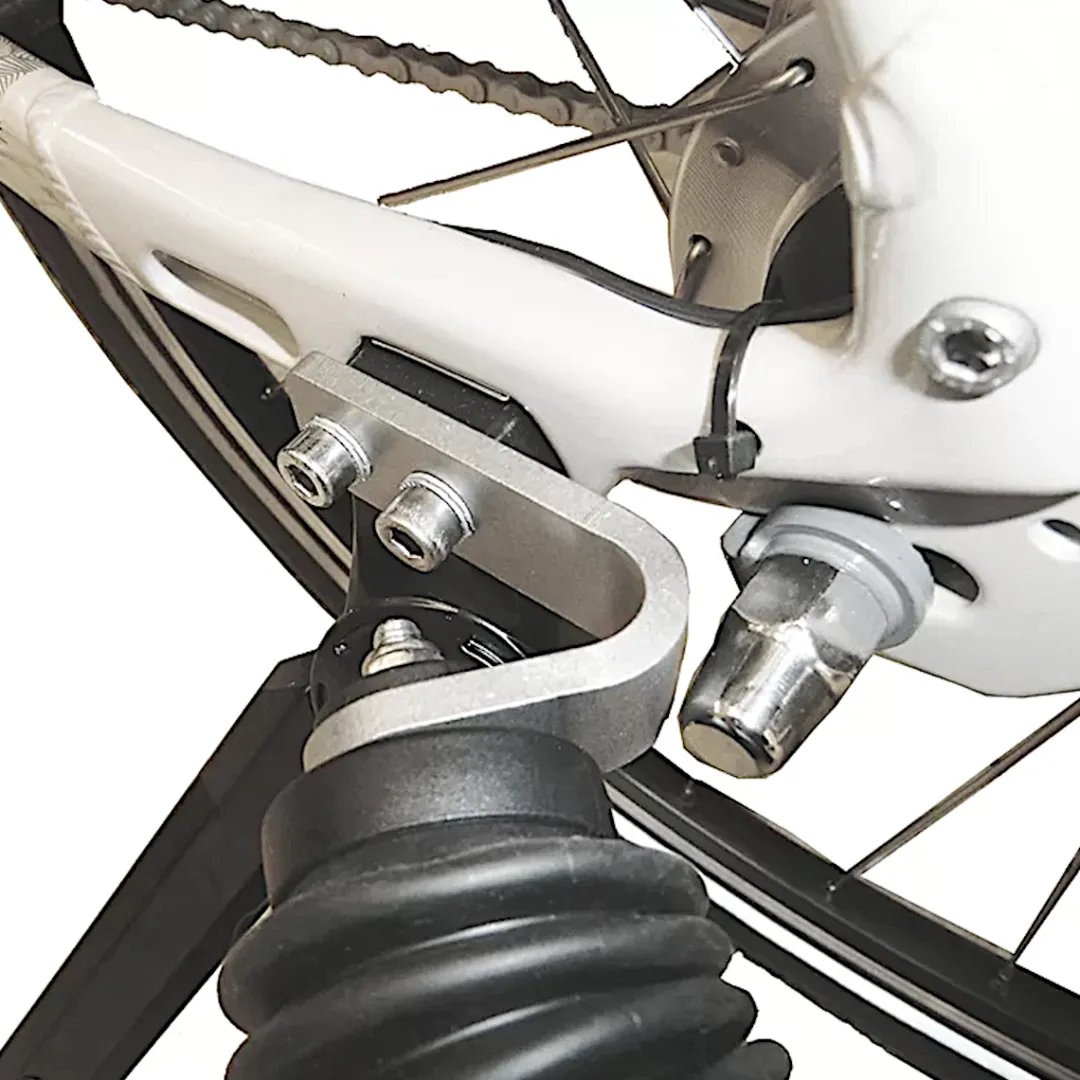

The hitch is attached with screws in front of the rear stand. The mounting bolts are replaced with the included bolts with thread-locking varnish.
Do not use for bikes made from carbon or for carbon dropouts and carbon rear triangles.

Details:

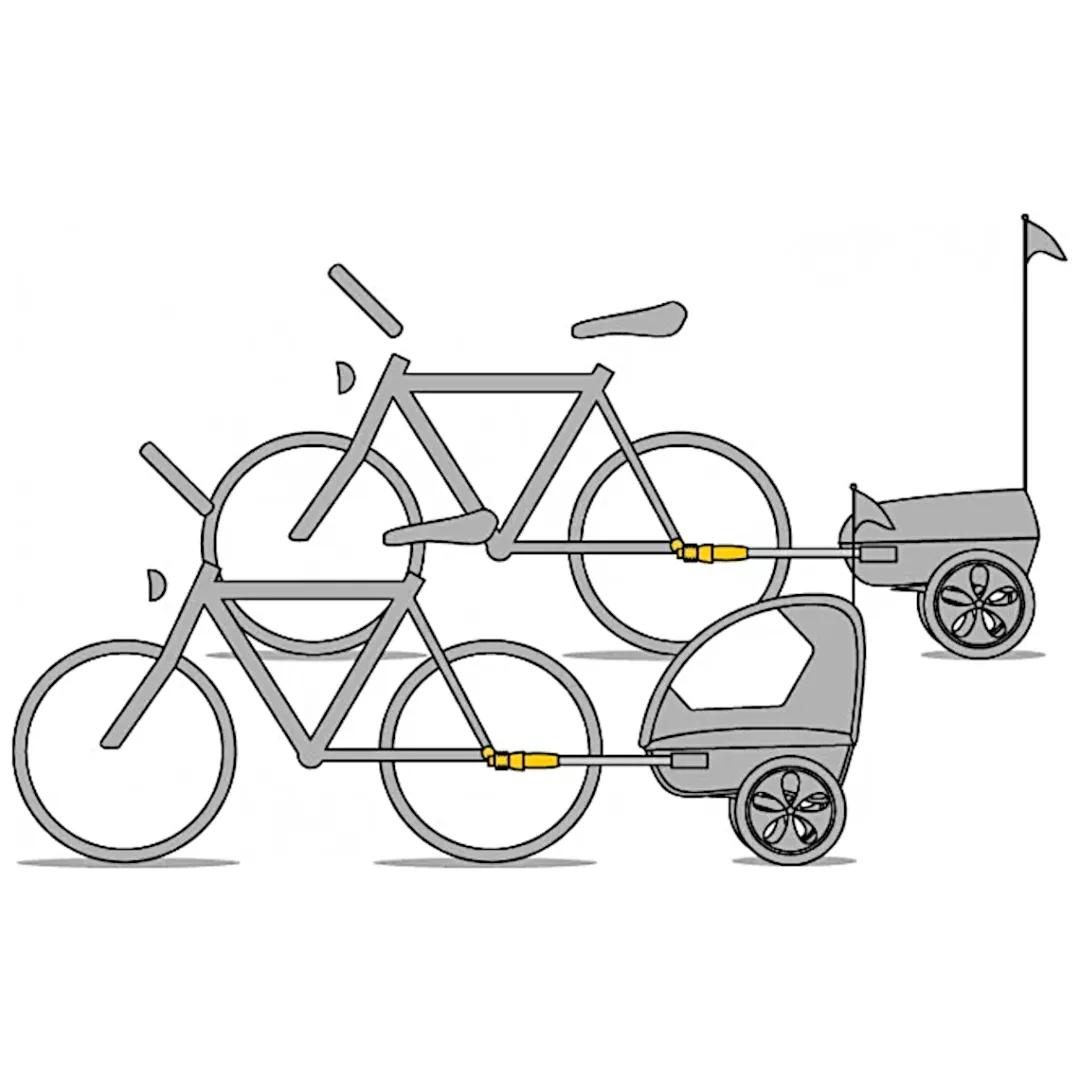

For cargo and child trailers
Suitable for all Weber drawbars and Weber drawbar connections
With Weber bayonet connector
Fits all wheel sizes
High-quality materials
Easy to mount

Technical details:
Material: Stainless steel, galvanised steel, glass fibre reinforced polyamide, rubber
Weight: approx. 240 g
Bore hole distance base plate: 18 and 25 mm (hole centre-hole centre)
Approved Permissible max. trailer load: 80 kg
Permissible bearing load on hitch point: 6.5 kg

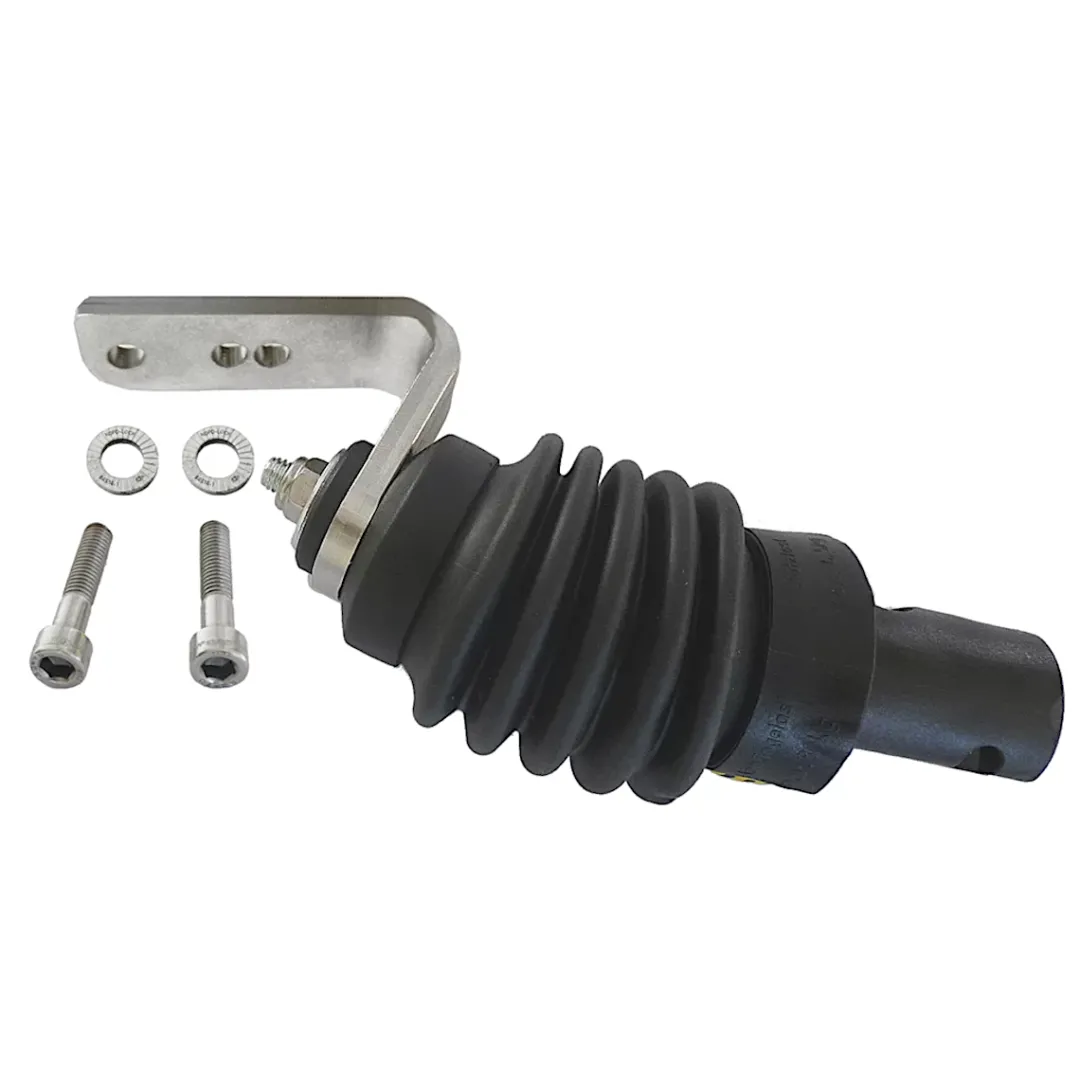

In the box:
1 Weber EU hitch incl. joint piece
2 M6x30 screws with thread-locking varnish
2 Nord Lock serrated lock washers
Mounting instructions

Note:
Suitable for bike trailers with/without brakes for transporting loads or children. Only authorised for bicycles and e-bikes/pedelecs up to max. 25 km/h.
Not approved for S-pedelecs and motorized use!
