ROSE Bikes FADE R Freehub Body SHIMANO Microspline| Accessories

The replacement freehub body by Newmen allows you to convert your FADE R hub to the SHIMANO Microspline freehub standard or to replace a worn freehub body in just a few simple steps. The two internal cartridge bearings are included.

The Newmen FADE R hubs are among others fitted from the model year 24 of the BACKROAD, XLITE and Reveal. You will find a detailed list below.

Technical details:
Manufacturer: Newmen
Hub system: Newmen FADE R
Freewheel standard: SHIMANO Microspline
Pawl system with 3 pawls
Double-sealed cartridge bearings
Material: Aluminium

Cassette compatibility:
SHIMANO 12-speed Micro Spline MTB cassettes

Hubs among others fitted in the following ROSE bikes (from MY24):
BACKROAD FF
BACKROAD
BACKROAD AL
XLITE 06
XLITE 04
Reveal 06
Reveal 04
Reveal AL

Note:

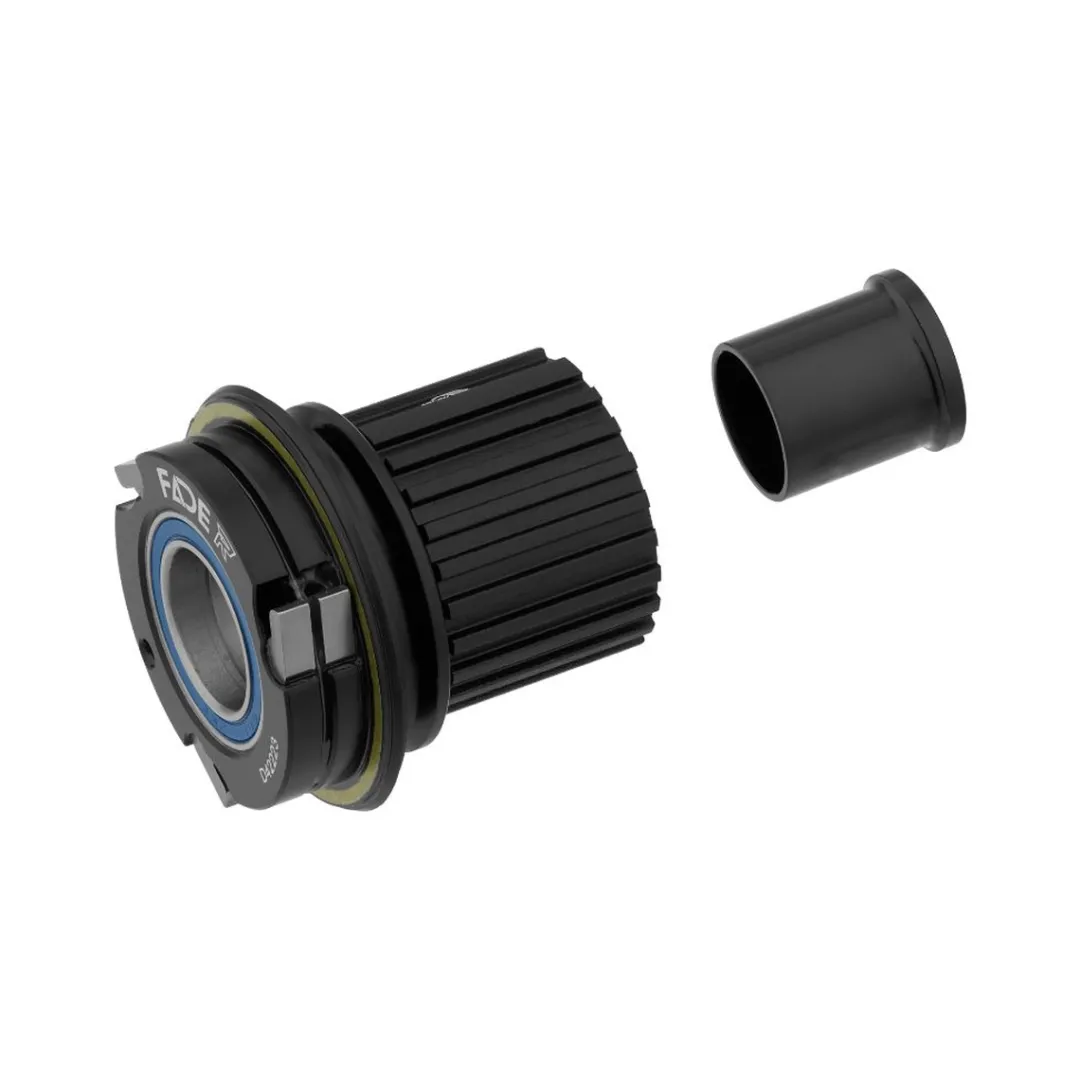

You can tell whether the FADE or FADE R freewheel is fitted to your hub by the corresponding print on the front of the freehub body (see illustration) and the larger diameter of the freehub housing (FADE R approx. 48 mm, FADE approx. 43 mm).

In the box:
1 Newmen FADE R freehub body SHIMANO Microspline incl. ball bearing
1 spacer ring
1 end cap
