ROSE Bikes FADE R Freehub Body SRAM XDR| Accessories

The replacement freehub body by Newmen allows you to convert your FADE R hub to the SRAM XDR freehub standard or to replace a worn freehub body in just a few simple steps. The two internal cartridge bearings are included.

The Newmen FADE R hubs are among others fitted from the model year 24 of the BACKROAD, XLITE and Reveal. You will find a detailed list below.

Technical details:
Manufacturer: Newmen
Hub system: Newmen FADE R
Freewheel standard: SRAM XDR
Pawl system with 3 pawls
Double-sealed cartridge bearings
Material: Aluminium

Cassette compatibility:
SRAM XDR 12-speed road cassettes
SRAM XD 11-/12-speed MTB cassettes (requires separately available 1.85 mm spacer ring!)
as well as other SRAM XDR/XD compatible cassettes.

Hubs among others fitted in the following ROSE bikes (from MY24):
BACKROAD FF
BACKROAD
BACKROAD AL
XLITE 06
XLITE 04
Reveal 06
Reveal 04
Reveal AL

Note:

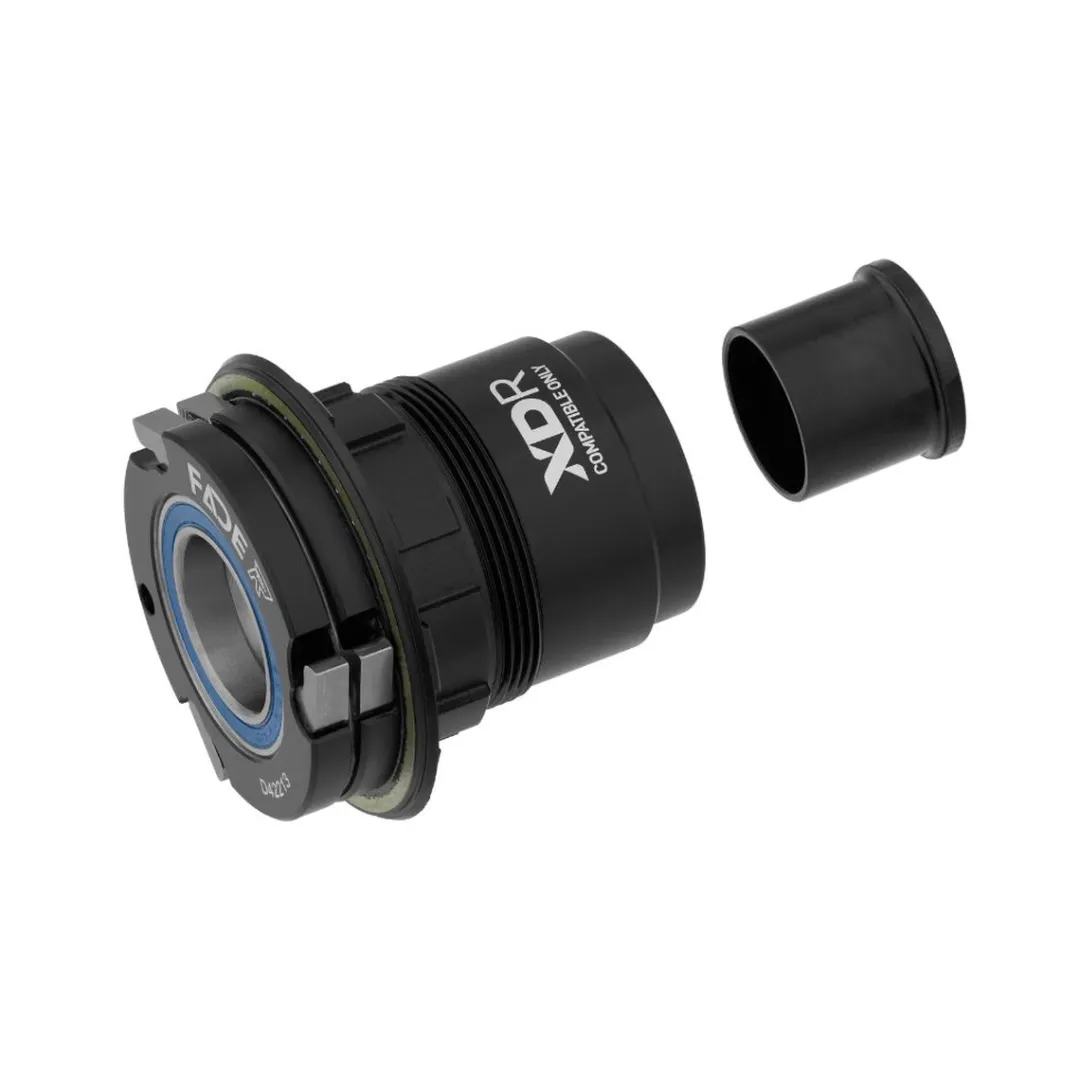

You can tell whether the FADE or FADE R freewheel is fitted to your hub by the corresponding print on the front of the freehub body (see illustration) and the larger diameter of the freehub housing (FADE R approx. 48 mm, FADE approx. 43 mm).
A replacement for the older FADE freewheel can be found under prod. code 2311963.

In the box:
1 Newmen FADE R freehub body SRAM XDR incl. ball bearing
1 spacer ring
1 end cap
