ROSE Bikes FAST RELEASE ADAPTER for Luggage Rack Mounting| Accessories

For all those who only occasionally need their racktime or Tubus luggage rack and want to attach it to the bike and remove it again quickly: This is exactly what the FAST RELEASE ADAPTER from racktime offers.

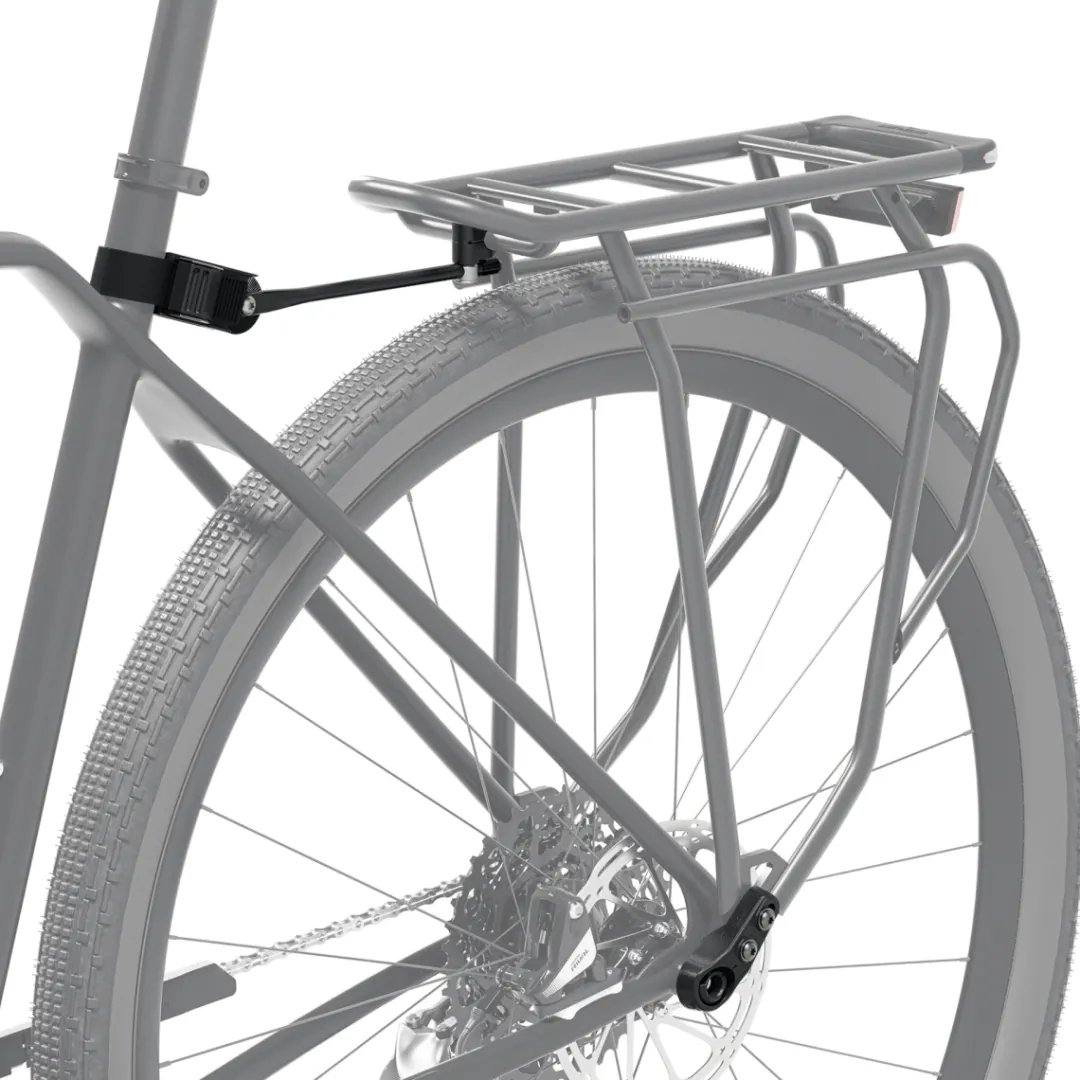

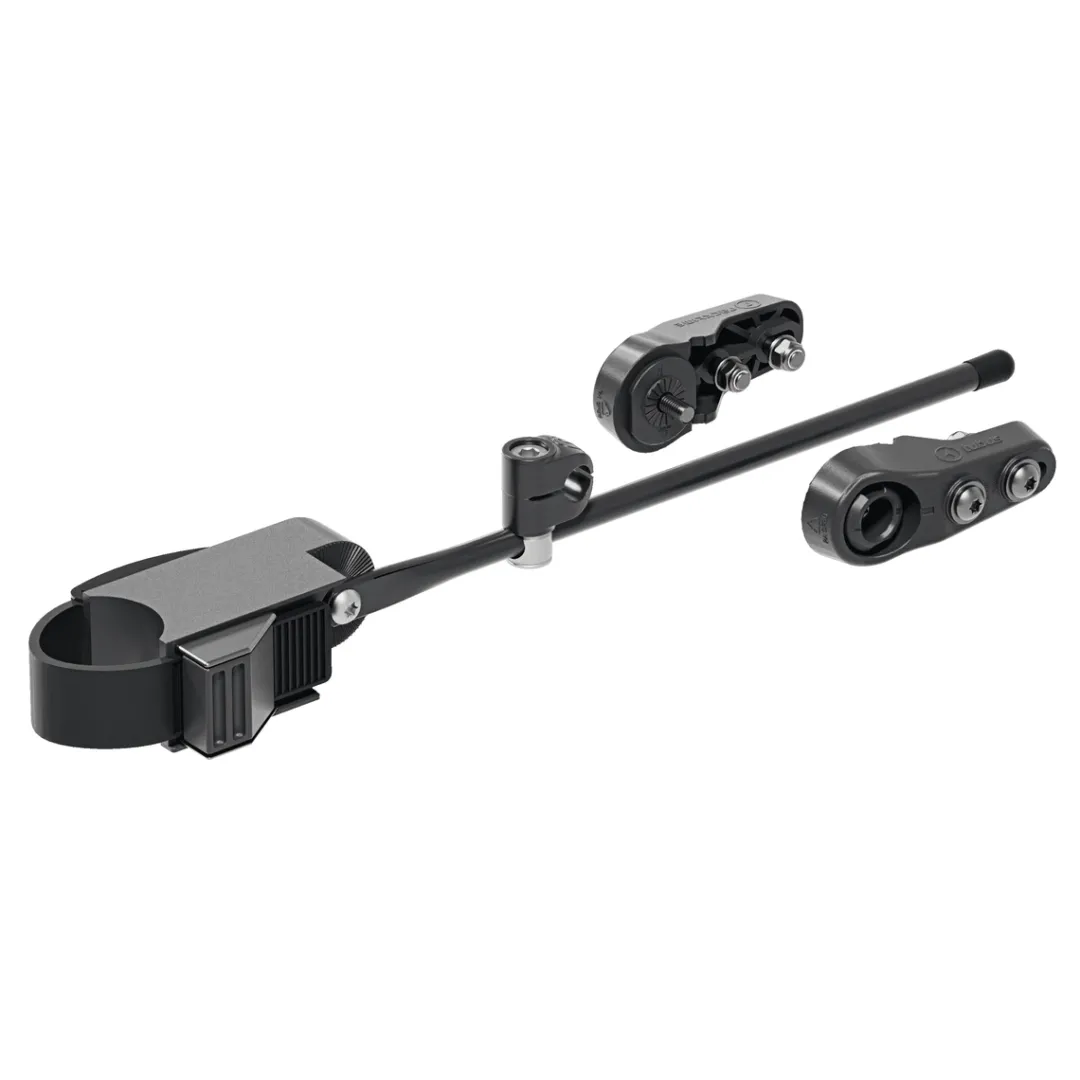

For this, the set includes two adapters that are fitted to the base plates of your compatible rack. The corresponding adapter pins are screwed into the designated points on the dropout of your bike and remain there permanently. They allow the base plate adapters to be attached and removed quickly. You can also securely attach your luggage rack to the seat tube or seat post with the included quick-release tube clamp and mounting brace.

Equipped like this, you can mount your luggage rack on your bike in just a few simple steps and remove it just as quickly after use.

Details:
Enables quick attachment and removal of your luggage rack
Compatible with many racktime and Tubus luggage racks (see list below)
Ideal for occasional luggage rack use
Stable construction enables high load capacity

Technical details:
Material: aluminium, plastic
Max. load: 25 kg
Weight: approx. 230 g

Compatible racktime rear racks:
STANDIT ECO 2.0 | Art. 090120-001
STANDIT TOUR ECO 2.0 | Art. 090125-001
BOOSTIT 2.0 | Art. 090718-001
BOOSTIT 2.0 TOUR | Art. 090720-001
STANDIT 2.0 | Art. 091110-001, Art. 091210-001, Art. 091225-001
STANDIT 2.0 TOUR | Art. 091215-001
LIGHTIT 2.0 | Art. 092210-001
LIGHTIT 2.0 TOUR | Art. 092310-001

Compatible Tubus rear racks:
AIRY | Art. 33000
CARGO Classic | Art. 11000, Art. 12000 (with 1 mm washer)
COSMO | Art. 70000
FAT | Art.449010-001
LIVIANO | Art. 350000-001
LOGO Classic | Art. 70008, Art. 80001, Art. 80502
PADUA | Art. 075100-001

In the box:
1 racktime FAST RELEASE ADAPTER for rack mounting incl. mounting material

Tip:
Below the product description you will find a video showing the function and installation of the FAST RELEASE ADAPTER.
You can find the article number of your racktime or Tubus luggage rack on the underside of the carrier platform.

Note:
To protect the paintwork on the seat tube or seat post, we recommend applying protective film to the contact points. For this, you can use the Tubus PU paint protection film set for example (prod. code: 2279890).
