ROSE Bikes Flip/Ergo/52a Aerobar Extension| Triathlon|Aero Bars & Triathlon Bars

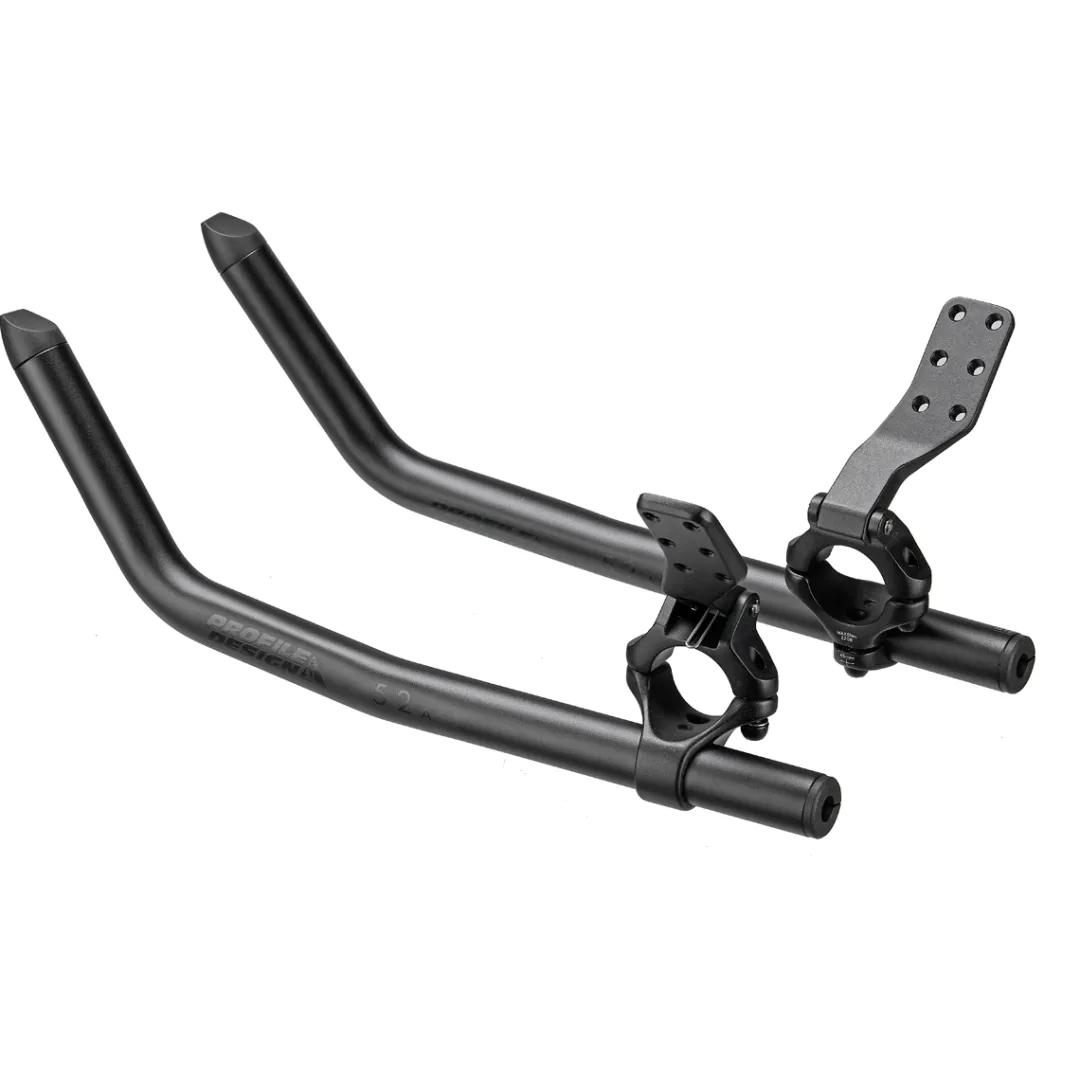

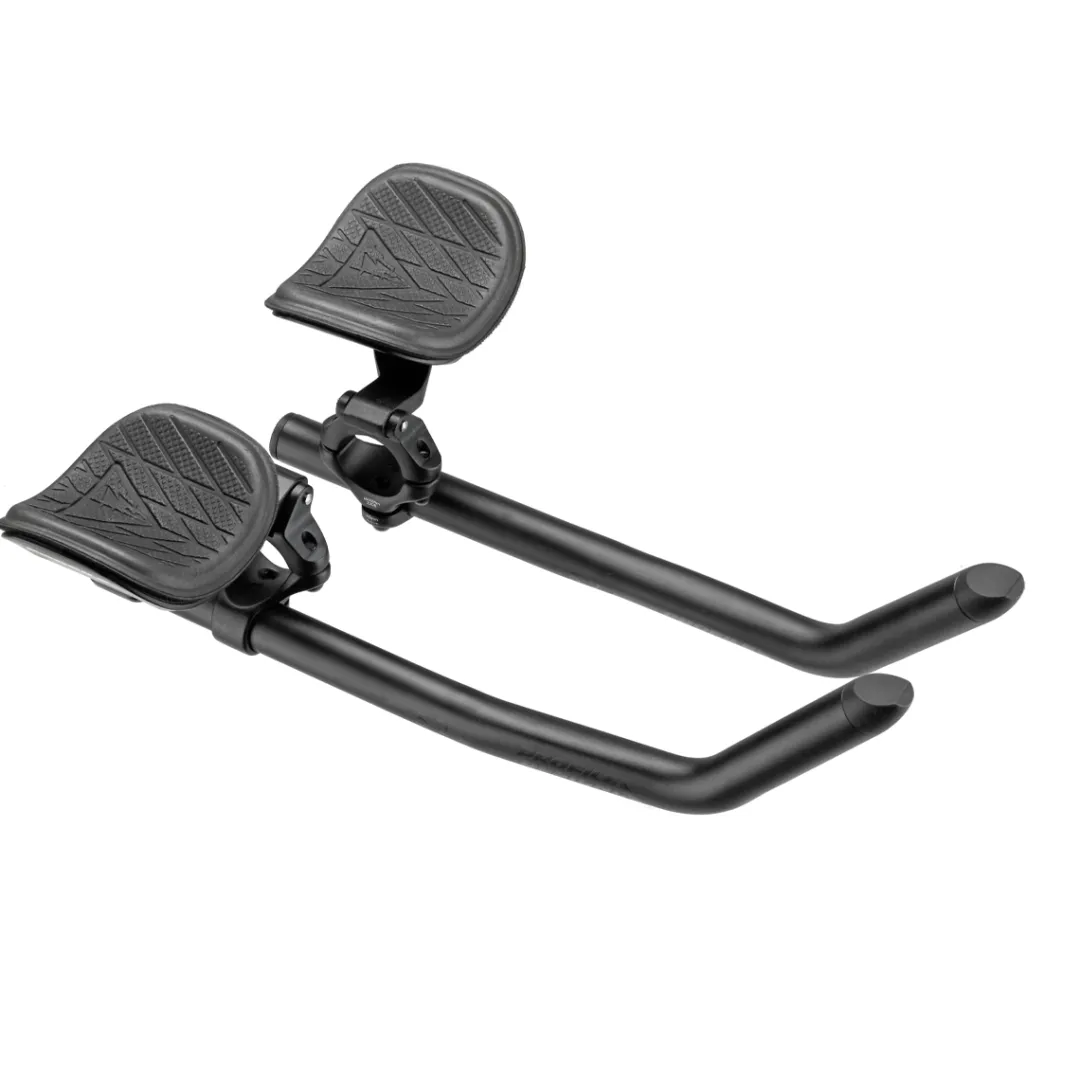

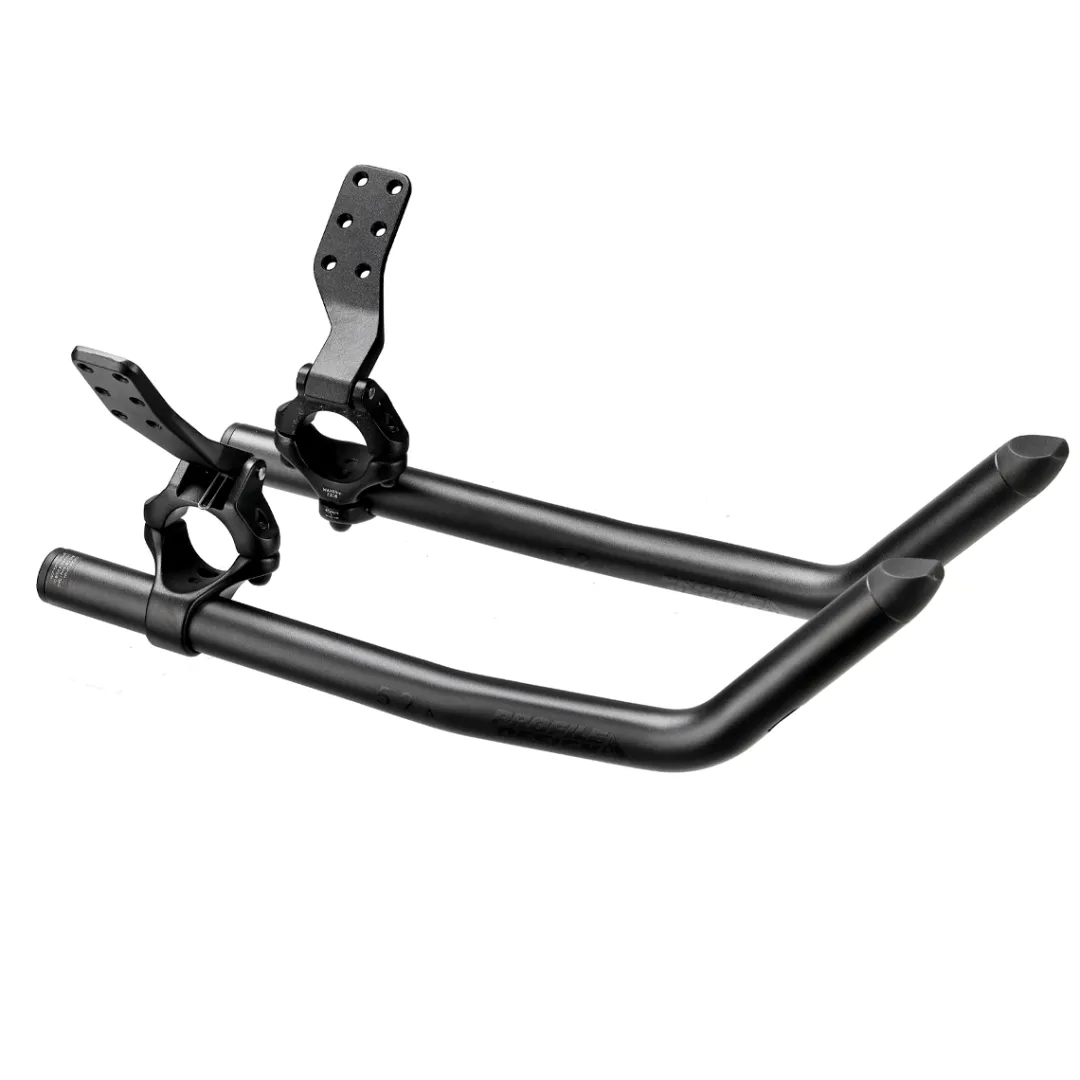

The Profile Flip/Ergo/52a aerobar unites the advantages of armrests that fold up with the almost unlimited combinations and configurations of the Profile Design FLYT fitting system.

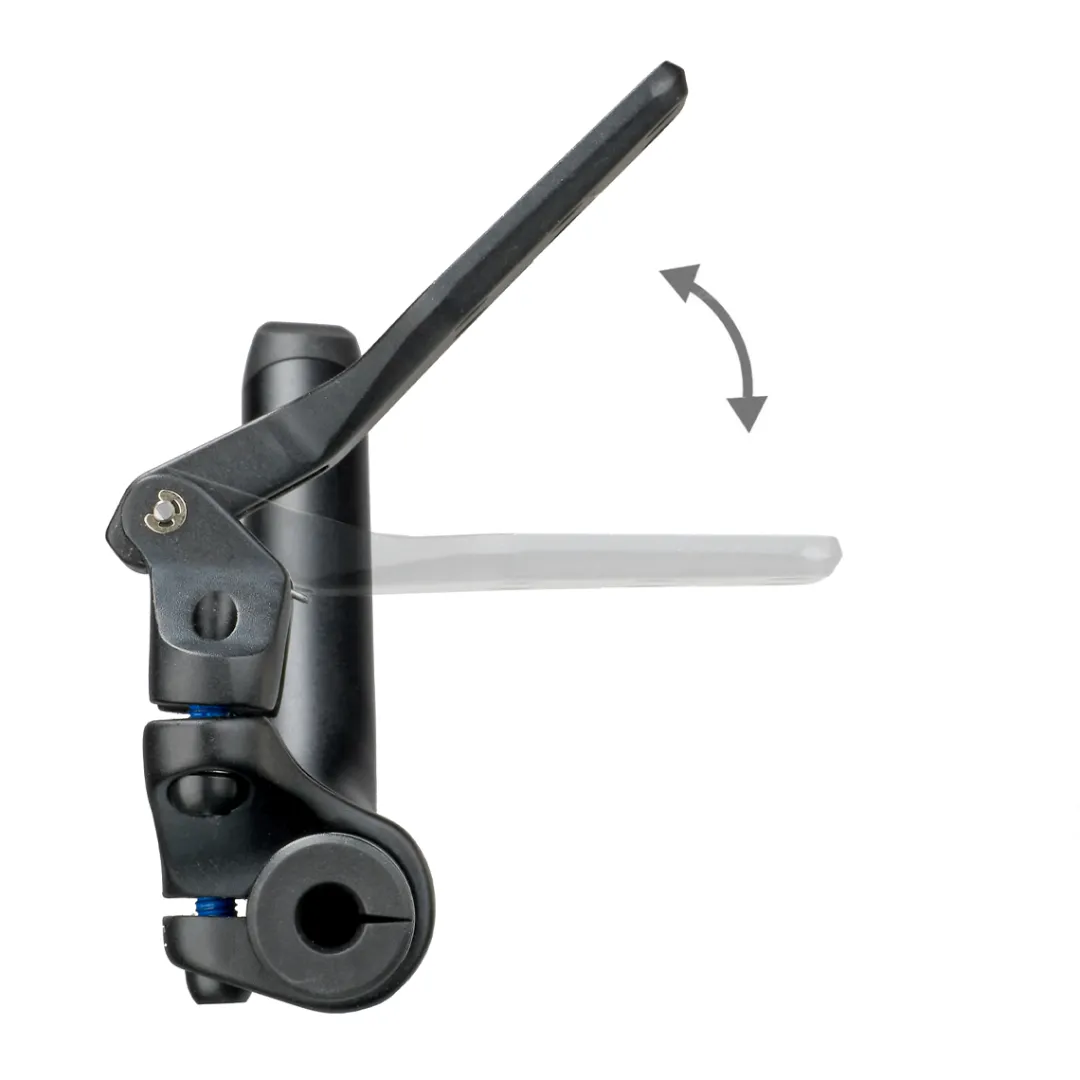

The spring loaded flip brackets can be flipped up when not in use, giving you a reach extension on top of the base bar. This lets you better vary your hand position on the bar top during long ascents.

In contrast, the aero position of the Flip/Ergo/52a extension offers countless opportunities for finding your optimal hand position. The ergo armrests alone provide 80 different positions through combinations of armrest width and offset. The lightly curved shape offers a balanced ratio of control and freedom of movement, making it well suited to most types of riders.

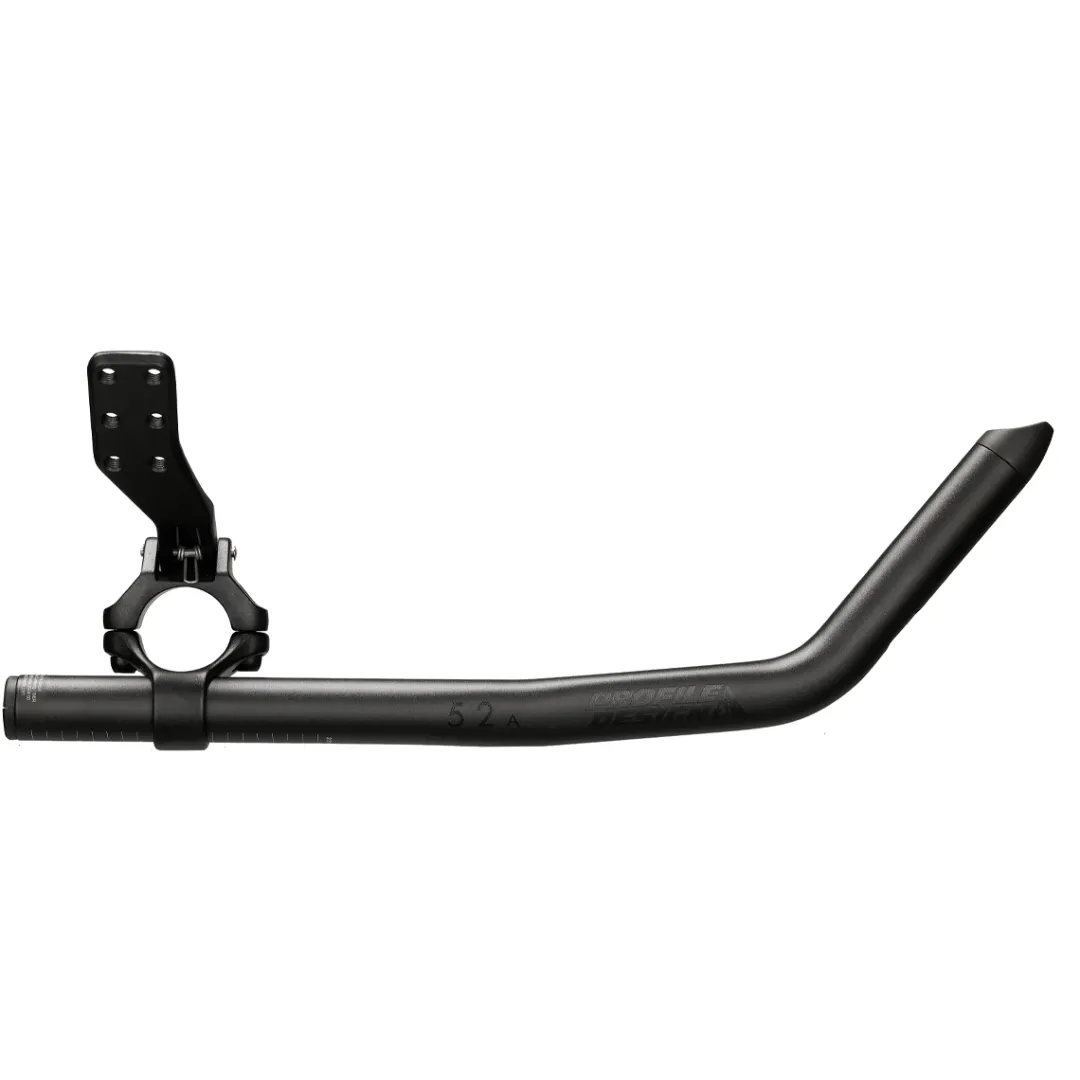

The extensions have been further developed and now have a grip angle of 52°, allowing for a more bent or more upright position depending on the grip position. In addition, the aerobar has an aerodynamically favourable Kammtail tube profile in the area of the rise to the grip surfaces. The end caps of the aerobar also benefit from a small but subtle design change. These now have an ergonomic shape that serves as a finger rest, giving you a better grip.

Overall, the Profile Flip/Ergo/52a offers an impressive range of configurations and hand positions that stands out among clip-on systems. For fans of flip brackets, this combination is the ideal basis for further configurations.

Details:
Versatile aerobar extension with flip up armrests
With numerous adjustment options for the preferred posture
Spring loaded flip brackets for more hand positions on the base bar

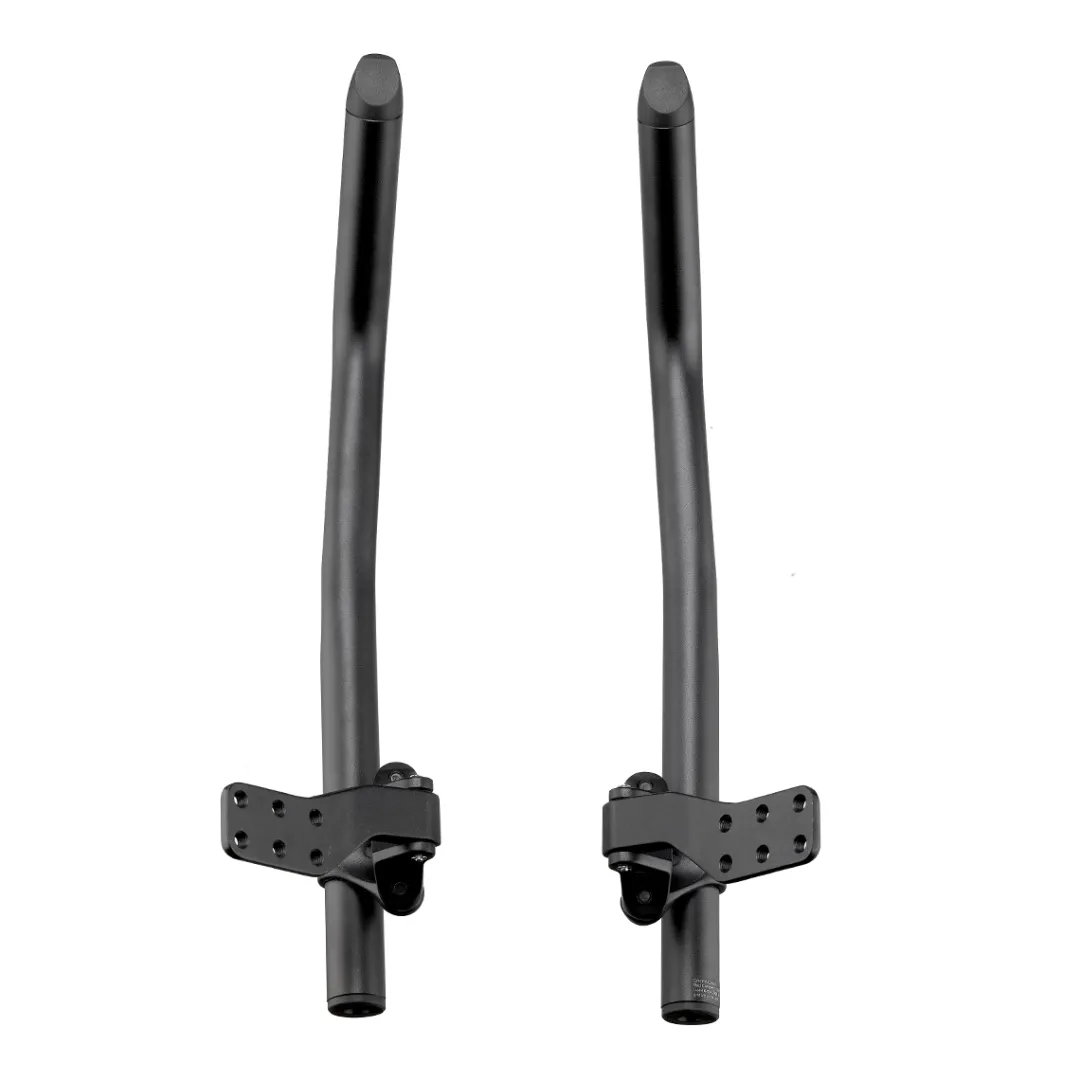

Further developed extensions with 52° grip angle
Aerodynamic Kammtail profile in the rise

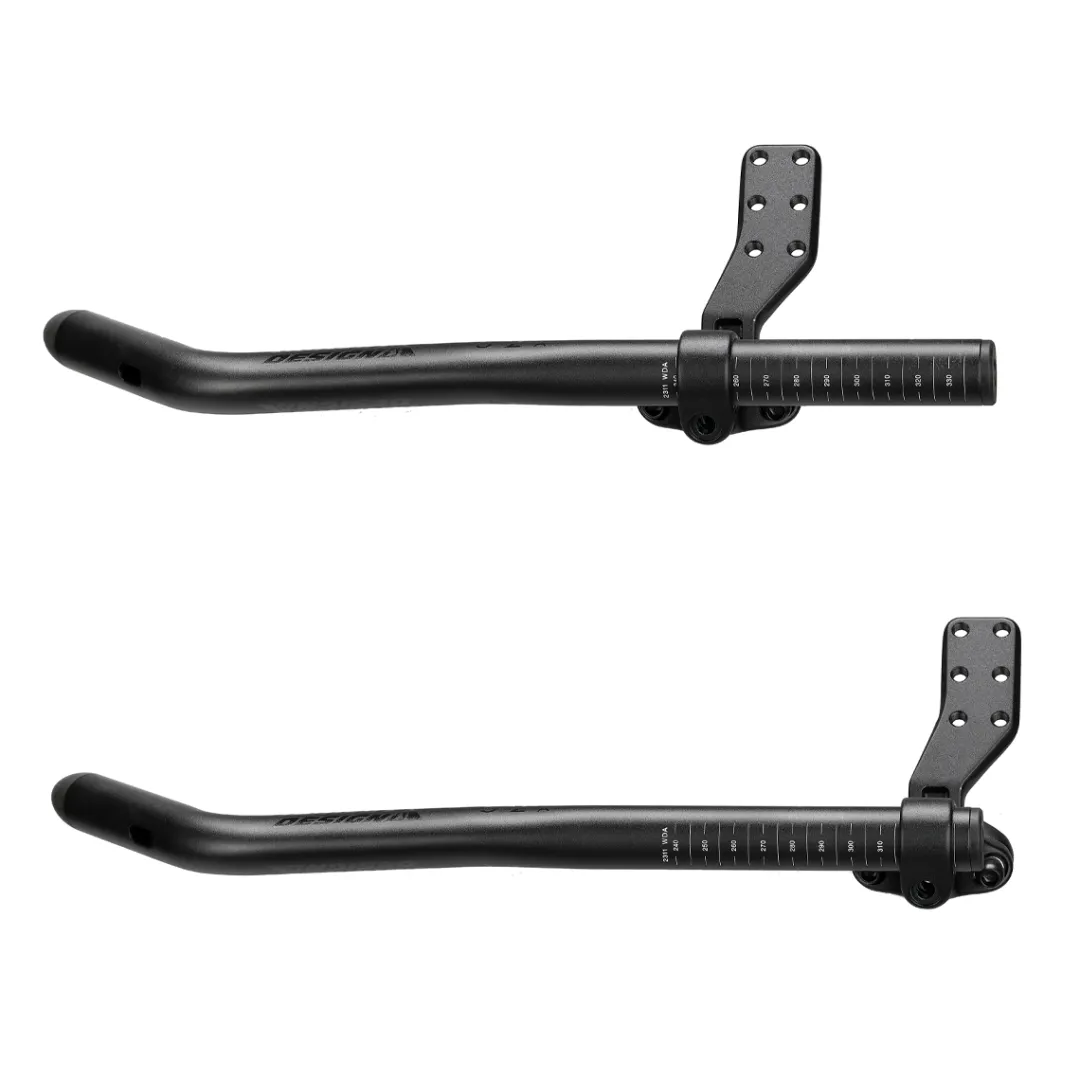

Low stack with the undermount design (extensions under the base bar)
Adjustable ergo arm rests with a light, balanced curve
Designed for internal gear cable routing
Compatible with many aerobar components from Profile Design

Technical details:
Material: Aluminium 6061 T6 (brackets, extensions); glass fibre compound, EVA, elastane (arm rest)
Extension length: approx. 360 mm
Outer diameter extensions: Ø 22.2 mm
Inner diameter extensions: Ø 19.2 mm
Extension offset: 7.5 mm each (15 mm total)
Extension rise: 87 mm
Angle rise: 52°
Armrest offset: -85 to -17.5 mm (in steps of 7.5 mm)
Armrests width: 112 mm – 280 mm (in 18.5 mm steps, with extensions at 100mm)
Armrest stack (height): approx. 40 mm
Compatible handlebar clamp: Ø 31.8 mm
Weight: approx. 590 g

In the box:

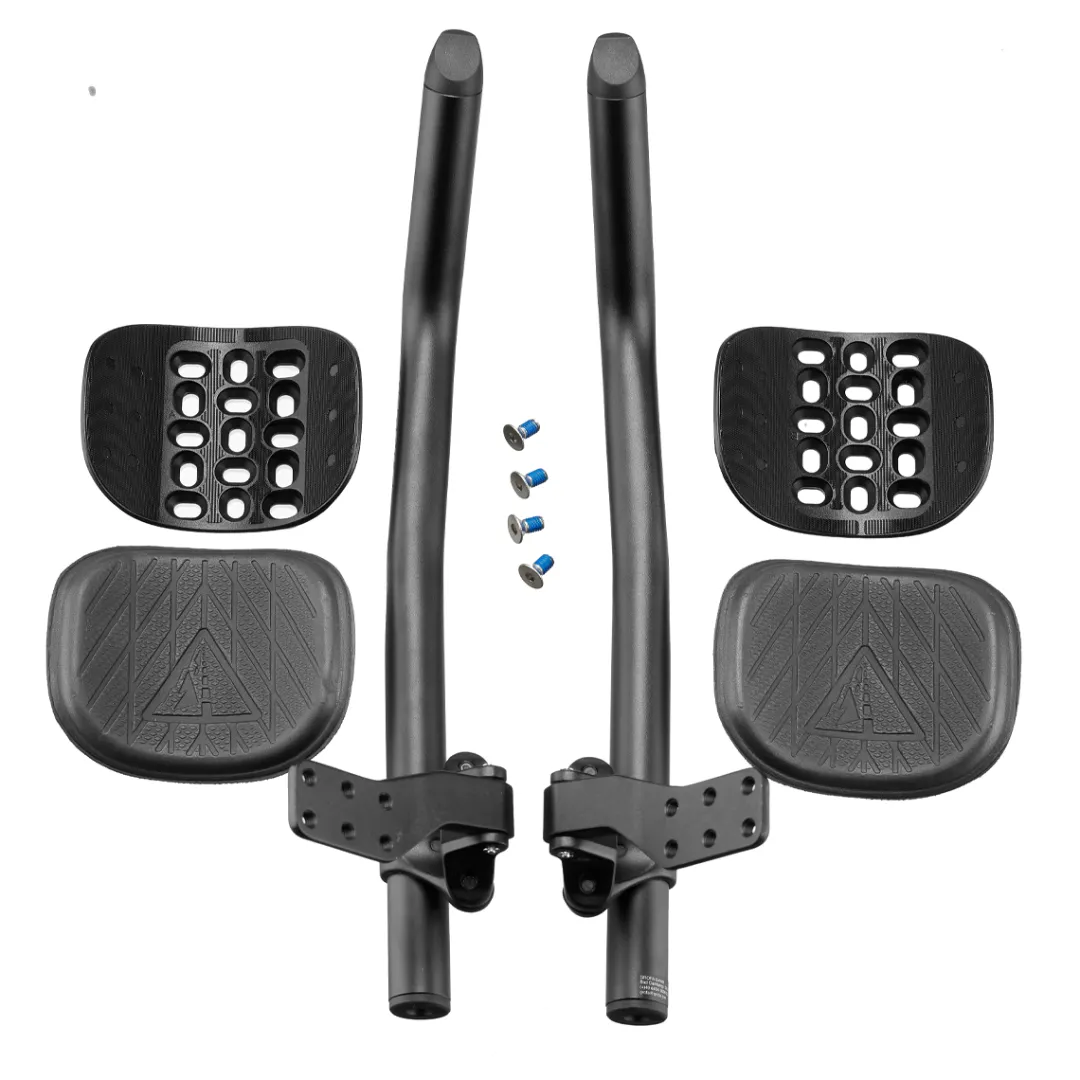

1 Profile Flip/Ergo/52a aerobar extension

ATTENTION:
Through the positioning of the extensions under the base bar, the flip brackets require extensions that rise up high to ensure a comfortable grip. A combination with flatter extensions is therefore NOT advised.
