ROSE Bikes Front Sprocket CDX CenterTrack 4-Arm 104mm BCD| Chainrings

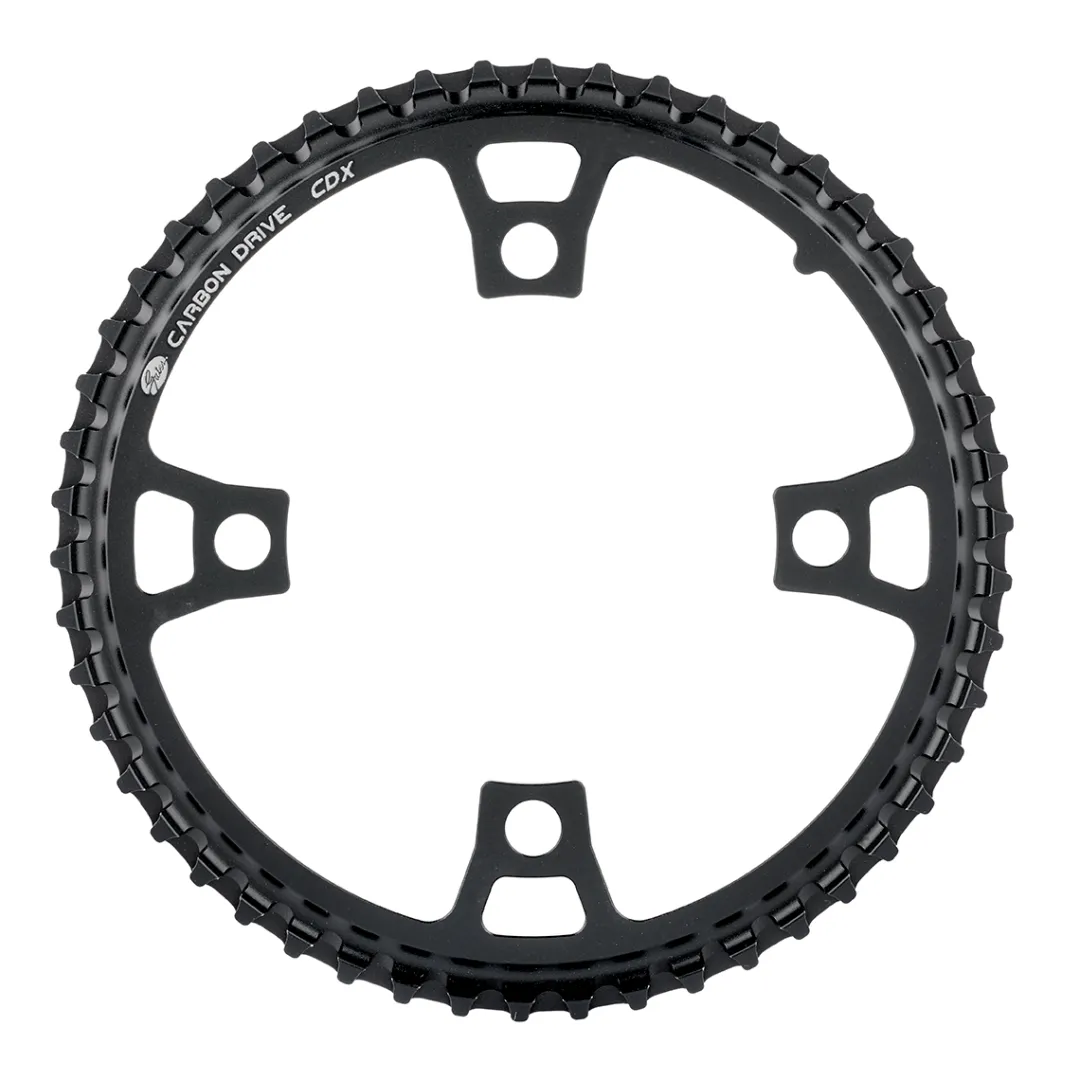

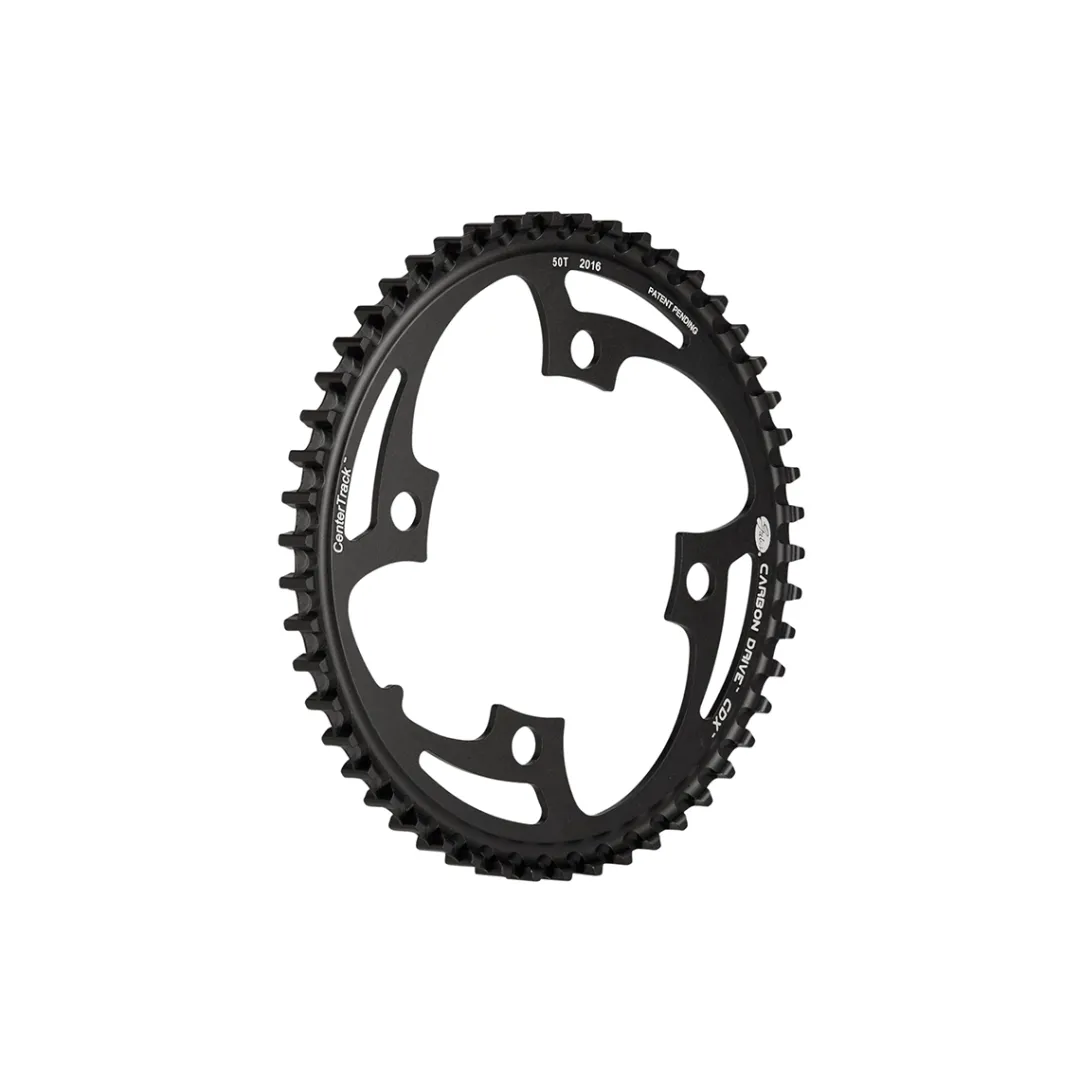

Being a bike drive system of a special kind, the Gates Carbon Drive belt system stands out for smooth running and low maintenance. For best belt drive performance, Gates offers special front sprockets for the CDX system made from lightweight yet robust aluminium.

Details:
• CDX version (high-end version for high loads and best performance)
• For mud, sand, snow and ice as well as for all road conditions
• Groove in the centre (CenterTrack)

Technical details:
• Intended use: mountain bikes, e-bikes (front, mid and rear drive motor) and touring bikes
• System Gates CDX
• Material: Aluminium
• Use: at the front (chainring)
• Attachment: 4-bolt
• Bolt circle: Ø 104 mm (104 BCD)
• Pitch: approx. 11 mm

Available in size:
• 39 teeth
• 42 teeth
• 50 teeth
• 55 teeth
Please indicate your choice.

In the box:
• 1 Gates Carbon Drive CDX sprocket (front)
WITHOUT chainring bolts

Manufacturer: GATES CORPORATION, 1144 FIFTEENTH STREET SUITE 1400, CO 80202 Denver, USA, de.gatescarbondrive.com/
Responsible person: GATES GMBH, EISENBAHNWEG 50, 52068 Aachen, Deutschland
