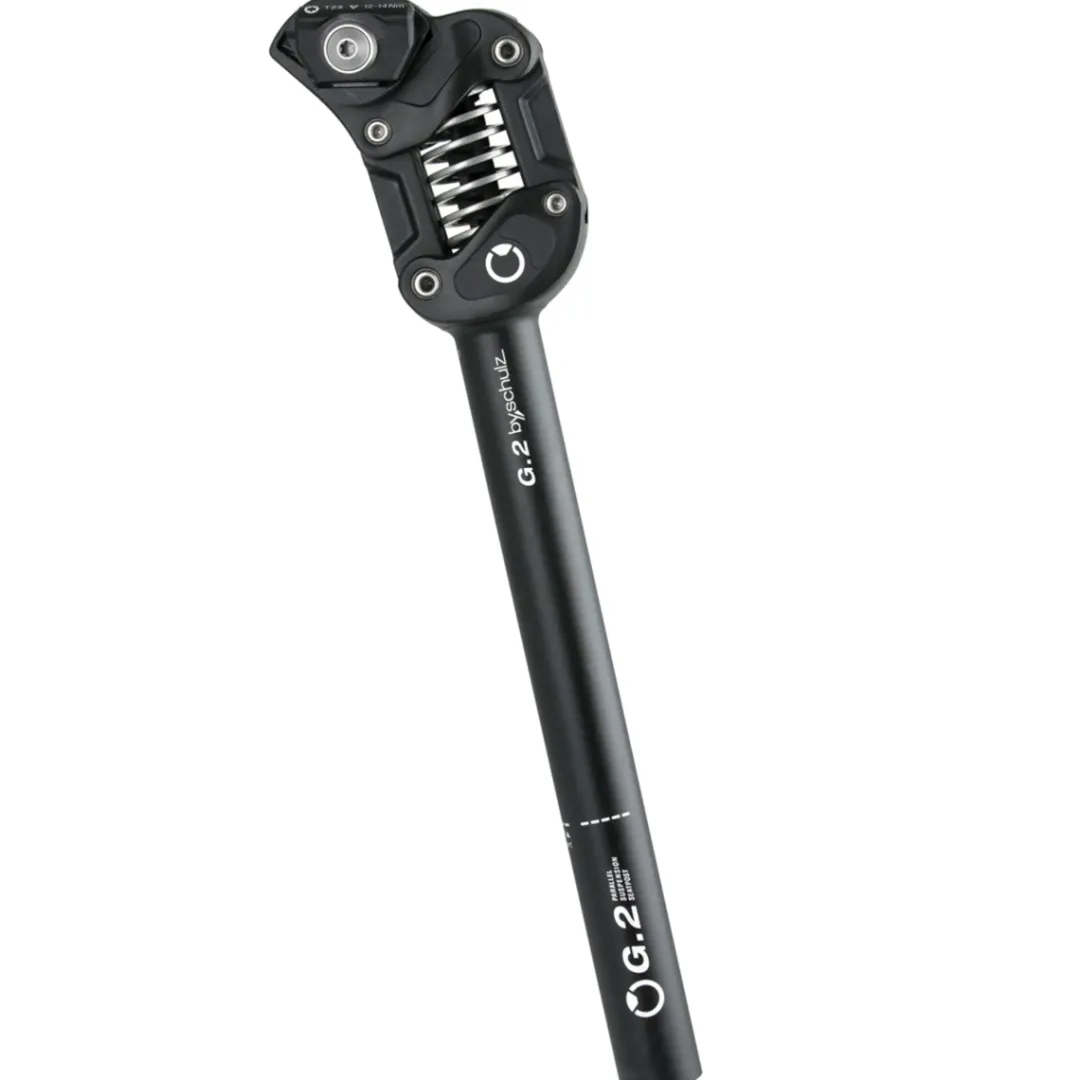

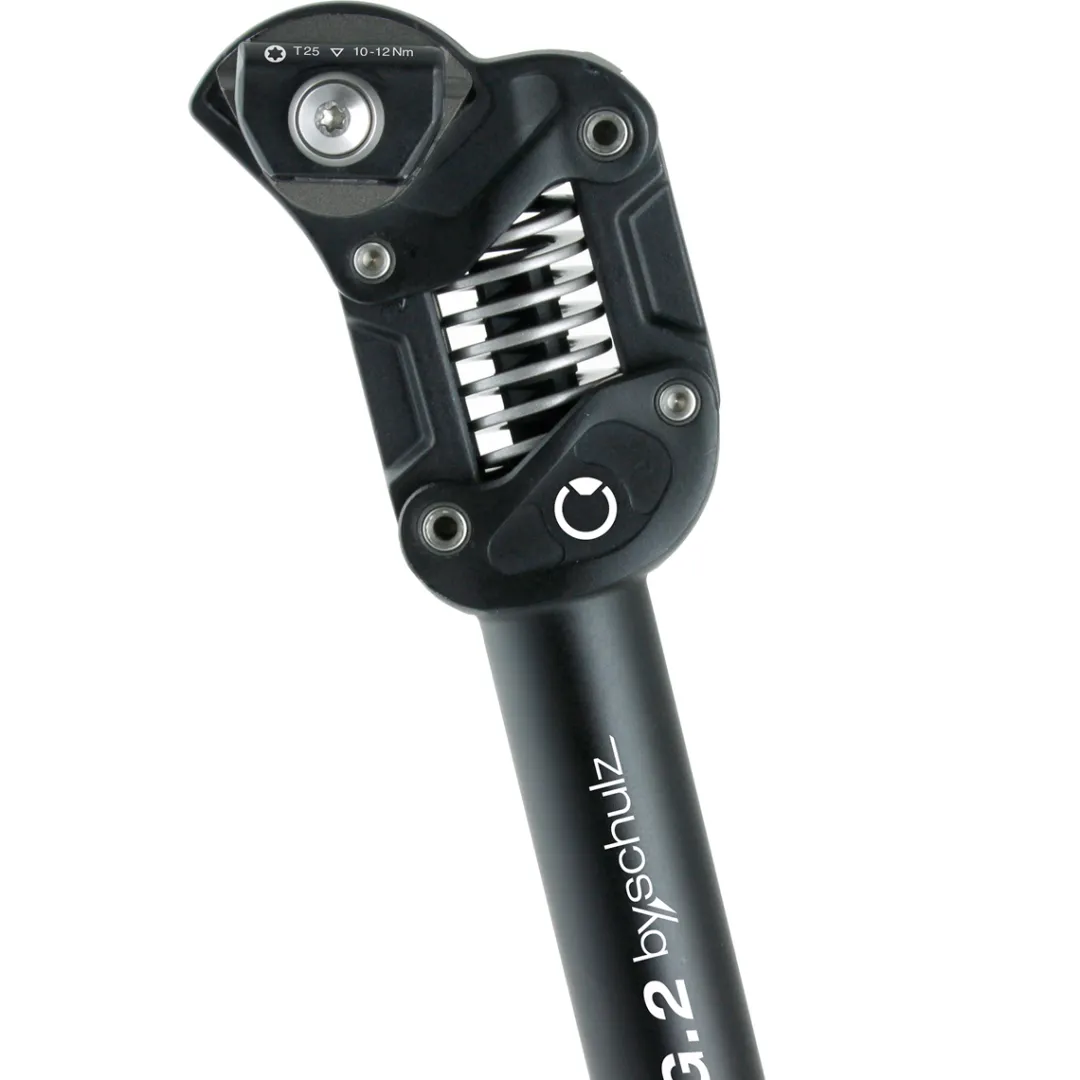

ROSE Bikes G.2 ST Parallelogramm E-Bike Suspension Seat Post| Suspension Seatposts

Finely tuned to the rider’s weight, the damped by.Schulz G.2 ST suspension seat post ensures maximum comfort on your touring and city e-bike. In addition to the weight-related basic version, different hard steel springs can be used in exchange for individual adjustment of the suspension comfort, also optimised to the riding profile.

Despite the low stack height, the progressive parallelogram suspension seat post compensates for impacts in a pleasantly controlled manner with increasing spring resistance. In combination with the internal elastomer insert, the robust spring element ensures that the suspension cannot bottom out even when riding through deep potholes. The travel of this version is shorter than that of the long-travel version by.Schulz G.2 LT (e.g. prod. code 2269461) with a longer progression line for softer damping.

Details:
Parallelogramm suspension seat post
E-bike ready
Low stack height, slim look
High suspension comfort
Sensitive response
Low-friction with low offset
Torsionally stiff
IGUS polymer high-performance sleeve bearings/stainless steel axles
Saddle clamp with fine adjustment and robust ratchet system
Spring elements can be selected in 5 degrees of firmness and are easy to change
Defined adjustment range with end stop

Technical details:
Lengths: 350 – 450mm (can be shortened)
Tube Ø: 26.4 – 34.9mm
Max. rider’s weight: 150 kg (Ø 30.6 to 34.9 mm), 130 kg (Ø 25.4 to 27.2 mm)
Suitable for saddle rail Ø: 7mm
Stack height: approx. 99 mm
Travel: approx. 30 mm
Offset: approx. 17 mm
Material: AL-6061-T6 aluminium, 3D forged
Weight: from approx. 590 g (Ø 27.2 / 350 mm)

In the box:
1 by.Schulz G.2 ST seat post
1 Mudcover protective cover

Optional accessories:
by.Schulz spring element ST 72 (e.g. prod. code 2200668). For individual adjustment of the G.2 ST and D.2 ST seat posts to the rider’s weight.
by.Schulz G.Shim reducing sleeve (prod. code 2269466). If the diameter of the seat post does not match the seat tube of the frame.
by.Schulz protective cover (prod. code 2269464). Removable cover to protect the spring mechanism from dirt and jamming.
