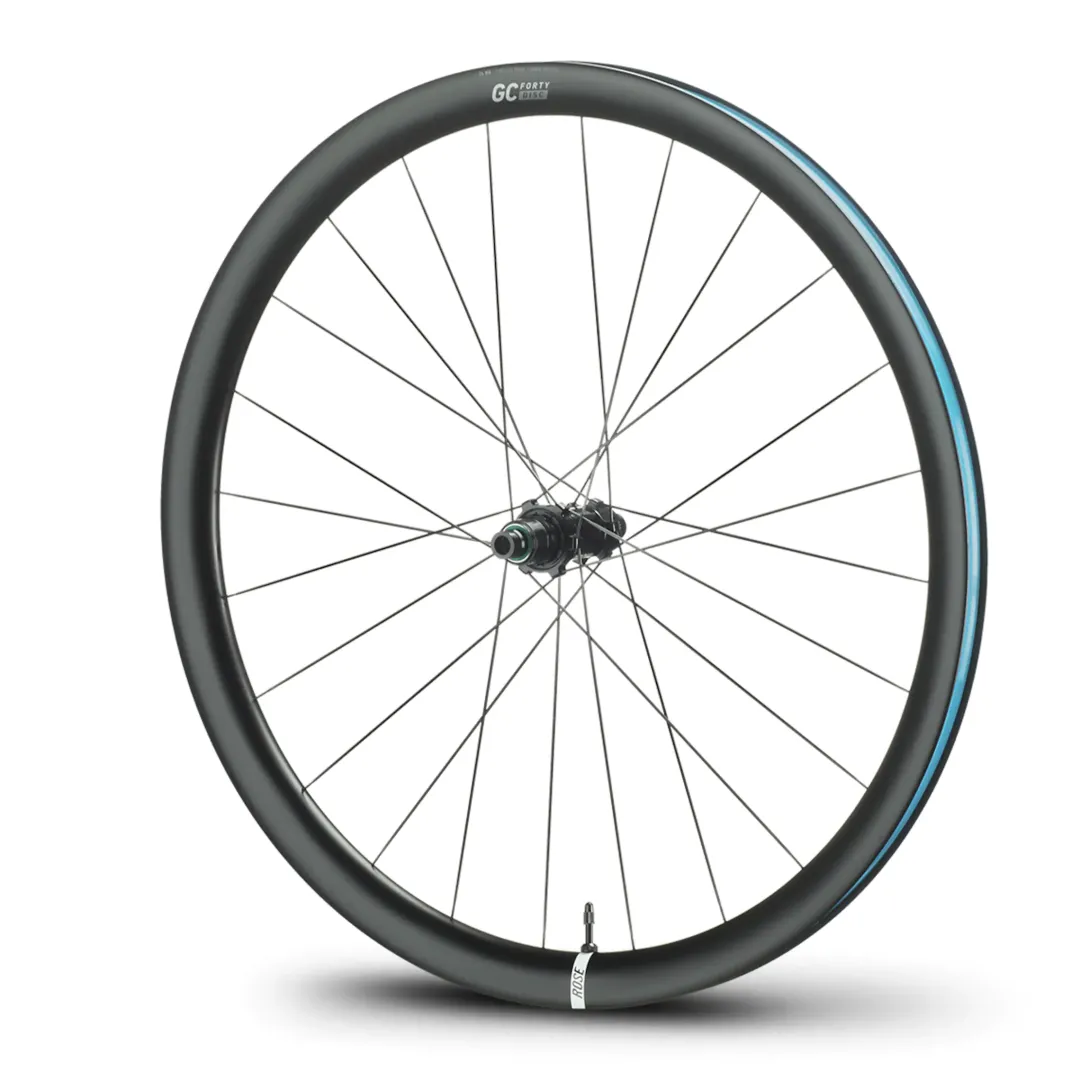

ROSE Bikes GC-Forty Disc 28" / 700 C Gravel Rear Wheel SRAM XDR | 24 Spokes| Road

The ROSE GC-Forty Disc Carbon Gravel rear wheel is the Gravel King in our ROSE racing family.
With its elegant carbon rim designed for adventure, you’ll race over demanding off-road tracks with ease. The combination of a medium-high rim profile of 37 mm and a inner width of 24 mm for wide tyres results in a real race feeling and massive comfort at the same time. The rim material absorbs a large part of the resulting vibrations and thus improves ride comfort not only on the road, but especially on rough surfaces thanks to its damping properties.

Everything stands and falls with the rim!

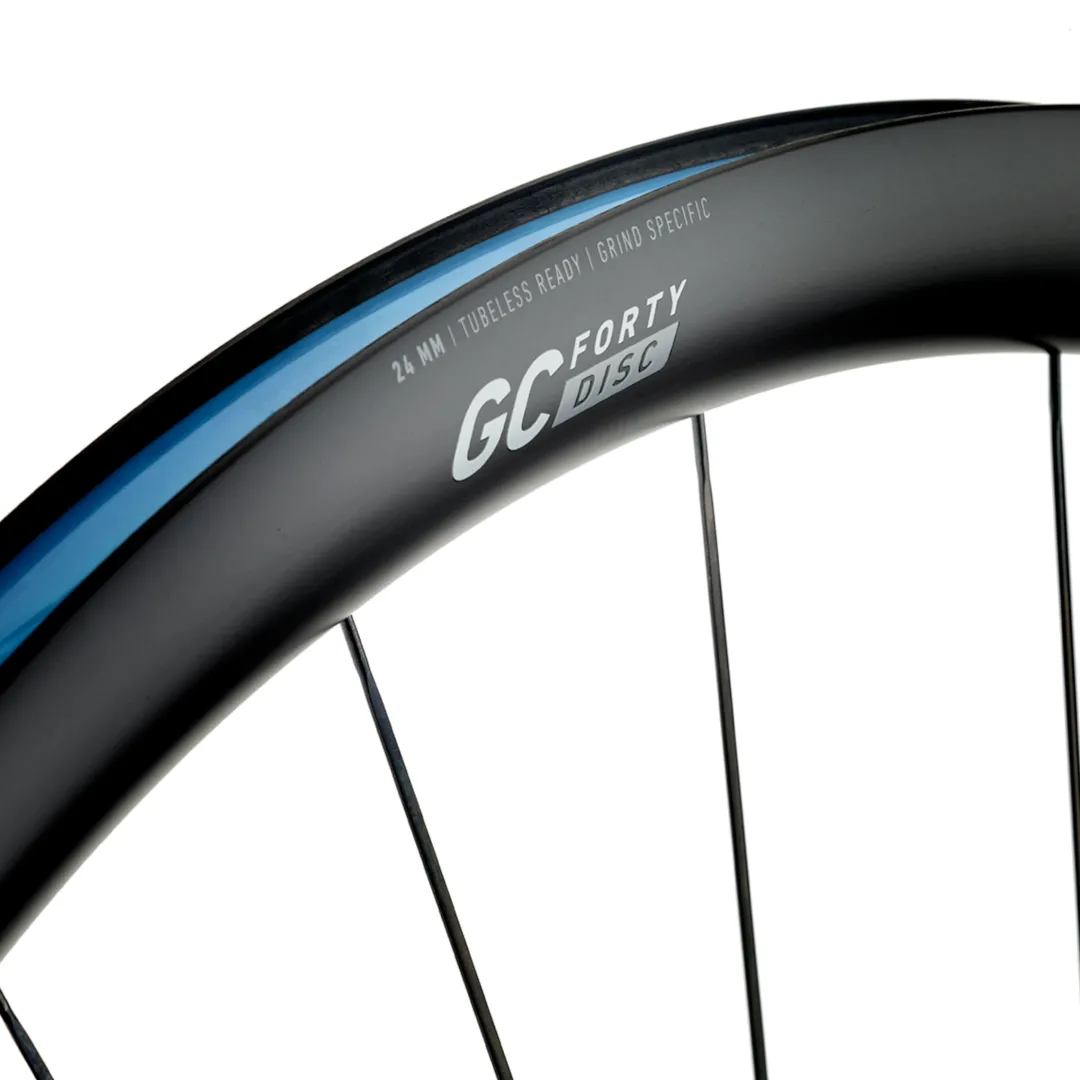

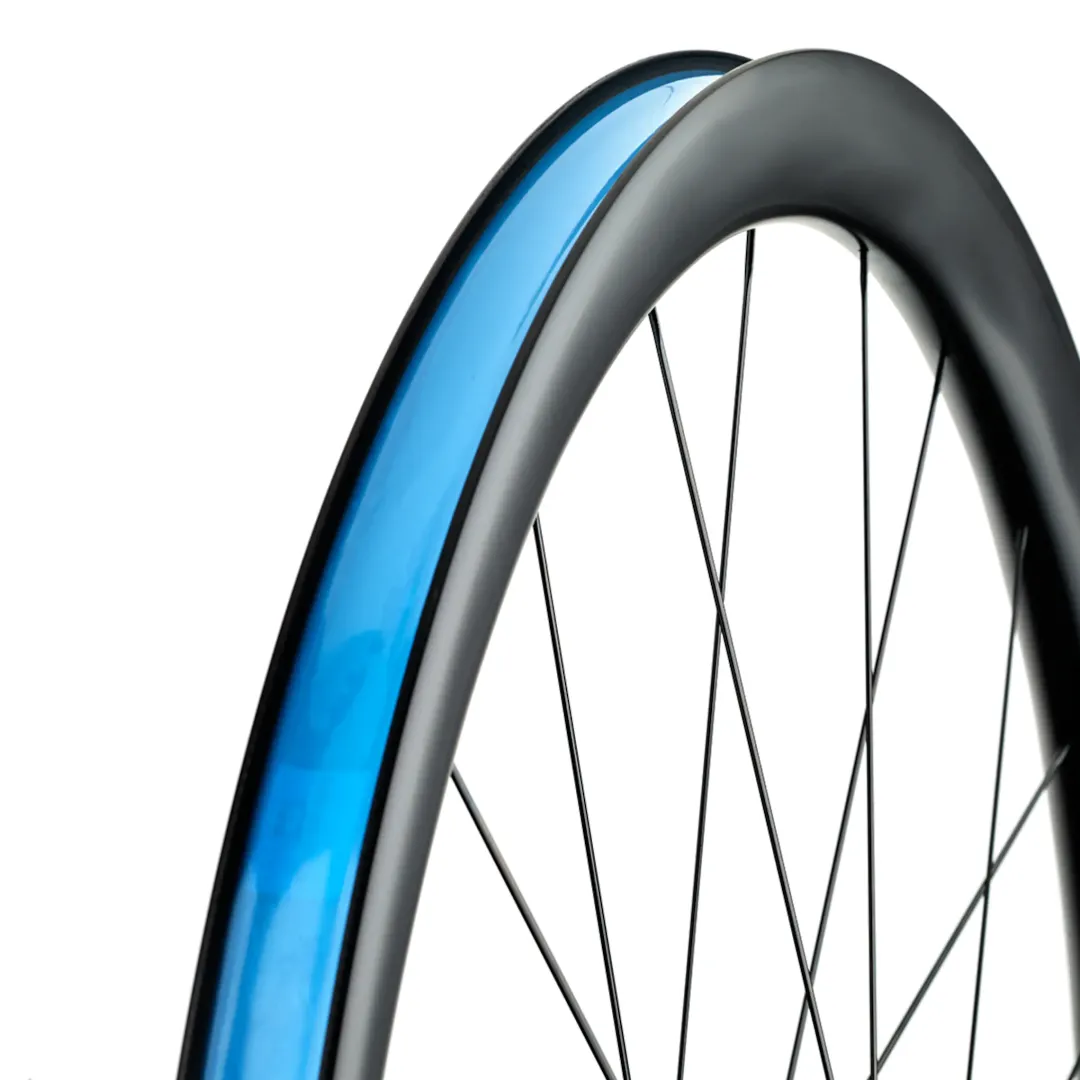

The high-end carbon rim of the ROSE RC-Forty Disc gravel wheel was fully developed in-house and has a special construction that makes it very light and yet stable and durable. Of course, we follow the trend towards wider tyres and gave the rim a full inner width of 24 mm and “tubeless-ready” compatibility ex works. Naturally, you can also ride the GC-Forty Carbon rear wheel in a conventional way with conventional tyres and inner tubes.
Thanks to the asymmetric and bulbous rim profile, the carbon rim not only minimises air resistance at high speeds on dusty gravel roads, but also reduces annoying air turbulence. Even strong crosswinds are optimally dissipated. As a rider, you’ll feel fully in control over your gravel bike in every riding situation.

ROSE made by NEWMEN!

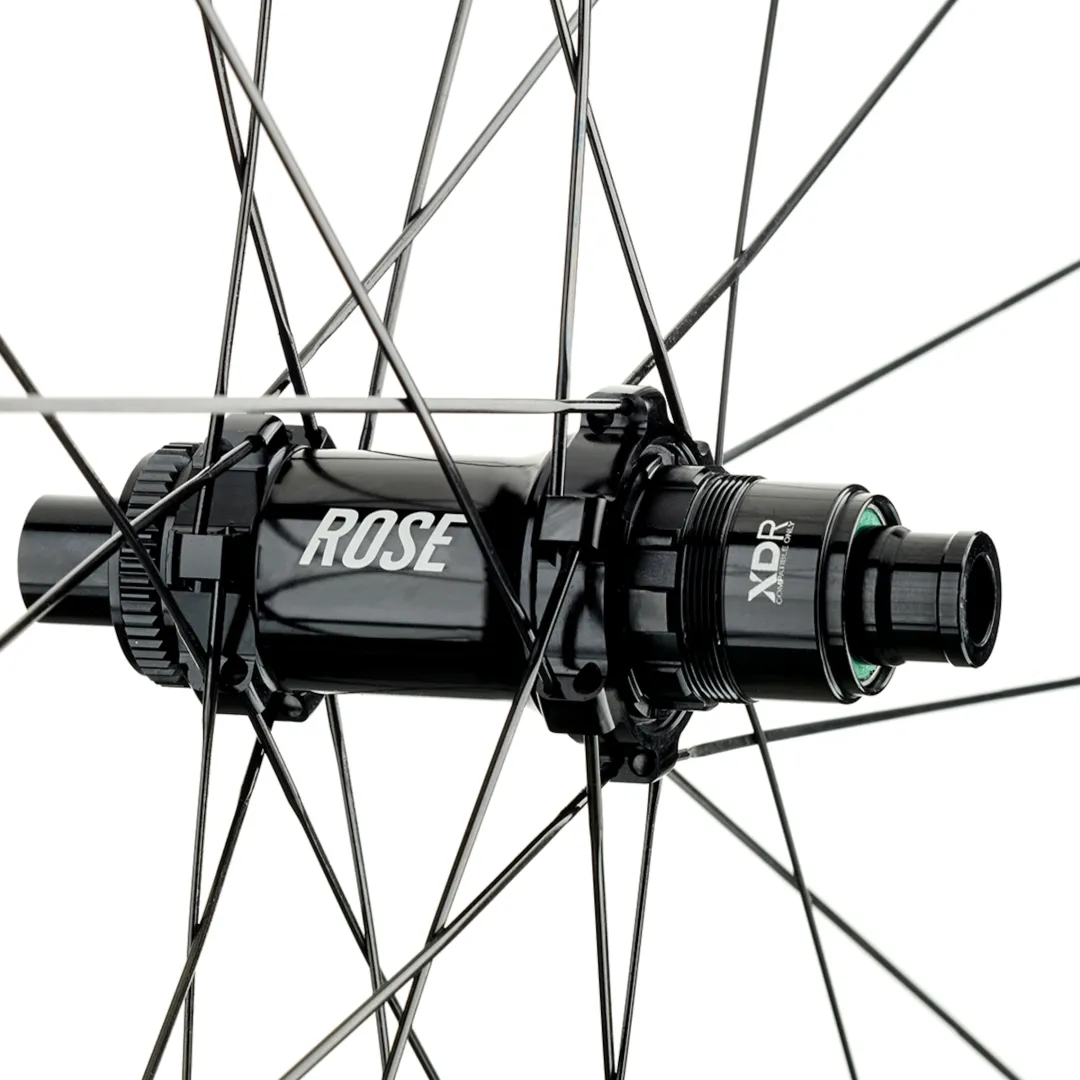

The GC-Forty Disc Carbon rear wheel uses our high-quality ROSE made by NEWMEN hub from the FADE hub generation by NEWMEN.
Its elegant, CNC-milled hub body made from high-quality aluminium is equipped with high safety reserves but still maintains a low hub weight. The large FADE freewheel system with a precise ratchet system also ensures direct engagement and maximum propulsion. The large size of the FADE system reduces the forces occurring within the freewheel and the newly-designed tooth profile ensures significantly less freewheel noise. The three pawls are designed to be very short and wide, which provides a more even distribution of and therefore reliable and material-friendly power transfer. The high-quality, double-sealed industrial bearings ensure smooth-rolling and long-lasting functionality as well as extremely simple operation. A frequently complicated adjustment of the bearing clearance is not necessary.

Robust aero spokes and inverted nipples!

Strong SAPIM CX-Sprint Straightpull Aero spokes provide a stable and reliable connection between the Newman hub and ROSE GC-Forty carbon rim. 24 spokes and the 2-fold crossed lacing are designed to handle high loads when used with modern, powerful disc brakes. The reliable Sapim aluminium spoke nipples lie aerodynamically inside the rim and are mounted inverted, so basically “wrong way around”. The nipple is supported on conically shaped Sapim nipple washers, which ensures an even distribution of the load and thus a relief of both the spokes and the rims. This drastically reduces the probability of spokes breaking.

Nothing beats honest craftmanship!

In line with our long-standing company tradition, we completely dispensed with mechanical spoking in the ROSE RC-Forty disc wheelset. Instead, each individual wheel is spoked and centred by hand at our company headquarter in Bocholt. This way, our experienced wheel builders guarantee the best possible quality in spoke tension and concentricity.

Wheel size:
28″ / 700 C
ETRTO: 622 – 24

Rim:
Model: ROSE GC-Forty Disc
Rim type: clincher
Rim material: carbon
Asymmetric disc brake specific profile
Rim width/depth: approx. 31 mm / 37 mm
Offset: 3 mm
Inner rim width: 24 mm
Tubeless ready
For Presta valve

Spokes & nipples:
Spoke type: Sapim CX-Sprint Straightpull Aero Spokes (dimensions: 2.0 – (2.25 x 1.25) – 2.0)
Number of spokes: 24 pcs
Spoke length: 290 mm left / 288 mm right
Spoke nipples: SAPIM Aluminium nipples (inverted); mounted in SAPIM nipple washers
Spoke pattern: 2-cross

Hub:
Model: ROSE made by NEWMEN Road Rear Disc
Housing material: CNC-milled aluminium
For disc brakes
CentreLock brake disc mount (also compatible with 6-hole disc rotors via adapter, e.g. DT Swiss Centre Lock adapter, product code 2283716)
4 cartridge bearings (doubly-sealed)
NEWMEN FADE pawl system (3 pawls, 10.9° degree engagement)

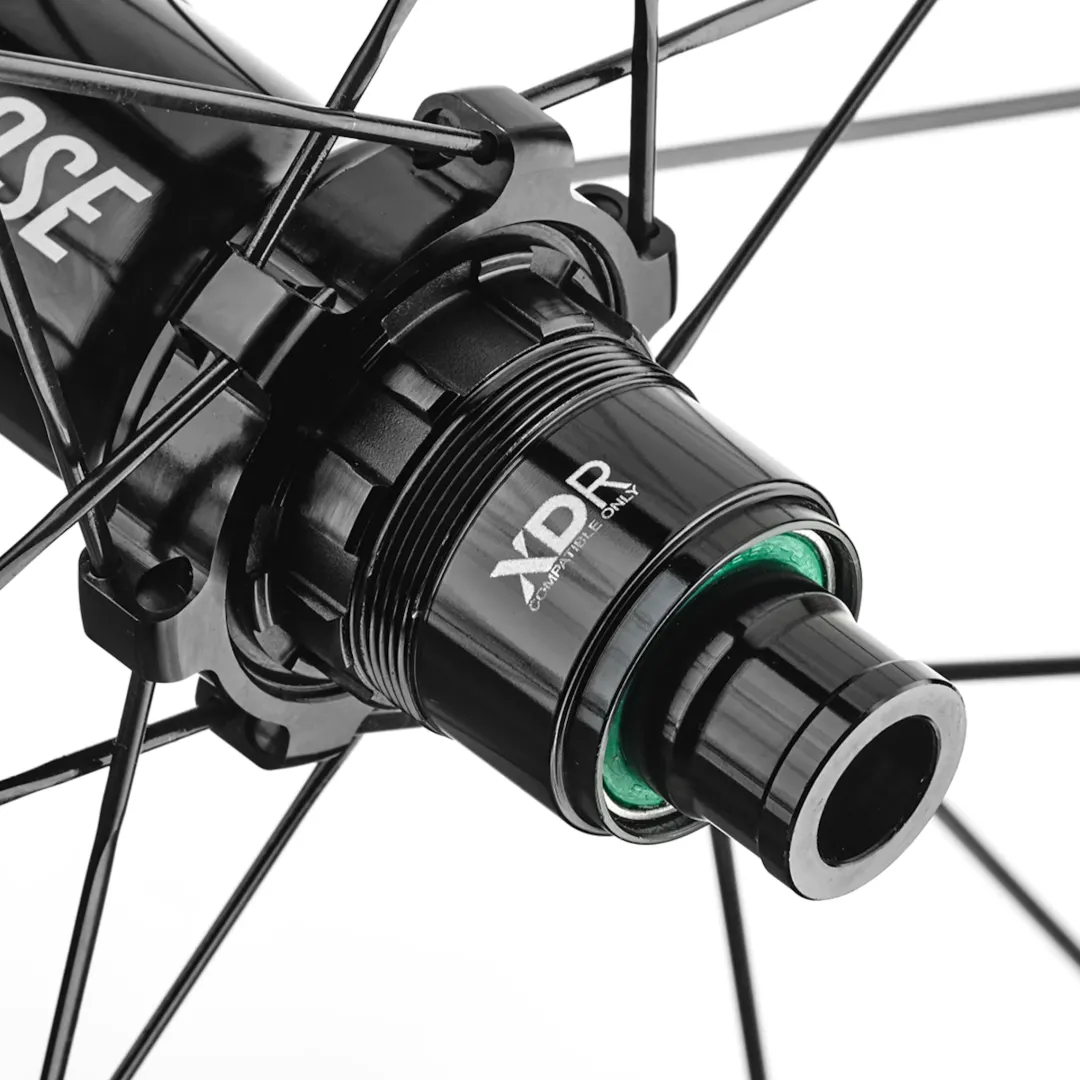

Freewheel body standard:
SHIMANO HG Spline L

Freewheel body standard:
SRAM XDR™

Cassette compatibility:
SRAM XDR™ 12-speed road cassettes
SRAM XD™ 11-/12-speed MTB cassettes (requires separately available 1.85 mm spacer ring!)
as well as other SHIMANO HG-compatible cassettes.

Axle:
Rear hub dimensions: 12 x 142 mm (thru axle)

Clearance:
Recommended for tyre widths: 38 mm – 56 mm (max. 34 – 71 mm)
Recommended rim tape width 25 mm
ASTM classification: 2 (for on and off-road use with jumps up to 15 cm)
Max. system weight: 120 kg (cyclist, bike, gear and luggage)

Weight:
Rear wheel: approx. 802 g

In the box:
1 ROSE GC-Forty Disc Carbon 28″ Gravel rear wheel (SRAM XDR™)
1 tubeless ready rim tape (pre-assembled, also suitable for conventional inner tubes)
1 ROSE tubeless valve (60 mm)
Attention:
Tubeless sealant is NOT included in the delivery.

Attention:
Due to our high-quality and very durable grease filling and the fixed bearing clearance, the hub bearings can run somewhat heavier at the beginning. However, this has no effect on the riding and improves after a short running-in time.

Crash Replacement:
Customers whose wheels have been damaged in an accident or fall within 6 years will receive a 50% discount on a new set of wheels within our Crash Replacement Program (terms and conditions apply).
