ROSE Bikes GRAVEL-PACK QL3.1 Bike Packing Pannier| Bike Bags

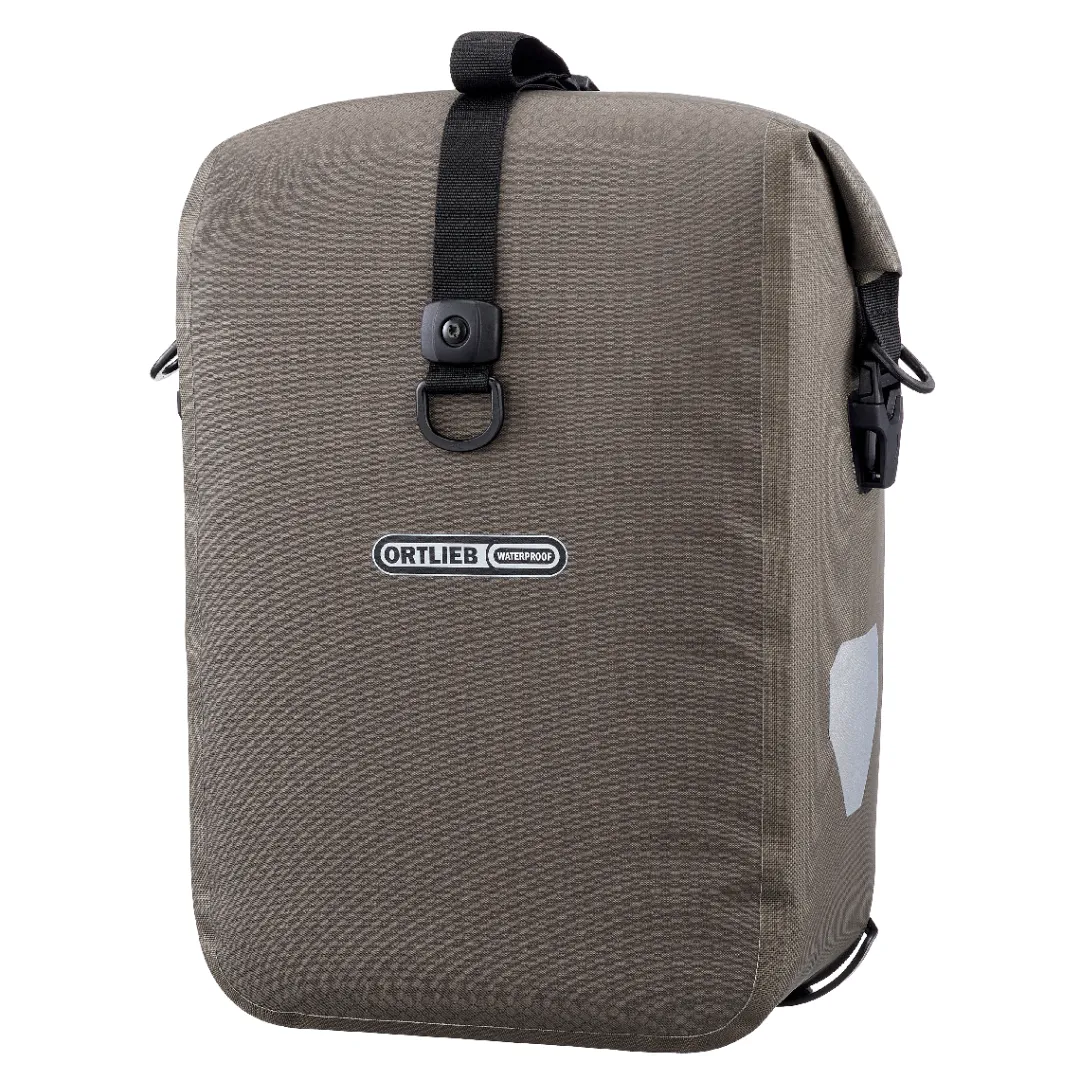

The GRAVEL-PACK pannier from the ORTLIEB Bike Packing series comes with the practical QL3.1 suspension system. Once fitted, the main fastening elements of the mounting system remain directly on the rack for a smooth back of the bag and easy handling.

This gravel bag is unbeatable for day tours and bikepacking adventures. The robust, waterproof and dustproof material protects up to 14.5 litres of equipment in the bag from dirt on uneven paths. Whether on the front or rear wheel – this pannier is multifunctional and ready for new routes!

This bag comes with a mounting plate, which is firmly attached to the luggage rack with its mounting points!

Details:
• Compact and robust pannier for the front or rear
• With QUICK-LOCK 3.1 mounting system for racks with a tube diameter of 10 mm

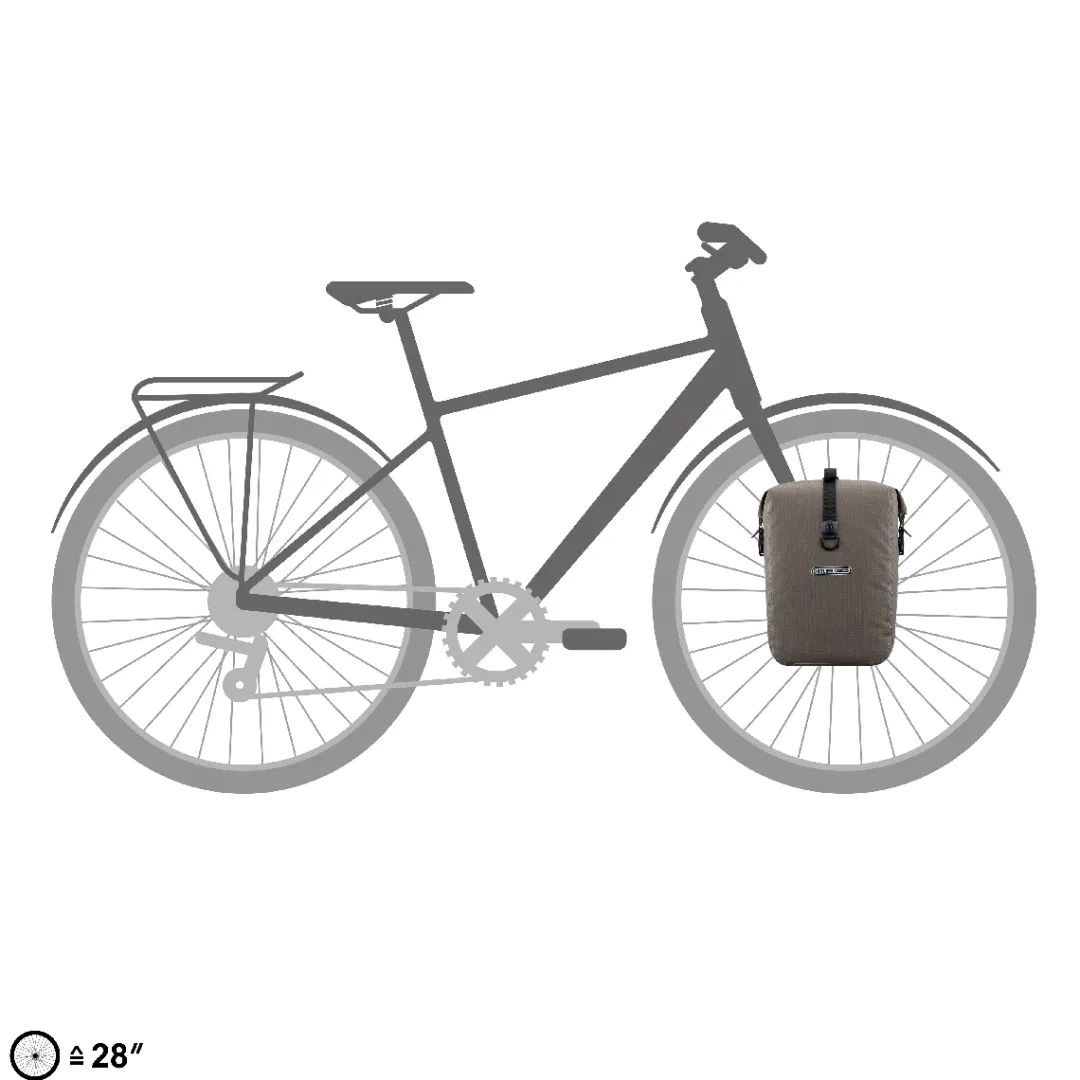

• For mounting on the rear wheel or front wheel carrier (lowrider)
• Essential mounting elements are permanently attached to the luggage rack (mounting set included)
• Attach and remove with just one hand
• With carabiners for attaching an optionally available carrying strap
• Waterproof in accordance with IP64*

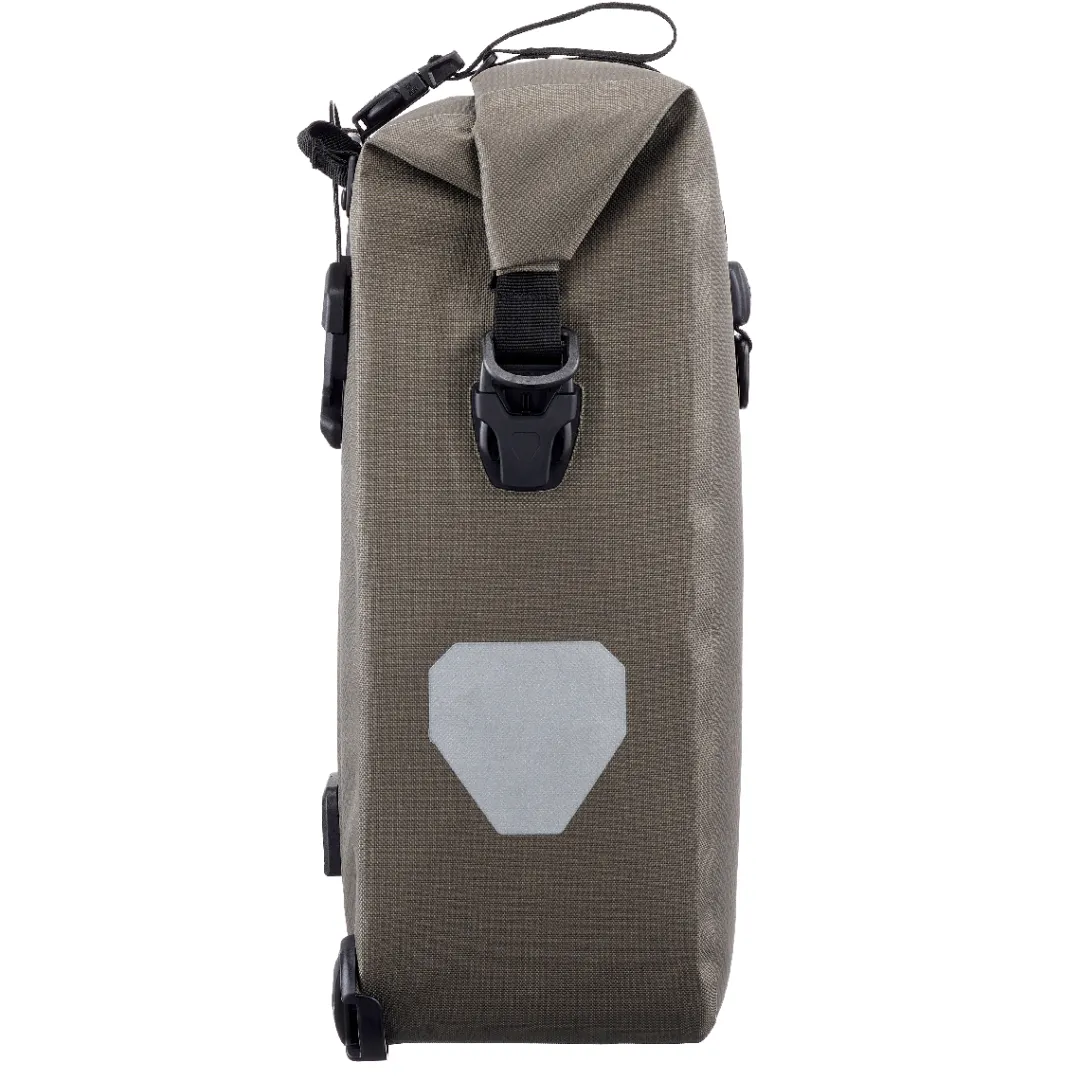

• Roll-top closure with plug-in fasteners for vertical fixation
• Practical carrying handle
• PVC- and PFC-free

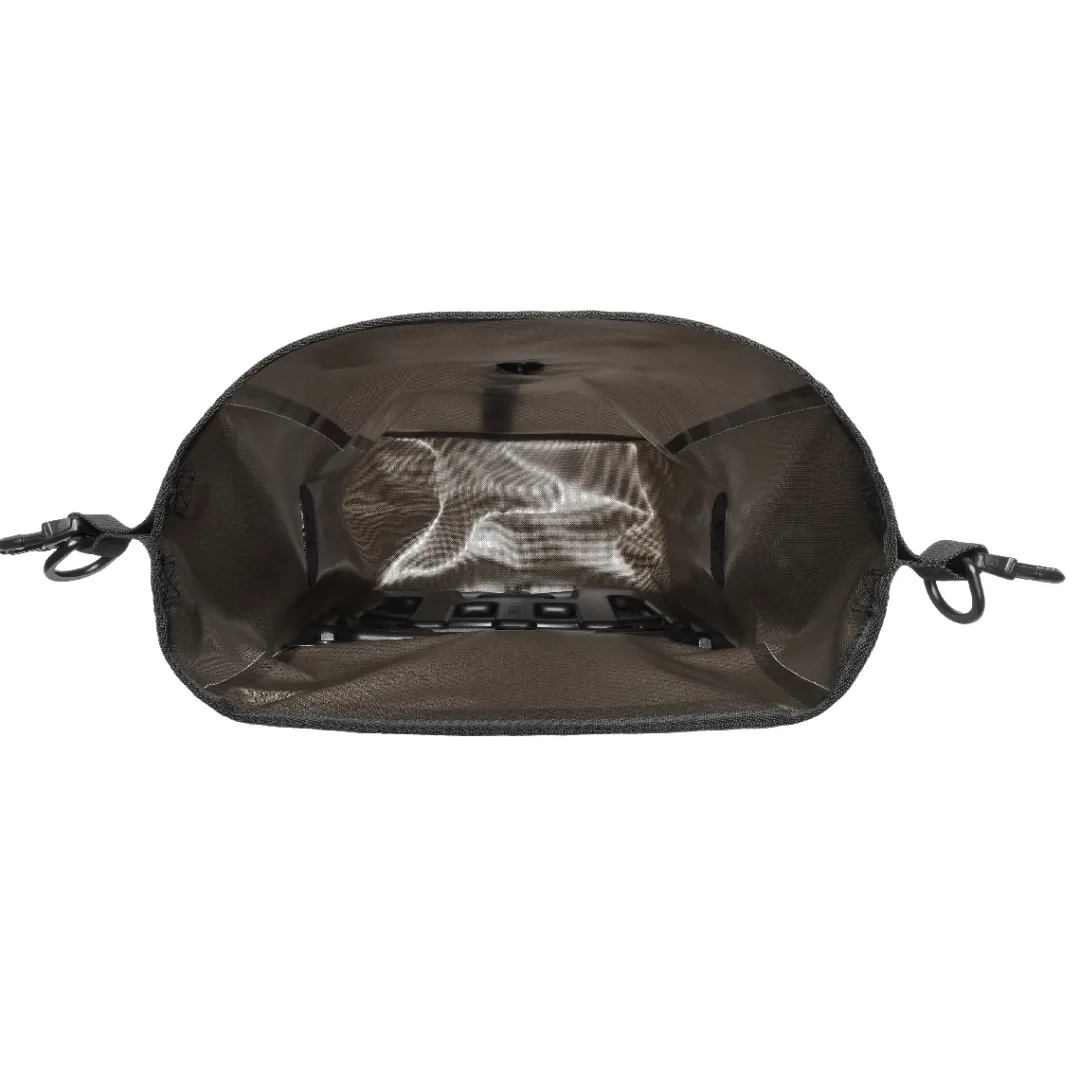

• Easy to clean inside
• Edge protection
• Symmetric shape allows for use on the right or left side
• Reflective design elements

Technical details:
• Material: PS21R, PS33 polyurethane-coated polyamide fabric
• Dimensions: approx. 37 x 26 x 16 cm (H x W x D)
• Volume: approx. 14.5 l
• Maximum load: approx. 9 kg
• Protection category: IP64
• Weight: approx. 540 g

*Note: In order to reach protection standard IP64 (6=dustproof, 4=resistant to wheel spray coming from all directions) the roll closure must be folded down 3-4 times and fixed at the bottom.

Optional accessories:
• ORTLIEB QL3.1 hook 11-16 mm (prod.code: 2336376)
• ORTLIEB shoulder strap with carabiner E172 (prod. code: 1423068 )

In the box:
• 1 ORTLIEB GRAVEL-PACK Bikepacking bike bag
• Incl. ORTLIEB QL3.1 mounting kit

Highlights & Technologies:

QUICK-LOCK3.1:

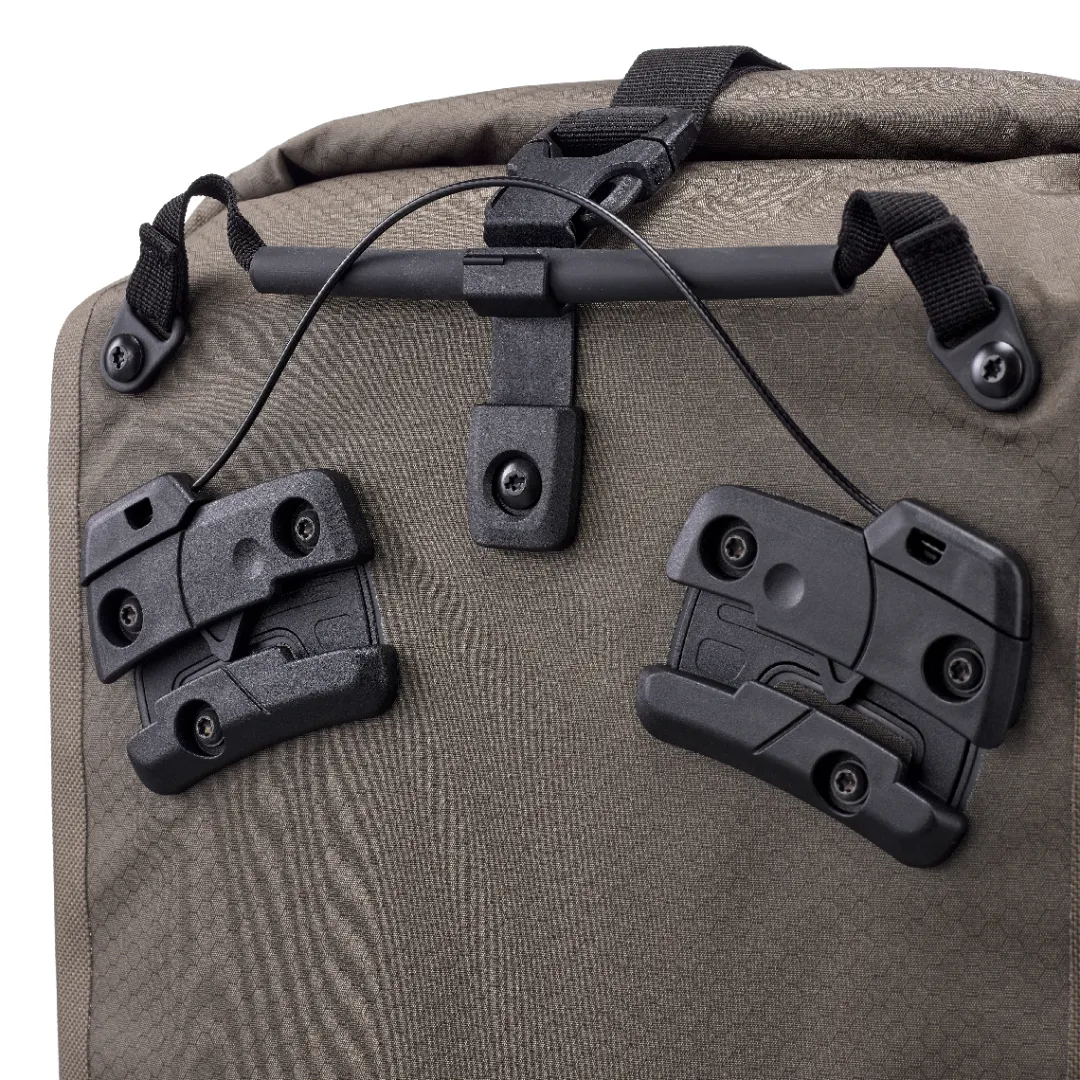

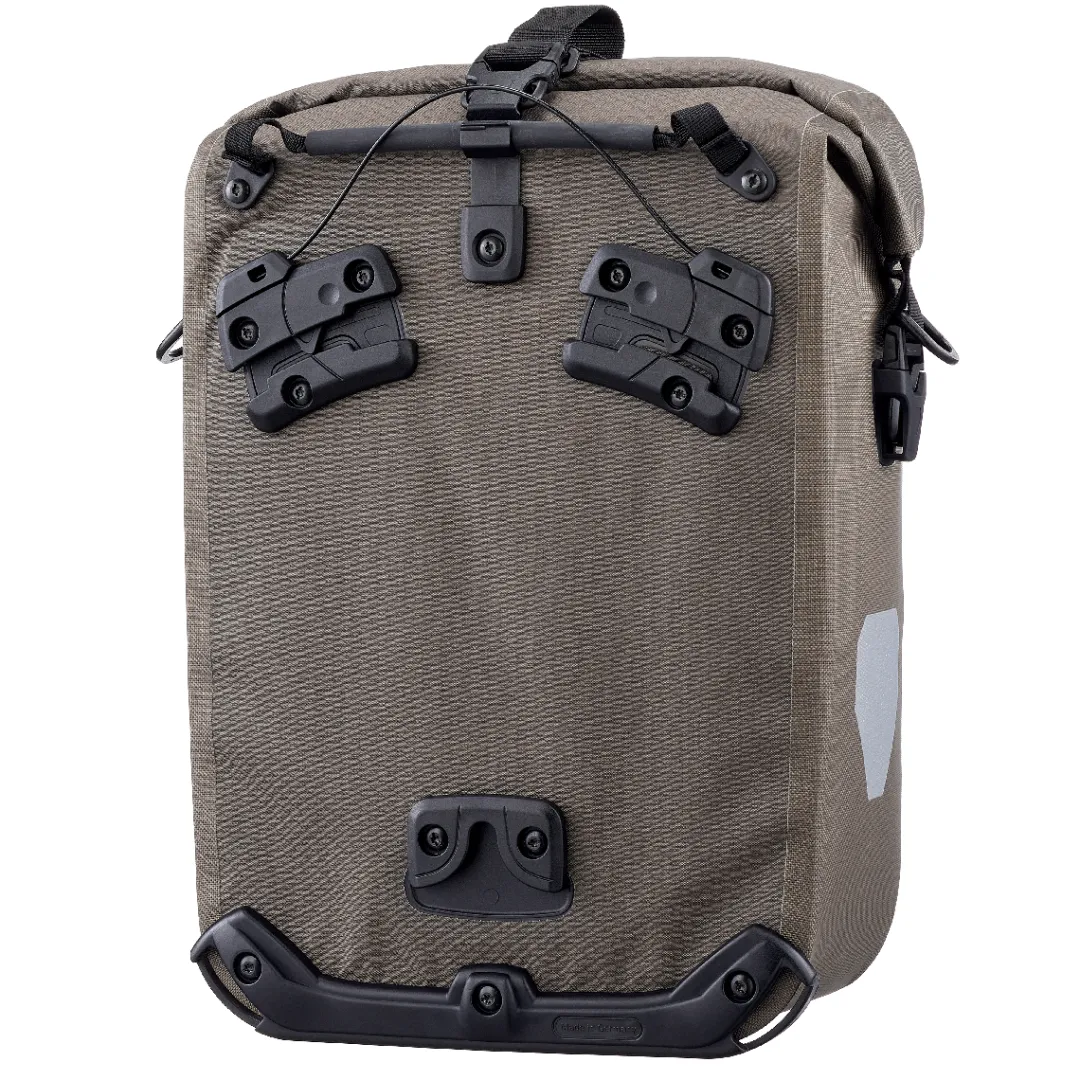

This bicycle bag mounting system is especially designed for office and city bags. The main supporting elements are permanently fixed to the luggage rack. Thus, there are no hooks on the back of the bag, which significantly improves comfort.

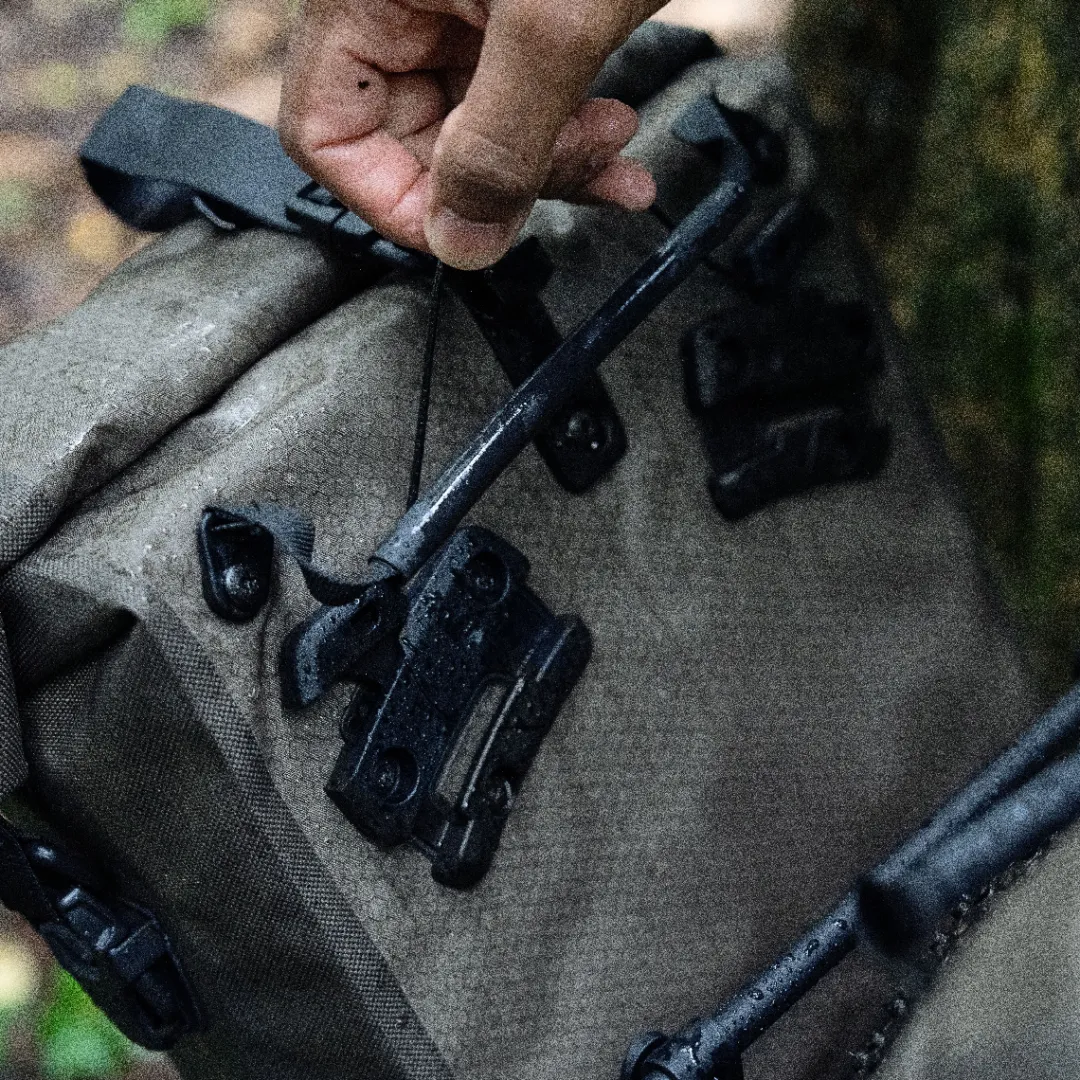

The QL3.1 mounting system allows for quick and easy attachment of the pannier. Simply position the bag on the lower mounting point, move it towards the rack, swivel it in from the left or right and securely attach it to both mounts on top. Removing the bag is just as quick and easy: Simply lift the bag by the handle and simultaneously swing it either to the left or to the right, done!
• Comfortable single-handed operation
• Automatic locking and release of the hooks when lifting the bag by the carrying handle
• Fixing rail can be mounted on left or right side, and optionally on horizontal or vertical rack tubes (up to 10 mm tube diameter)
• Direct mounting (without mounting rail) possible on R1 and R3 racks with integrated QL3/QL3.1 system
• Adjustable height and angle of the suspension for sufficient legroom

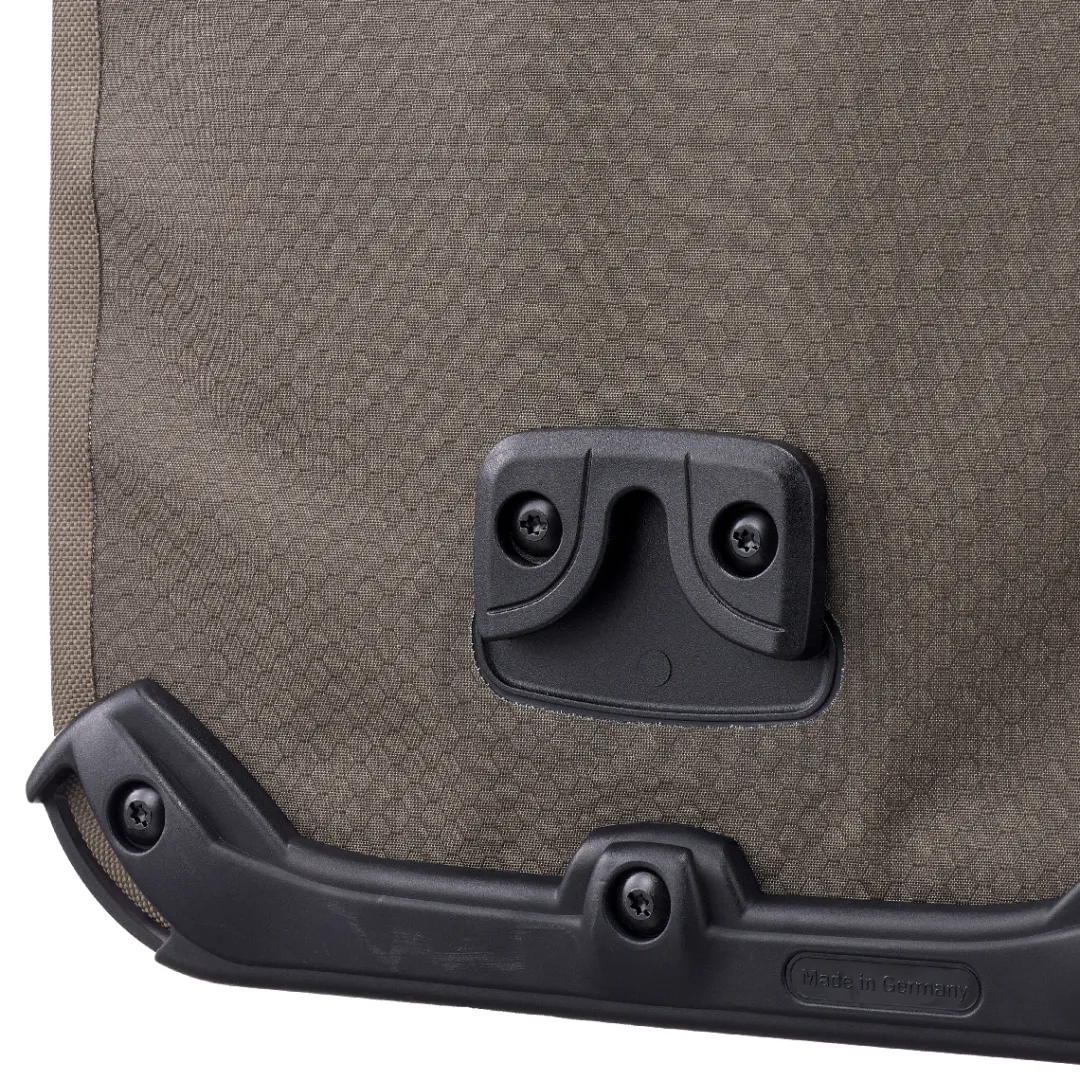

• Lower hook can be rotated 360 degrees (in 24 steps of 15 degrees each) for individual adaptation to a wide variety of luggage racks with tube diameters of up to 14 mm
• Horizontal rack top remains free for baskets, trunk bags etc.
• Bags with QL1, QL2 and QL2.1 system can also be fixed to the mounting rail

PFC FREE:
PFC is a group of chemicals acting as intermediates, auxiliary materials or breakdown products of certain fluorocarbon compounds. They are used in garment production to impregnate clothing due to their durable water- and grease-repellent properties. However, PFC residues are non-biodegradable and may be harmful. The product’s water- and dirt-repellent finish is free of PFC.

Note:
The reflective design elements attached as decorative elements do not represent a personal protective equipment as mentioned in EU regulation 2016/425. Thus, they are also not covered by the provisions of the regulation.
