Explore beyond!
Discover the almost endless possibilities of modern road cycling with SHIMANO GRX components. The RX600 Series at 105 / SLX level represents the high-performance mid-range of the gravel- and cross-specific GRX groups.

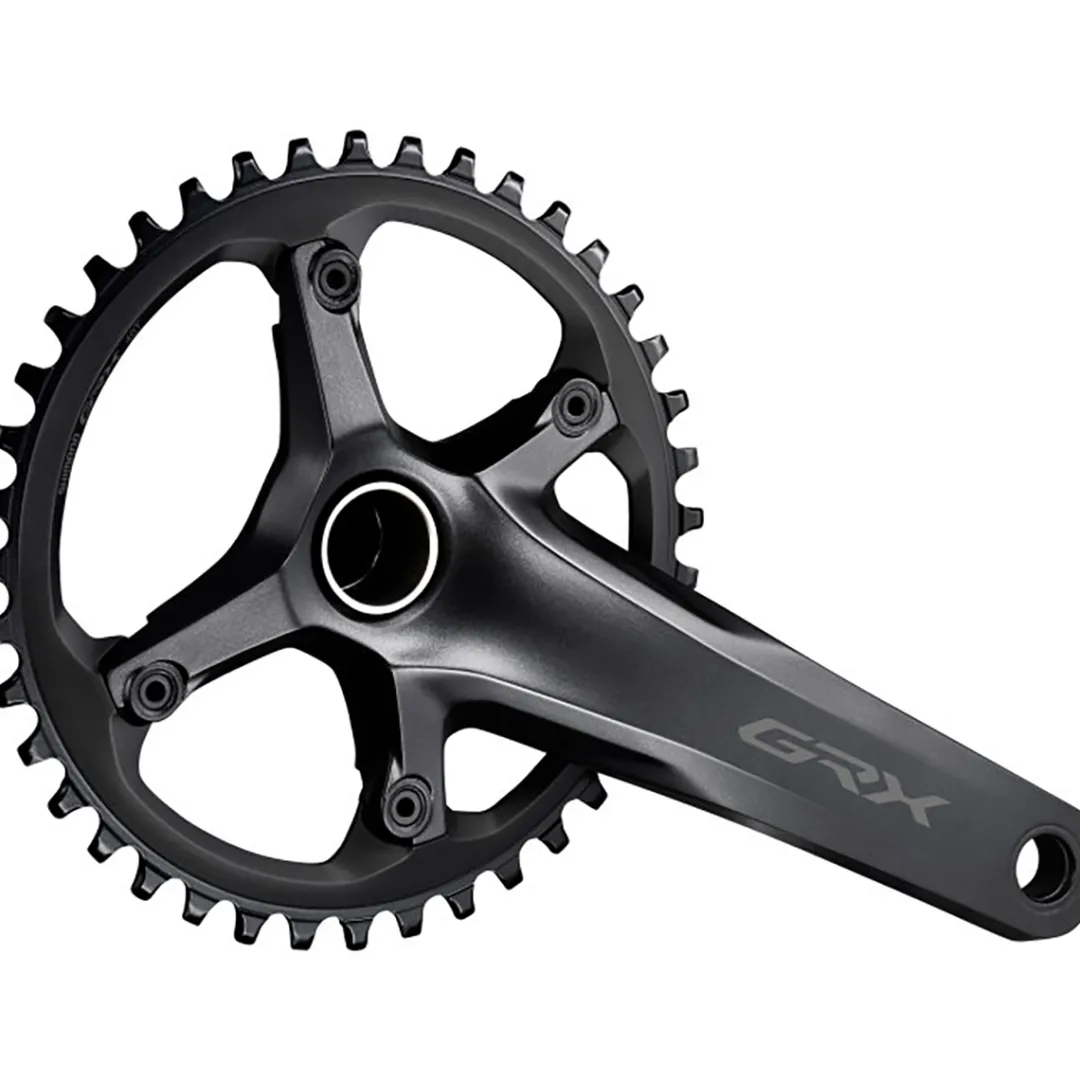

While developing the GRX FC-RX600 crankset, SHIMANO’s developers have paid particular attention to the needs of modern cross, gravel and commuter bikes. Thus, the crankset for 1×11 systems reduces the complexity of shifting, since you only have to shift at the rear. In addition, the chainring features SHIMANO´s DYNAMIC CHAIN ENGAGEMENT+ tooth profile, which holds the bike chain in position on rough terrain.
A 2.5mm wider chainline compared to “traditional” SHIMANO road cranks provides space for large-volume tyres.
Details:
Easy and intuitive shifting without the complexity of a front derailleur
DYNAMIC CHAIN ENGAGEMENT+ tooth profile to hold the chain in place on bumpy ground
Specs:
Intended use: Gravel, Road, Cyclocross
Forged aluminium crank arms
Aluminium chainrings
Compatibility: 11-speed/single
Crankset with integrated BB axle
For a shell width of: 68 / 70 / 86 mm
Gear ratio: 40 teeth
Bolt circle: 110 mm/ 80 mm (asymmetric)
Chainline: 49.7 mm
Weight: approx. 753 g
Available with:
170 mm crank arm length
172.5 mm crank arm length
175 mm crank arm length
Please make your choice.
In the box:
1x SHIMANO GRX FC-RX600 crankset (1×11)
WITHOUT bottom bracket
Tip:
For the recommended BB-RS500 BSA bottom bracket cups, see product code: 2137335.
For BB-RS500 PressFit bottom bracket cups see product code: 2234045.
