United in Gravel!
With a clear focus on the heart and soul of gravel biking, SHIMANO’s mechanical GRX series now gets a 12-speed update to deliver top performance!
Simplicity and reliability build the basis for the new 12-speed GRX line-up and allow you to enjoy off-road adventures of a special kind!

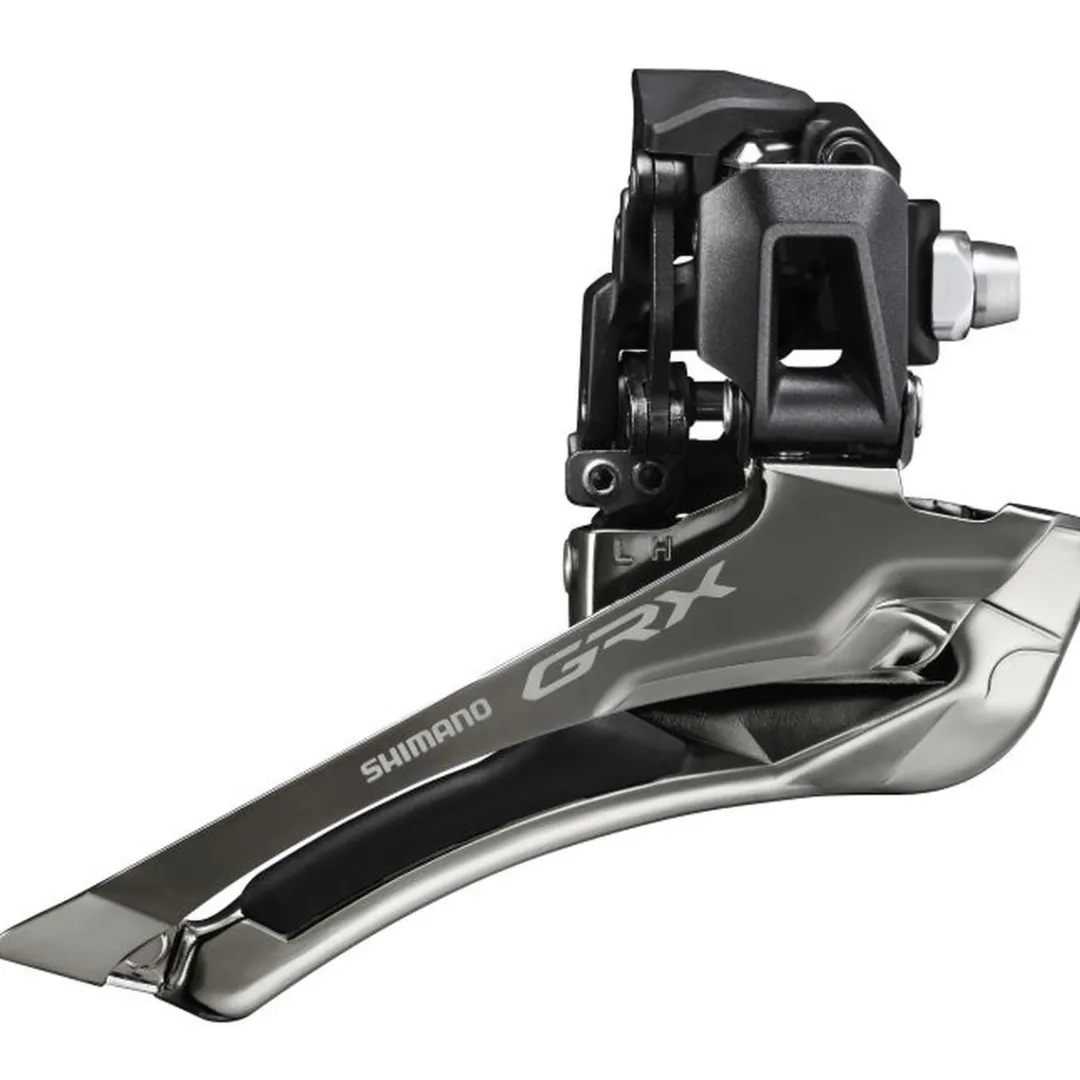

Just like the GRX cranksets, the GRX FD-RX820 12-speed front derailleur is optimised for a 47 mm chainline to provide space for large-volume tyres that can often be found on modern cross, gravel and commuter bikes. In addition, the RX820 front derailleur is designed to work with the giant 17-tooth front difference of SHIMANO’s GRX cranksets.

Details:
Natural stroke feeling thanks to an ergonomic power curve
Toggle link design offers numerous options for cable routing
Precise and simple adjustment through integrated cable tension adjustment

Technical details:
Intended use: Gravel, Road, Cyclocross
Series: GRX
Model: FD-RX820
Material: aluminium, steel, composite
Compatibility: 12-speed/double
Attachment: braze-on socket (Down Swing)
Large chainring: 46 – 48 teeth
Capacity: 17 teeth
Chainline: 47 mm
Chain stay angle: 63° – 66°
Weight: approx. 96 g

Note:
Due to the chainline ONLY compatible with SHIMANO GRX 12-speed cranksets!

In the box:
1 SHIMANO GRX FD-RX820 12-speed front derailleur
