ROSE Bikes Handlebar Rack| Front Racks

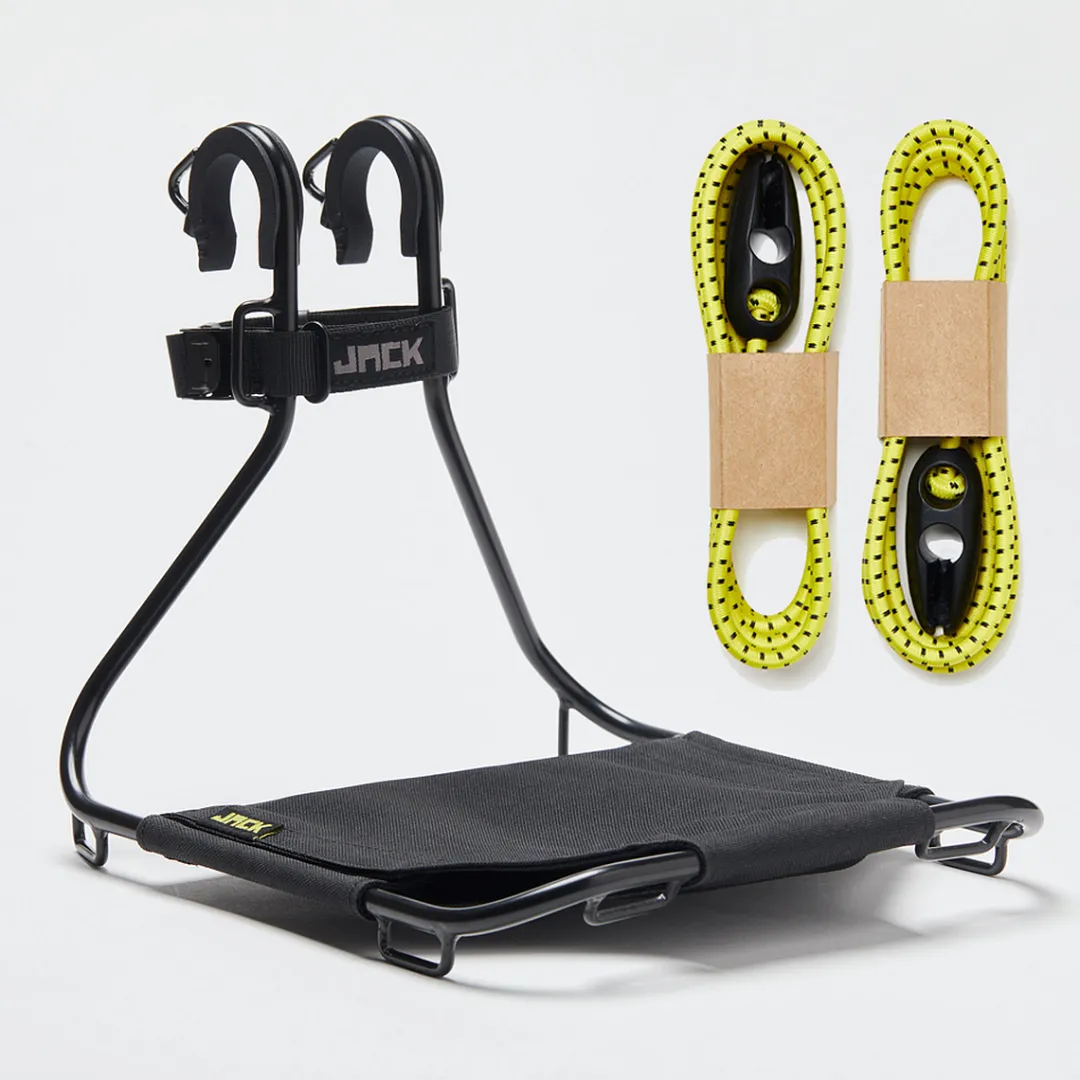

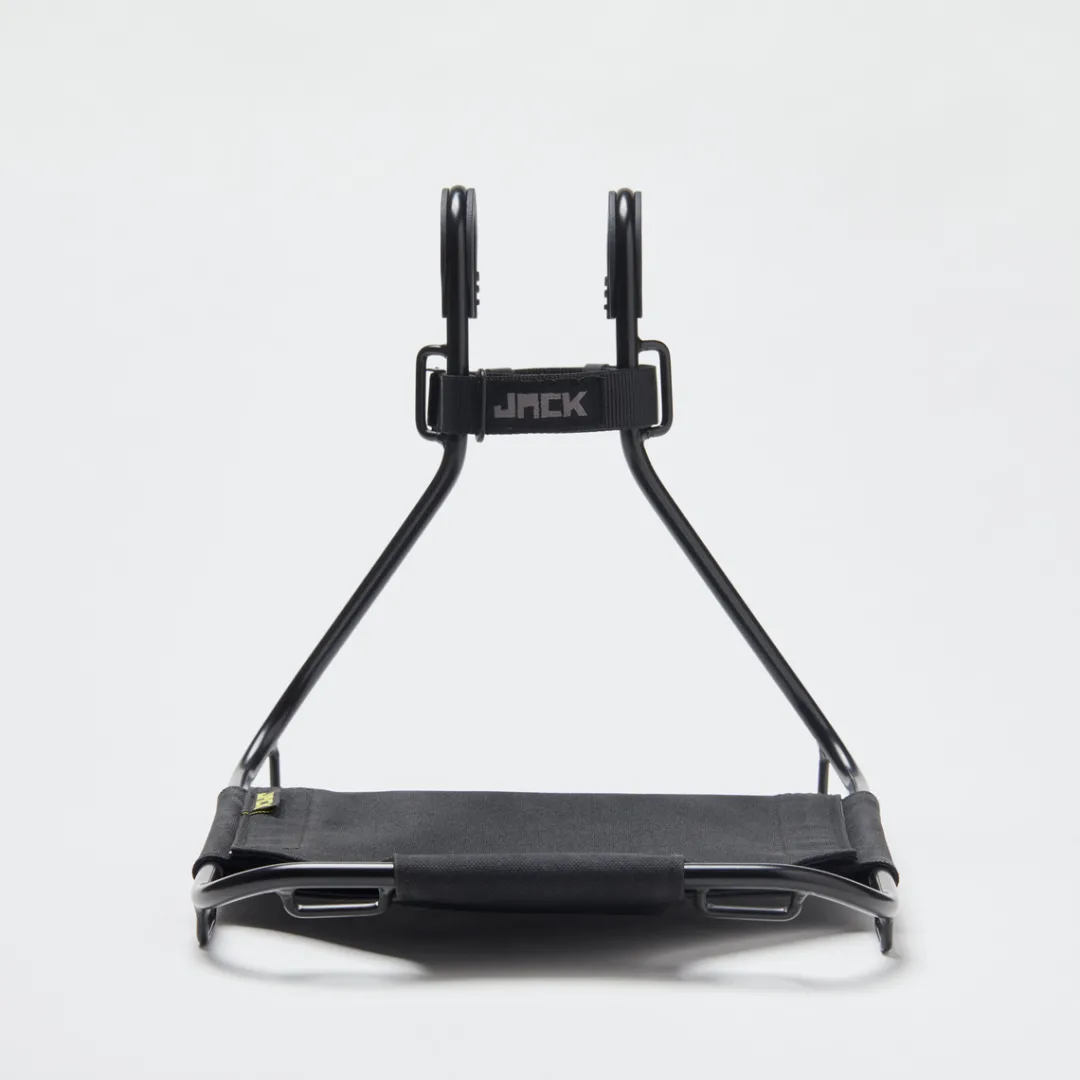

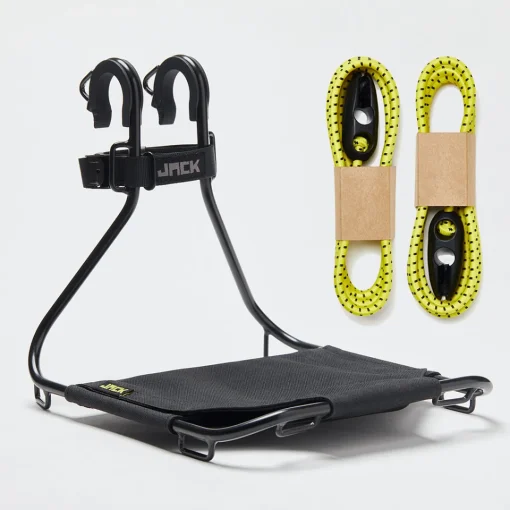

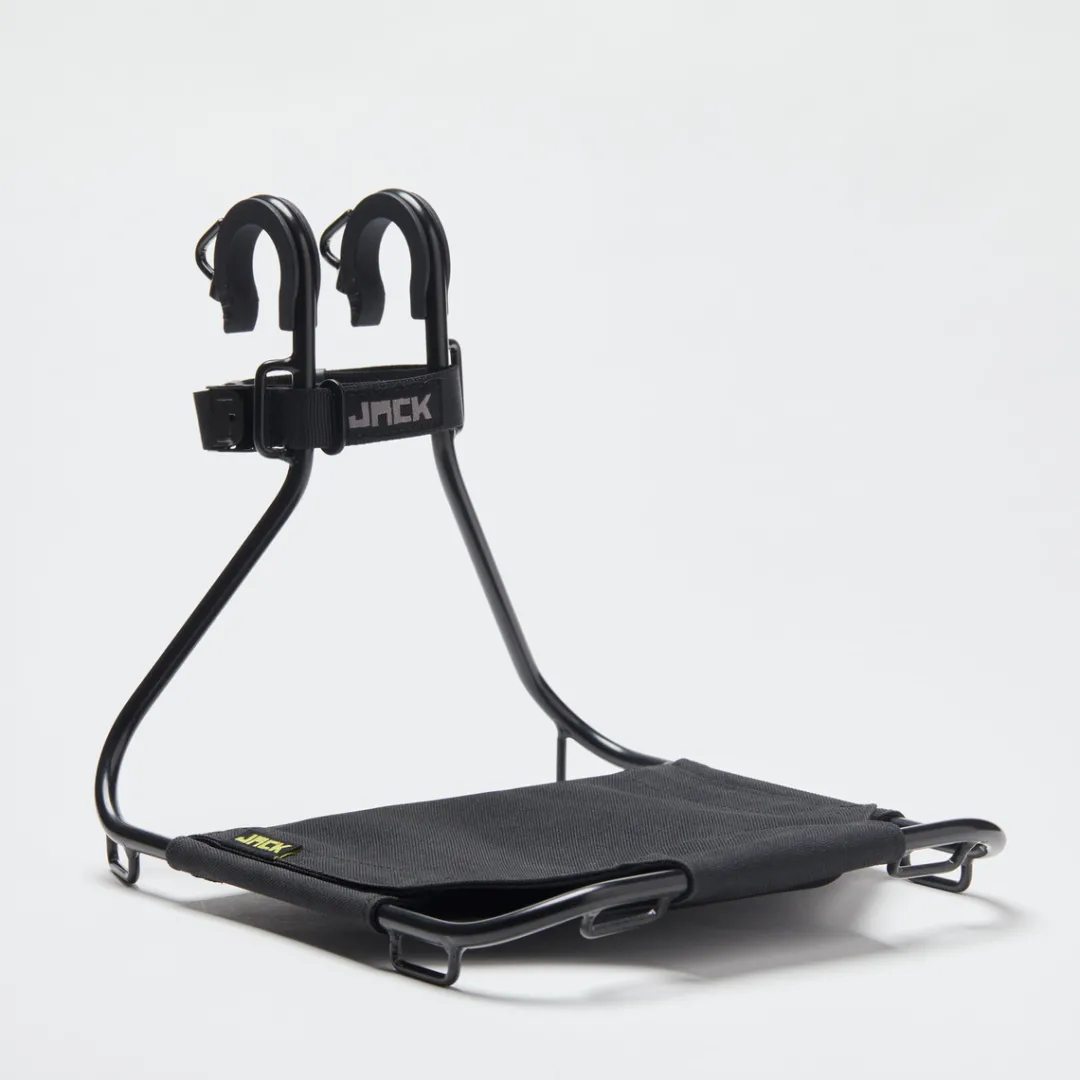

If you are looking for a minimalist luggage rack for handlebar mounting, Jack the Bike Rack is just the thing.

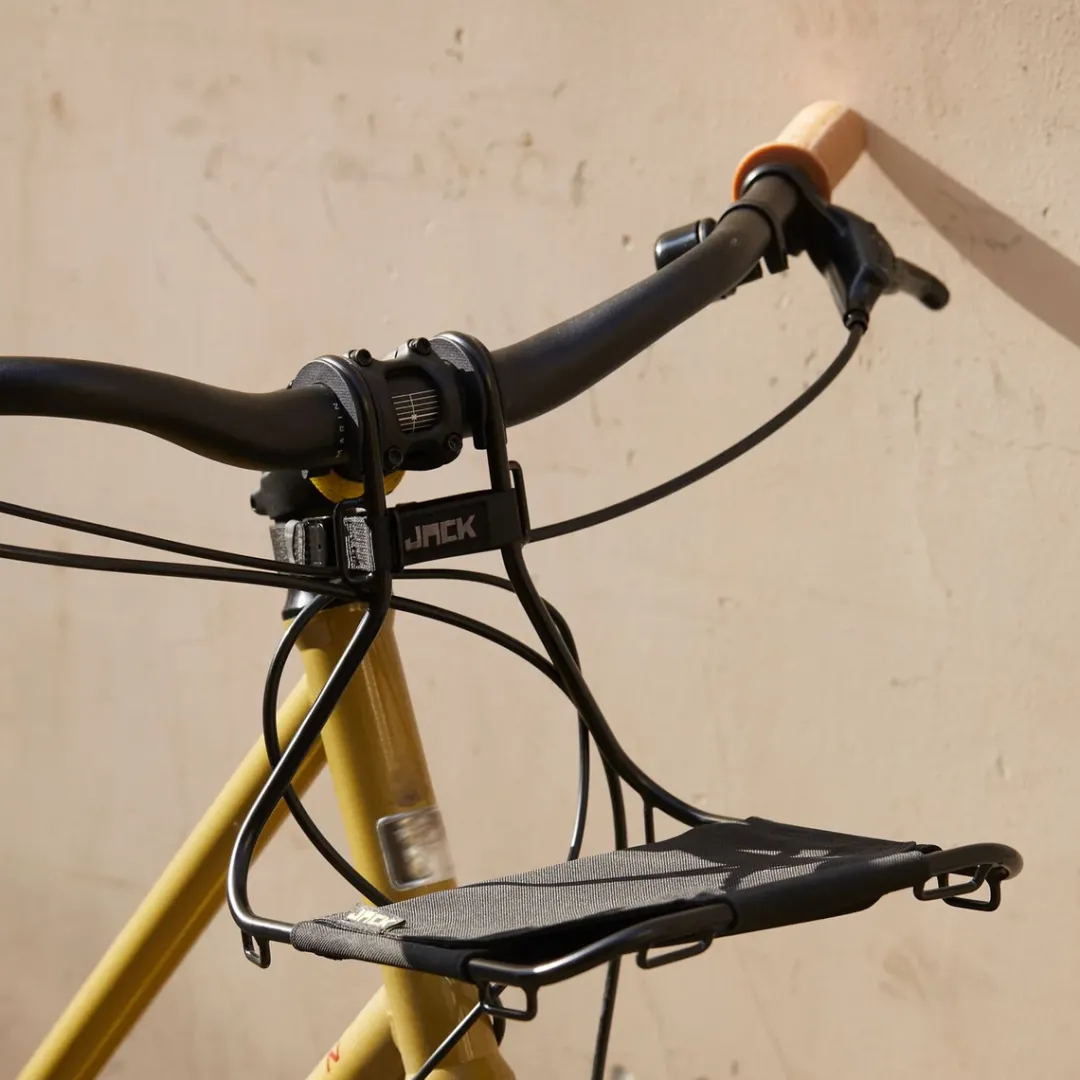

To mount Jack on your bike, you don’t need any special mounting points on the fork. It can be attached easily and without tools to all standard handlebar diameters and bikes and removed just as quickly. To do this, the front rack is hooked onto the left and right side of the stem and then secured to the stem and steerer tube with two straps. You can then quickly secure your cargo on Jack’s luggage platform using the elastic straps supplied.

Details:
Front rack for handlebar mounting
Compatible with all standard handlebar diameters
Quick and tool-free mounting
Suitable for bikes with rigid and suspension forks (see below for compatibility)
Does not require any special fork mounting points
Made from robust stainless steel
Suitable for loads weighing up to 5 kg
With six eyelets for easy luggage fastening
Two elastic luggage straps included

Technical details:
Material: Stainless steel (luggage rack), 600D polyester (luggage platform cover), polyamide (straps)
Compatible with handlebar clamp diameter: Ø 22.2 /25.4 / 31.8 mm
Compatible stem width (measured at the front panel): 35–50 mm
Required free clamping width next to the stem: min. 10 mm (left and right)
Compatible stem inclination / stem slope (measured parallel to floor level): -3° to +45°
Compatible handlebar tube profile in the mounting area: round
Minimum distance from top edge of handlebar to top edge of tyre/ mudguard: 230 mm (applies to bikes with suspension forks when fully compressed)
Max. load 5 kg
Weight: approx. 730 g (incl. fixing material, without straps)

In the box:
1 Jack the Bike Rack handlebar rack incl. mounting material
2 tensioning straps

Tip:
You can find an installation video for the handlebar rack below this product text.

Note:
The front carrier cannot be attached to bikes with a handlebar/stem unit. In addition, mounting is only possible on stems with the same width in the handlebar clamping area. This must have a round pipe profile. Oval pipe profiles are not compatible.

Suitable accessories for attaching luggage to Jack the Bike Rack:
Jack Straps Stiff lashing straps (prod. code: 2351558, 2351559)
Jack Straps Bungee straps (prod. code: 2351556, 2351557)
