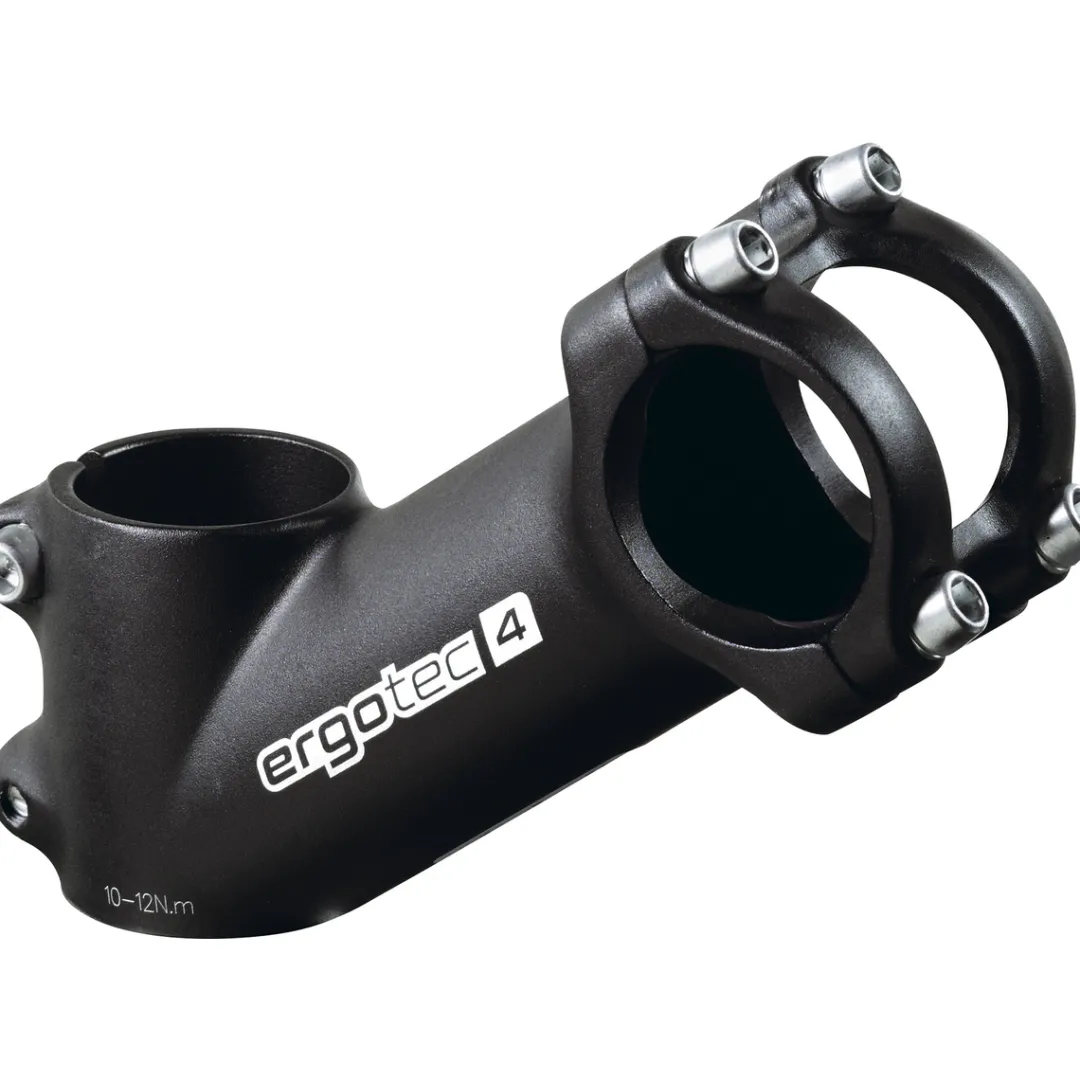

ROSE Bikes High Crab 2 Ahead stem| Stems For Threadless Steerers

As a stable, yet relatively lightweight connection element between fork steerer and bicycle handlebar, the solid High Crab 2 by Ergotec has a fixed place among straightforward stems with rigid angle. The 35° angle of the 3D forged aluminium body can – in relation to the frame geometry and the selected radius version – help create an upright to moderate sitting position. The 4-screw handlebar clamping allows for easy mounting without dismounting the handlebar attachment parts. Shape, colour design and surface finish of the High Crab 2 make a discreet contribution to the look of your bike.

Details:
Ahead stem angle: 35°
Radius: optionally 70/90/110/165/180 mm
Steerer clamping Ø: 28,6 mm
Handlebar clamping Ø: 31,8 mm
Clamping height: 45 mm / 50 mm (165/180 mm)
Ergotec Safety level 4*
Max. system weight (cyclist, bike and luggage): City/Touring (also for e-bikes up to 25 km/h) 140 kg
Recommended for hybrid bikes, city bikes and e-bikes up to 25 km/h

Material: Aluminium 6061 T6
Weight approx.: 137 g (70 mm), 145 g (90 mm), 165 g (110 mm), 230 g (165 mm), 240 g (180 mm)

* The product classification of the ergotec Safety Level complies with the DIN EN ISO 4210 standard for bikes and DIN EN 15194 for e-bikes. The ergotec Safety Level is always valid for the entire steering system. If stem and handlebar have different Safety Level, the lower level is indicated for the entire system.

ATTENTION:
Due to safety concerns, the manufacturer does NOT approve the use of the stem with carbon handlebars and/or carbon steerer tubes.

Manufacturer’s ref. 40104001 (70 mm), 40116101 (90 mm), 40117101 (110 mm), 40117301 (165 mm), 40117401 (180 mm)
