ROSE Bikes Holder for Display Mount Kiox 300/500 / SmartphoneGrip (BDS3630 / BDS3620)| Smartphone Accessories|Bike Computers

All information at a glance!

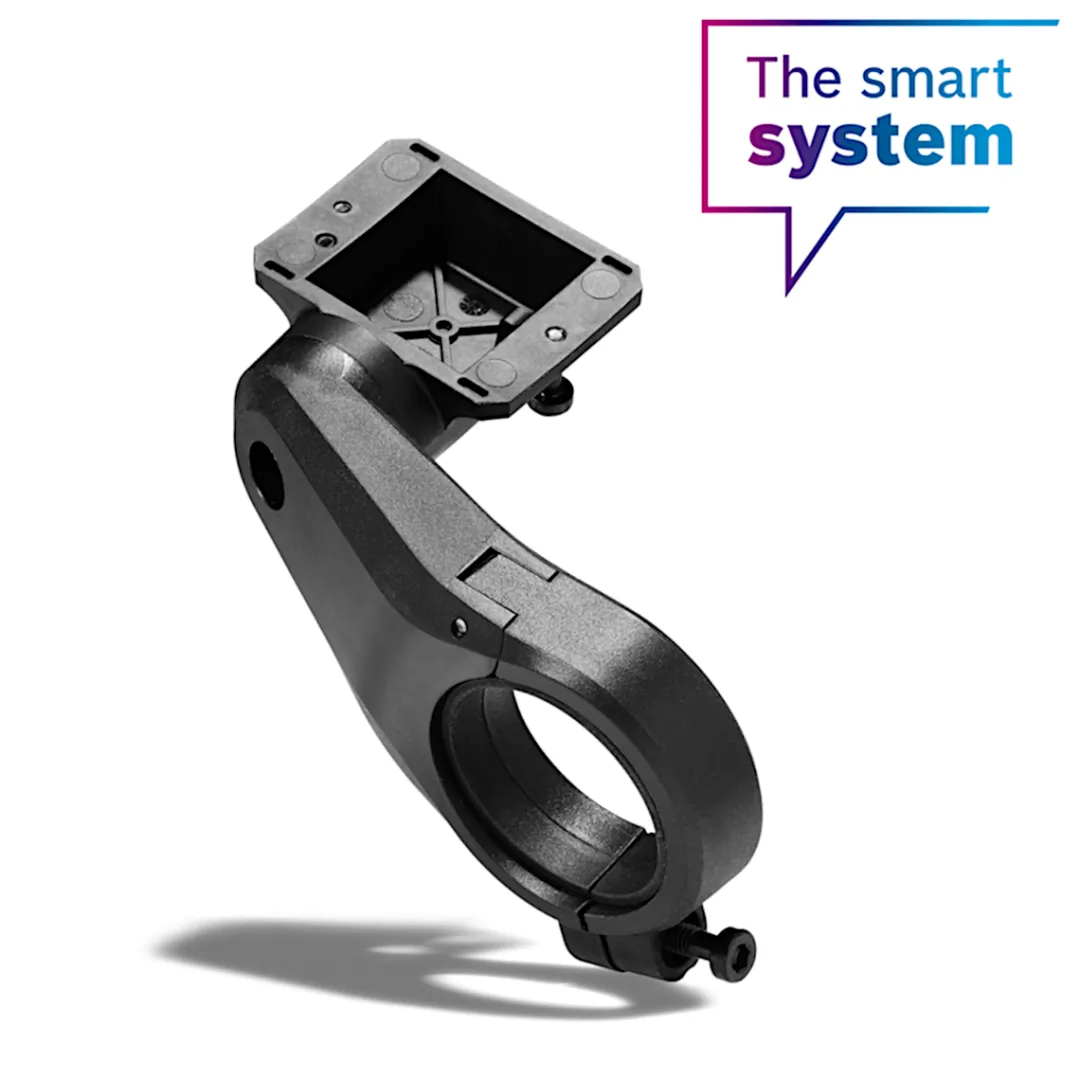

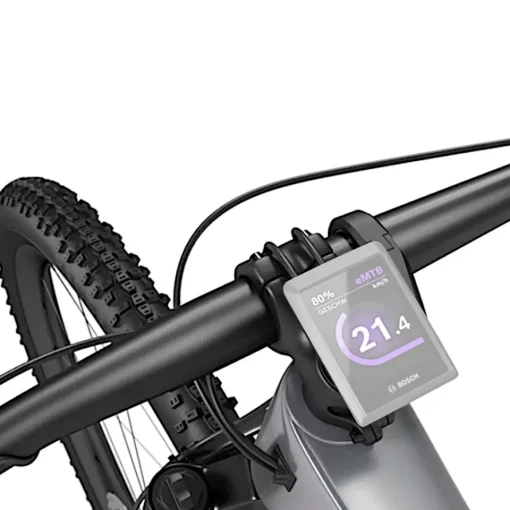

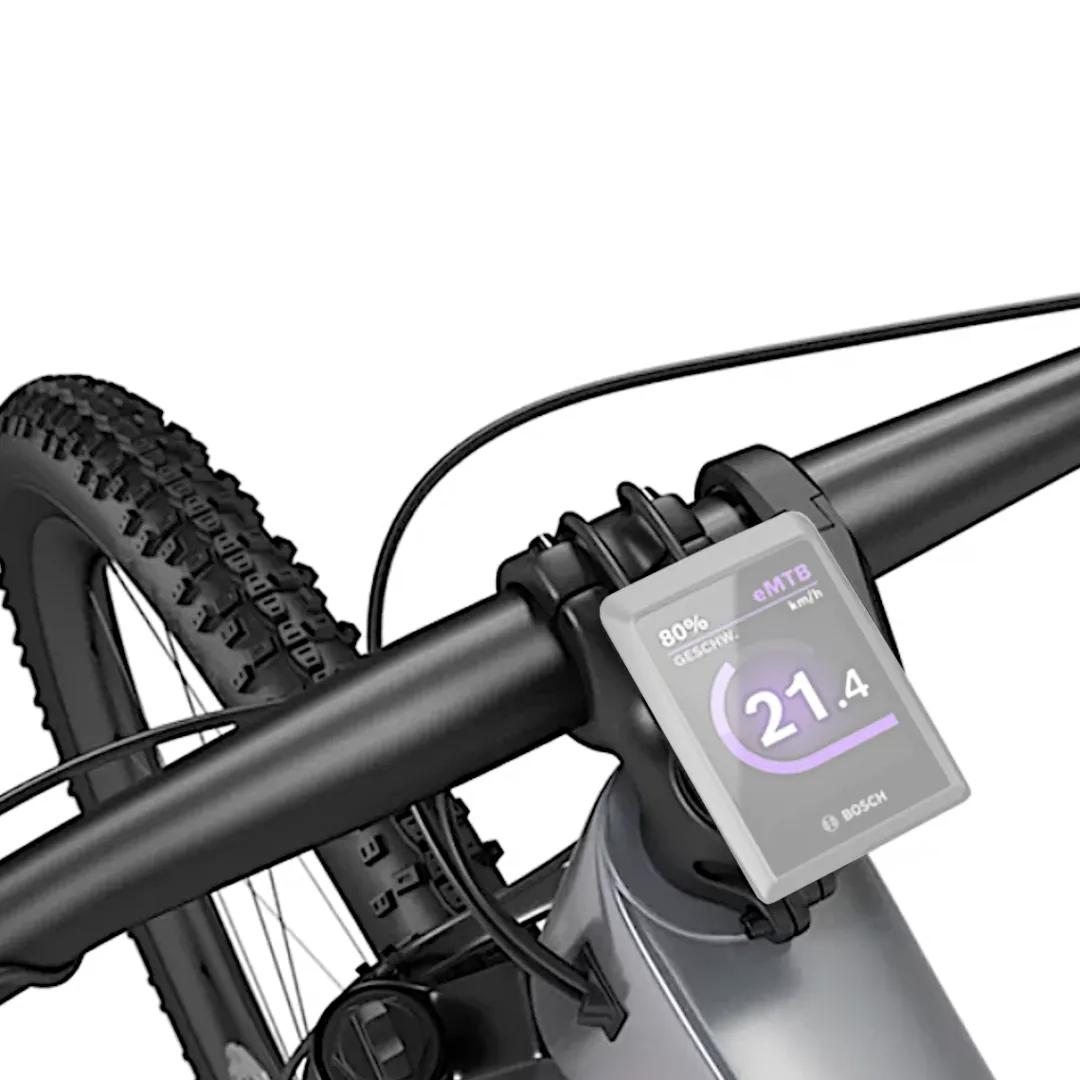

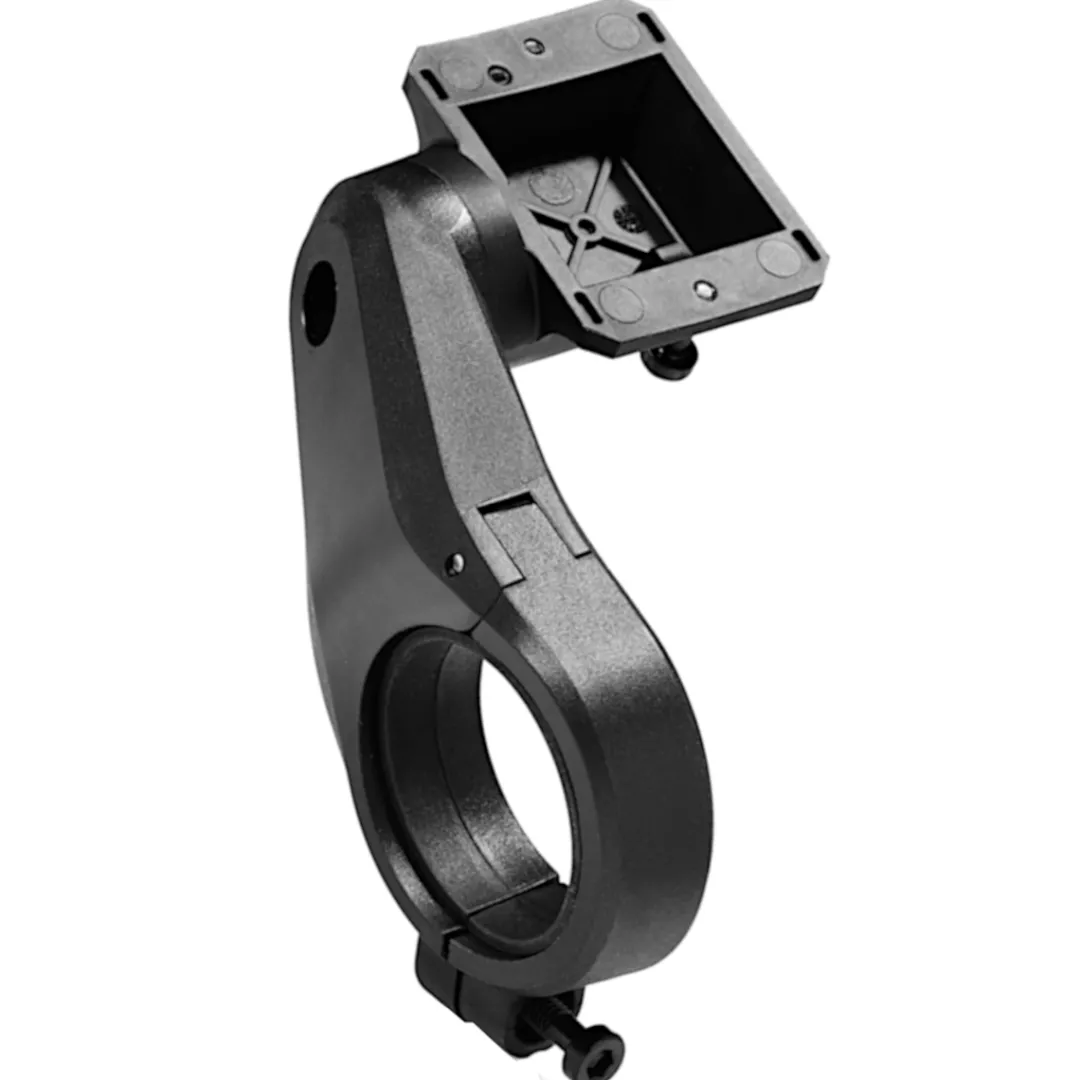

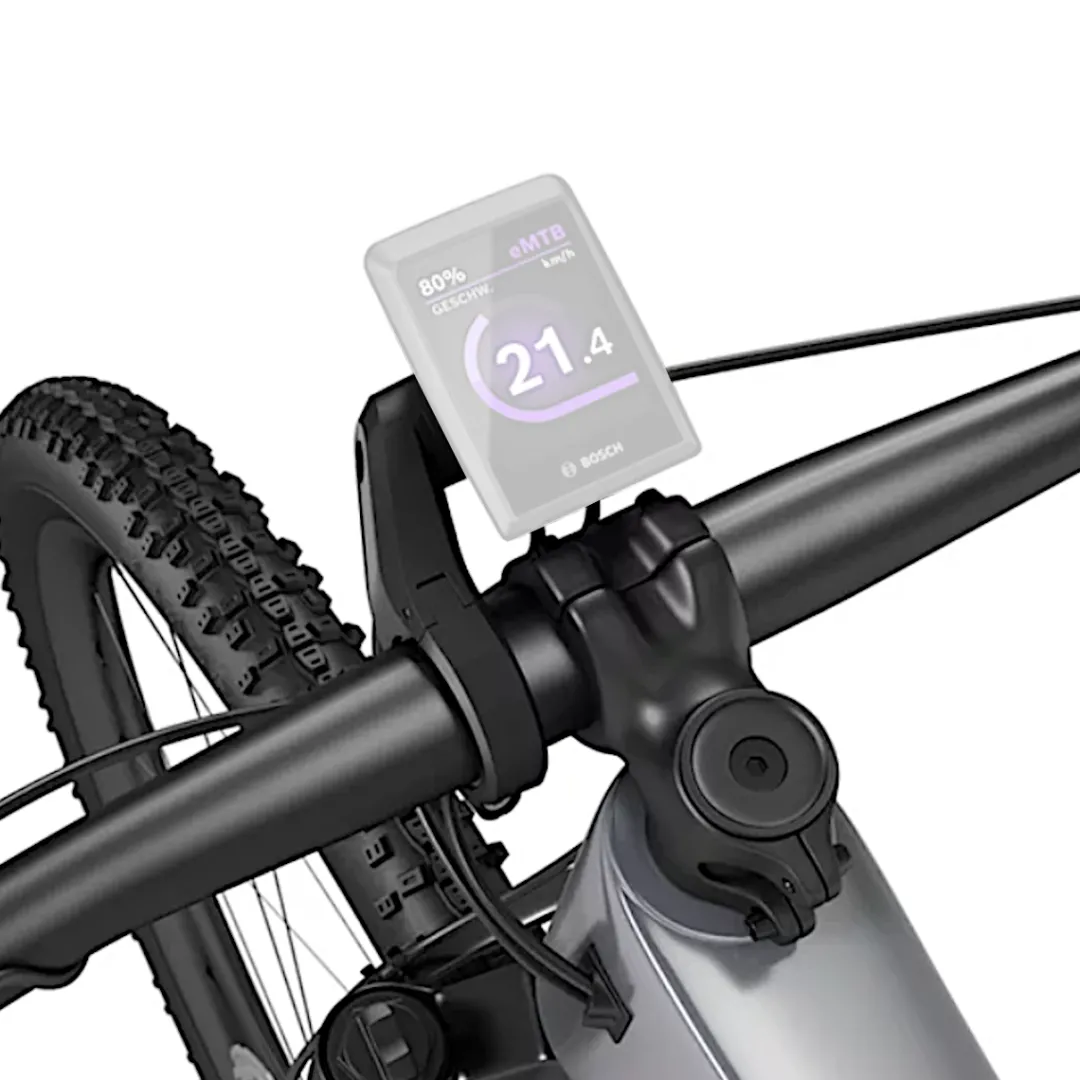

With the Bosch holder, the display on the handlebar can be perfectly positioned on your cockpit and flexibly adjusted. Whether in a central position in front of the handlebar, next to or above the stem. Thanks to the angled mounting arm, you have a few options to integrate the holder on the handlebar according to your needs. Two optional sizes are available to ensure a precisely fitting attachment, which can be easily mounted with the hinged clamp bolt. For optimal readability, the tilt angle of the display can be adjusted via the adapter case – which helps to minimise reflections.

For the connection to the Bosch Kiox 300/500 display or SmartphoneGrip, the optionally available Bosch display mount is required as an adapter in order to be able to attach the components to the holder

(prod. code 2330998 or 2330999).Details:
Mount for the Bosch display adapter
Central positioning of the display on the handlebar
Different assembly options
Stable joint clamp fastening
Comes in two sizes for different handlebar diameters

Technical details:
Intended use: E-bike
Model: BDS3620 (for handlebar Ø 31.8 mm); BDS3630 (for handlebar Ø 35 mm)
Material: plastic, metal
Compatibility: Bosch Kiox 300/500 display mount (BDS3250 or BDS 3210); SmartphoneGrip (BDS3630)

Available for handlebar Ø:
31.8 mm (BDS3620)
35.0 mm (BDS3630)
Please indicate your choice.

In the box:
1 Bosch 1-arm mount for Kiox 300/500 / SmartphoneGrip
Comes with a protective rubber
2 x screw M4 x 12 (adapter shell and clamp fastening)
2 x screw M3 x 9.5 (display holder)

Note:

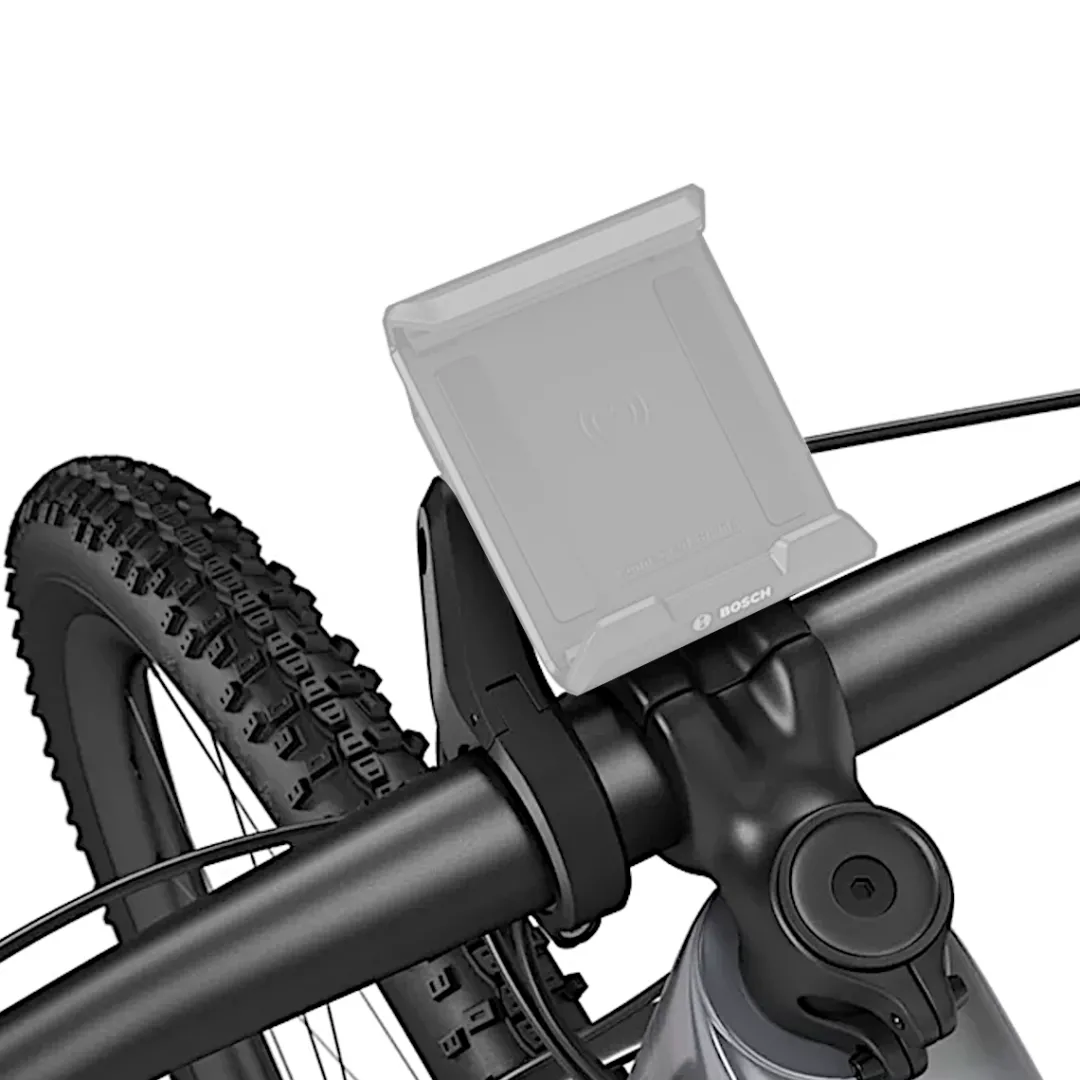

The Bosch holder is the basis for various mounts of the eBike Smart System that are screwed to the adapter shell. The display is connected using the corresponding, optional display holder.
Optional display mounts in the ROSE range:
Bosch display mount adapter BDS3210, rear cable outlet (prod. code: 2330998)
Bosch display mount adapter BDS3250, front cable outlet (prod. code: 2330999)
