ROSE Bikes IR-1.3 Mounting Set for Internal Cable Routing| Bike Tools

The IR-1.3 mounting set from Park Tool simplifies the installation of internally routed cables for electronic shifting, outer covers for shift and break cables and hydraulic brake hoses in the frame of your bike.

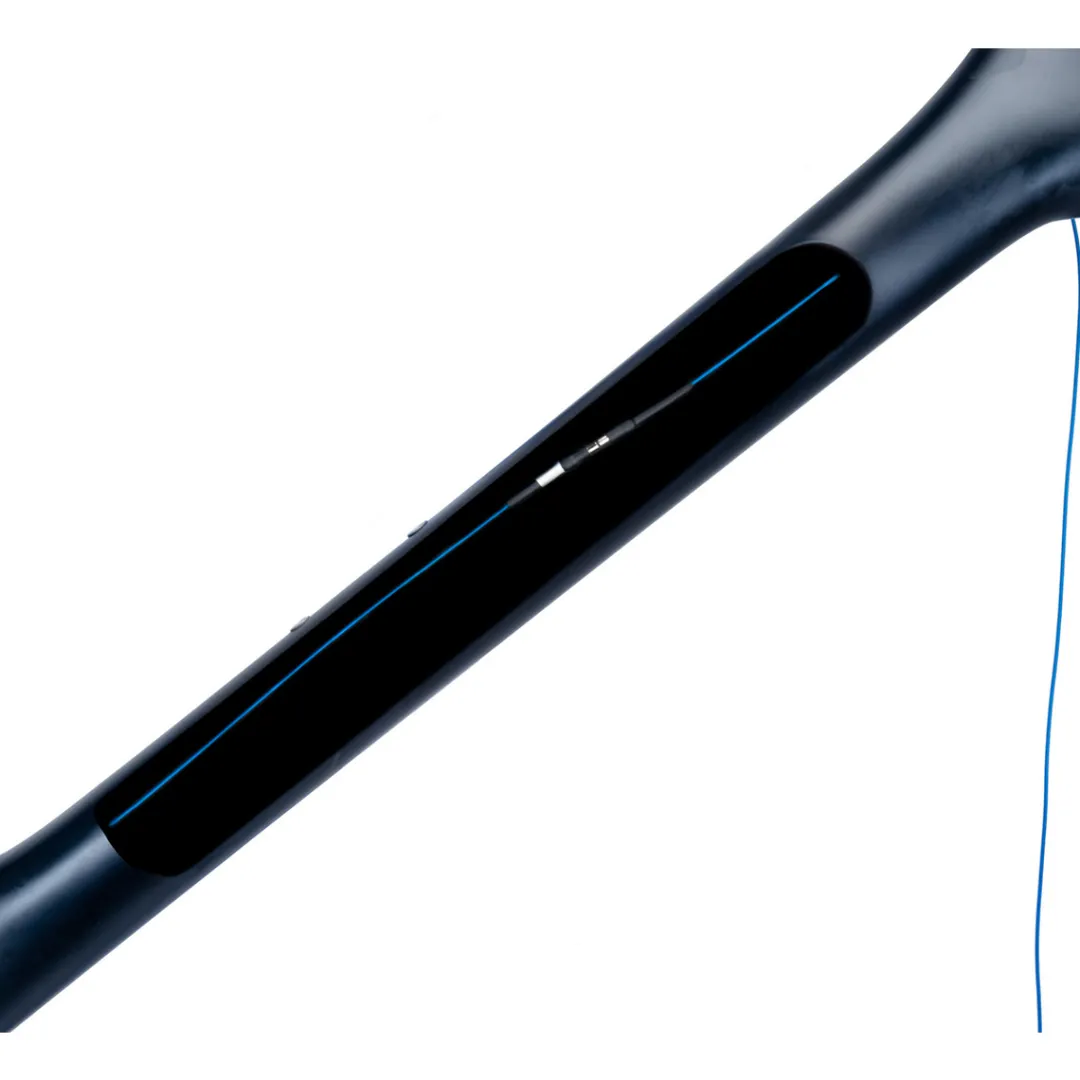

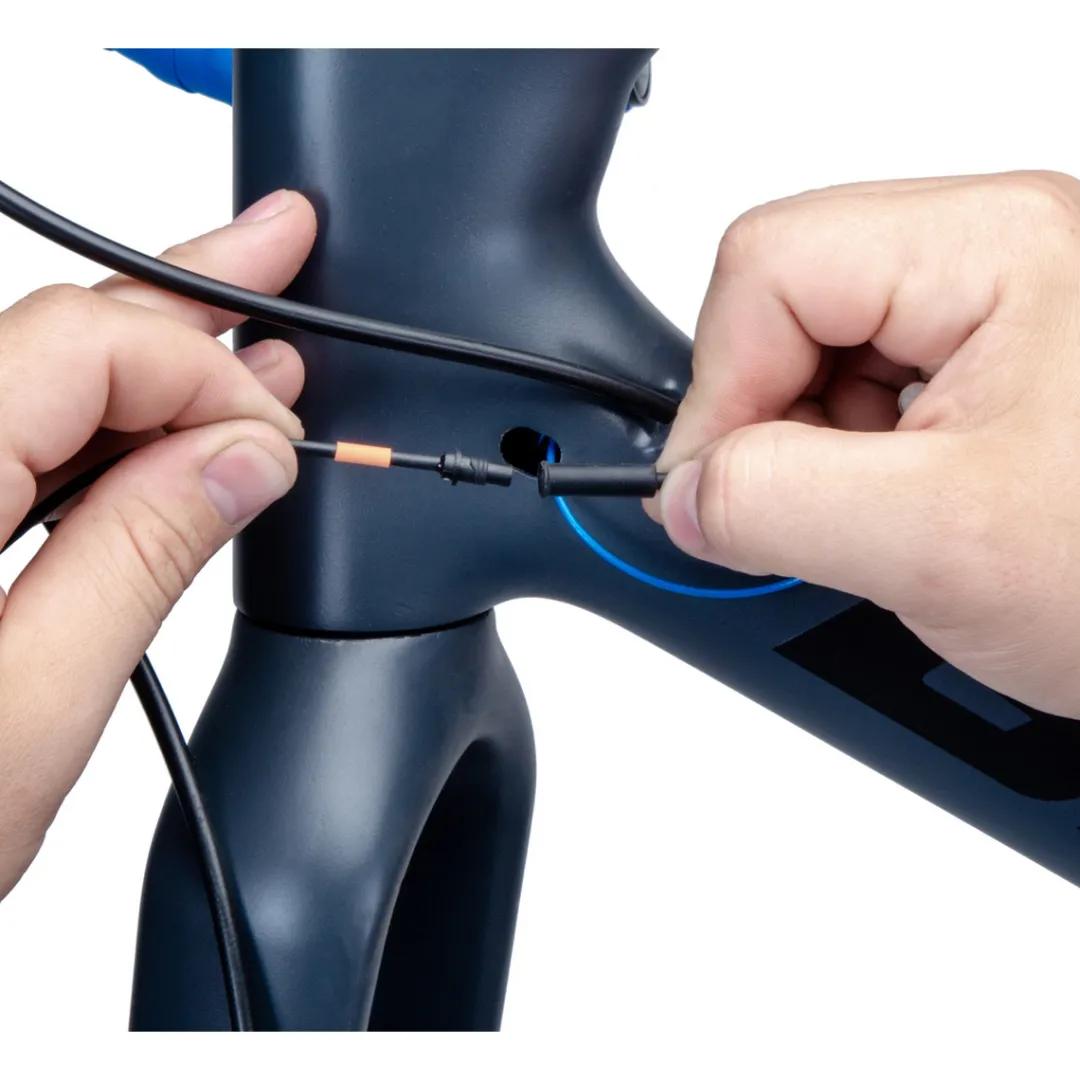

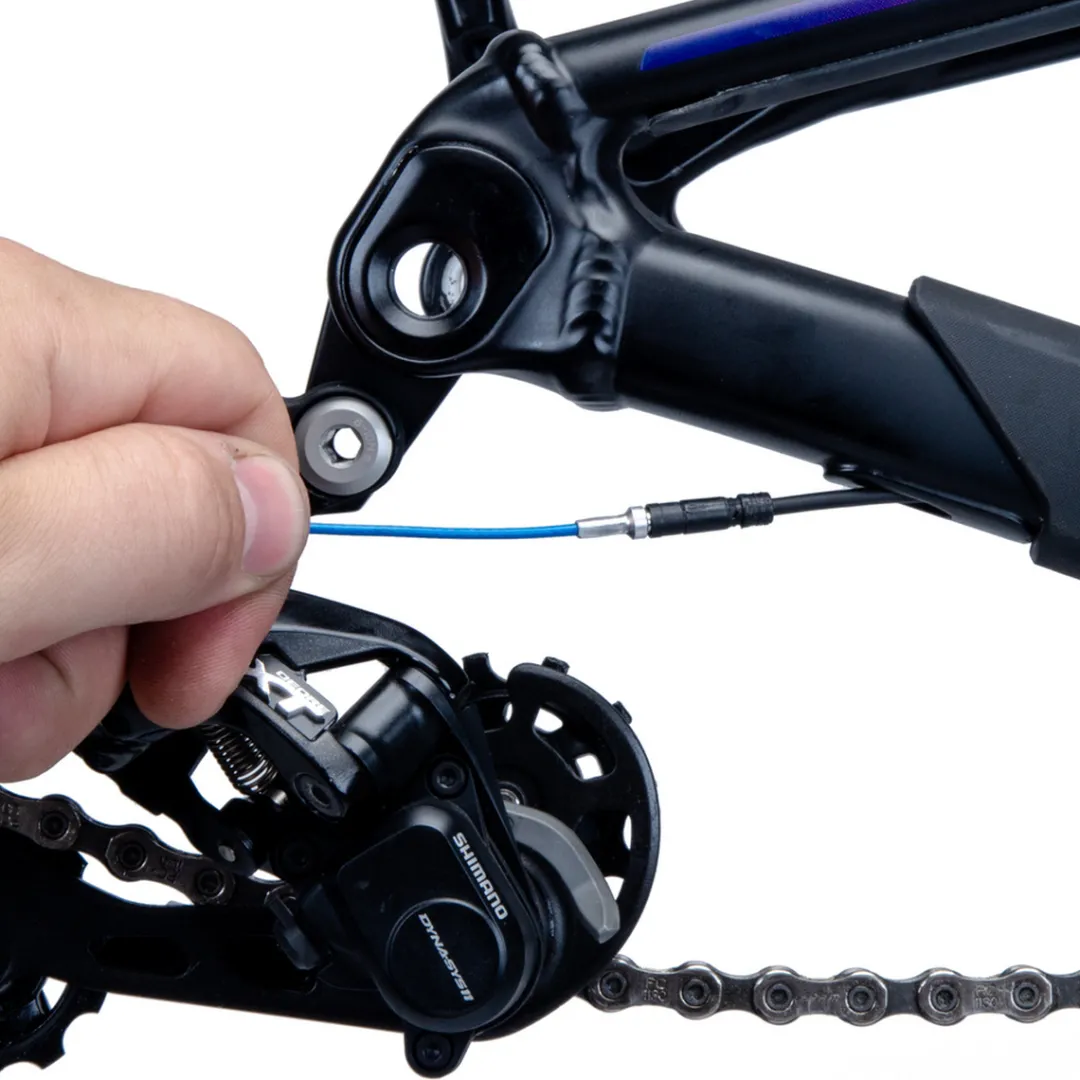

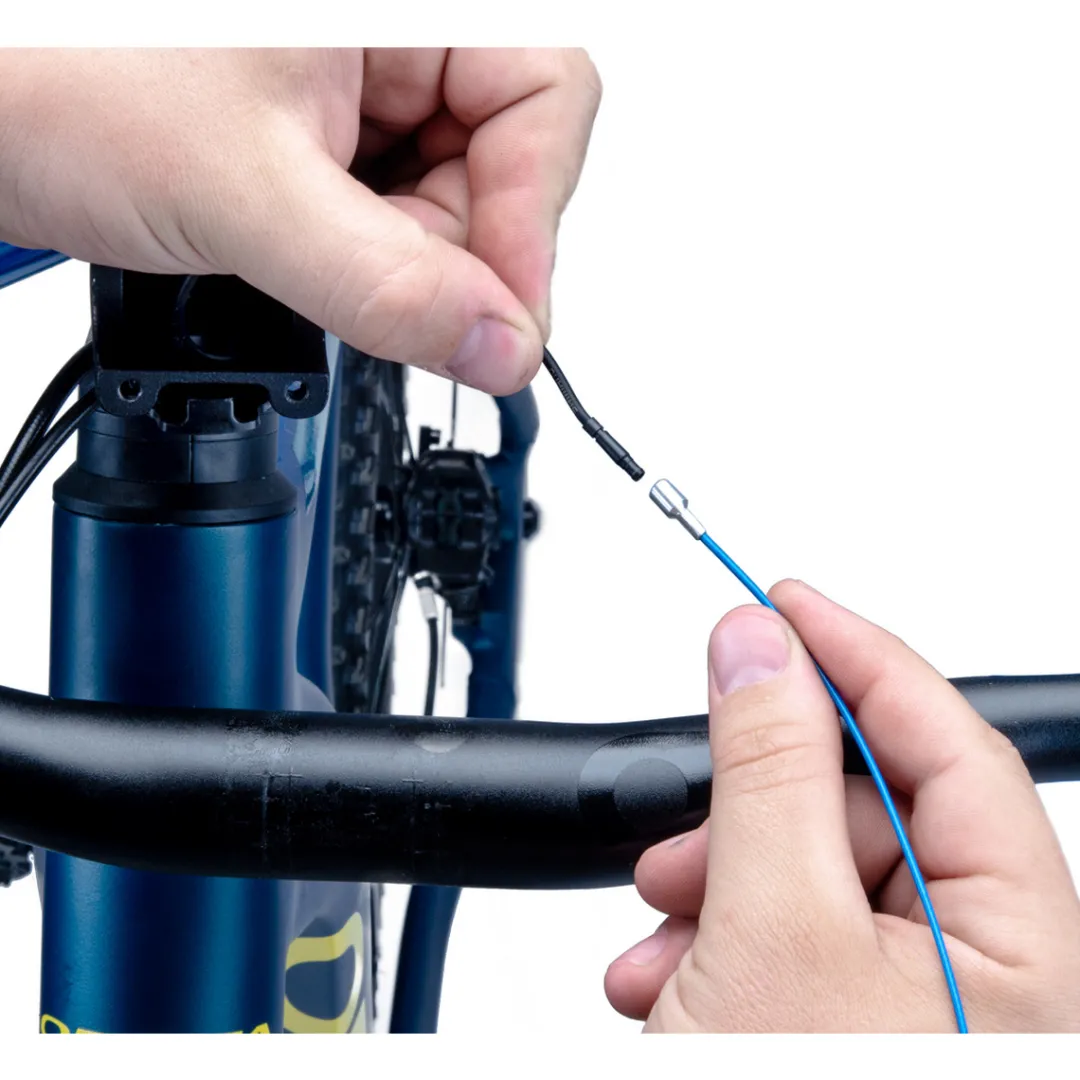

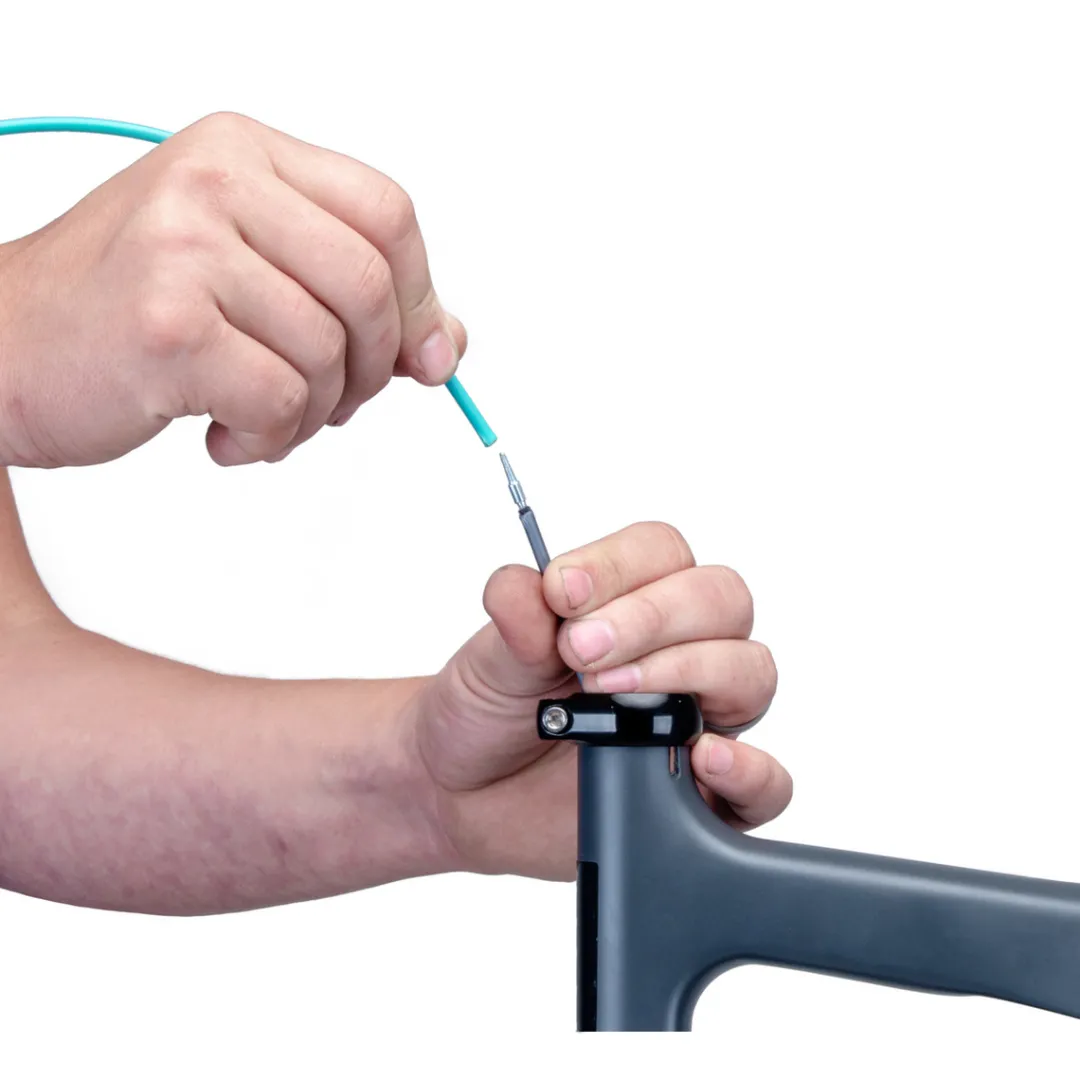

The set includes five mounting cables with four specific connector mounts and a screw-in adapter. In addition, each cable has a magnetic end that you can pull through the frame using the included guide magnet. The mounting cable then serves as a guide for the electrical cables, outer covers or hydraulic brake hoses attached to it.

As a supplement to the IR-1.2, this set comes with an additional mounting cable designed exclusively for the connectors of the thinner SHIMANO Di2 EW-SD300 cables. Mounting cables with connector mounts for electrical cables from all common shifting manufacturers are also included. A double-sided screw-in adapter has also been added, allowing you to connect the ends of two hydraulic brake hoses or outer casings. Cables or outer covers that are already installed but need to be replaced can be changed easily.

Details:
Mounting set for internal installation of electrical shift cables, outer covers and hydraulic brake hoses
Compatible with electrical gear cables from all common shifting manufacturers (also for SHIMANO Di2 EW-SD300 cables)
Mounting cable with reversed magnetic polarity for particularly tricky installation

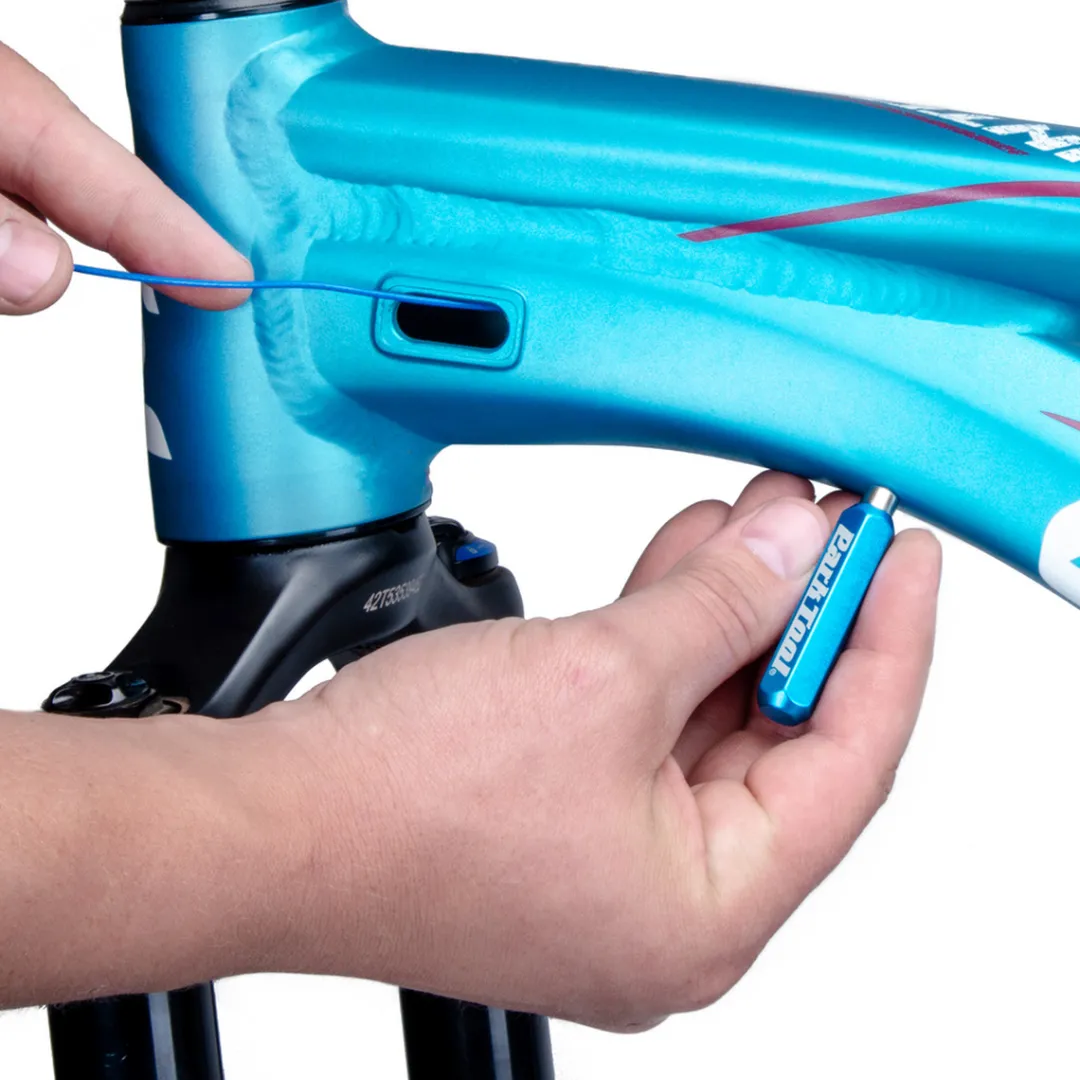

Guide magnet makes it easy to pull in the mounting cable

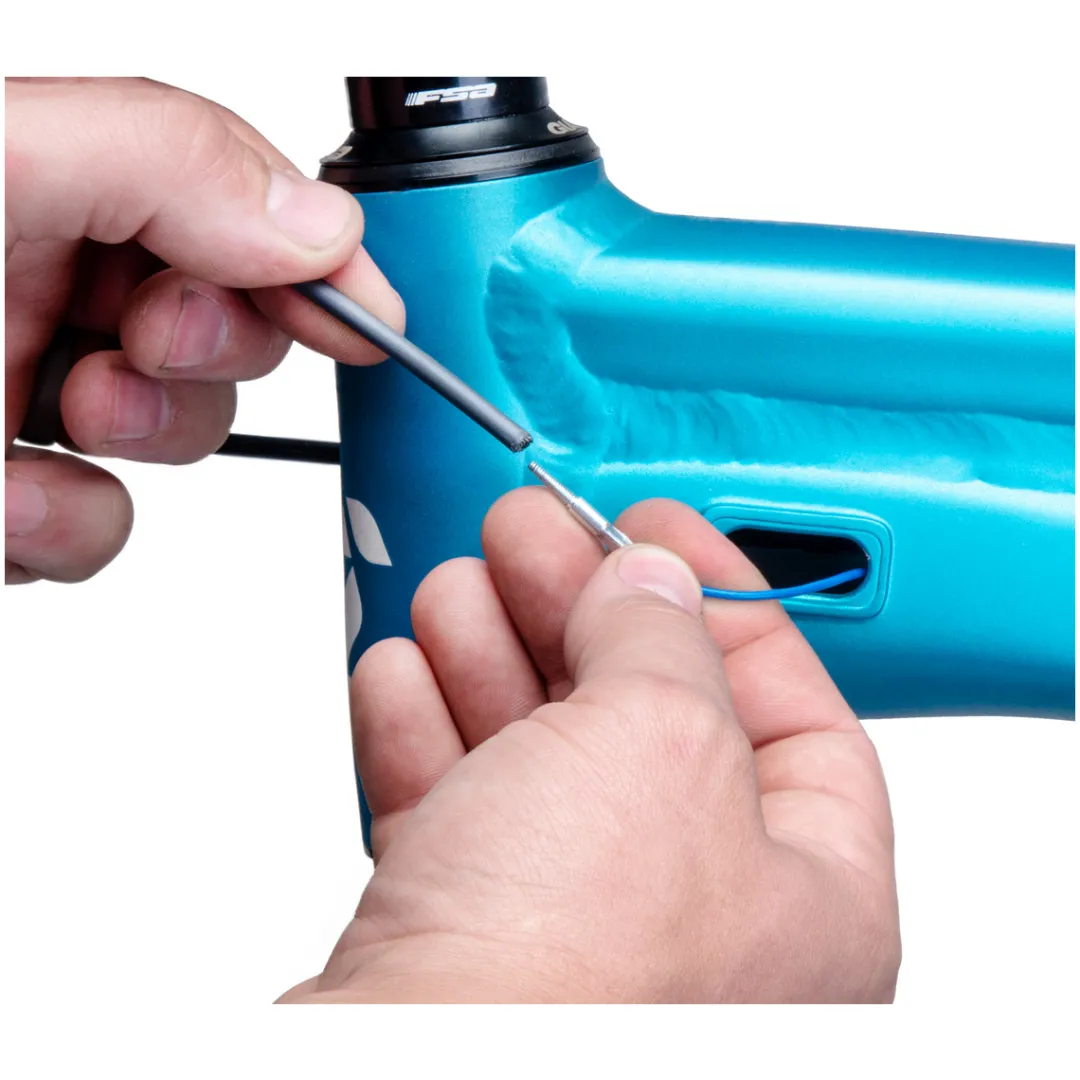

Double-sided screw-in adapter for simplified replacement of brake hoses and outer covers

Technical details:
Cable length: 188 cm each
Compatibility (electrical gear cable): SHIMANO Di2 (EW-SD50 and EW-SD300 cables), SRAM RED eTAP, FSA K-Force WE, Campagnolo EPS

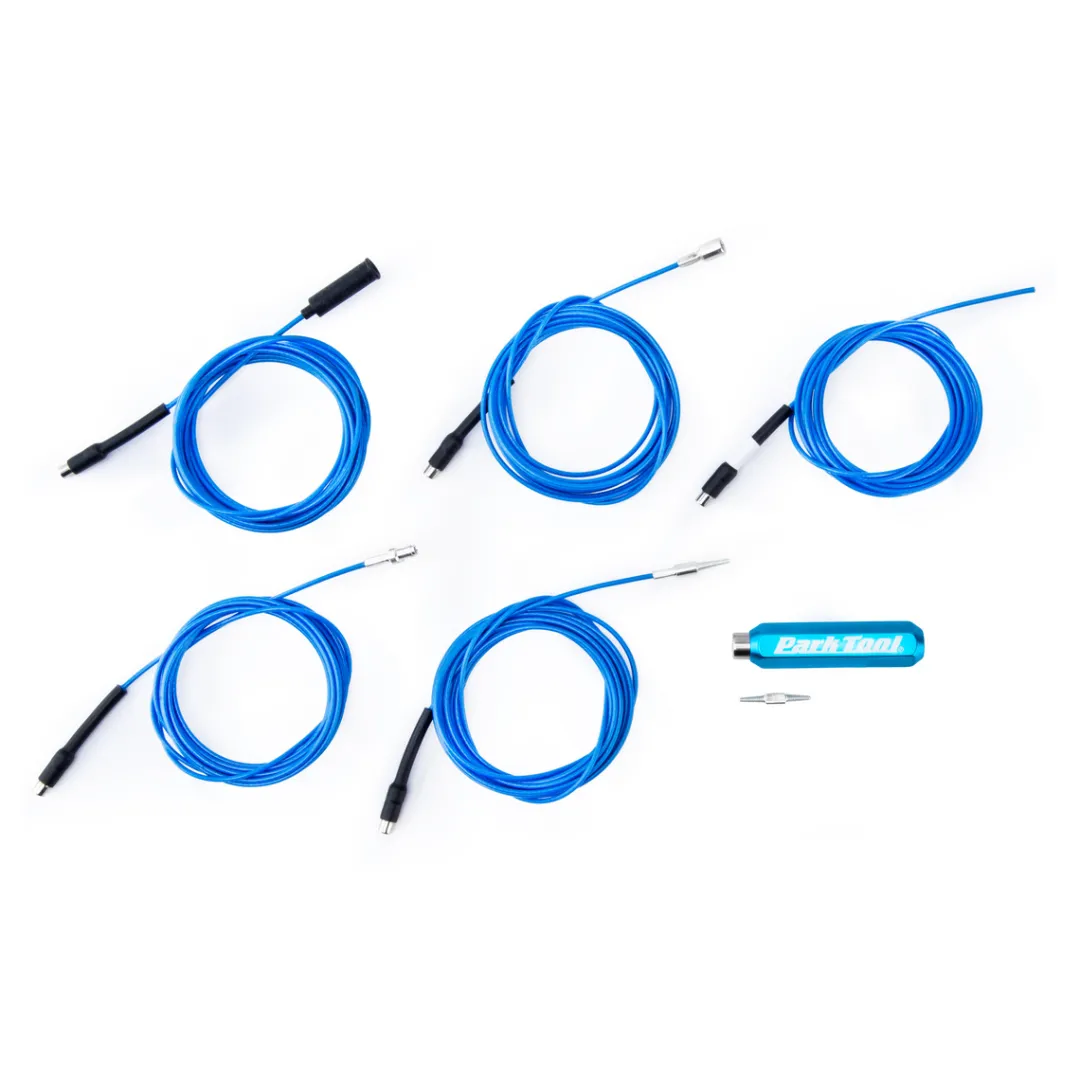

In the box:
Park Tool IR-1.3 mounting set consisting of:

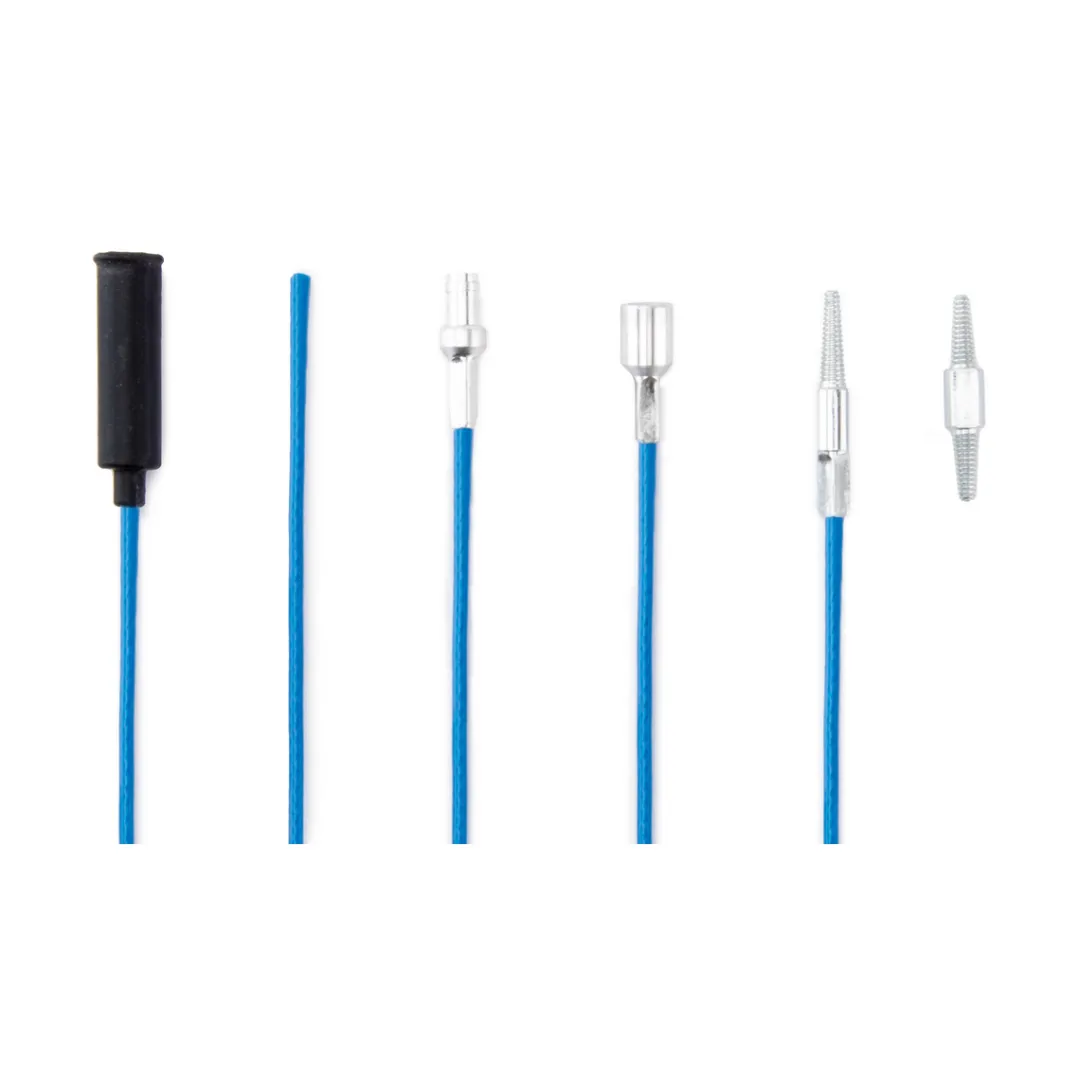

1 mounting cable with plug holder for electrical gear cable
1 mounting cable with connector holder for SHIMANO Di2 EW-SD50 cable
1 mounting cable with connector holder for SHIMANO Di2 EW-SD300 cable
1 mounting cable with screw-in adapter for brake hoses or outer covers
1 mounting cable with reversed magnetic polarity
1 double-sided screw-in adapter for brake hoses and outer covers
1 round storage box
