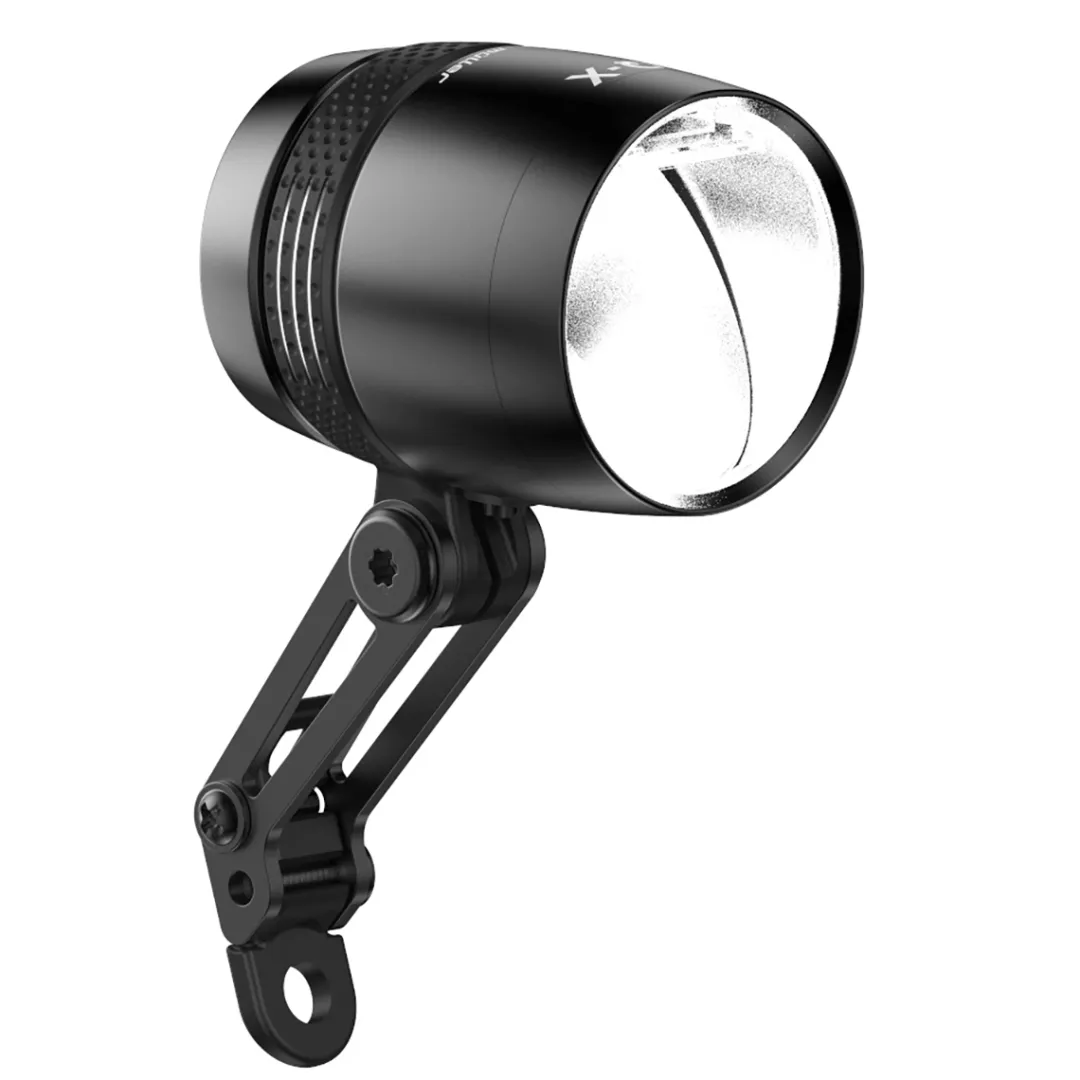

ROSE Bikes Lumotec IQ-X E Headlight Daytime Running Light E-Bike| E-Bike Lights|Lights

A bright environment for greater safety. The B+M LUMOTEC IQ-X E e-bike headlight is one thing above all – your bright and reliable companion through twilight and night. Thanks to the IQ2-Tec LED, 150 lux of light power illuminate the terrain in front of you optimally and evenly. Nothing remains hidden thanks to the large-area light field and the equally important close-range illumination.

The fact that the approx. 105 g lightweight light package for your e-bike also sets visual accents thanks to its robust aluminium housing, naturally tends to remain hidden at night. Of course, the safety radiating from the screw-on front reflector is way more important. The bright slits radiating to the side reliably ensure that you are also clearly visible from the side.

The splash-proof and rainproof e-bike headlight also features a sensor control for optimum switching between daytime running light and night-time mode. This ensures that you’re always safe on the road.

Please note that the light outlet of your e-bike power supply must have a minimum power of 7.5 watts!

The LUMOTEC IQ-X E headlight by Busch+Müller is available in various versions with compatible plug-in connections for the motor to ensure correct connection to the on-board network (as of 2024):- Standard version for universal connection e.g. to 6 or 12 volt Bosch (except 6V Classic), Shimano Steps (2A), Brose- Bosch eBike System 2 from 2013
– Bosch Smart System BES3 from 2021 (recognisable by System Controller, LED Remote or Purion 200 control unit)

Details:
Powerful e-bike front light
With high power LED
IQ light technology for extremely large and even field of vision
Light/dark sensor for daytime running light and night mode
Robust aluminium housing
Good lateral visibility thanks to cutout in the housing
Protected against wheel spray and rain
Aluminium lamp holder for fork installation (can be rotated 180°)
Attachable front reflector
According to German road traffic regulations (StVZO) approved for electric bikes limited to 25 km/h

Technical details:
Material: aluminium (housing, bracket), plastic
For e-bikes with light connection 6-60 volts direct voltage (DC)*
Light modes: daytime running lights, low beam
Brightness: 150 lux
Dimensions: approx. 55 x 46 x 54 mm
Weight: approx. 120 g

*Attention:
The front light is compatible with a direct current power source (DC) of 6 to 60 volts. Some e-bikes can provide this, but NOT all do!
The light connection of the drive system needs a minimum wattage rating of 7.5 watts!
For the exact voltage supply of your e-bike lighting system, please check beforehand with the respective manufacturer.
NOT suitable for dynamo!
NOT approved for e-bikes with a speed above 25 km/h or speed pedelecs!

In the box:
1 B+M LUMOTEC IQ-X E e-bike headlight (in selected version)
1 front reflector
