ROSE Bikes Lumotec IQ-XL E Highbeam Headlight with Daytime Running Light and High Beam| E-Bike Lights

Busch+Müller’s IQ-XL E Highbeam headlight from the LUMOTEC series provides more lighting power than ever. The powerful e-bike front light offers two different lighting settings for optimal vision in the dark.

The dipped beam ensures extremely bright and even road illumination. Just like any road-legal headlight, the IQ-XL E has a distinct cut-off line when used in standard mode. By pushing the ergonomic handlebar button, the cut-off line is disrupted and a high beam is added for excellent long-range vision.

The sensor-controlled daytime running light ensures good visibility during the day, too, for example in shady areas or at dusk.

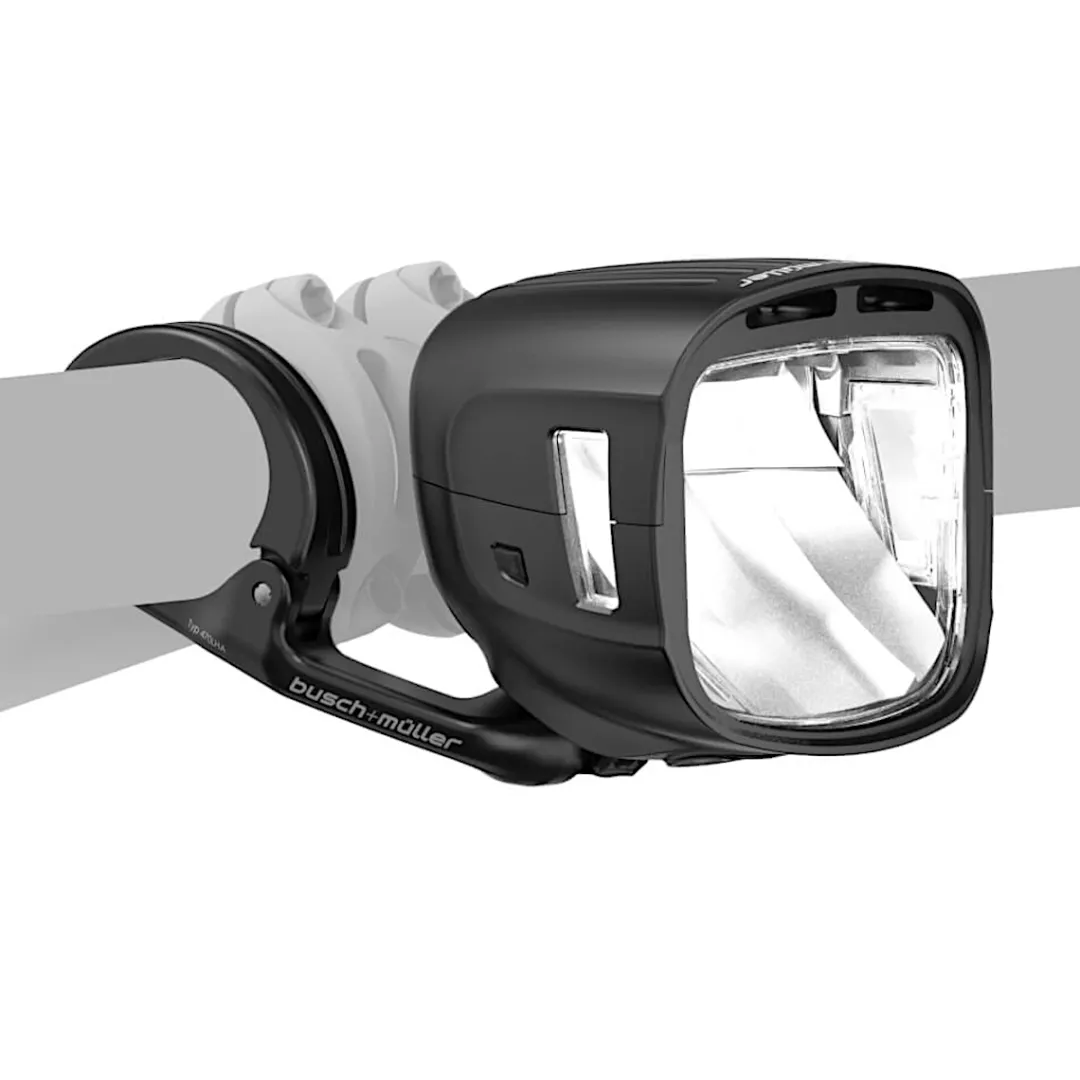

The high-quality, black powder-coated aluminium housing and a newly designed bracket turn the IQ-XL E into a real designer headlight. With its compact size, the front light also looks good on the cockpit. The optionally available aluminium handlebar bracket with prod. code 230755401 is suitable for handlebar installation.

Please note that the light outlet of your e-bike power supply must have a minimum power 16 watts!

The Lumotec IQ-XL E Highbeam headlight by Busch+Müller is available in various versions with compatible plug-in connections for the motor to ensure correct connection to the on-board network (as of 2024):- Standard version for universal connection (e.g. to 12 volt Bosch, Shimano Steps, Brose)- Bosch eBike System 2 from 2013- Bosch Smart System BES3 from 2021 (recognisable by System Controller, LED Remote or Purion 200 control unit)

Details:
Extremely powerful e-bike front light
With 12 Osram High Power LEDs

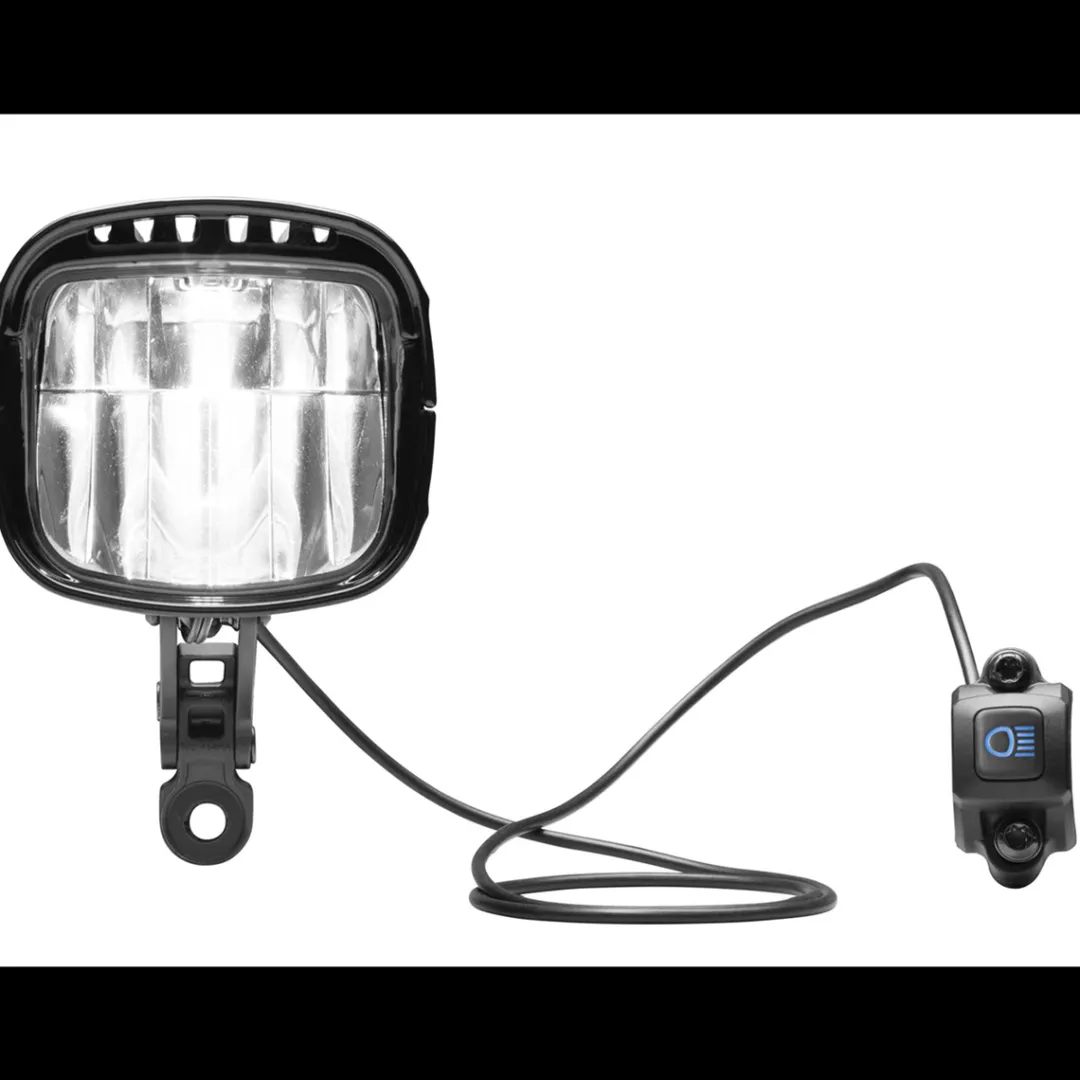

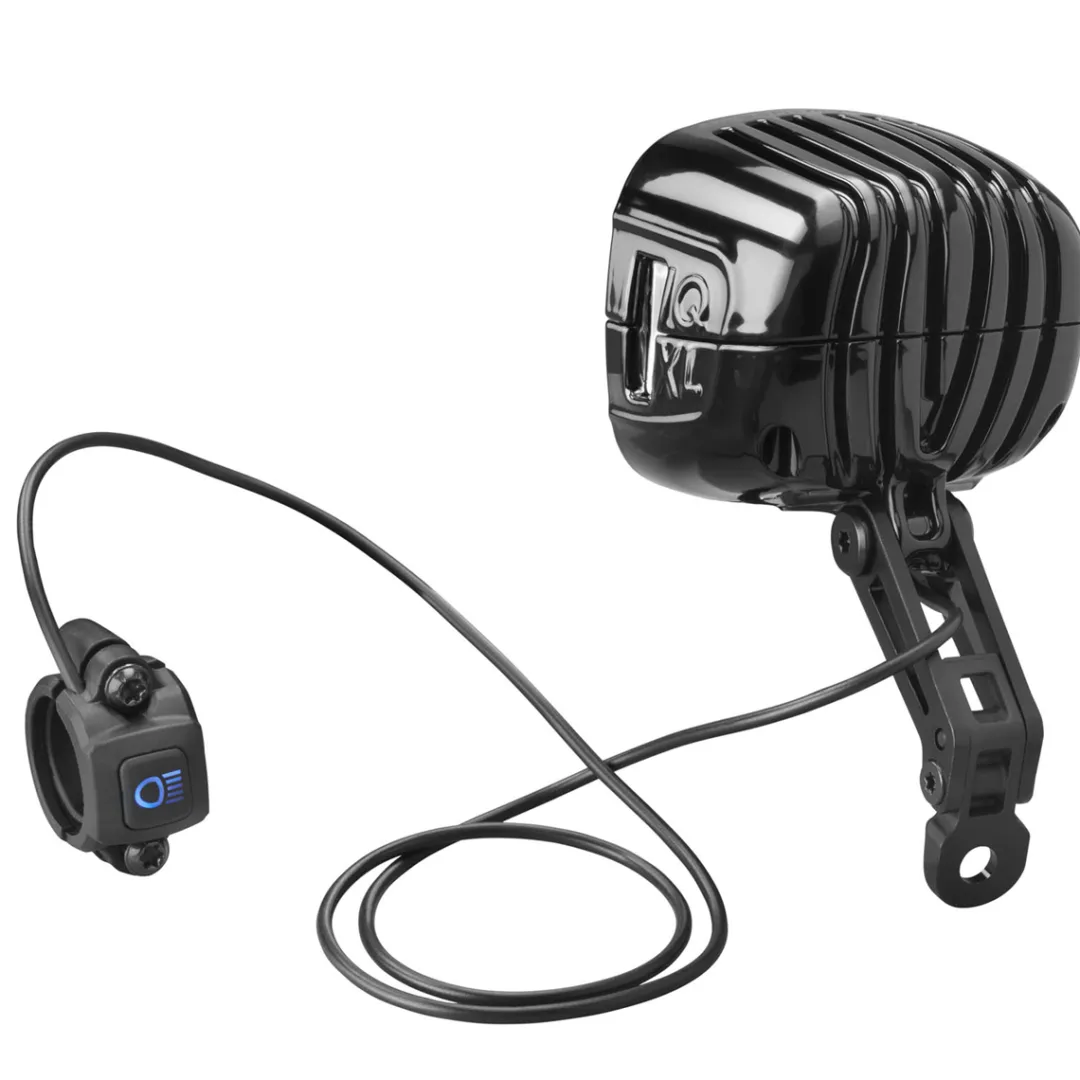

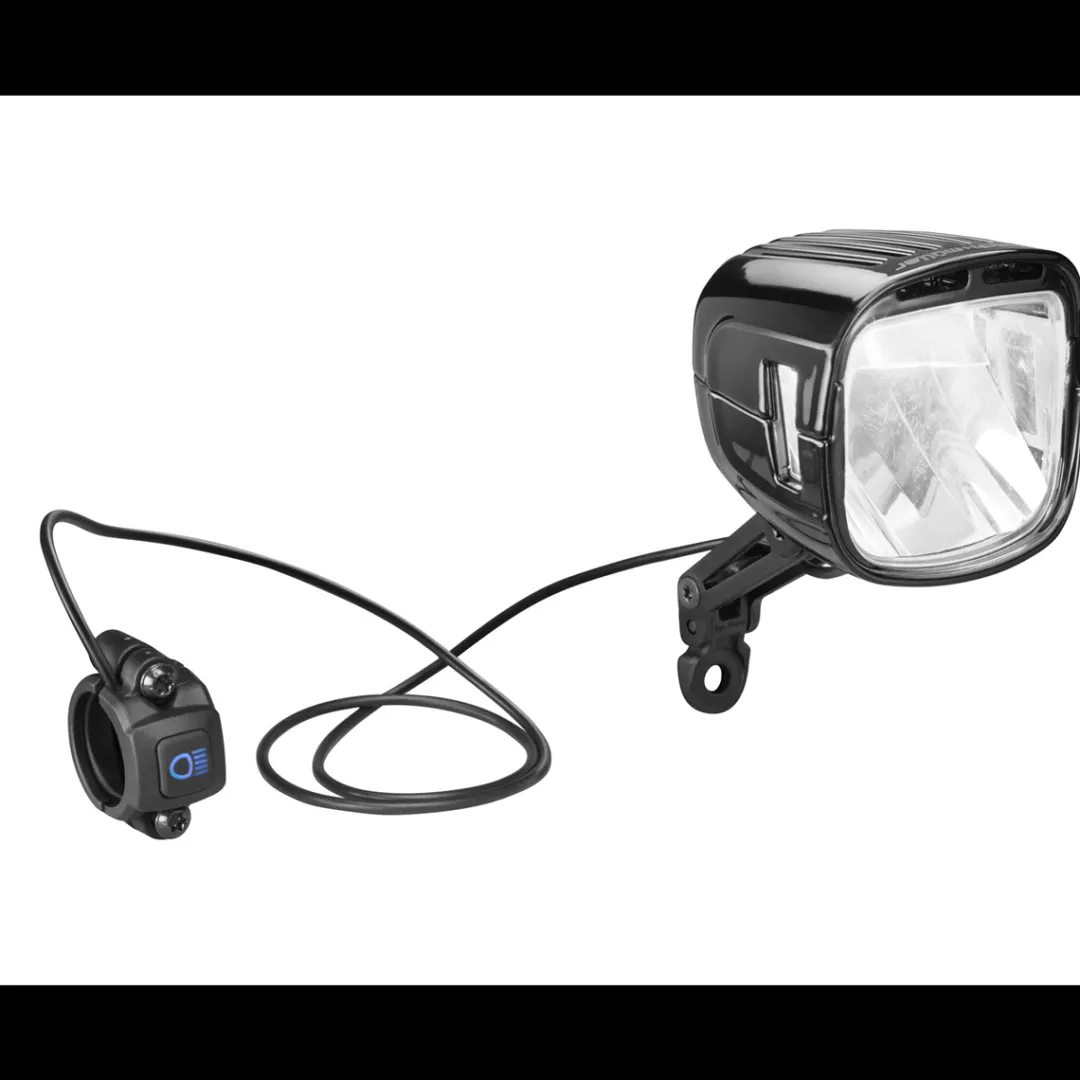

Handlebar button to activate high beam
Control diode for dipped beam mode (green) and high beam mode (blue)
IQ light technology for extremely large and even field of vision
Light/dark sensor for daytime running light and night mode
Robust aluminium housing (powder-coated)
Good lateral visibility thanks to cutout in the housing
Aluminium lamp holder for fork installation
Screw-on front reflector
According to German road traffic regulations (StVZO) approved for electric bikes limited to 25 km/h

Technical details:
Material: aluminium (housing, bracket), plastic
For e-bikes with light connection 11-48 volts direct voltage (DC)
Cable length of control button for handlebar installation: approx. 55 cm
Light modes: dipped beam, full beam

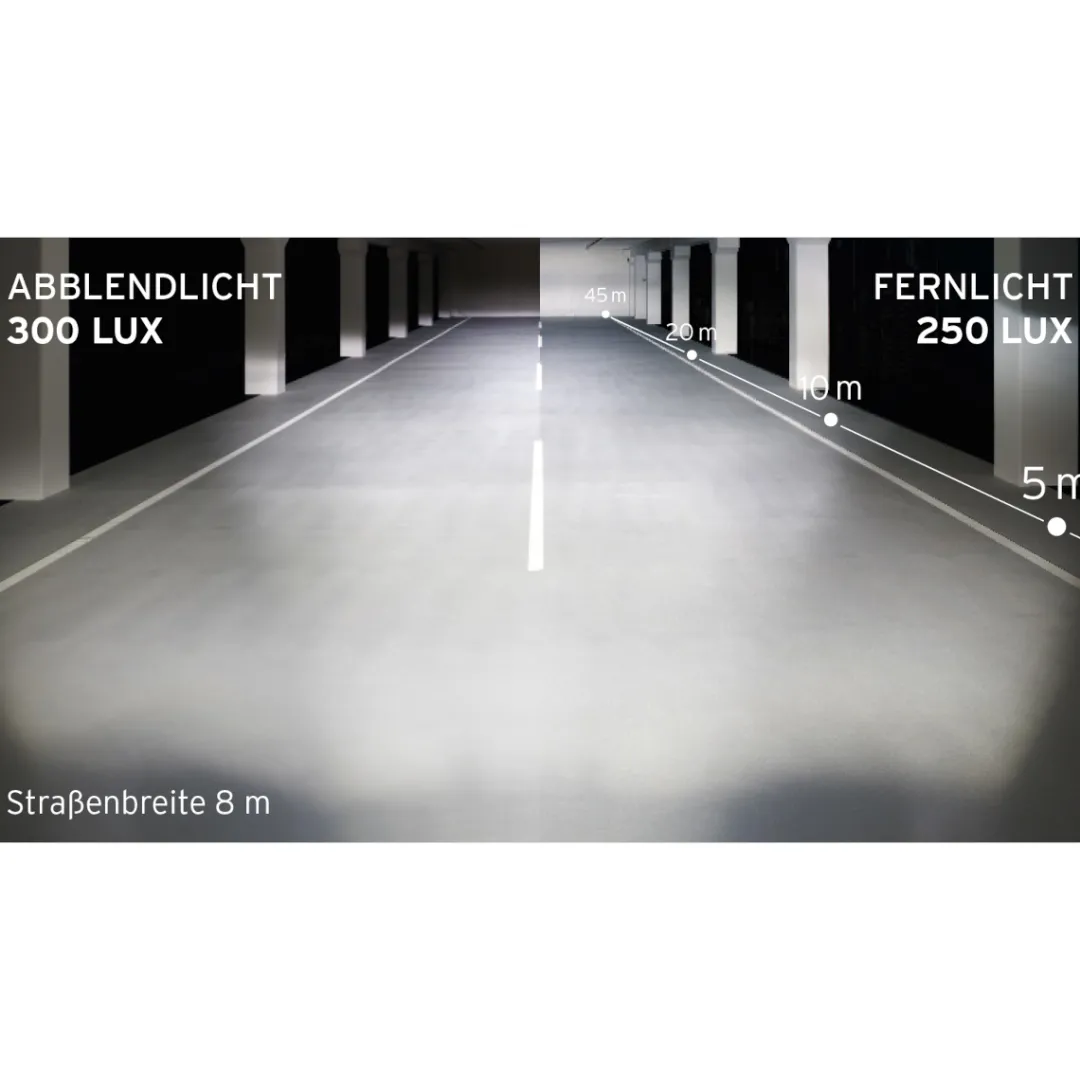

Brightness dipped beam: 300 lux (11 watts)
Brightness full beam: 250 lux (16 watts)
Clamp Ø handlebar switch: 22.2 mm
Dimensions (WxDxH): approx. 70 x 62 x 71 mm
Weight: approx. 225 g

*Tip:
The front light is compatible with a direct current power source (DC) of 11 to 48 volts. Some e-bikes can provide this, but NOT all do!
The light connection of the drivetrain system needs a minimum wattage rating of 16 W!
For the exact voltage supply of your e-bike lighting system, please check beforehand with the respective manufacturer.
NOT suitable for dynamo!
NOT approved for e-bikes with a speed above 25 km/h or speed pedelecs!

In the box:
1 B+M Lumotec IQ-XL e-bike headlight (in selected version)
1 B+M bracket for fork mounting
1 B+M high beam control button

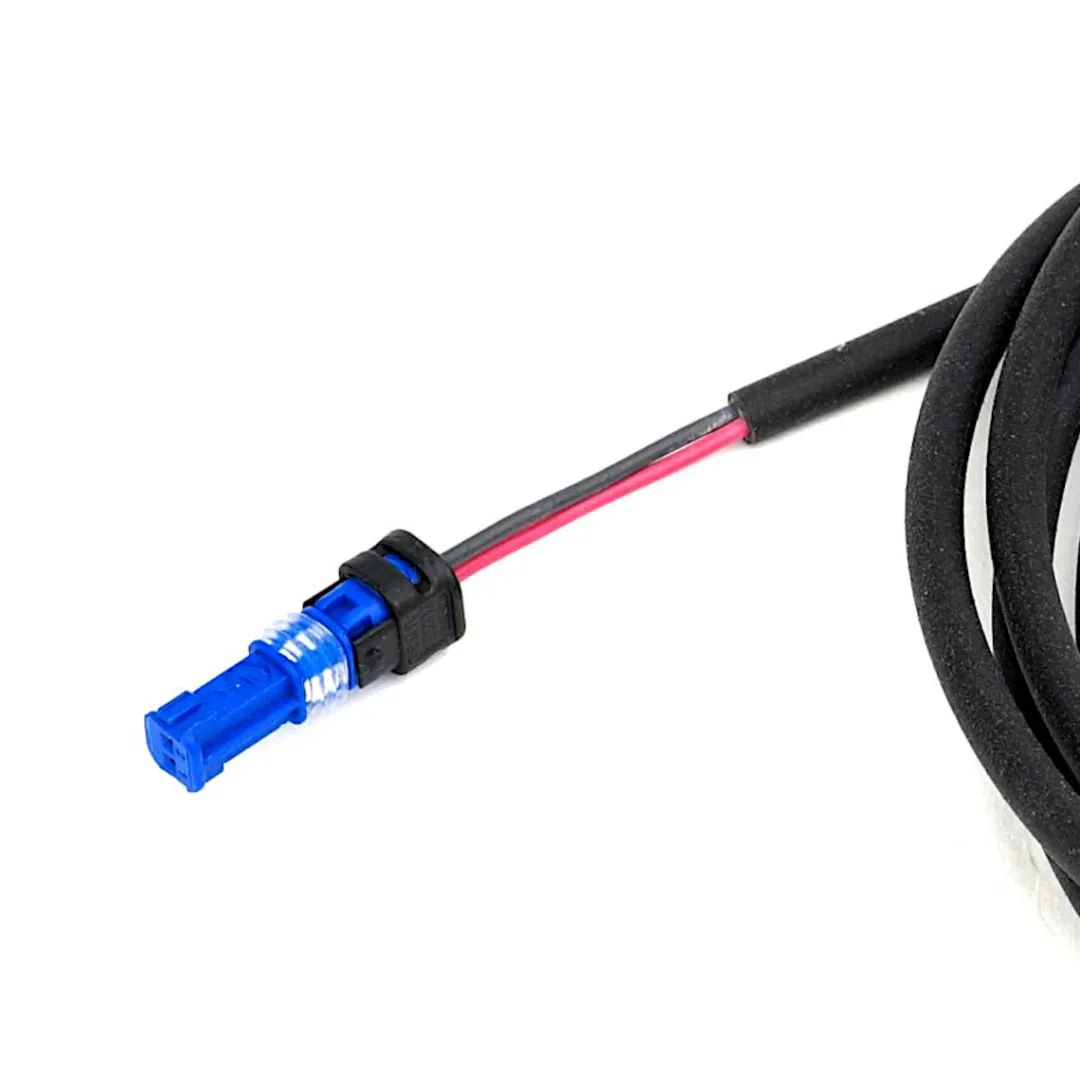

1 B+M connection cable
1 mounting material incl. mounting tool

Note:
As the full beam shines straight ahead, they can cause glare for other drivers or cyclists. That’s why you should always dip your lights with oncoming traffic.
