ROSE Bikes M.1 Platform Pedal| City And Touring

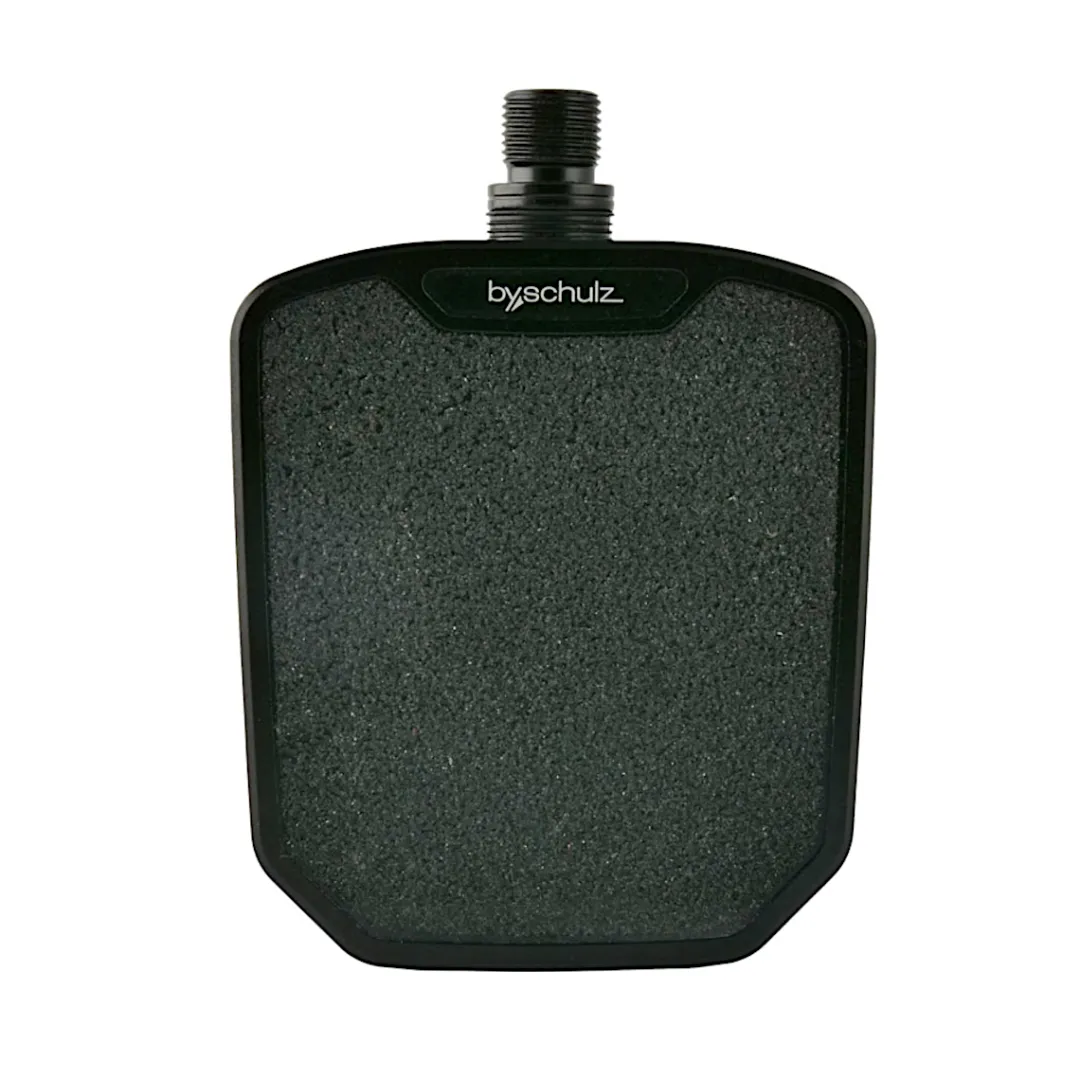

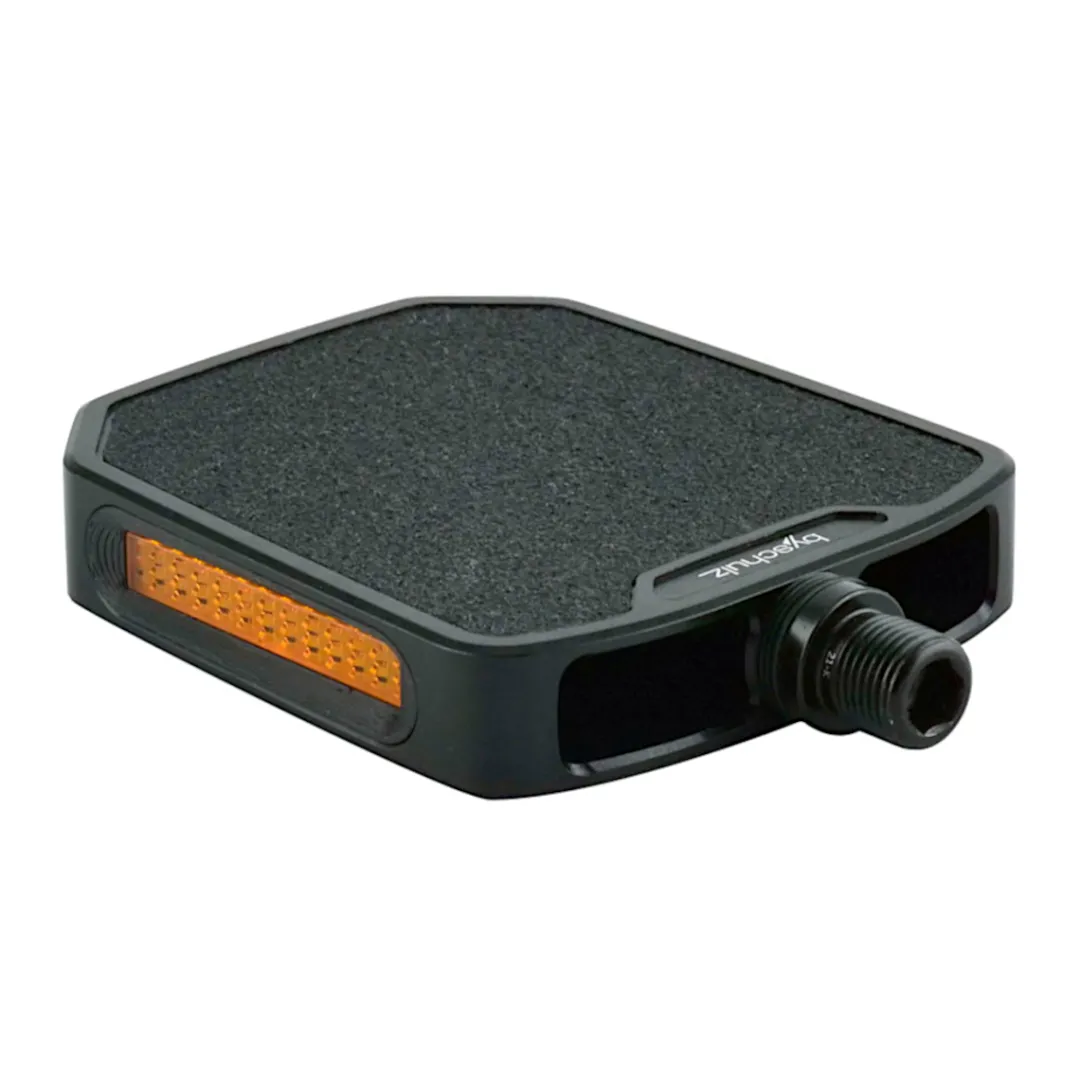

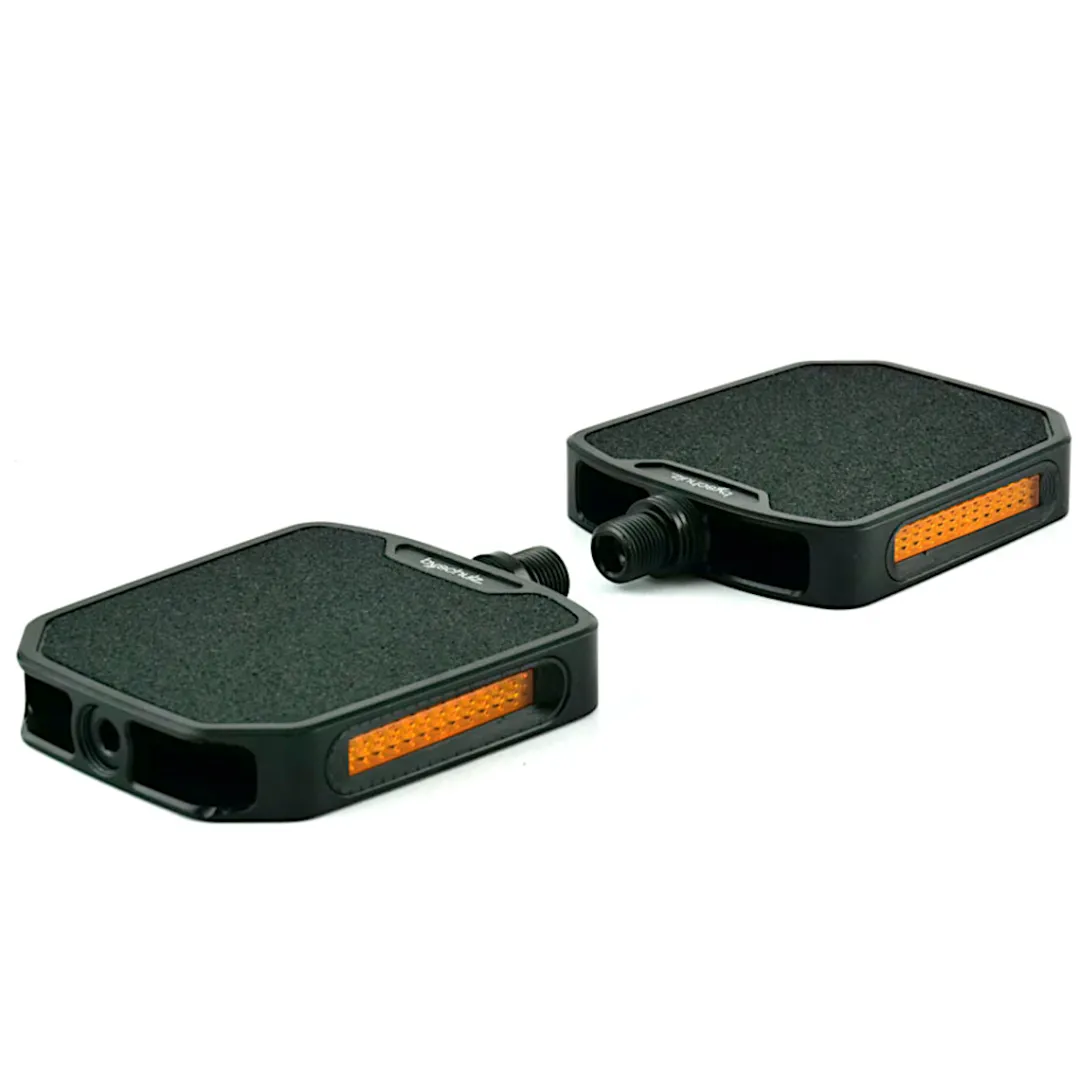

Safety first! The M.1 platform pedal from by,schulz promises you secure pedalling and therefore good power transmission to the drivetrain without any major frills in the design. The large contact surface of the simple aluminium pedals has a non-slip coating on both sides that reliably keeps your feet in position. At less than two centimetres high, the puristically styled flat pedal gives your bike a clean, straightforward look. There are high-quality axle and bearing units from the MTB sector in the pedal body, which are very smooth-running and can withstand a lot. The M.1 from by,schulz thus offers even heavy riders enduring riding pleasure.

Details:
Intended use: City/trekking, cargo and e-bike (pedelecs and S-pedelecs up to 45 km/h)
Approved rider’s weight: max. 150 kg (tested according to DIN EN 4210)
Compact design with 19 mm height
Aluminium body with large central bearing
Large tread surface on both sides with non-slip 3M grip tape
With reflectors
StVZO compliant for all bicycles

Technical details:
Pedal type: double-sided platform/flat pedal
Pedal axle: 9/16 inch x 20 TPI external thread with 8 mm hexagon socket
Pedal bearing: Industrial ball bearings, sleeve bearings
Material: Anodised aluminium (pedal body AL-6061-T6), chromoly steel (axle)
Dimensions: approx. 102 x 19 x 90 mm
Weight: approx. 520 g (pair)

In the box:
1 pair of by,schulz M.1 platform pedals

Note:
The by,schulz M.1 pedal is NOT suitable for extreme loads and for riding profiles with jumps (downhill, freeriding, etc.)
