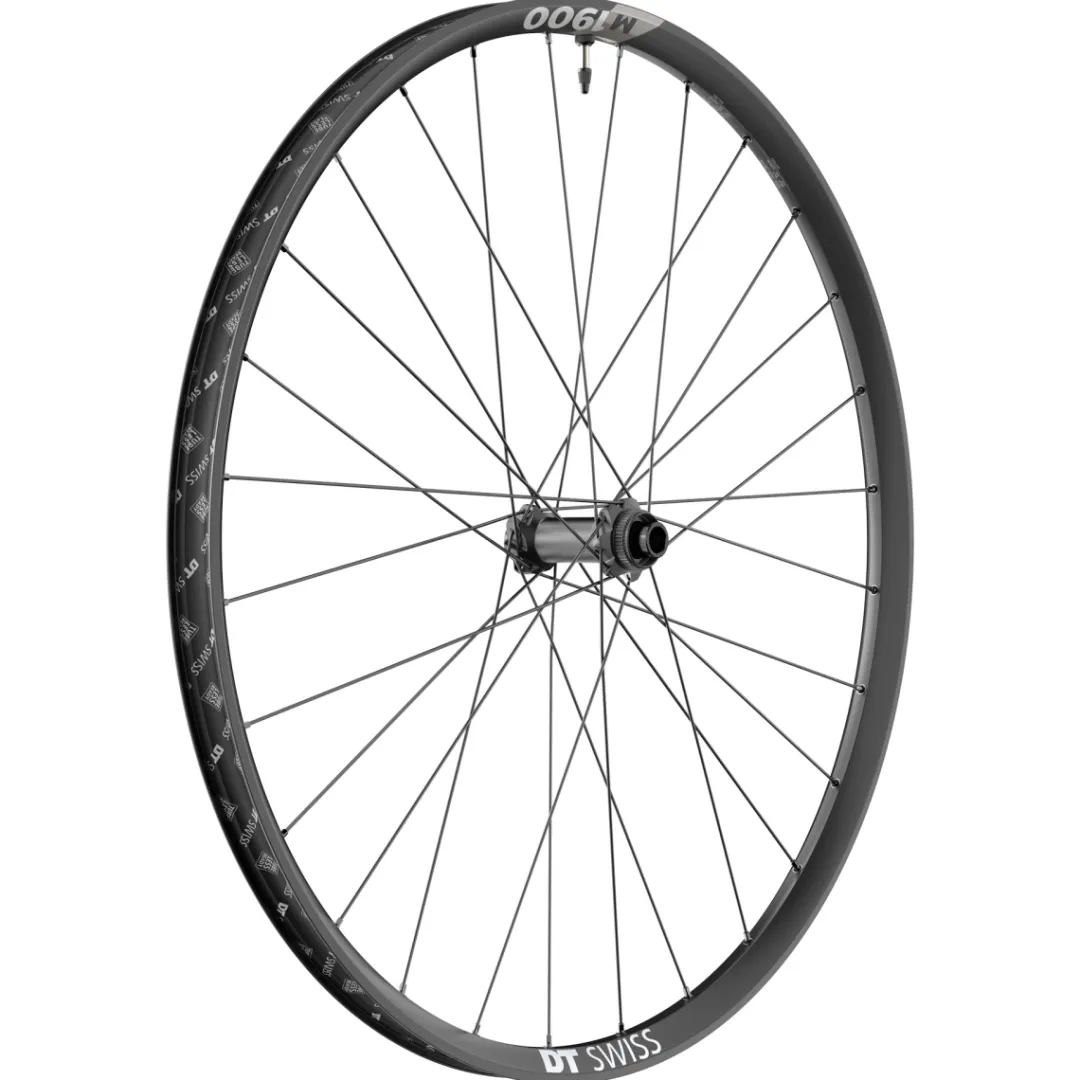

ROSE Bikes M 1900 Spline® 30 Disc 27.5" MTB Front Wheel, MY2022| MTB

The all-rounder among the DT Swiss system wheels – top technology from the Swiss wheel specialists in an affordable overall package!

The M 1900 Spline® front wheel with 30 mm inner width has everything and was specially developed for the requirements of modern all-mountain bikes. This high-quality, CNC-milled 370 Spline® hub incorporates the entire hub know-how of DT Swiss.
Forces from and to the hub are transmitted via particularly robust straight-pull spokes. The rims, which are as light as they are stable, impress with excellent support of the modern MTB tyre flanks and problem-free tubeless compatibility.

Technologies:

TUBELESS:
All DT Swiss wheels are tubeless ready. The profiles of the DT Swiss rims are specially designed for tubeless use. The rim profile makes it easier to fit the right tyre and ensures a perfect fit. The tubeless system of the rim consists of DT Swiss tubeless ready tape for sealing and a DT Swiss tubeless valve in a length that complies with the rim. When using tubeless ready tyres, a compatible sealant must be used. However, it is also possible to use a conventional combination of tyre and inner tube.

BEARINGS:
Having learned from years of experience, DT Swiss only uses durable cartridge bearings without bearing play adjustment. DT Swiss hubs are designed to have the optimum axial and radial bearing play when they are properly installed. The correct preload of the bearings to compensate for the clamping force of the wheel mounting system is the basis for a play-free hub with minimum friction.

PRO LOCK®:
DT Pro Lock® prevents the spoke-nipple connection from loosening. In the Pro Lock® process, a special dual component adhesive is injected into the nipple thread, allowing for extremely durable wheel builds. By threading the nipple onto the spoke the adhesive is activated and then hardens completely within a few hours. Re-truing the wheel is possible, yet it will cause a slight decrease in the adhesive power each time.

Technical details:

Rim:
Wheel size: 27.5”
Rim material: aluminium
Rim type: clincher
Brake type: disc brake
Rim depth: 20 mm
Rim width: 35 mm
Inner rim width: 30 mm
ETRTO: 30 – 584
For Presta valve (Ø 6.5 mm)
Tubeless ready
Suitable for tyre widths: 1.85″ – 3.5″

Spokes and nipples:
Spoke type: DT Swiss champion® straightpull
Number of spokes: 28 pieces
Lacing: 3-cross
Nipples: DT Swiss ProLock® Squorx ProHead aluminium

Front hub:
370, Spline®, 2 sealed cartridge bearings
For disc brakes
Aluminium hub body
CenterLock brake rotor mount (IS 6-bolt with adapter, e.g. prod. code: 2283716)

Axle:
Front wheel: 15 x 100 mm (thru axle)

Weight:
Weight: approx. 890 g
ASTM classification: 4 (for extremely rough, blocked terrain with jumps/drops of up to 121 cm)
Max. system weight: 120 kg (cyclist, bike, gear and luggage)

In the box:
1 DT Swiss M 1900 Spline® 30 front wheel
1 DT Swiss Tubeless-Ready Tape (rim tape, pre-mounted)
1 DT Swiss tubeless valve
