For mounting Postmount brake callipers to Flatmount frames, you need a brake calliper adapter matching the brake disc and frame diameter. The adapter has to be attached to the frame with appropriate screws. Original Shimano converter screws exactly fit these adapters.
Details:

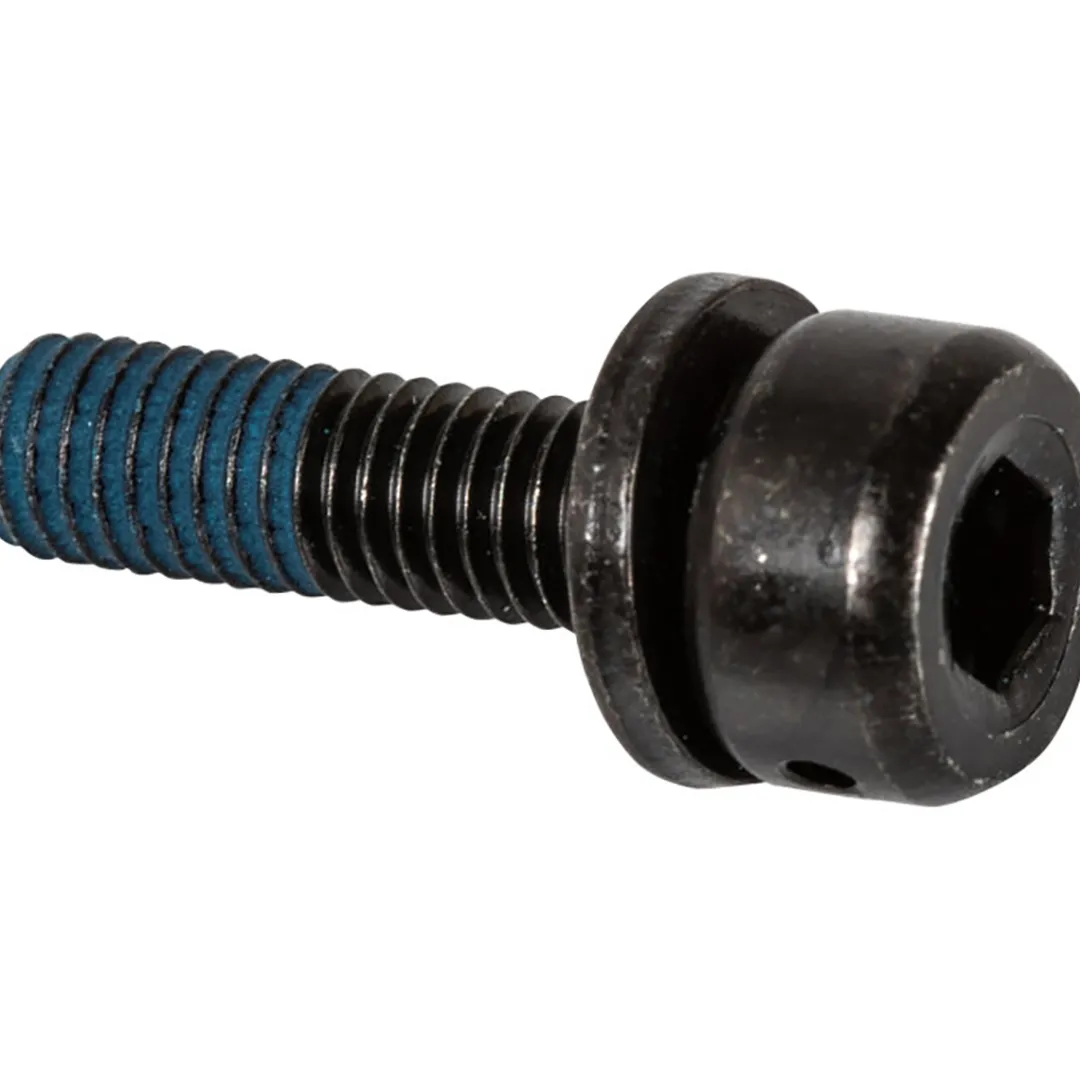

Mounting screws M5 for Flatmount frames
For installing the disc brake adapter
Suitable for Shimano Flatmont / Postmount rear disc brake adapter (prod. code 2260643)
Material: steel, burnished
Overview of sizes:
M5 x 16,8mm for 10mm frame
M5 x 21,8mm for 15mm frame
M5 x 26,8mm for 20mm frame
M5 x 31,8mm for 25mm frame
M5 x 36,8mm for 30mm frame
M5 x 41,8mm for 35mm frame
