ROSE Bikes Mallet DH MTB Race Clipless Pedals| Clipless

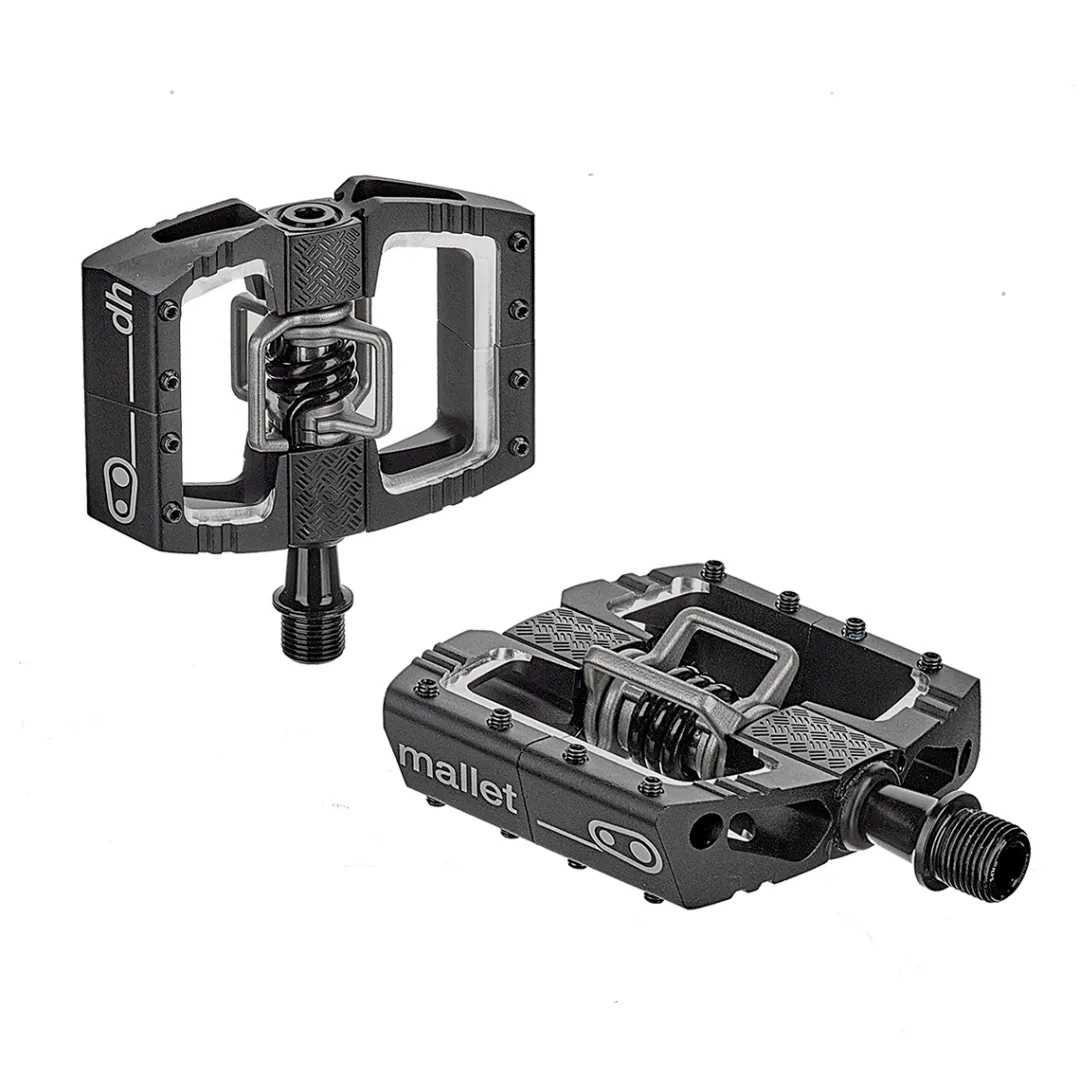

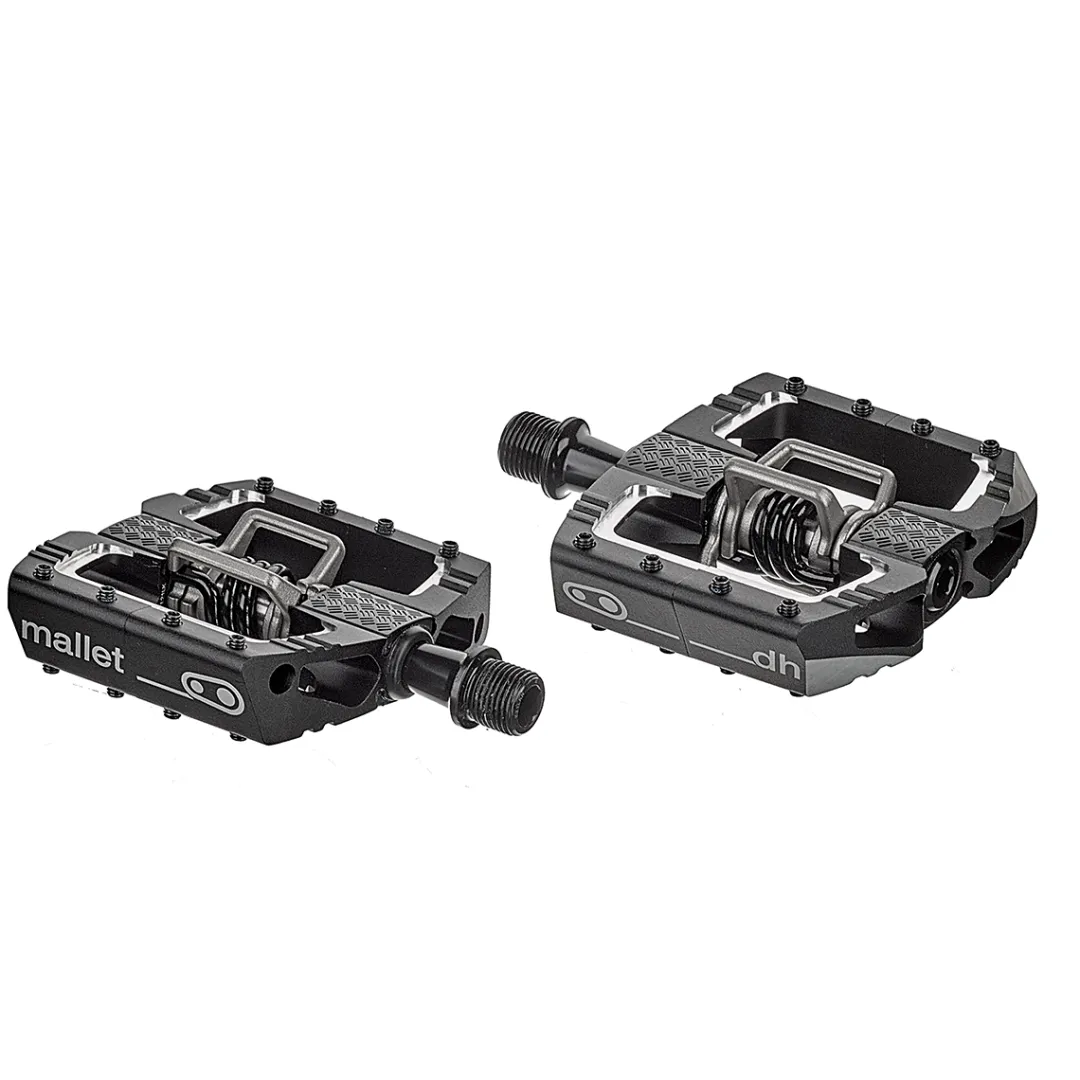

The Mallet DH by Crankbrothers’ has established itself among DH pros for years for good reasons. As a proven classic among MTB pedals, the optimally adjustable combination of clipless/platform pedal is usually part of the standard equipment for downhill races. The design and construction is very similar to the Mallet E, however, the pedal body of the Mallet DH is somewhat more massive with a larger contact surface. The contact feels like a flat pedal and thus provides a lot of security for full control over your bike. The clipless pedal impresses with high flexibility and many adjustment options for optimal adaptation to the shoe. Crankbrothers’ special spring system not only impresses with good self-cleaning properties, but also offers a lot of freedom of movement on downhill trails and in technically demanding terrain. The height of the platform can be optimally adjusted with replaceable traction pads in 1 and 2 mm as well as spacers under the cleats. The fine-tuning can be done with height-adjustable pins to ensure the perfect mix of grip and mobility. Correctly adjusted, the foot sits perfectly on the concave pedal cage, but can still be turned inwards without clipping out. The excellent material composition and solid construction of the Mallet DH speak for themselves and promise high durability.

Details:
Lightweight high-end MTB clipless pedals
Concave platform with ribbed structure for secure foothold
Premium bearings with double seal system

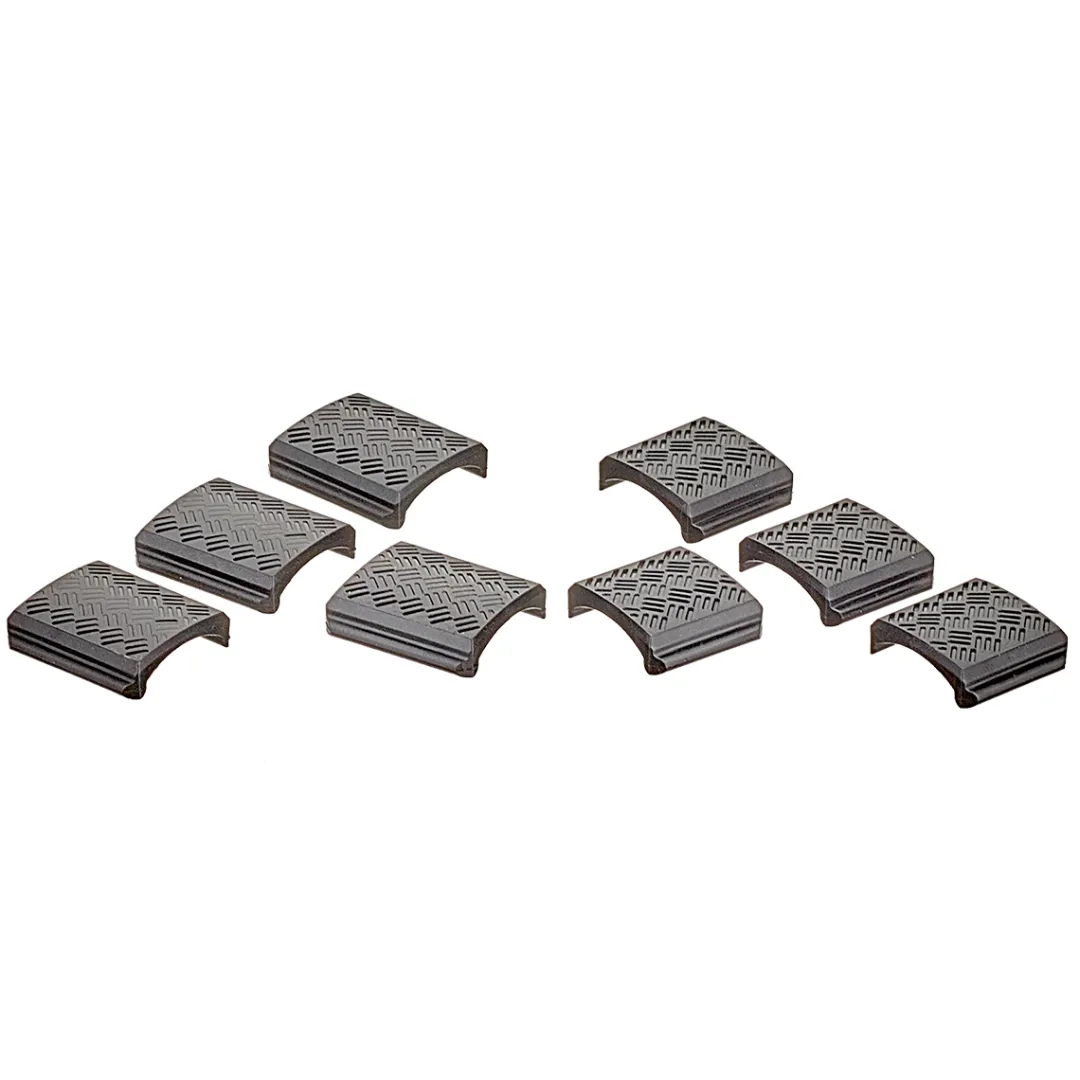

Replaceable traction pads for an optimal shoe/pedal interface
8 adjustable pins per side to adjust flow and grip
Self-cleaning Crankbrothers clip mechanism
4-sided entry with high freedom of movement
Chamfered edges to reduce rock-strikes
57 mm Q-factor for increased directional stability
Release angle can be adjusted at 15° / 20° (through cleat installation)
Incl. 6° premium cleats

Technical details:
Intended use: MTB, Downhill, Racing
Clipless pedal system: Crankbrothers spring system (both sides)
Material pedal body: 6061 T6 aluminium
Material pedal axle: forged SCM 435 cromoly steel
Material end cap: hex alloy
Wing material: 17-4PH stainless
Spring material: 300 series stainless steel
Bearings: Igus LL sleeve bearings (inside), Enduro Max cartridge bearings (outside)
Number of pins: 8 per side
Pin height: 8 mm
Max. rider weight: no restriction
Platform dimensions (LxW): approx. 92 x 78 mm
Platform height: approx. 21 mm
Weight: approx. 479 g (pair)

In the box:
1 pair of Crankbrothers Mallet DH MTB pedals

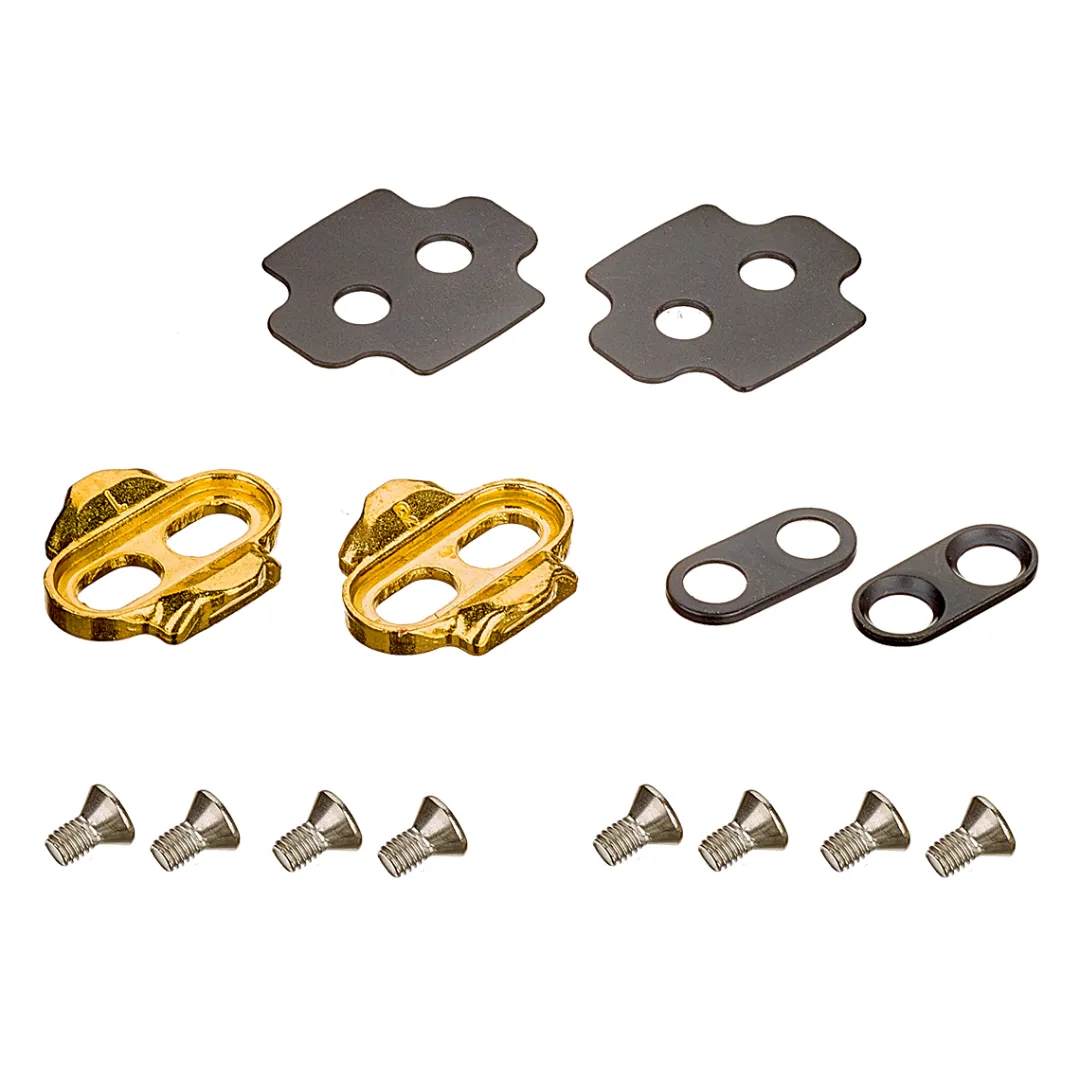

2 Crankbrothers premium cleats with shims and bolts
1 pair of traction pads 2 mm
