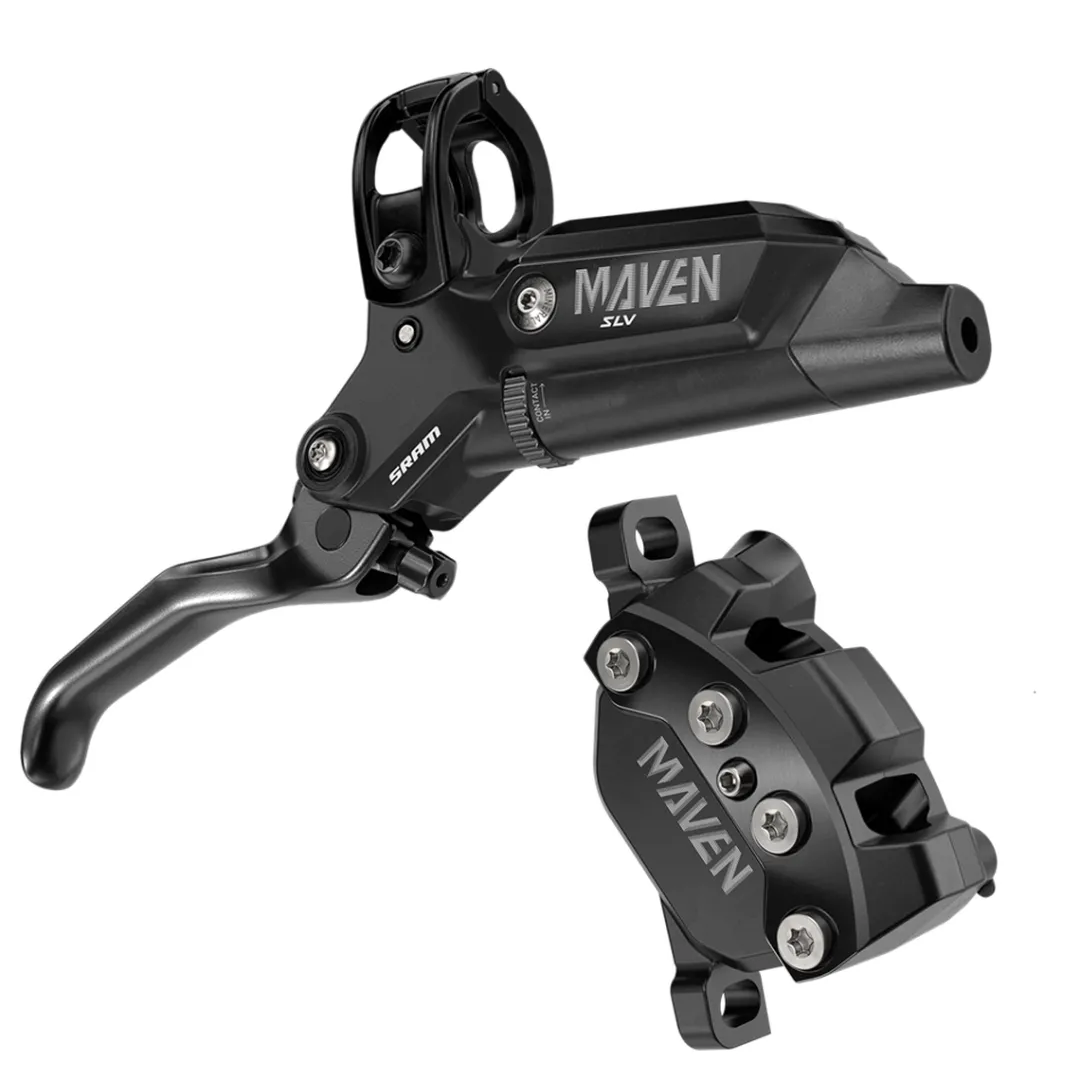

ROSE Bikes Maven Silver 4-Piston Disc Brake, Front Wheel| Disc Brakes

Modern mountain bikes have set new standards, pushing the requirements for braking power further than ever before.
The Maven is SRAM’s answer to this development. With monstrous 18 and 19.5 millimetre pistons in combination with a low-maintenance mineral oil system, this 4-piston disc brake develops up to 50% more braking power than the proven downhill stopper Code!

However, the best braking power means nothing unless you can modulate it precisely. To achieve this, SRAM relies on the tried and tested SwingLink™ technology, which generates progressive power transfer over the entire lever travel and thus generates the typical SRAM braking feel.

The solid two-piece brake calliper is connected with 4 (!) bolts and thus achieves outstanding rigidity. At the same time, its design dissipates a large amount of heat so that braking performance remains constant at all times and even the last corner feels like the first.
With so much braking power, there are more options than ever before at SRAM to tune braking performance exactly how you want it across different pad materials and brake disc sizes.

SRAM’s Maven Silver features a black anodised finish and stainless steel hardware. It also comes with tool-free reach and contact point adjustment, making it easy to adapt it to your personal preferences.

Details:

• Version for the front wheel (approx. 950 mm hose length)
• Stealth design to match SRAM AXS™ components
• Tool-free lever reach and contact point adjustment for easy customisation


Technologies:

• SwingLink™: less lever travel (free stroke) and a special cam shape for improved balance between power and precision and smooth braking
• Bleeding Edge™: Ensures easier and more even bleeding of the brakes.
• Contact Point Adjustment: adjust the position of the contact point for a customised braking effect
• PiggyBack™ Reservoir: For a simple and failsafe way to manage brake fluid. In addition, the reservoirs allow for mounting the levers on both sides (Flip Flop design).
• Lever Pivot Bearings: Sealed pivot bearings ensure a clean and precise lever movement.


Technical details:

• Intended use: MTB
• Series: Maven
• Model: DB-MVN-SLV-A1
• Material: forged aluminium, anodised (brake lever, housing, brake calliper); phenolic plastic (piston), stainless steel (mounting bolts)
• Mounting position: on both sides (flip-flop design)
• For handlebar Ø: 22.2 mm
• Hose length: approx. 950 mm
• Lever reach adjustment: Yes (tool-free)
• Contact point / free stroke adjustment: Yes (tool-free)
• Brake calliper standard: post mount
• Number of pistons: 4
• Brake pads: organic on steel backing plate
• Brake fluid: SRAM Maxima Mineral Oil
• Brake pads: organic
• Brake pad shape: SRAM Extra Large
• Fitted brake pad: Quiet/Organic, steel backing plate
• Compatible with MatchMaker X™
• Weight: approx. 360 g


Recommended disc rotors (optional):

• SRAM HS2 Rounded 6-bolt disc brake rotor (prod. code: 2329508)
• SRAM HS2 Rounded Centerlock brake disc (prod. code: 2329516)


In the box:

• 1 SRAM Maven Silver disc brake (4-piston), front wheel, 950 mm hose
• 1 MatchMaker X™ Clamp
• Mounting kit (olive, insert pin, material for shortening and connecting the brake hoses, stainless steel mounting bolts)

(filled and bled ready for installation)

ATTENTION:
ONLY for use with SRAM Maxima mineral oil (e.g. prod. code: 2326946)!
Compatible optional accessories:

• SRAM Mineral-Oil Standard Bleed Kit incl. Maxima Mineral Oil (prod. code: 2348042)
