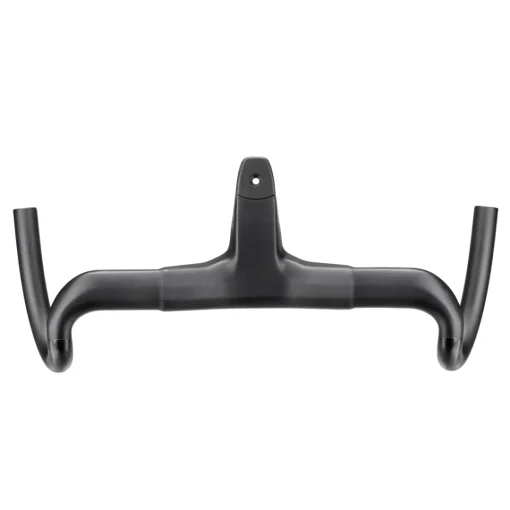

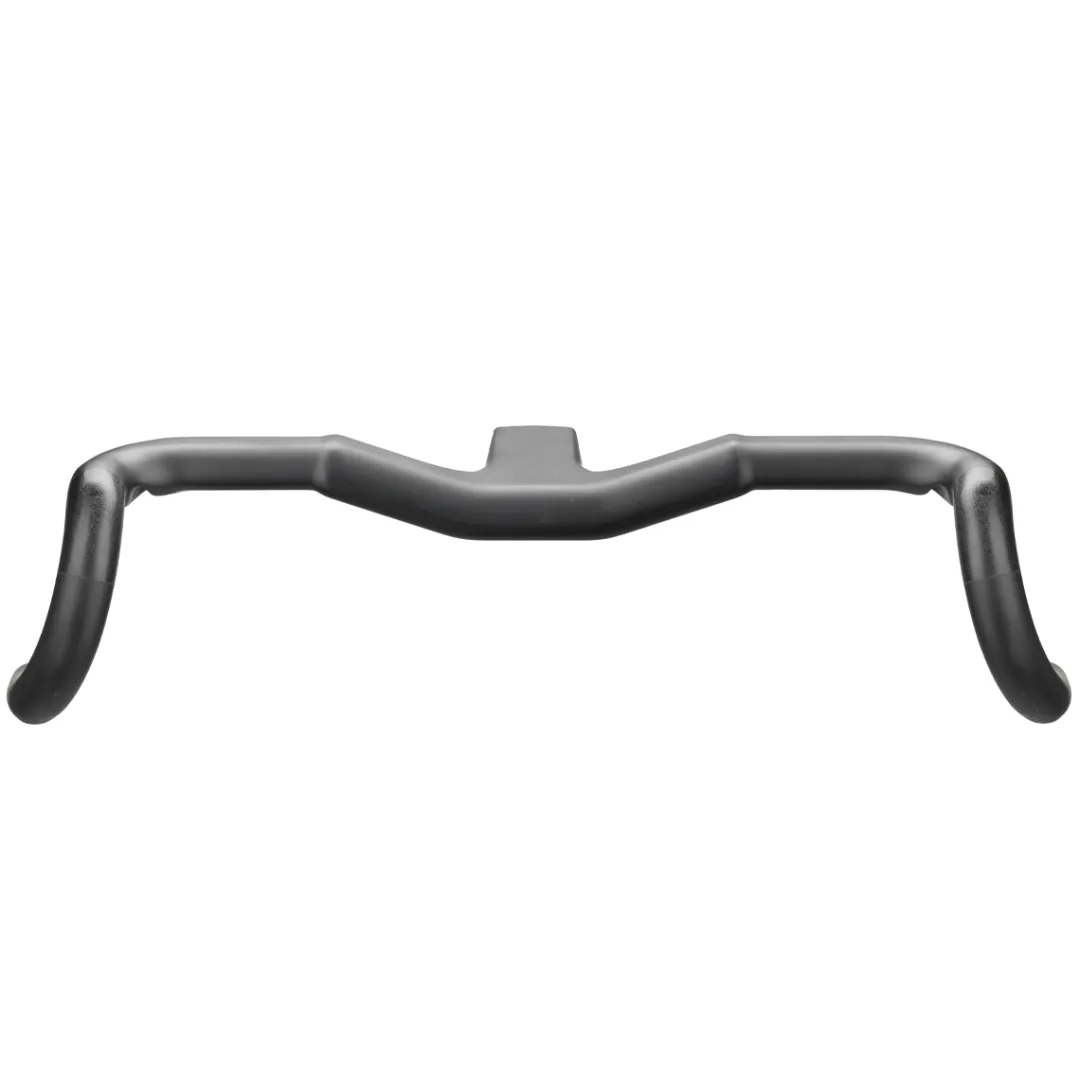

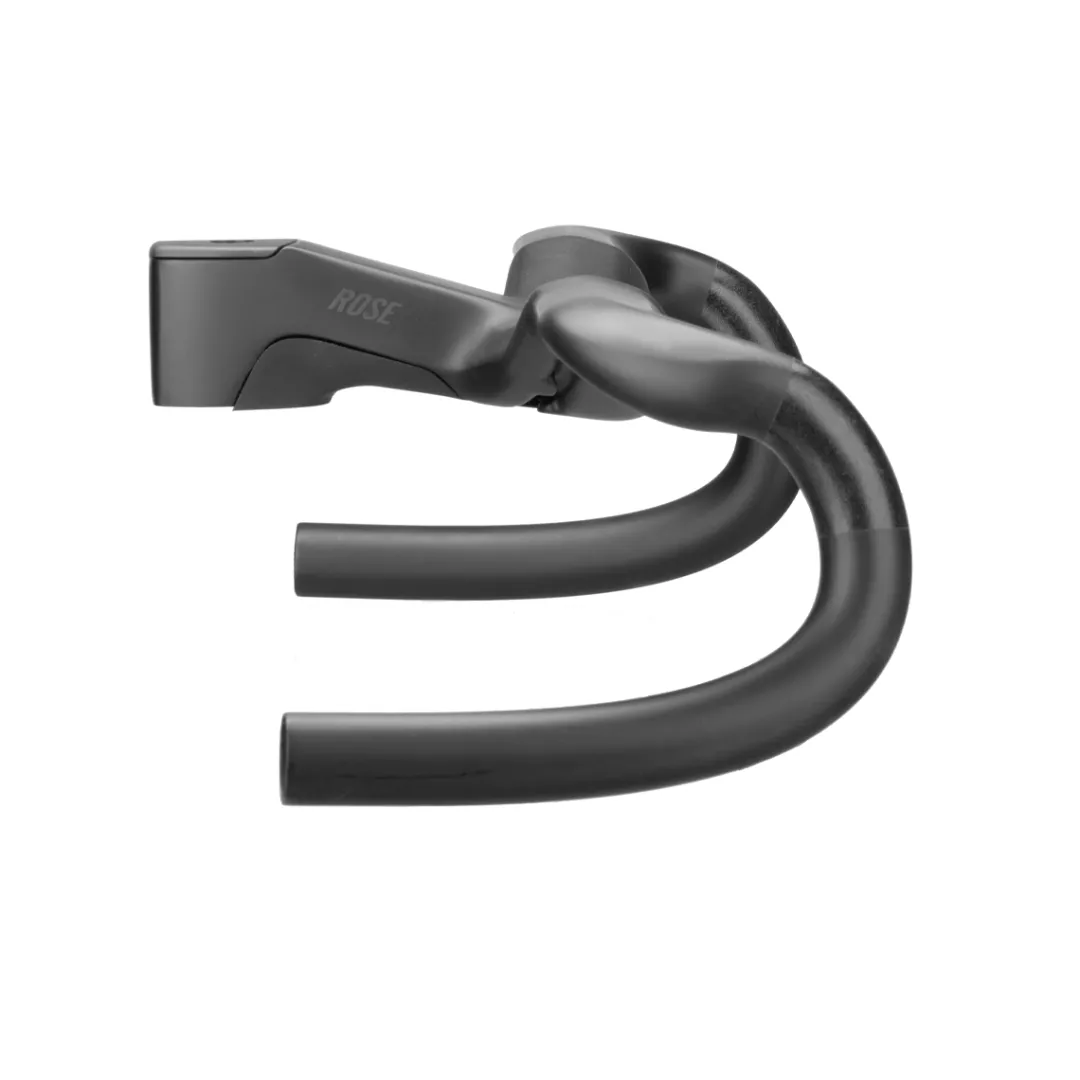

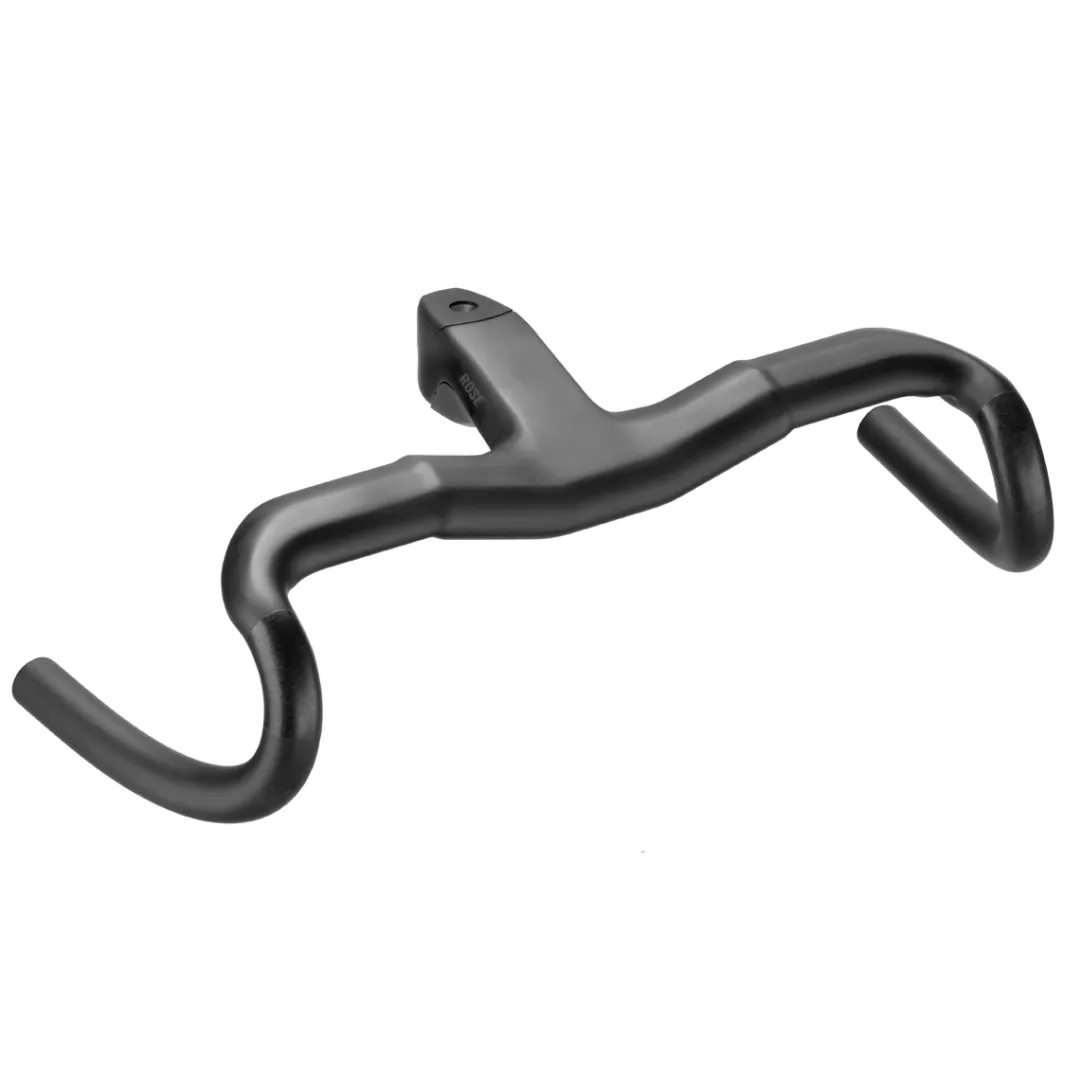

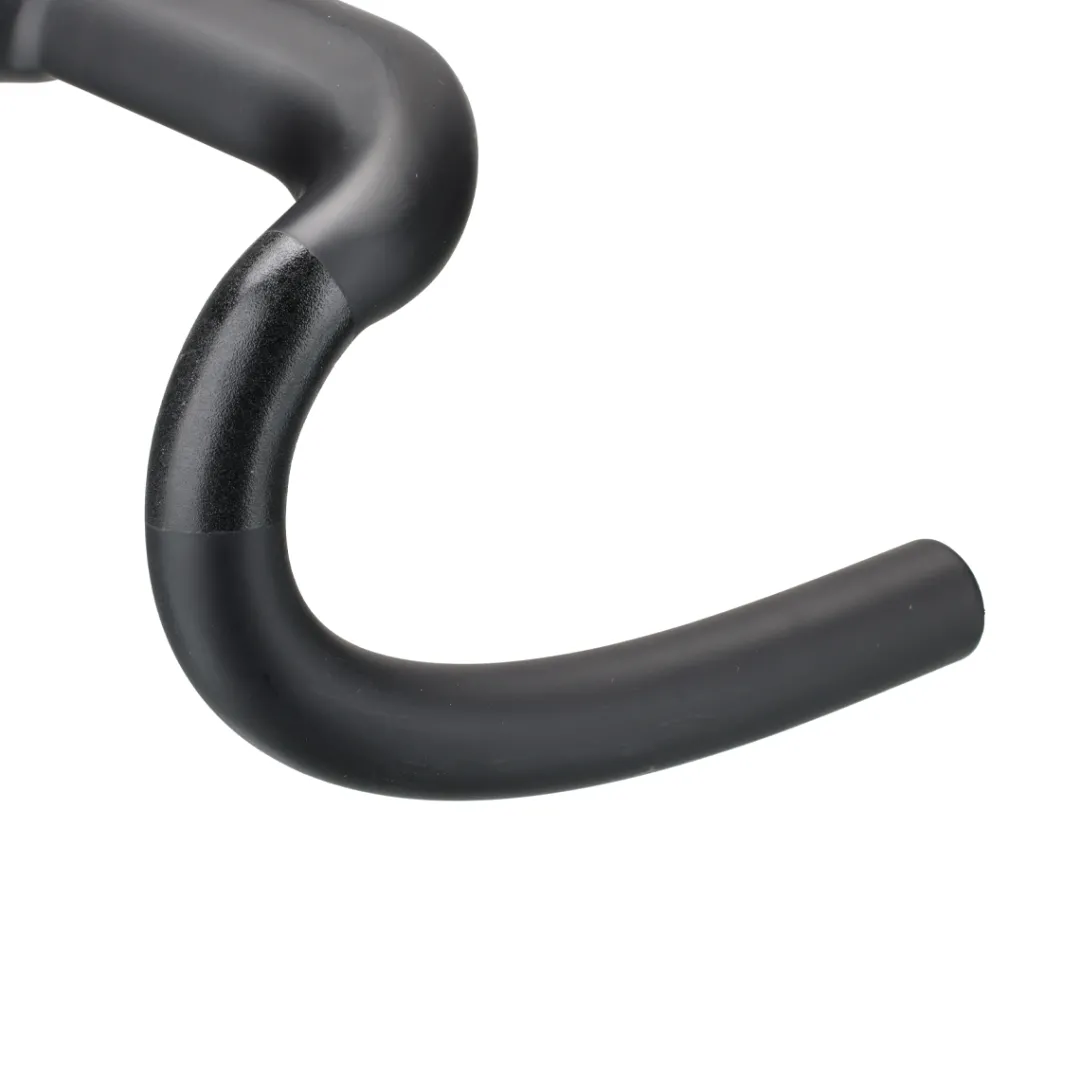

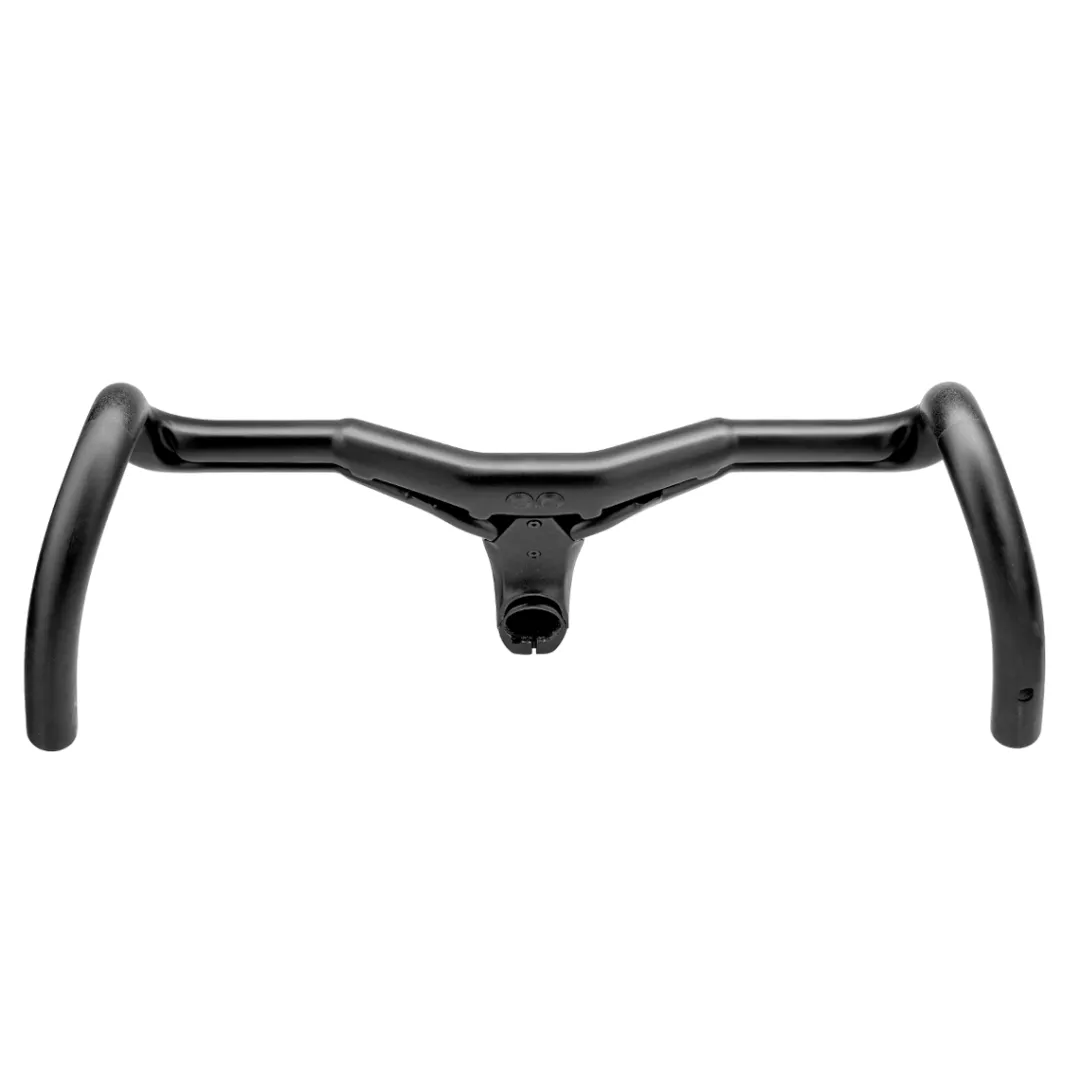

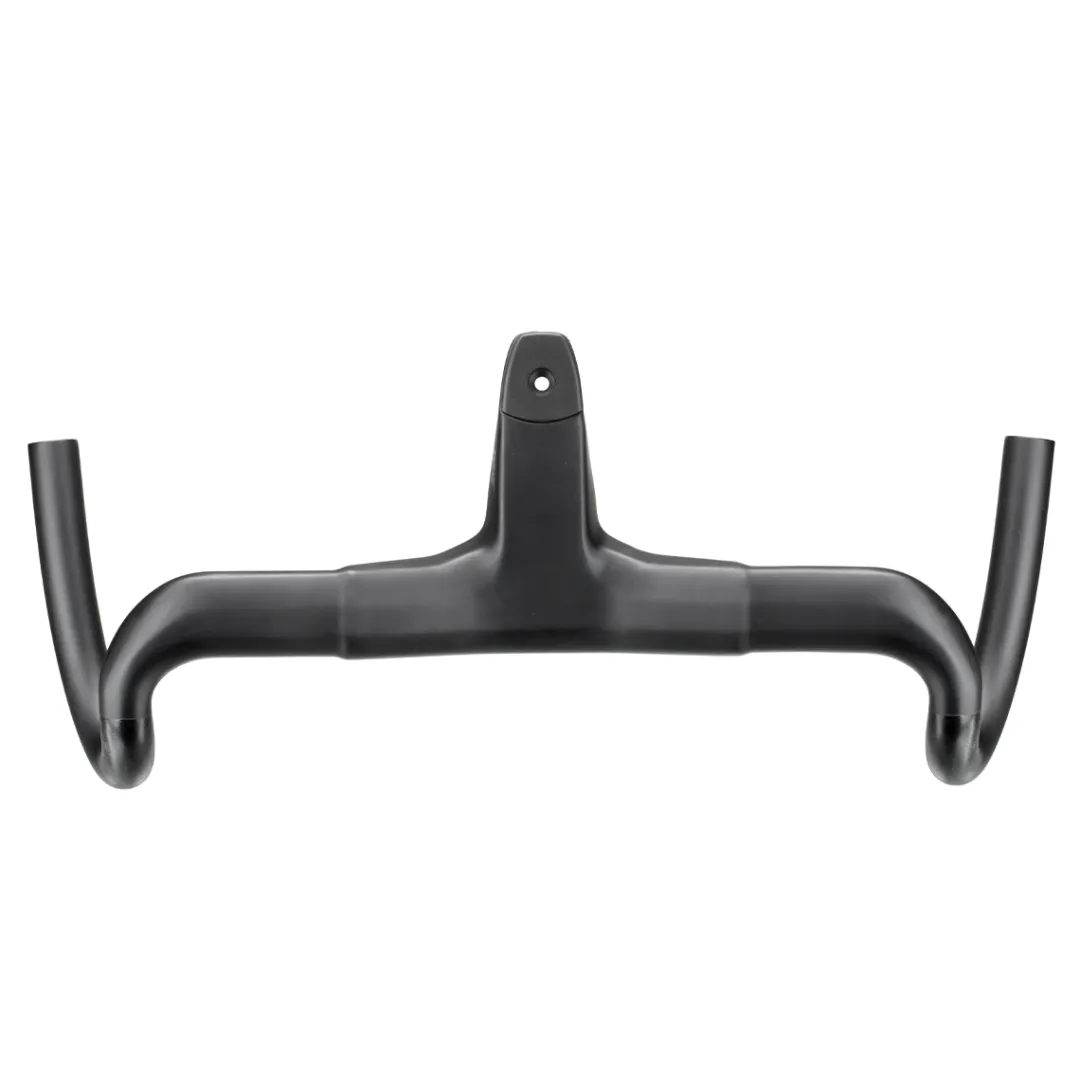

ROSE Bikes One-Piece Gravel Cockpit| Handlebar/stem Combinations

Racing vibes for your gravel bike: With the one-piece carbon cockpit of the BACKROAD FF, ROSE provides the right answer to ever faster, ever more professional gravel races – and the question of how gravel and aero can be combined. ’Aero in the hoods, control in the drops’ is the motto in a nutshell. In other words: Narrow and aerodynamic in the upper grip areas and with flared lower handlebars for technical descents.

The ROSE one-piece gravel cockpit follows the trend towards narrower handlebar widths in favour of aerodynamics. This is particularly advantageous in the low race position – with the hoods gripped far forward and the forearms supported. Popular with breakaway riders in bike races, the aerodynamic position is noticeably more comfortable thanks to the flattened area on the bar top. The -10° steep stem also improves the airflow at the front, as tests in the virtual wind tunnel have shown. To equalise the height, the bar top rises  slightly, giving the cockpit its characteristic shape.
A little below, things continue in a well thought-out way: The moderately flared lower bar with 15° flare offers just the right amount of control for fast descents and technically demanding terrain. The long drops and the wide handlebar arch, which noticeably improves access to the brake levers, also convey safety. The contours of the bar top have also been optimised so that there is enough space for the forearms when sprinting.

Exposed brake lines are also no longer an issue with the one-piece gravel cockpit. They can be laid neatly over troughs on the underside and thus do not interfere with the appearance or aerodynamics. This has the additional advantage that the cables remain easily accessible and the handlebar can be removed without disconnecting the cables. A bike computer can also be fitted: The matching Garmin/Wahoo out-front mount can be integrated form-fit and is available separately as an accessory.

Details:
Carbon gravel cockpit with race geometry
Combined handlebar/stem unit
Lightweight and stiff, with dampening material properties
Flared drops with ergonomic bend for more comfort and control
Flattened bar top – aerodynamic and comfortable
Optimised flow behaviour due to negative stem angle
Hidden cable routing via recesses/cover underneath the handlebar
Completely removable without cable separation despite full integration
Concealed interface for optional ROSE computer/light/camera mount (see below)
Developed in collaboration with bike fitter and podcaster Bastian Marks

Technical details:
Intended use: Gravel (Race/Performance)
Material: Carbon
For threadless 1 1/8” steerer tubes (28.6 mm)
Clamping height on steerer: 36 mm
Stem angle: -10°
Drop: 98 mm
Reach: 73 mm
Flare: 15°
Rise: 20 mm
Drop Width: 495/475 mm (with 40/38 cm handlebar width)
Permitted weight: 120 kg (system weight of cyclist, bike and luggage)
Weight: approx. 398 g (measured for 400 x 100 mm, incl. cover, bolts and Ahead cap)

Note:
The design and cable routing are matched to current road/gravel bikes from ROSE. For third-party brands or older models, please check compatibility in advance or contact the manufacturer if in doubt.

Available in handlebar width/stem length:
90 mm / 38 cm
100 mm / 38 cm
100 mm / 40 cm
110 mm / 40 cm
120 mm / 40 cm
Please indicate your choice.

In the box:
1 ROSE one-piece gravel cockpit incl. cover for cable routing
Ahead cap 1⅛“

Note:
The Gravel Cockpit was developed for electronic shifting with radio control (SRAM AXS, Shimano Di2 12-speed). The cable integration is therefore only intended for brake hoses – NOT for additional shift cables or Di2 cables.

It is NOT possible to fit an aero bar.

Tip:
The matching Garmin/Wahoo mount stem bracket for mounting a bike computer can be found under prod. code: 2340106.
Note:
No warranty for damage caused by non-approved mounts.
