ROSE Bikes Pro Truing Stand| Bike Tools

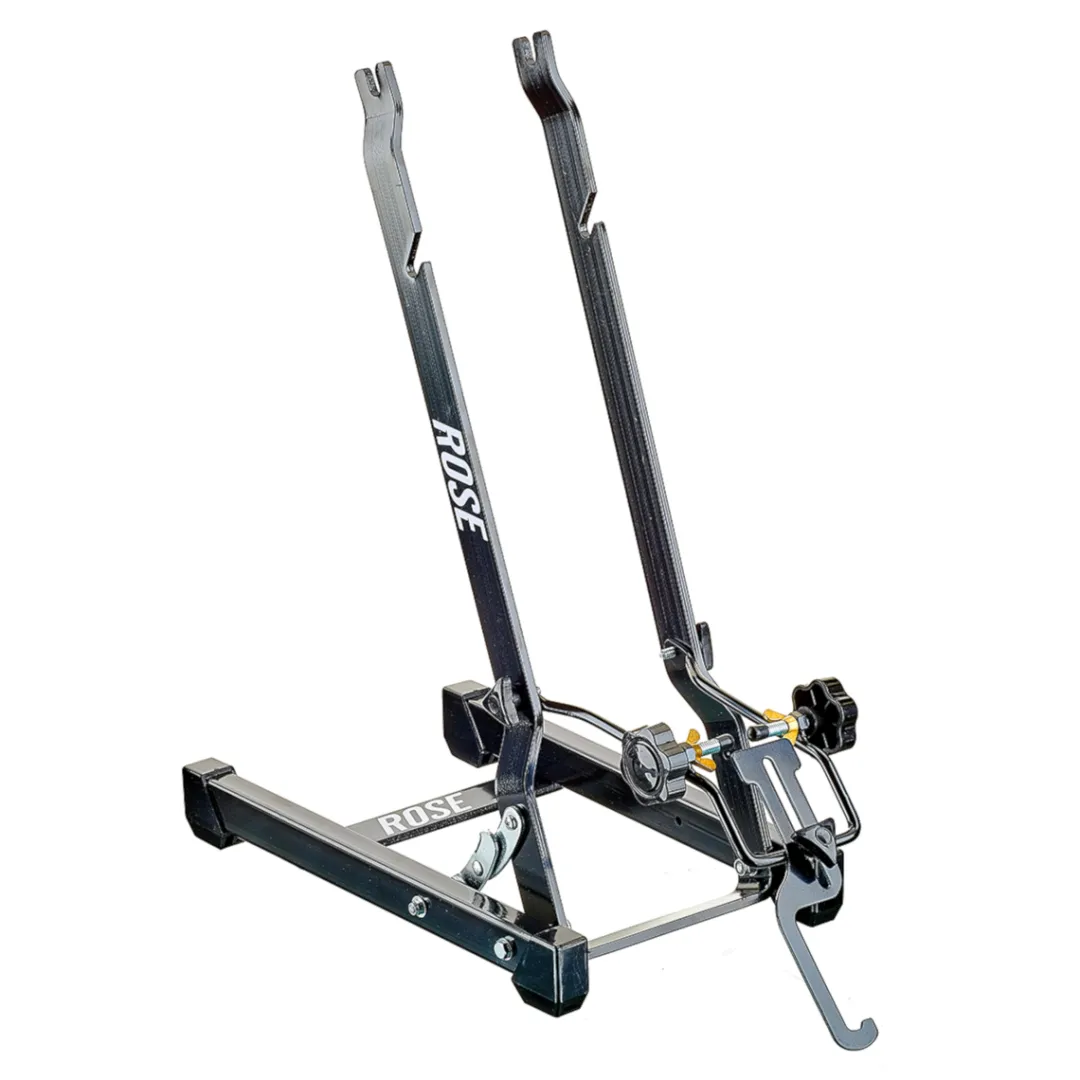

You can easily check the radial and lateral run-out of your wheels with the foldable ROSE Pro truing stand, to align them exactly. The robust steel construction is suitable for wheel sizes from 16″-29″ via quick release, although thru-axle hubs can of course also be mounted with an optional adapter.

The large standing surface offers you enough stability without having to screw the feet to the workstation in your hobby workshop. The clever folding mechanism makes the Pro truing stand by ROSE ideal for mobile use, as it is handy to take along and requires little space for storage.

With this solid entry-level model for wheel centring, things will run smoothly again even without a lot of professional technology.

Details:

• Mobile truing stand
• Suitable for 16” – 29” wheels with quick-release (thru axle require optional adapter)
• Shows the radial and lateral runout of the bicycle rims

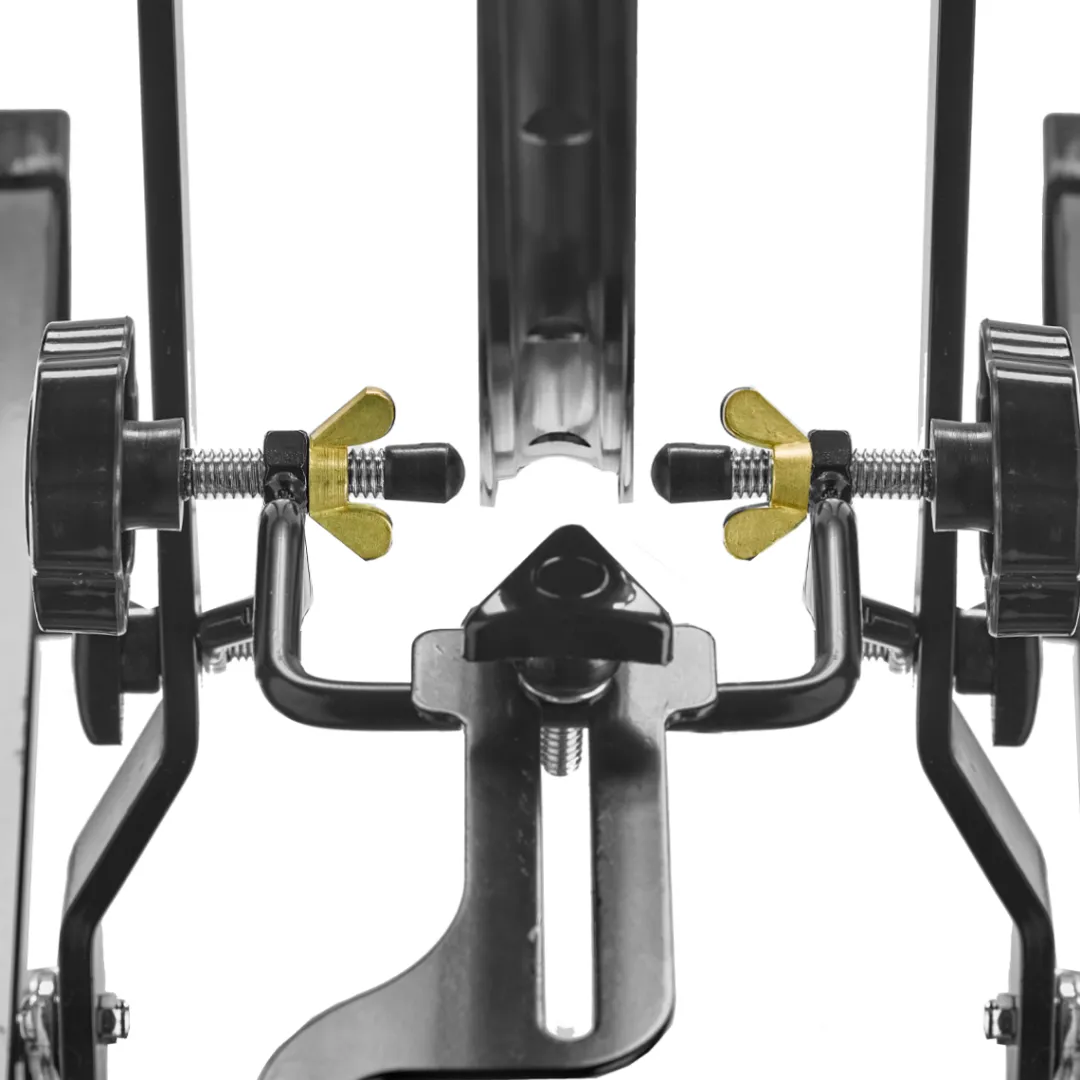

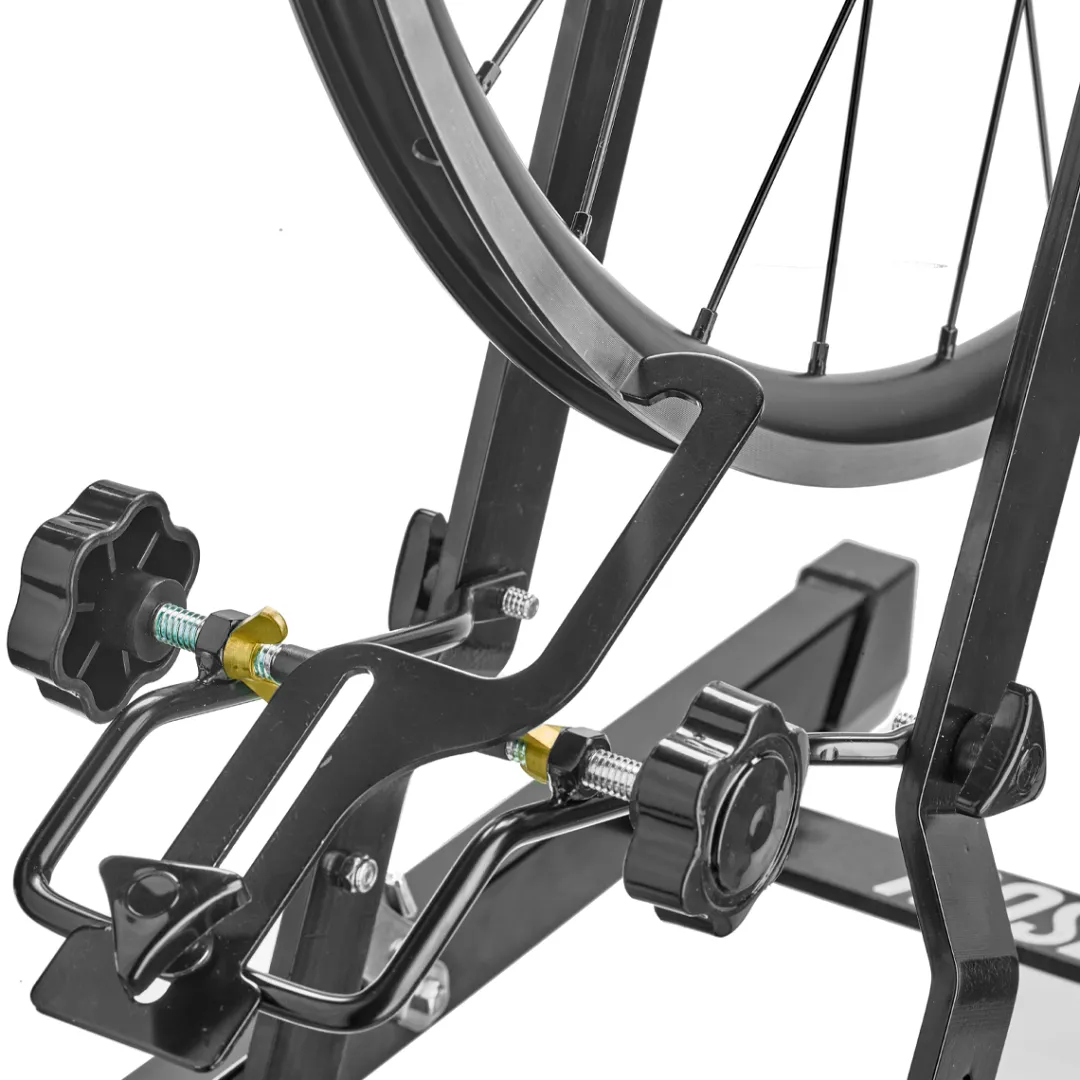

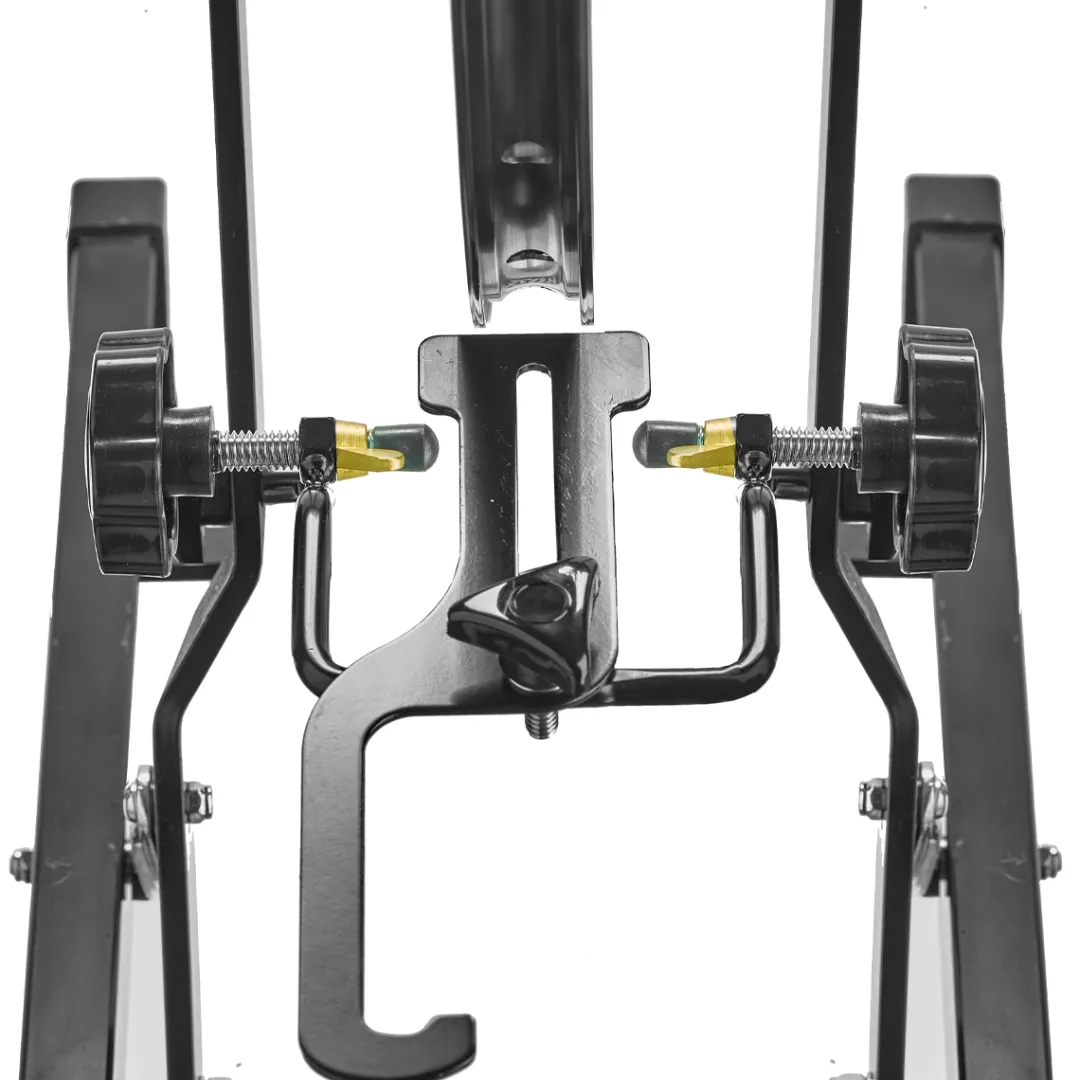

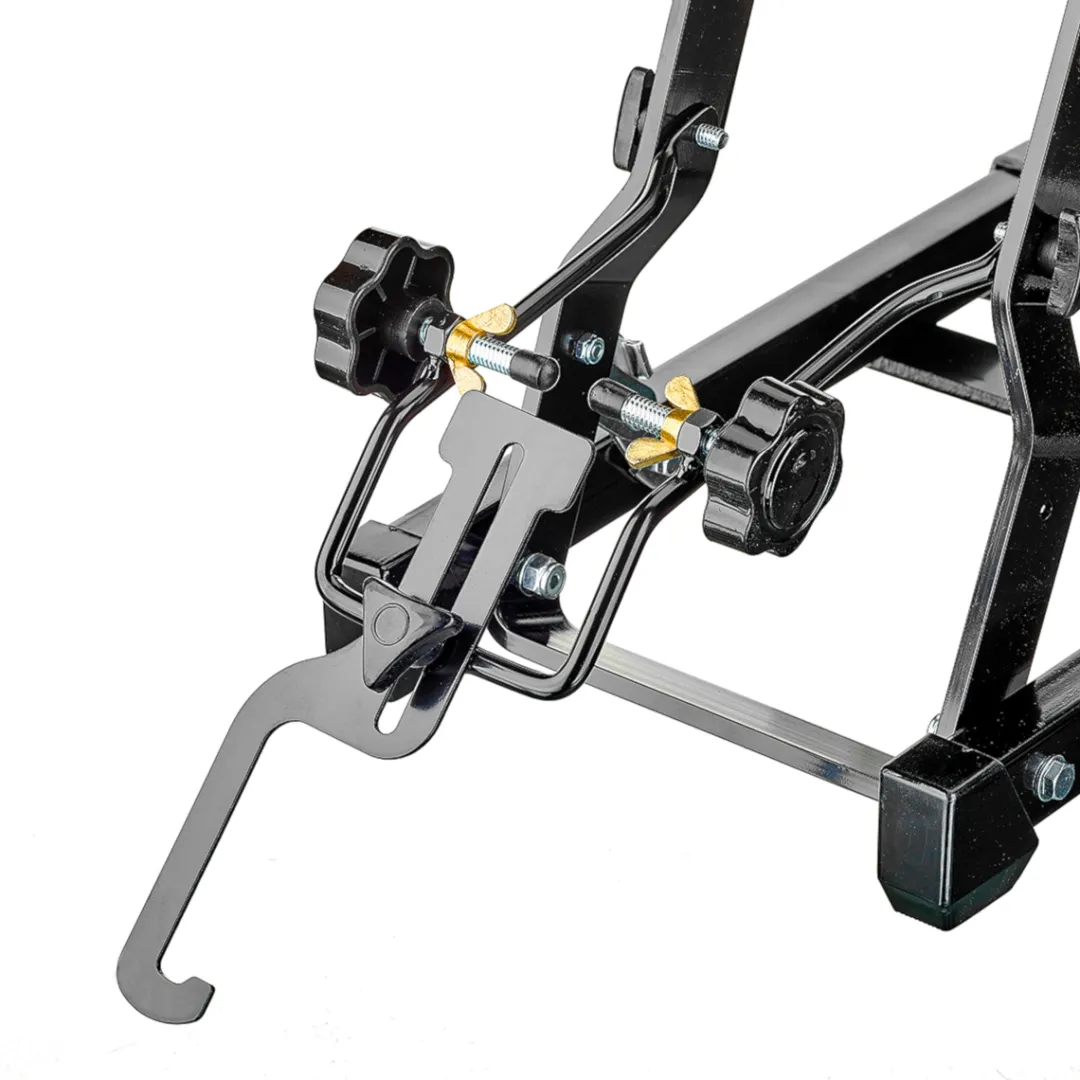

• Separately adjustable probes with rim protection caps
• Cantilevers lockable on both sides with rotary knob
• Locking hinge for the holder arm
• Rotatable height sensor

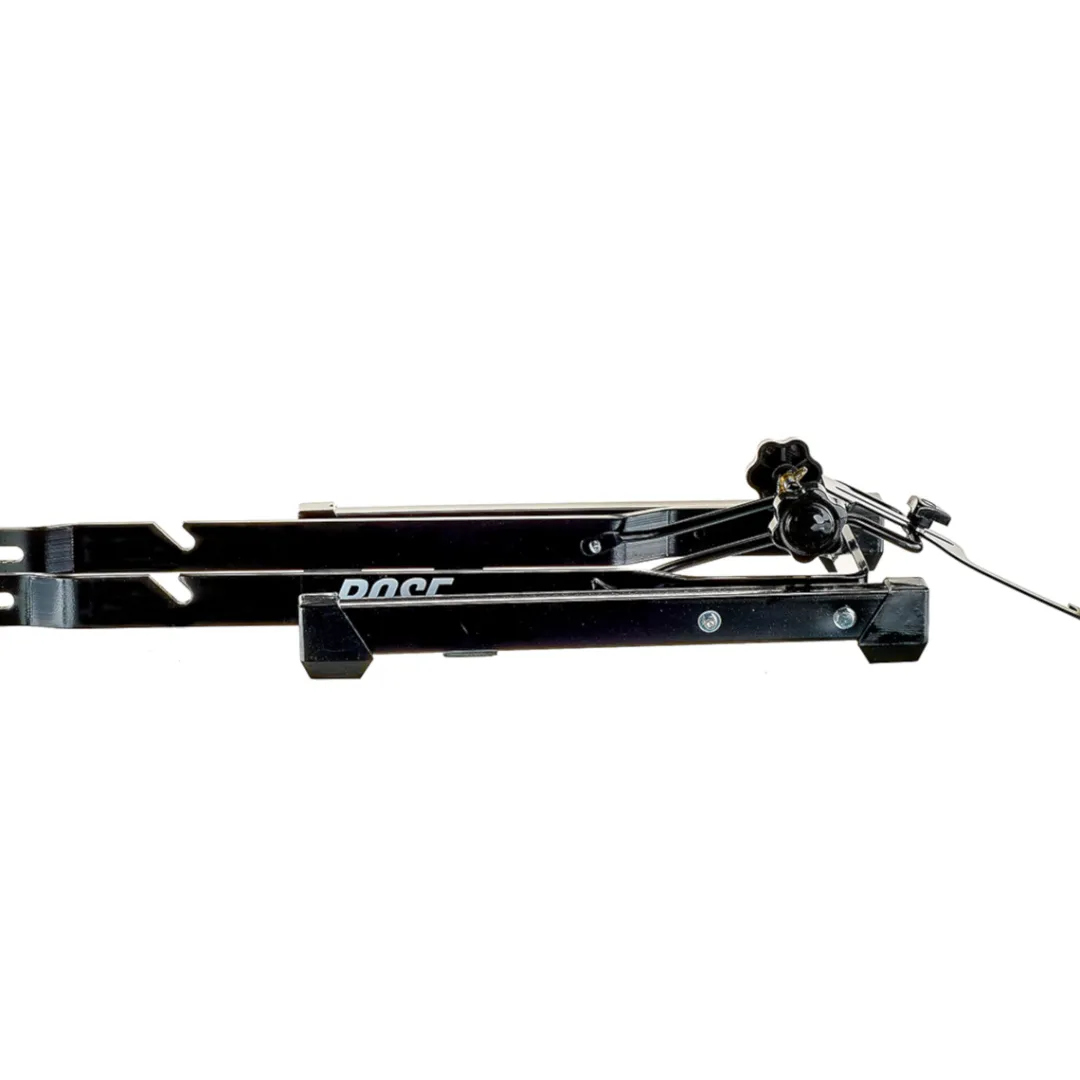

• Foldable to save space
• Non-slip plastic feet


Technical details:

• Material: steel, lacquered / galvanised
• For wheel size: 16 – 29”
• Axle mounting Ø: approx. 10 mm
• Hub installation width: up to approx. 150 mm
• Max. Rim width: 35 mm
• Dimensions: approx. 37 x 22 cm (platform)
• Weight: approx. 2100 g


In the box:

• 1ROSE Pro Truing Stand


Notes and tips:
For optimum truing results and the best possible compatibility, the tyre should be removed! Large wheels in combination with thick/high tyres may affect compatibility.
To increase stability in stationary use, the truing stand can be fixed to a workbench using optional screw clamps, for example.

We recommend the ROSE concentricity truing gauge (prod. code: 985932) or the ROSE Rundlauf FB truing gauge (prod. code: 1905164) for the necessary centricity check.

For clamping thru-axle hubs we recommend the ROSE hollow axle adapter (prod. code 2328852).
