ROSE Bikes Rear Sprocket CDN CenterTrack Surefit Alfine/Nexus/SRAM| Gear Hubs

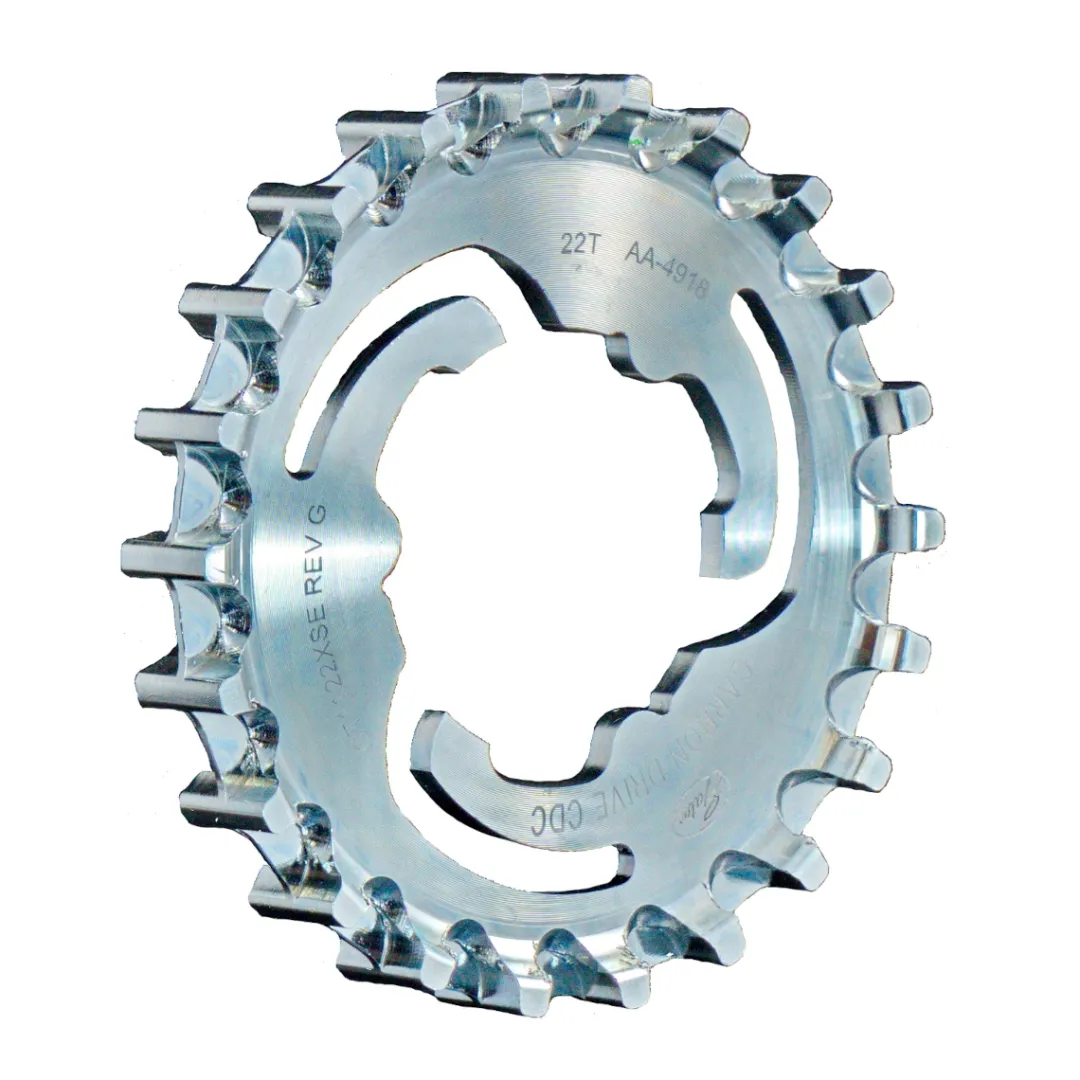

Being a bike drive system of a special kind, the Gates Carbon Drive belt system stands out for smooth running and low maintenance. For optimal performance of the belt drive, Gates offers the rear sprockets for the CDN system – a slightly modified alternative to CenterTrack – made from robust chrome molybdenum steel.
This version is suitable for installation on SHIMANO Alfine/Nexus and SRAM gear hubs.

Details:
• CDN version (low-priced CenterTrack version)
• Suitable for urban settings and paved roads
• Groove in the centre (CenterTrack)

Compatibility:
• SHIMANO Alfine 8 and 11 speed
• SHIMANO Nexus 3, 7 und 8 speed
• SRAM Automatix
• SRAM i-Motion 3

Technical details:
• Intended use: city and urban bikes, as well as e-bikes with front- or mid-drive motor
• System Gates CDN
• Material: CroMo steel
• Use: at the rear (sprocket)
• Mount: Surefit Interface (3-lobe mount)
• Pitch: approx. 11 mm

Available in size:
• 22 teeth
• 24 teeth
Please indicate your choice.

Note:
The CDN sprockets by Gates are NOT approved for MTB riding or touring (increased wear)! Besides, the sprocket is NOT approved for e-bikes with mid-drive motor.

In the box:
• 1 Gates Carbon Drive sprocket CDN Surefit Alfine/Nexus/SRAM (rear)

Tip:
For the Gates SureFit tool see product code: 1597050001.
