ROSE Bikes Red 22/Force 22 Chainring| Chainrings

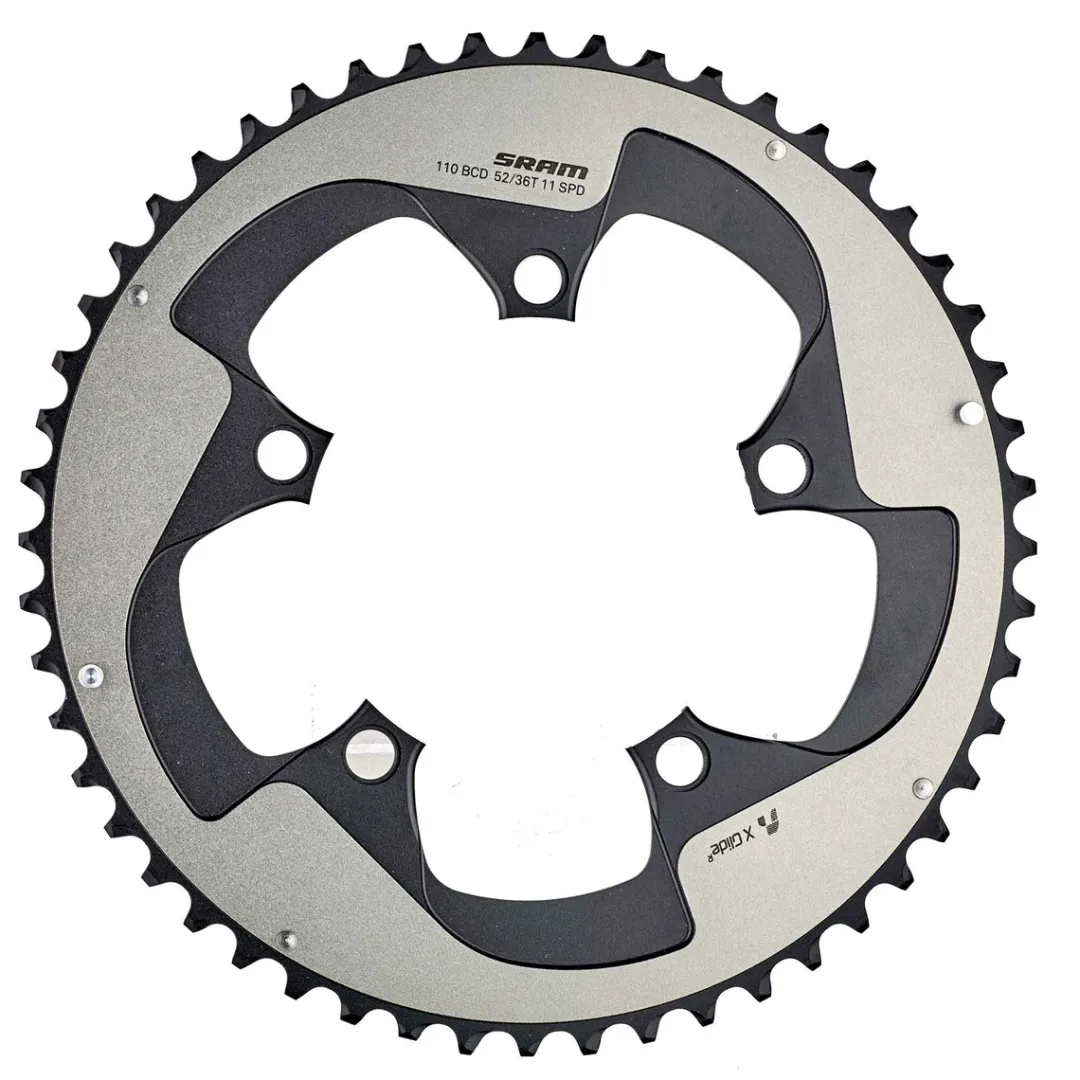

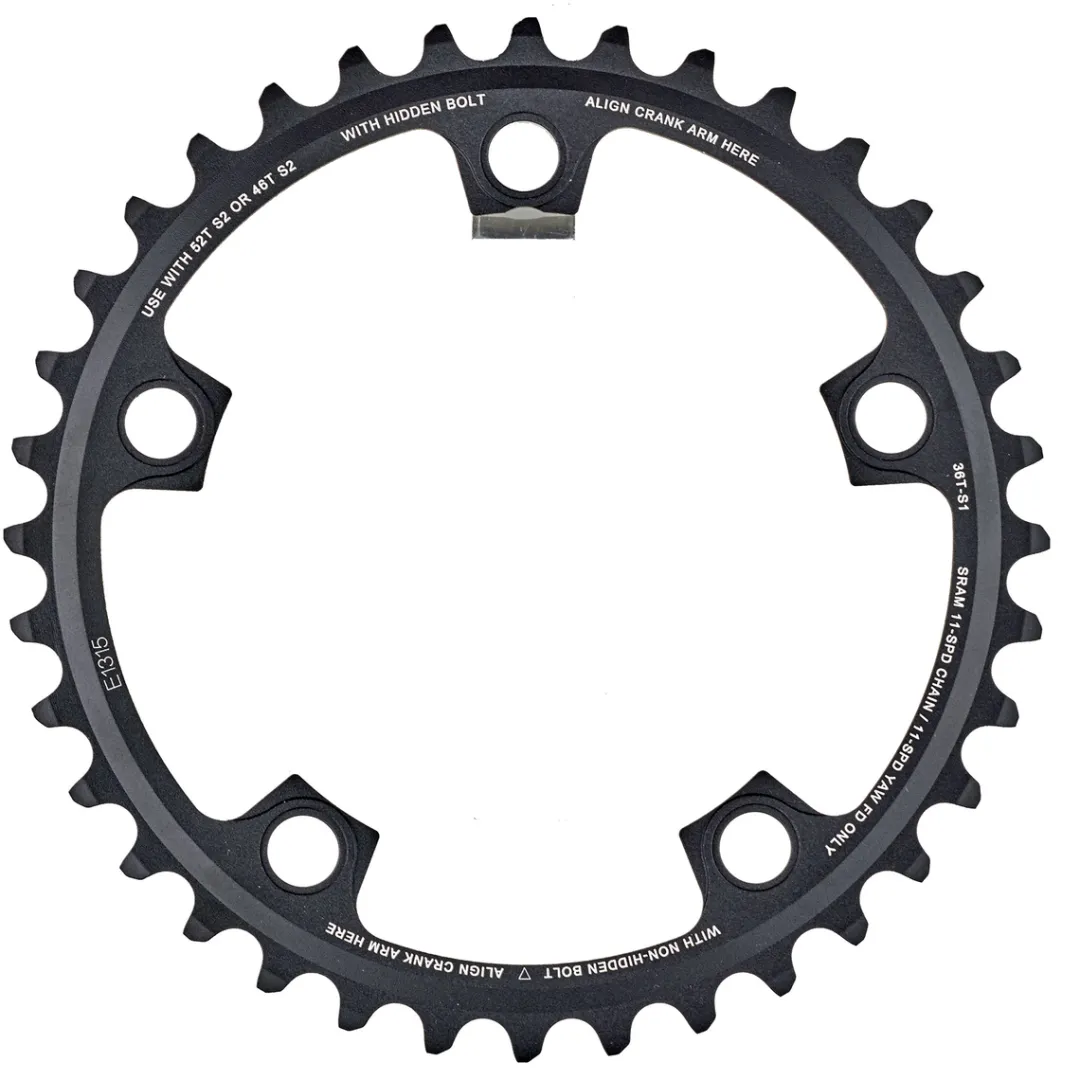

Red 22/Force 22 Chainring
Original chainring of SRAM’s Red 22 Series.
When combined with a YAW™ front derailleur, the X-Glide R shift pins make for smooth shifting.

Material: aluminium 7075-T6, CNC machined
Bolt circle Ø: 110 mm
5-arm spider attachment
For 2×11 systems only
For BB30 and GXP cranksets
For hidden bolt cranks and standard cranks
Possible gear ratios: 50/34, 52/36 or 46/36

ATTENTION:
The 52 and the 50 tooth chainring is NOT compatible with the Sram Quarq DZero power meter (product code: 2255145).
For this, the Quarq chainring is required (product code: 2198363).

Manufacturer’s ref.: 34 teeth: 11.6218.010.008
Manufacturer’s ref.: 36 teeth: 11.6218.010.009
Manufacturer’s ref.: 50 teeth: 11.6218.010.000
Manufacturer’s ref.: 52 teeth: 11.6218.010.010
