ROSE Bikes riser ergo bar| MTB And Touring

A tailor-made handlebar! The ergotec riser ergo bar is available in one shape – yet in six different sizes. This system offers you the possibility to choose the perfect width or grip angle for your body. The wider the bar, the longer the grip length. The handlebar made of robust aluminium AL 6061 T6 comes with a clamp Ø of 25,4 mm.

Details:

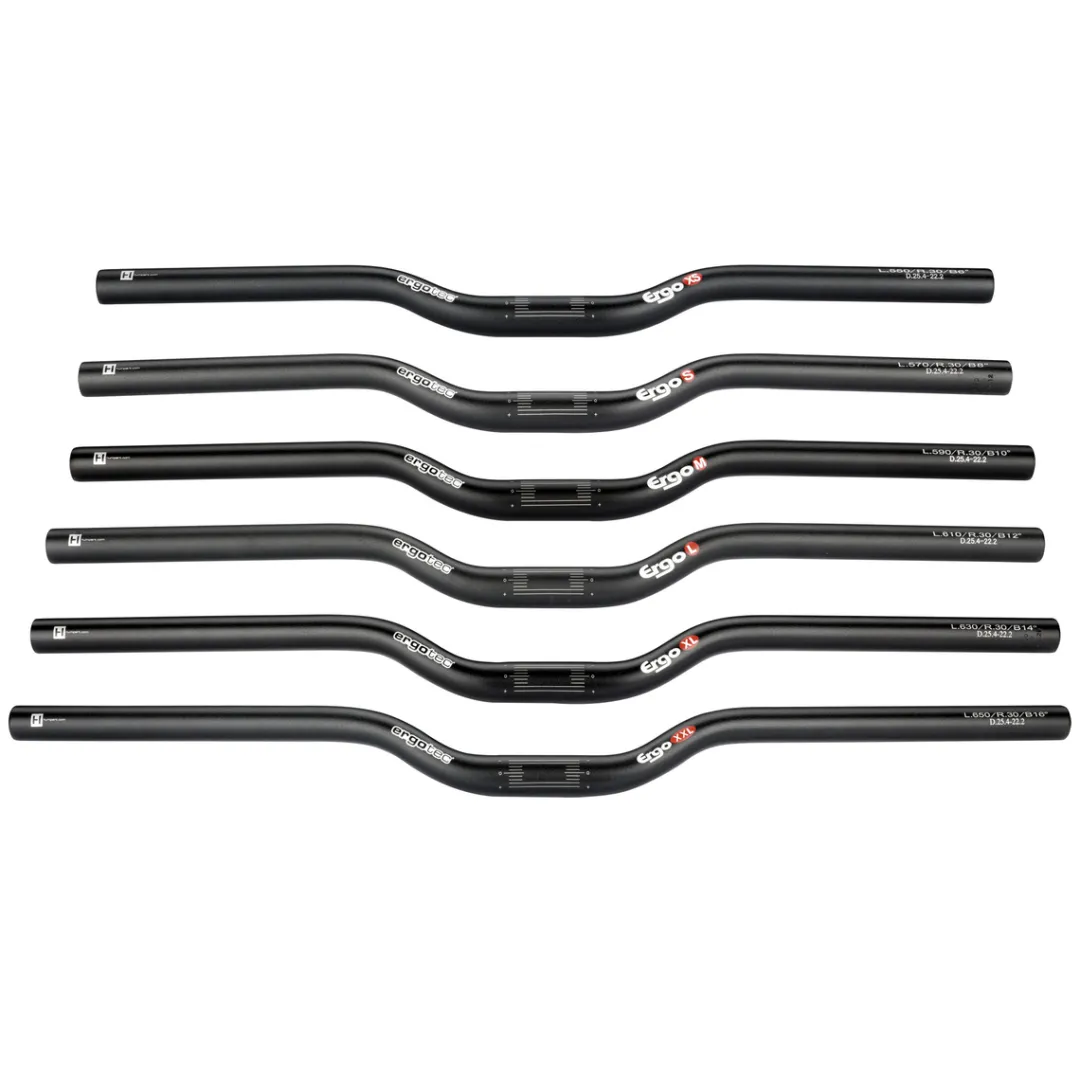

Ergonomic riser bar in six different sizes
Backsweep: 6° (size XS), 8° (size S), 10° (size M), 12° (size L), 14° (size XL), 16° (size XXL)
Width: approx. 550 mm (size XS), approx. 570 mm (size S), approx. 590 mm (size M), approx. 610 mm (size L), approx. 630 mm (size XL), approx. 650 mm (size XXL)
Rise: approx. 30 mm
Handlebar clamp: Ø 25,4 mm
Grip length: approx. 160 mm (size XS), approx. 170 mm (size S), approx. 180 mm (size M), approx. 190 mm (size L), approx. 200 mm (size XL), approx. 210 mm (size XXL)
ergotec safety level: 5
Material: aluminium AL 6061 T6
Weight: approx. 260 g (size XS), approx. 270 g (size S), approx. 280 g (size M), approx. 290 g (size L), approx. 300 g (size XL), approx. 310 g (size XXL)

Manufacturer’s ref.: 16212101 (XS), 16198101 (S), 16200101 (M), 16202101 (L), 16227101 (XL), 16229101 (XXL)
