ROSE Bikes S 1400-E Workstand up to 40 kg with Tool Tray| Workstands

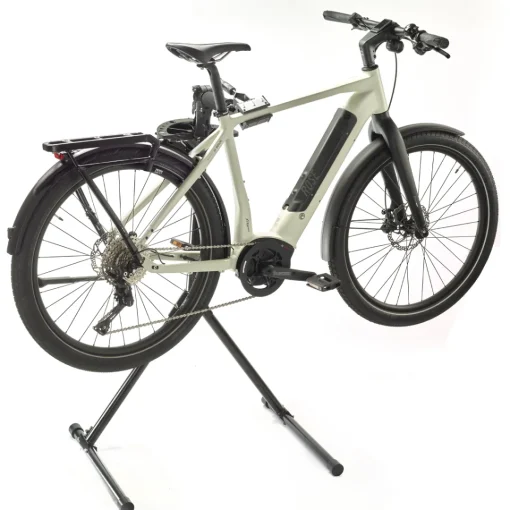

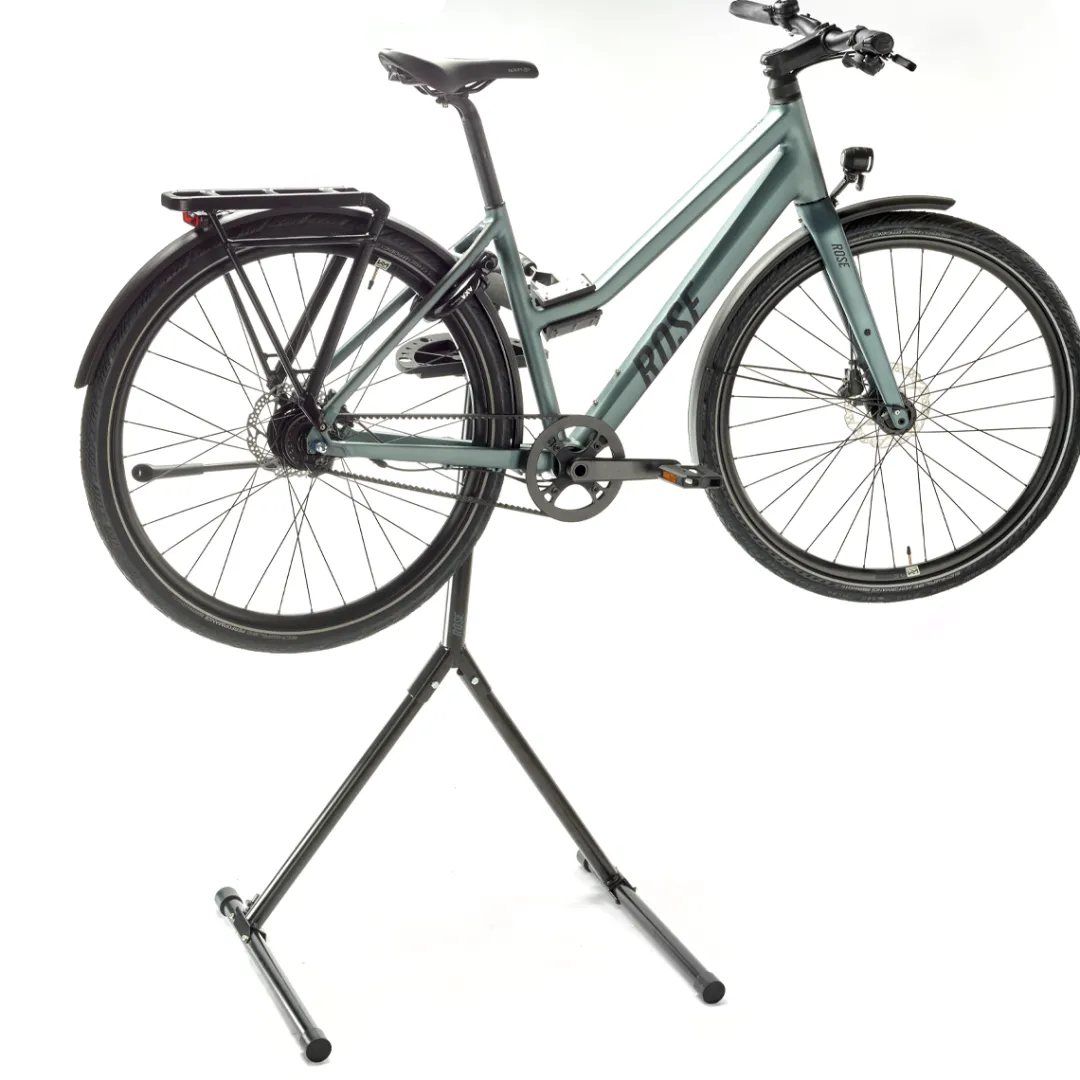

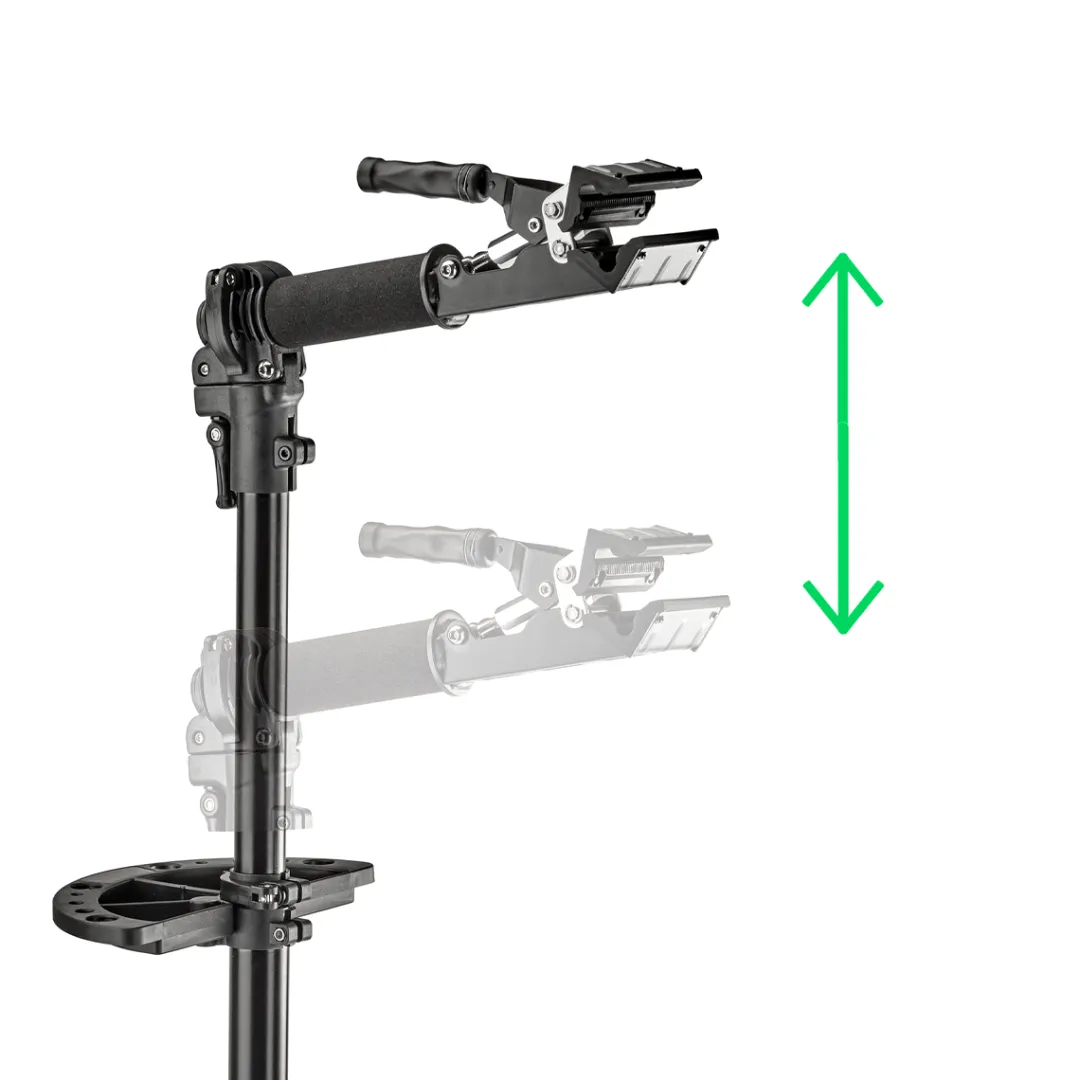

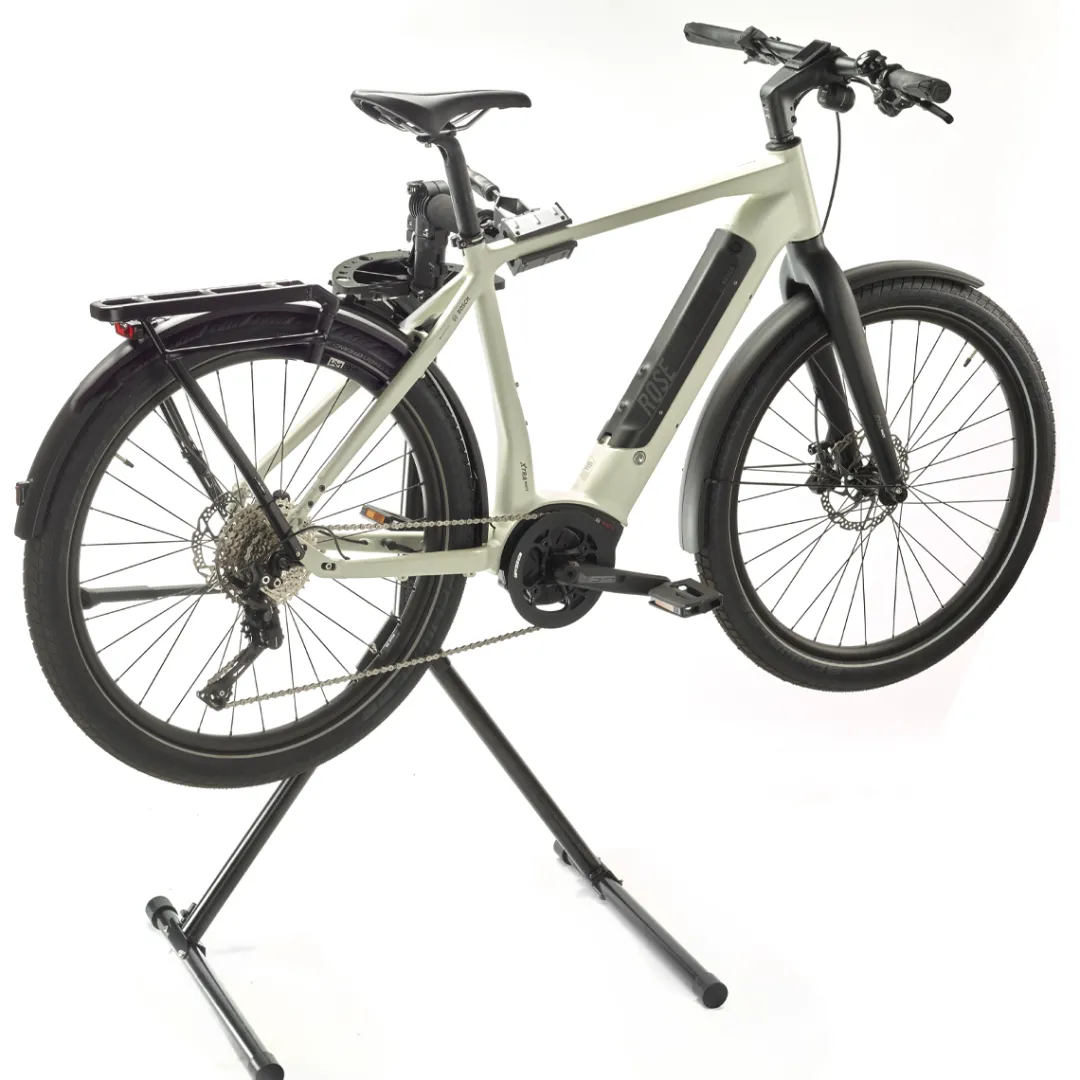

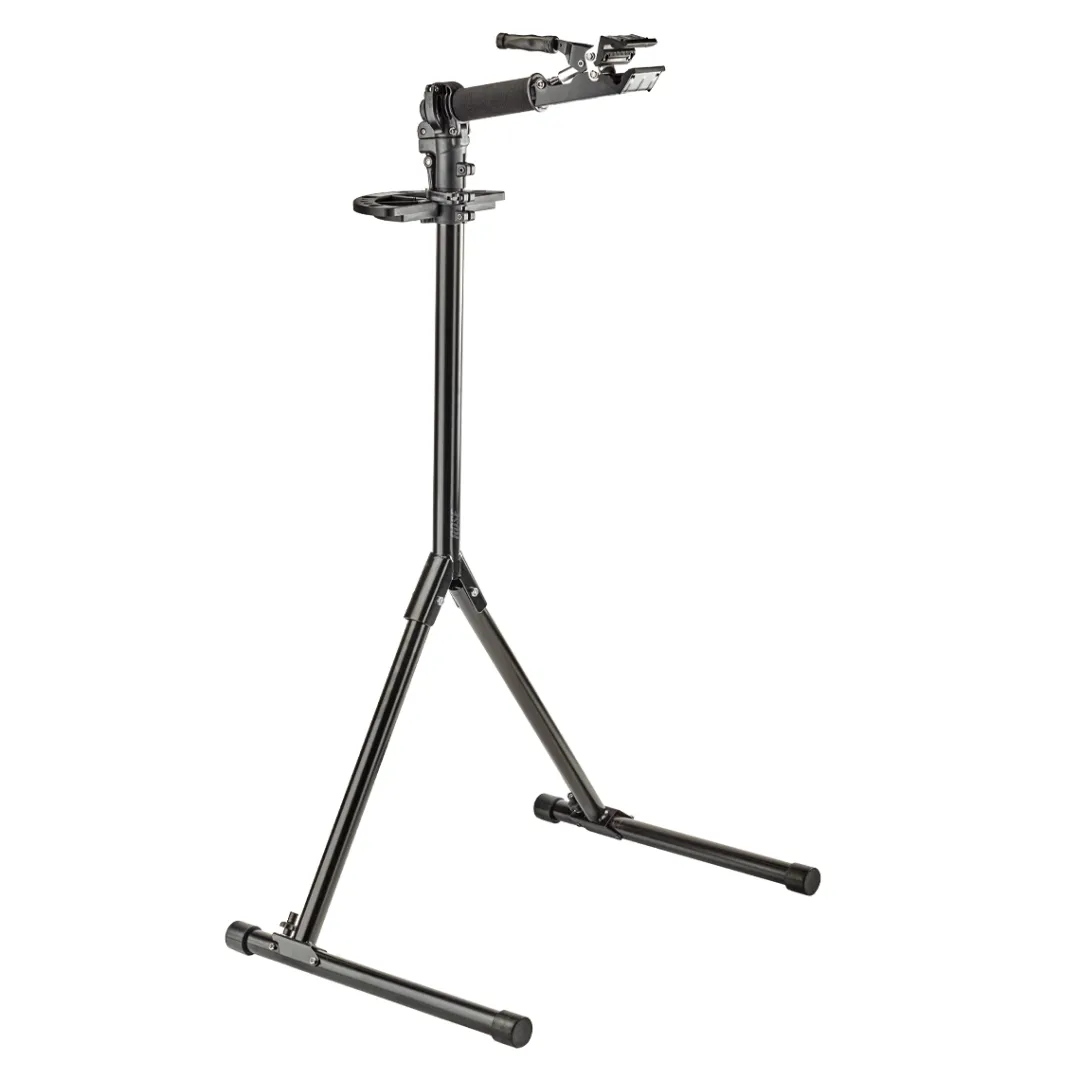

The foldable S 1400-E is characterised by its high stability, practical handling and small storage dimensions. The workstand by ROSE impresses with a 40kg load capacity, so that even heavy e-bikes can be serviced in a comfortable working position. It can also handle high lever pressure with tight bolts or mountings on the bottom bracket. The optimal working height can be continuously adjusted with plenty of leeway via the extendable telescopic tube.

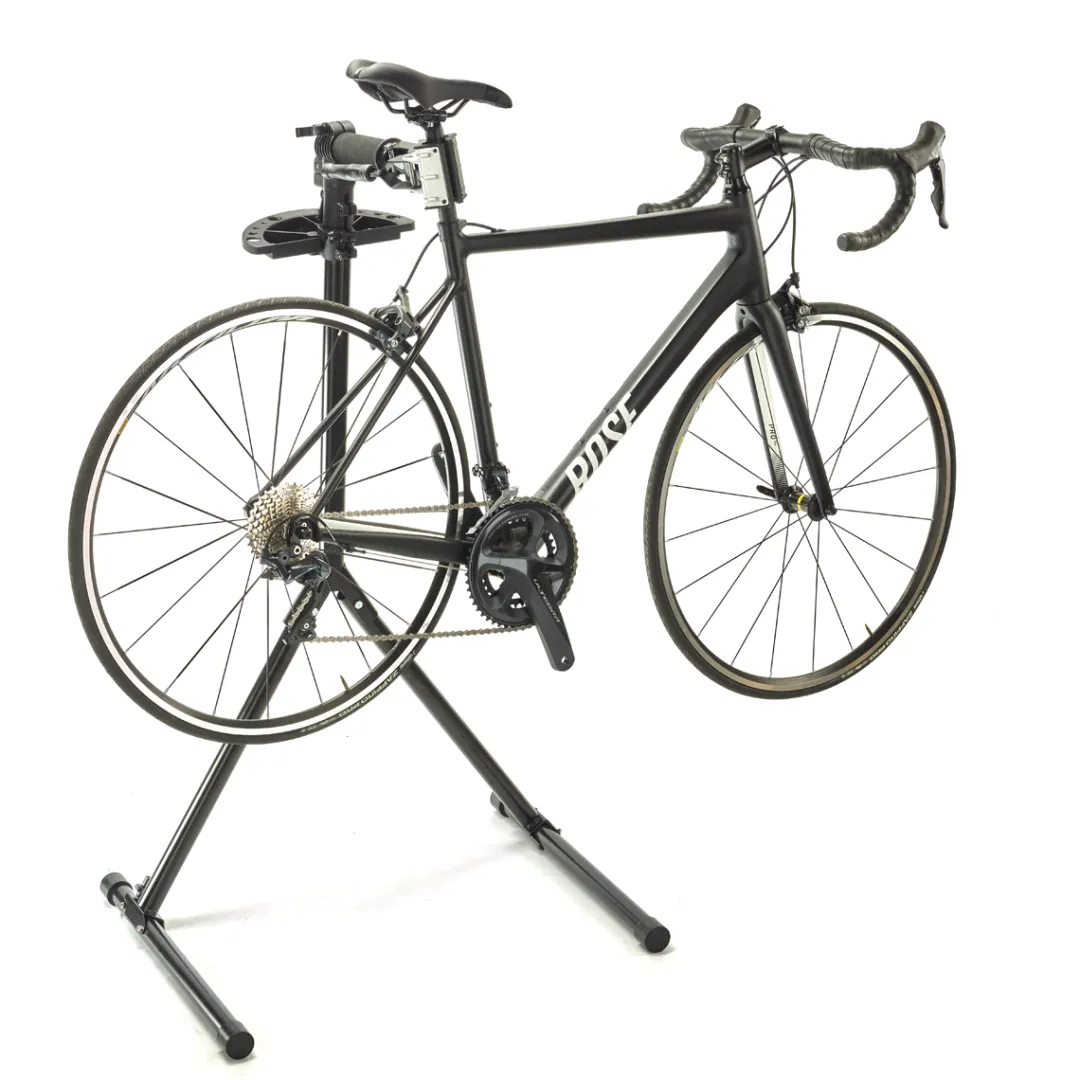

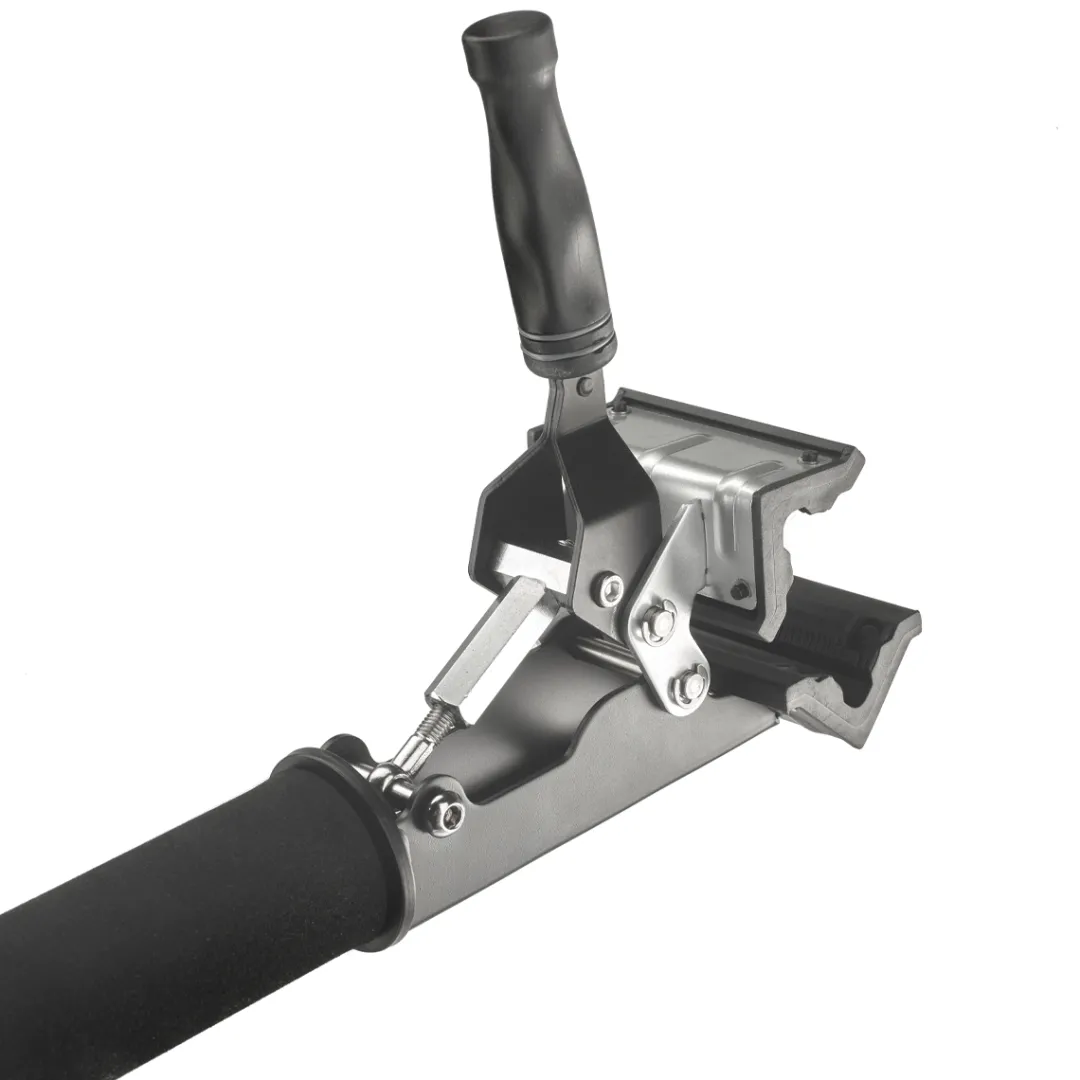

The solid legs with foot caps ensure a high degree of stability on firm surfaces. Small unevenness can be compensated for by the eccentric foot caps on all sides of the feet. The clamping arm and retaining claw are also designed for a high weight load. Clamped to the frame or seat post, your bike is securely held in the claw. Here, the clamping of the rubberised clamping jaws can be sensitively adjusted via the hex bolt of the adjustment shaft, so that even pressure-sensitive parts can be secured. Finally, the quick-release mechanism for opening the retaining claw with one hand facilitates removal.

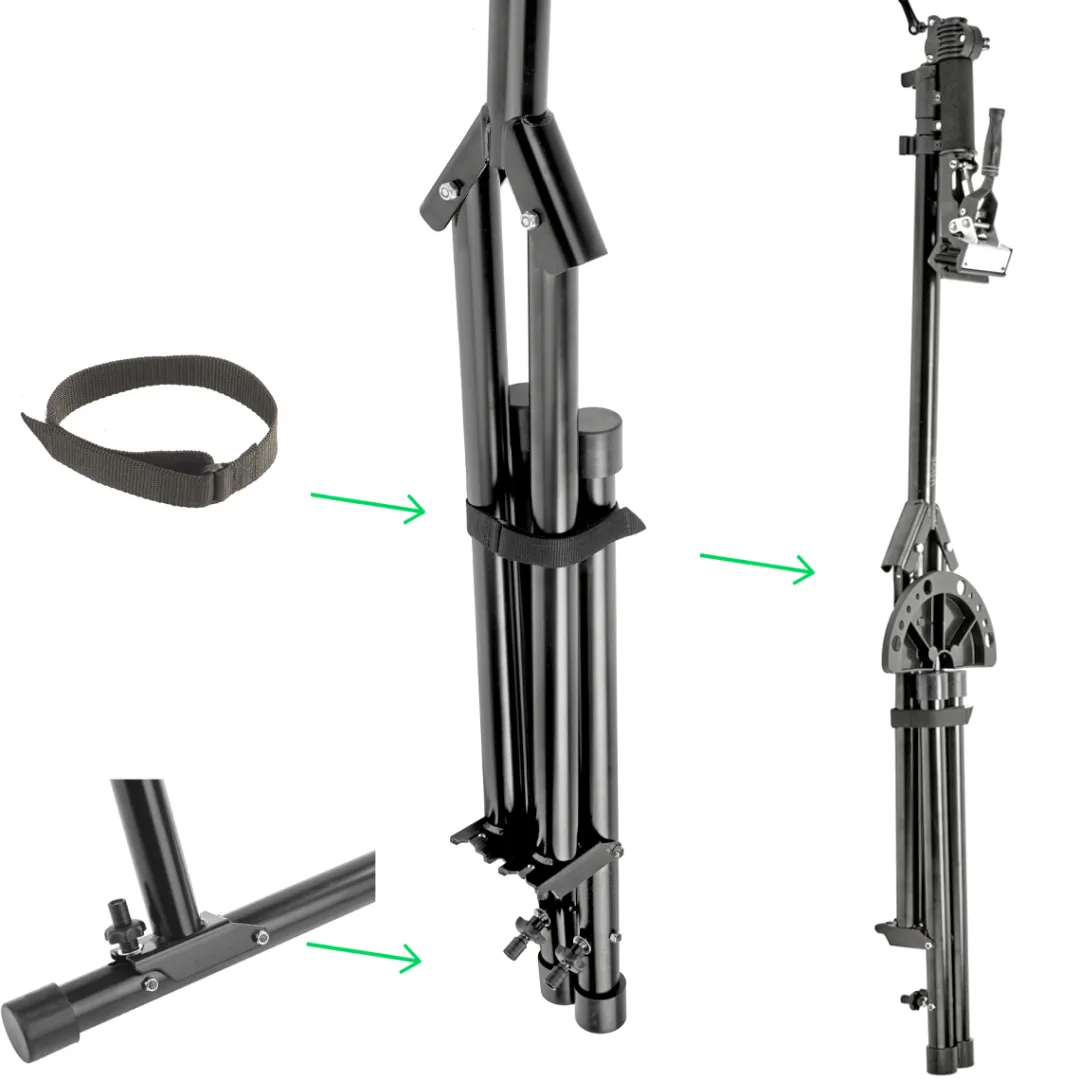

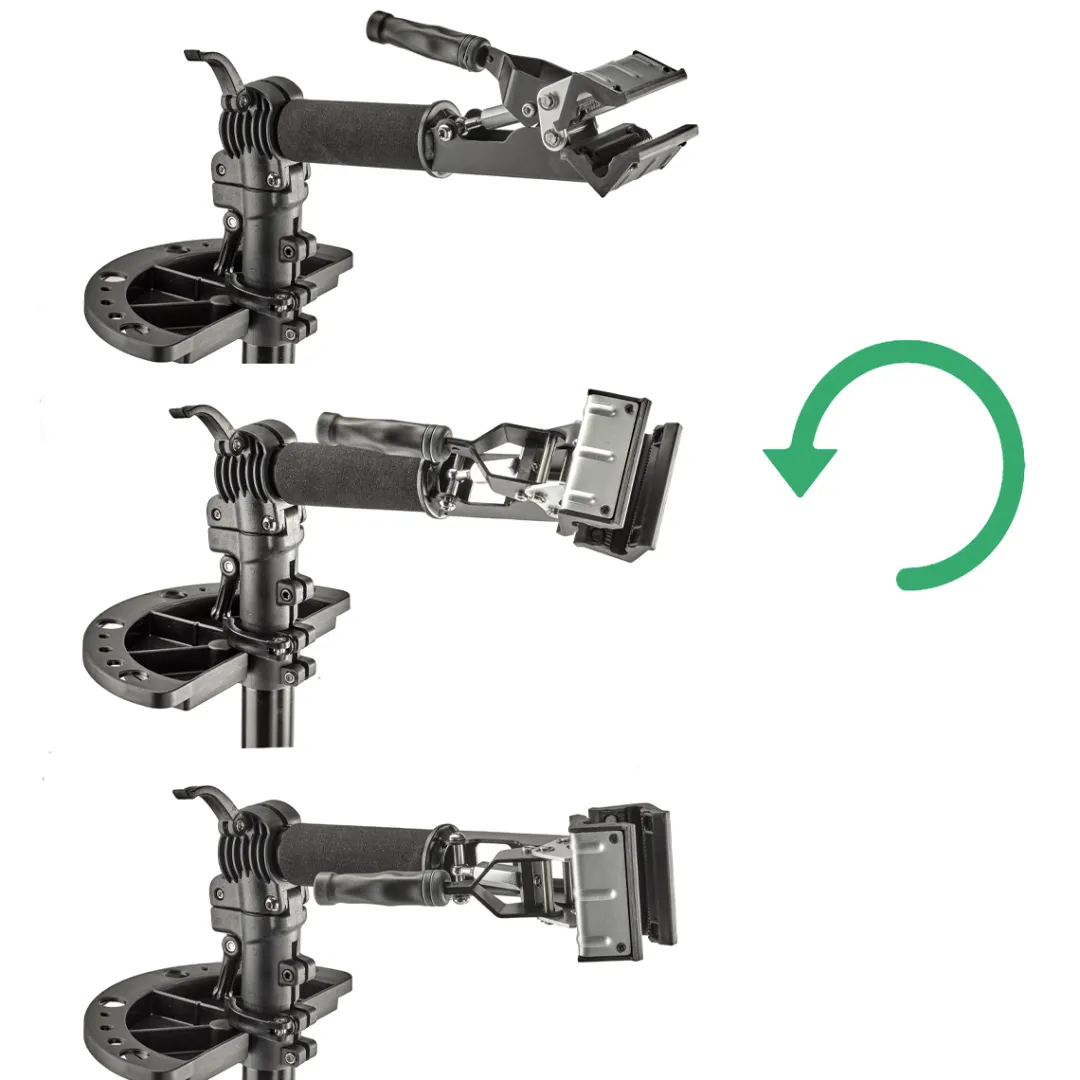

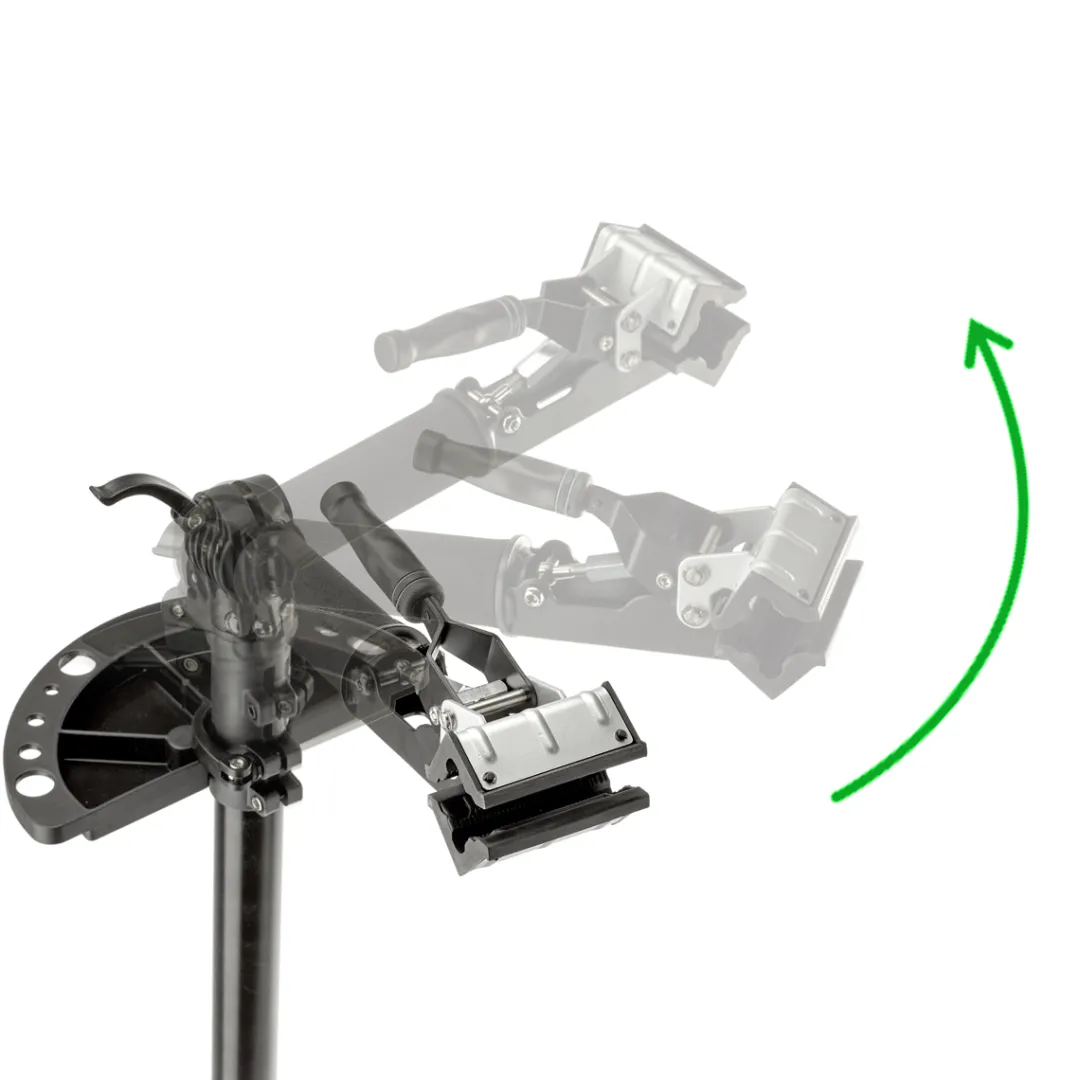

In addition to the height, the position of the clamping arm can of course also be varied by simply turning it. It can be held either horizontally, vertically or at a desired angle of rotation for ideal alignment and relaxed working. When the work is done, the workstand can be folded into compact dimensions in a few easy steps to save space when not in use. And can be quickly unfolded for the next use. This S 1400-E workstand by ROSE is predestinated for use in the cellar, garage or workshop. You will learn to appreciate it as a reliable maintenance aid when working on the bike.

Details:
Stable workstand for repair, maintenance and care
For bike frames with various tube diameters and shapes
Also suitable for a heavy e-bike / e-MTB, thanks to high load capacity
Sturdy construction with 45 mm legs
Cantilevered feet for high tilt resistance
Shock- and corrosion-proof steel frame
Continuously adjustable working height due to telescopic extension
Easy, tool-free adjustment
One-hand, quick-action clamping system for legs, extension and retaining claw
Foldable clamping arm with locking/unlocking toggle
Non-slip foam protection on the extension tube
360° rotatable clamping head with 28 mm fine toothing (approx. 13°)
Reinforced retaining claw with automatic securing of the clamp
Secure fixation with clamping lever and quick-release mechanism
Clamping pressure finely adjustable by ergonomic hex bolt adjustment shaft
Wide retaining claw for even pressure distribution
V-shaped clamping jaws with paint-friendly rubber insert for optimum pipe clamping
Non-slip rubber feet with level compensation
Space-saving storage dimensions due to retractable feet/legs

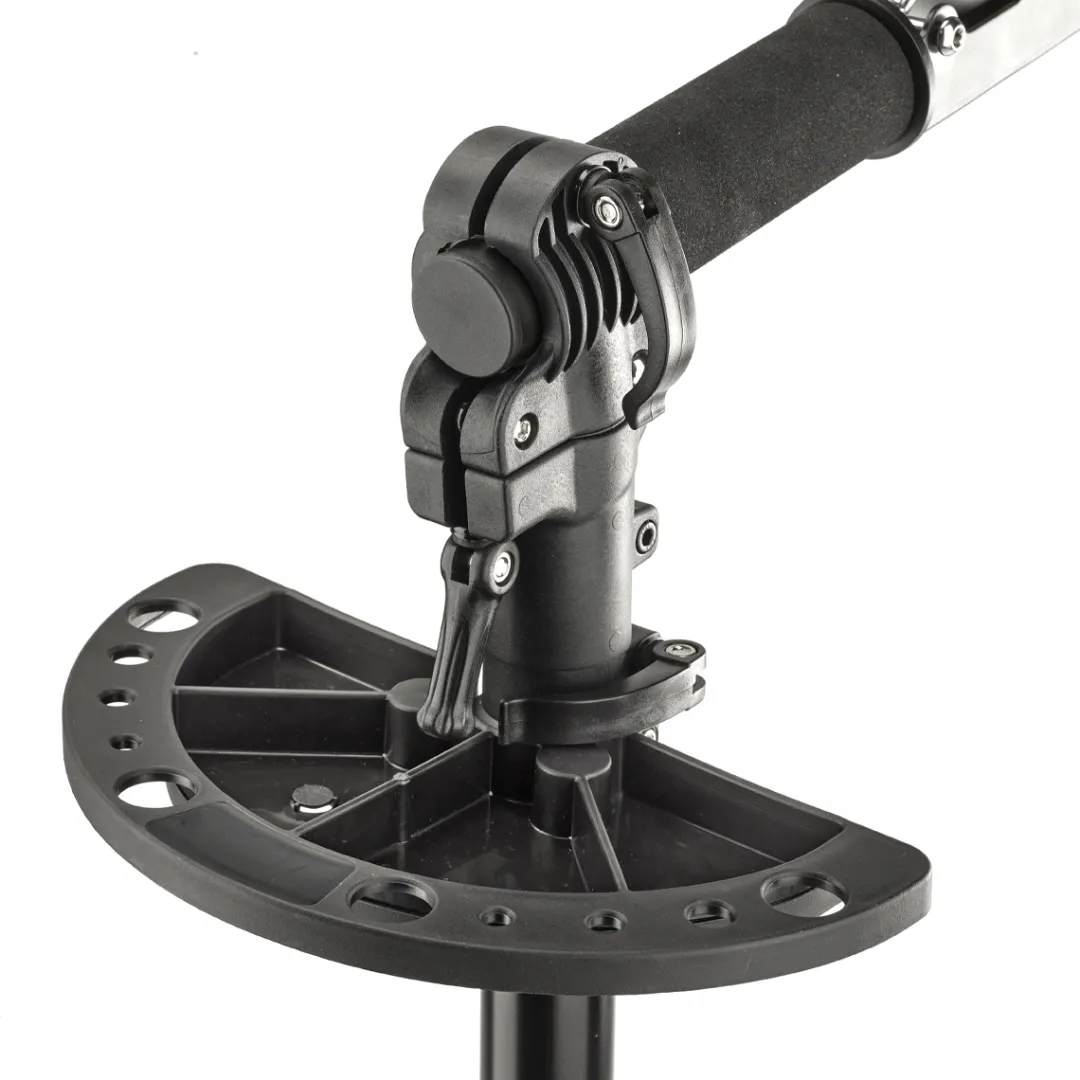

Includes plug-in tool tray
Incl. stand securing strap

Technical details:
Material: steel, plastic
Carrying load: max. 40 kg (centrally over legs)
Working height: approx. 135 – 175 cm (floor – centre retaining claw)
Rotation of clamp: 360°
For tube Ø from approx. 25 to 50 mm
Width of clamp jaws: approx. 95 mm
Floor space dimensions (WxD): approx. 70 x 62 cm
Transport dimensions: approx. 22 x 159 x 24 cm
Weight approx.: 5.9 g (stand), 175 g (plate)

In the box:
1 ROSE S 1400-E workstand
1 tool plate
1 securing strap

Tip:
The ROSE handlebar stabiliser (prod. code 1449507) prevents the handlebar from turning over during assembly work.
Replacement rubbers for the clamping jaws of the retaining claw can be found under prod. code 2349454.
