ROSE Bikes Screw kit for 1-arm mount Bosch Smart System| Additional Accessories

This small parts set from Bosch includes appropriate replacement screws and an additional locking plate for the 1-arm display holder from the Bosch Smart System. The two M3x9.5 screws are used to mount the display holder on the adapter shell. One of both M4x12 screws holds the inclined adapter shell, the other one the support arm attached to the handlebar. The security plate prevents the Kiox-300 display or SmartphoneGrip holder from being removed if necessary, thereby providing basic protection against unauthorised access.

Details:
Spare parts kit for Bosch Smart System BDS3630 display holder
One M4x12 screw for fastening/adjusting the inclination of the adapter shell
One M4x12 screw for clamping assembly to the handlebar
Two M3x9.5 screws for mounting the display holders BDS3250/BDS3210
Replacement safety plate for permanent attachment of Kiox 300 or SmartphoneGrip

Technical details:
Product series: Bosch Smart System (BES3)
Model year: 2022

Compatibility:
1-arm mount BDS3630 (prod. code 2330317)
Bosch display mount BDS3210 (prod. code 2330998)
Bosch display mount BDS3250 (prod. code 2330999)

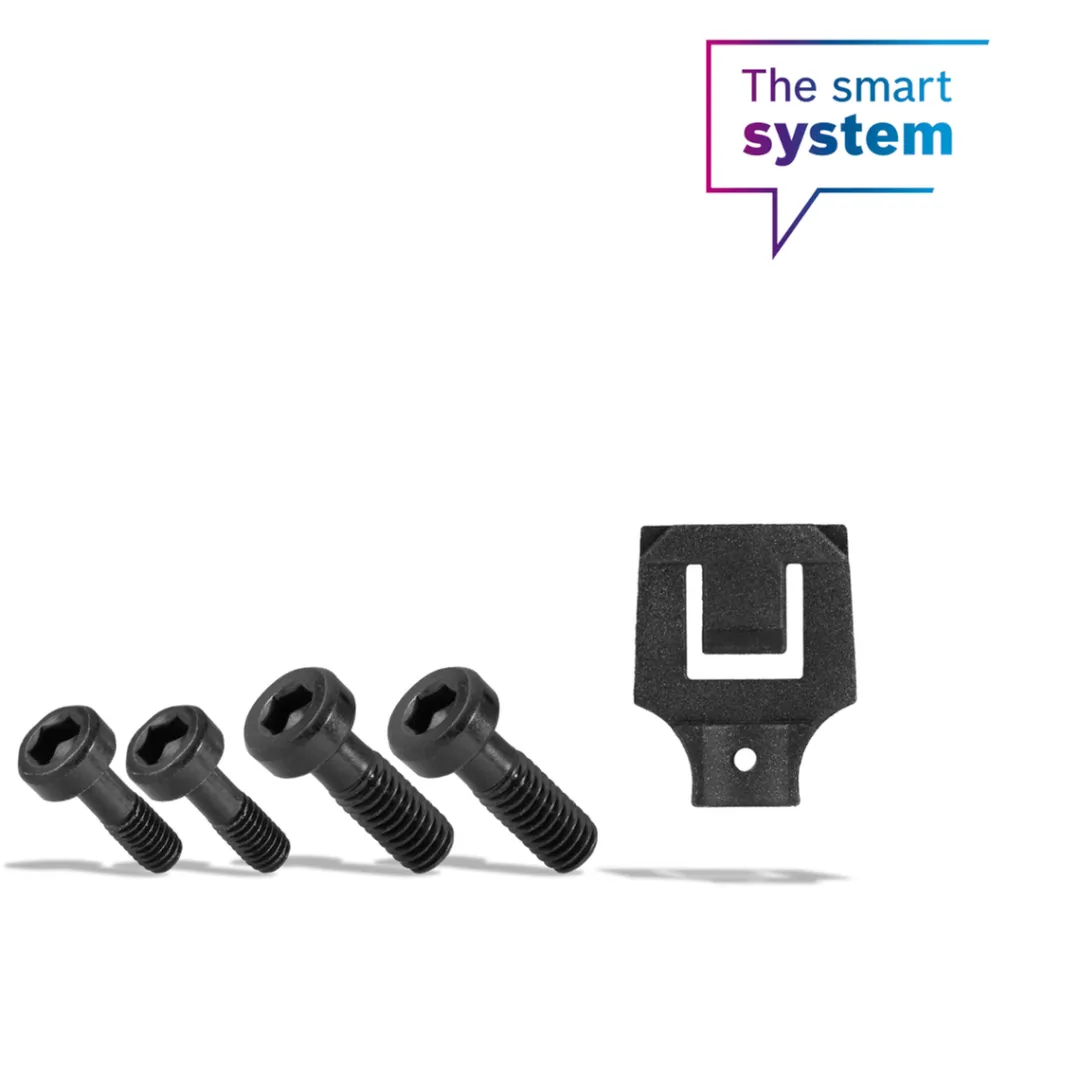

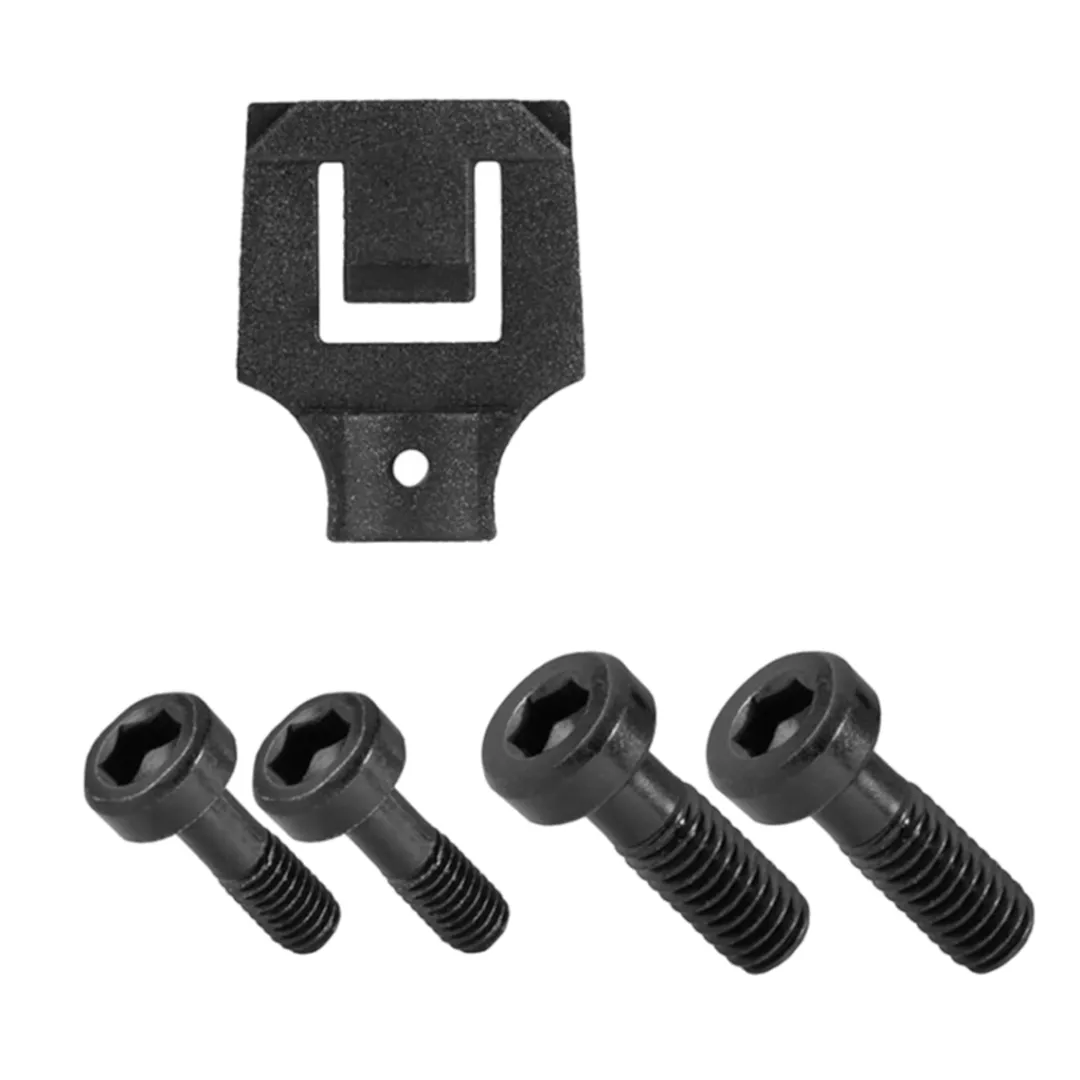

In the box – Bosch Screw Kit for 1-arm mount:
2 M4x12 bolt
2 M3x9,5 bolt
1 safety plate
