ROSE Bikes STEM MOUNT PRO SPC+| Smartphone Accessories

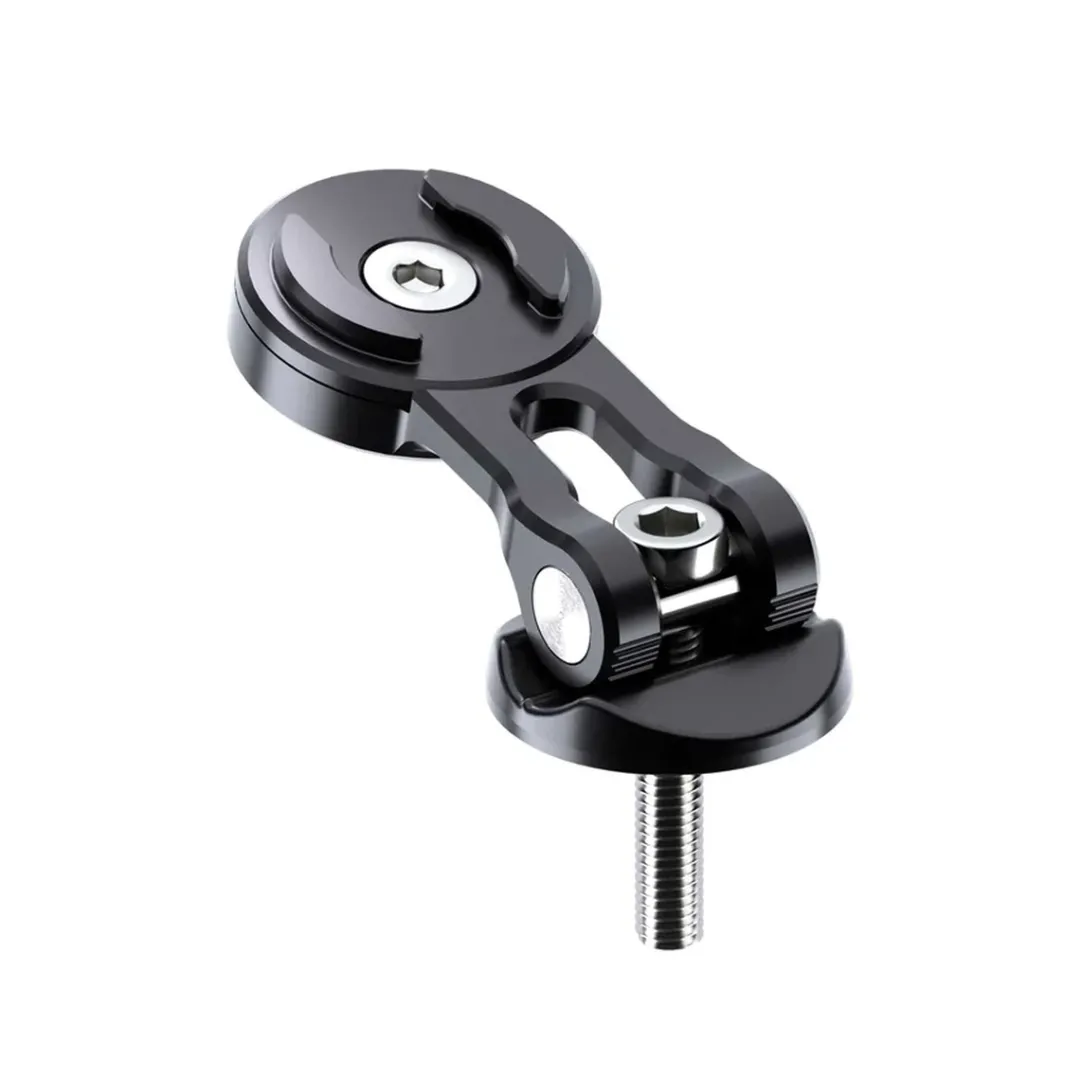

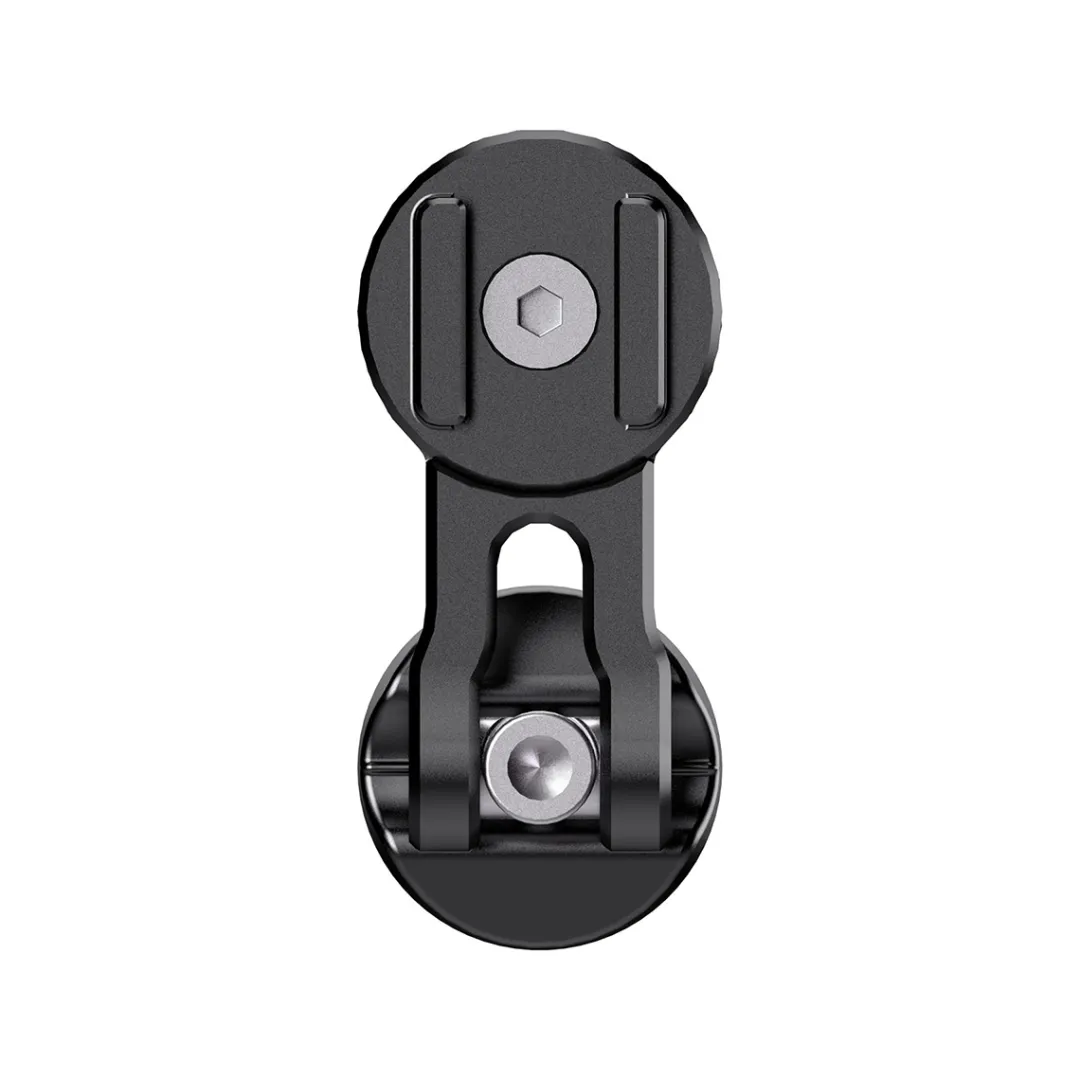

The SP Connect STEM MOUNT PRO is mounted instead of the Ahead headset cap at the stem of your bike.

In combination with a compatible SP Connect Phone Case or the SP Connect Universal Phone Case, you can attach your smartphone in no time. The mount is made from lightweight, CNC-milled aluminium. Its tilt can be adjusted in order to find the optimal position for your smartphone. Moreover, you can choose between using the portrait or landscape mode, by installing the MicroRail mount at a 90° angle.

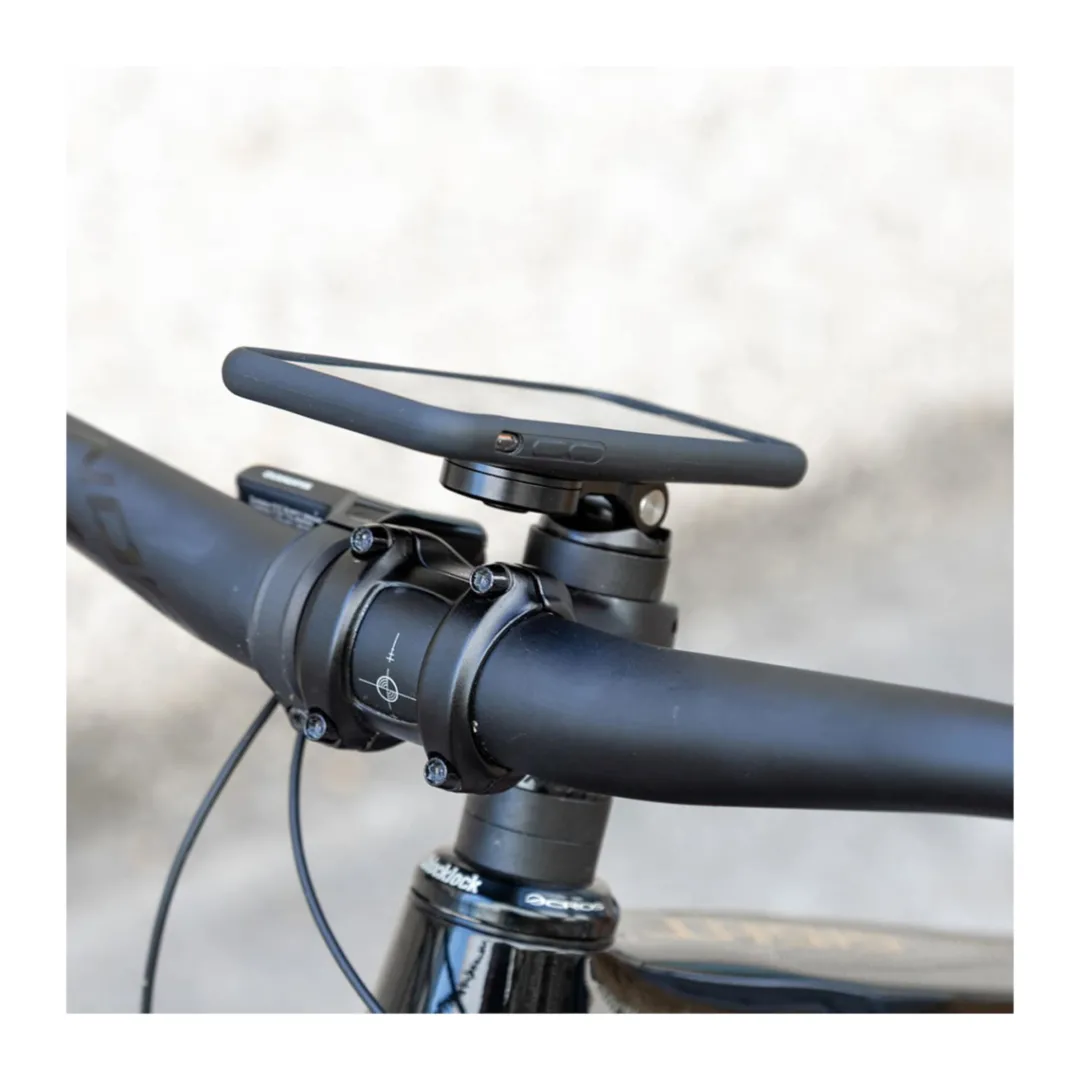

This way, the SP Connect™ STEM MOUNT PRO allows for a secure attachment of your smartphone in your direct field of vision.

Details:
• Stem mount for SP Connect Phone Case, universal holder etc.
• To be mounted instead of the Ahead headset cap
• Positions the device centrally above the stem
• Can be used in portrait or landscape mode
• Made from lightweight, CNC machined aluminium

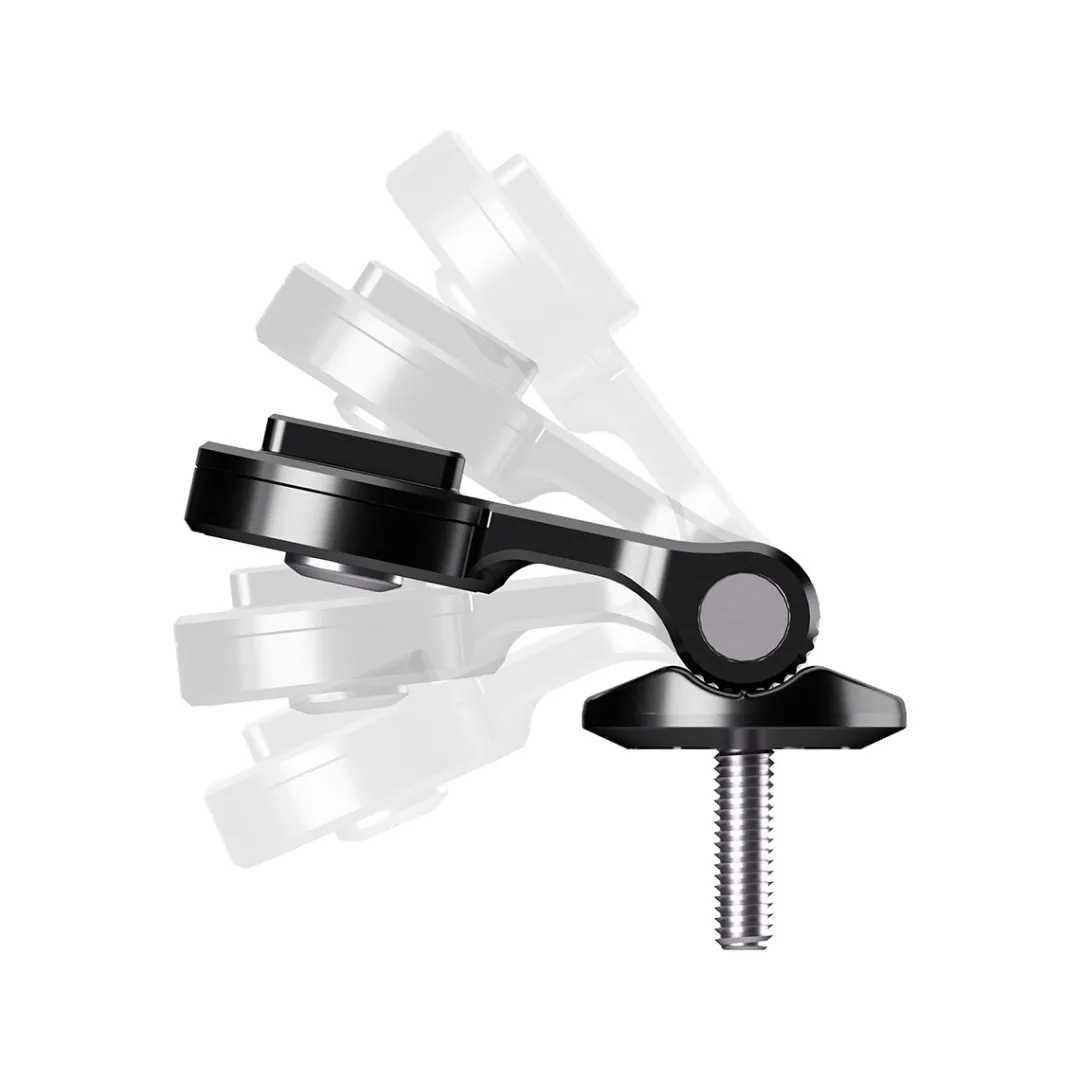

• Adjustable tilt for good readability of the display
• Incl. stainless steel bolt for secure attachment (M6 x 35 mm)
• Optional adapter for bike computers (GARMIN/WAHOO) available

Technical details:
• Material: aluminium (mount), stainless steel (bolt)
• For steerer tube Ø: 28.6 mm / 1 1/8″ (top)
• Tilt adjustment: Yes (in steps of 12°)
• Mounting system: SPC+

Dimensions:
• Length: approx. 40 mm (centre fork steerer – centre phone mount)
• Height: approx. 17 mm (height from fork end; for 90° angle)
• Width: approx. 32 mm (widest spot)

In the box:
• 1 SP Connect STEM MOUNT PRO
• 1 insert for the SP-Connect-Plus system

Recommended accessories:
• SP Connect PHONE CASE (prod. code: 2299268)
• SP Connect WEATHER PROOF UNIVERSAL CASE (prod. code: 2325651)
• SP Connect UNIVERSAL PHONE CLAMP (prod. code: 2316962)
• SP Connect BIKE COMPUTER ADAPTER KIT (prod. code: 2316992)
