ROSE Bikes Swell XR Stem| Stems For Threadless Steerers

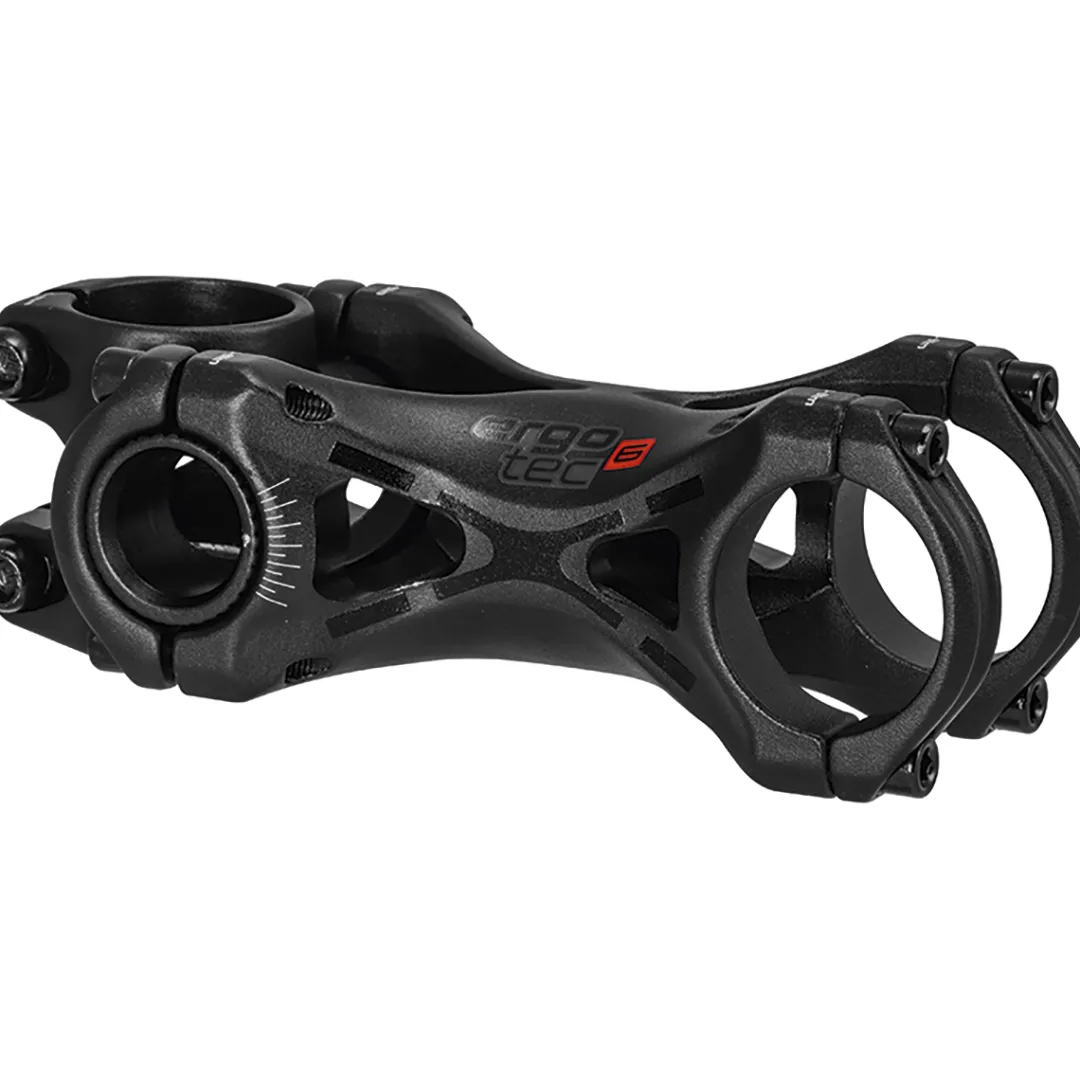

The open construction of the ergotec Swell XR stem with X-design and CNC-milled cutouts turn it into an eye-catcher on your bike. Despite the fact that material has been left out intentionally, the stem made from 6061 T6 aluminium offers a stability that makes it suitable for both mountain biking and road racing. In short: A robust and adjustable stem with a sporty, dynamic design.

Details:
Angle-adjustable, sporty and elegant stem
4-bolt handlebar clamp with a Ø 31,8 mm
Clamping height on the steerer tube: 45 mm
Angle: -20° – +40°
Length: 100 mm
For threadless forks with shaft outer Ø 28,6 mm (also suitable for threadless forks with shaft outer Ø 25,4 mm with a reducing sleeve, see prod. code: 228261901)
ergotec safety level: 6*
Max. system weight (cyclist, bike and luggage): City/Touring (incl. e-bikes up to 25 km/h/15.5 mph) 180/160 kg, MTB/Race (incl. electric bikes) 120 kg
Material: aluminium 6061 T6
Weight: approx. 245 g

In the box:
1 ergotec Swell XR stem, mounting material

*The product classification of the ergotec Safety Level complies with the DIN EN ISO 4210 standard for bikes and DIN EN 15194 for e-bikes. The ergotec Safety Level is always valid for the entire steering system. If stem and bars have a different safety level, the lower value will apply to the entire system.

ATTENTION:
Due to safety concerns, the manufacturer does NOT approve the use of the stem with carbon handlebars and/or carbon steerer tubes.
