ROSE Bikes TetraRack M1 MTB Front Rack System| Front Racks|Lowriders

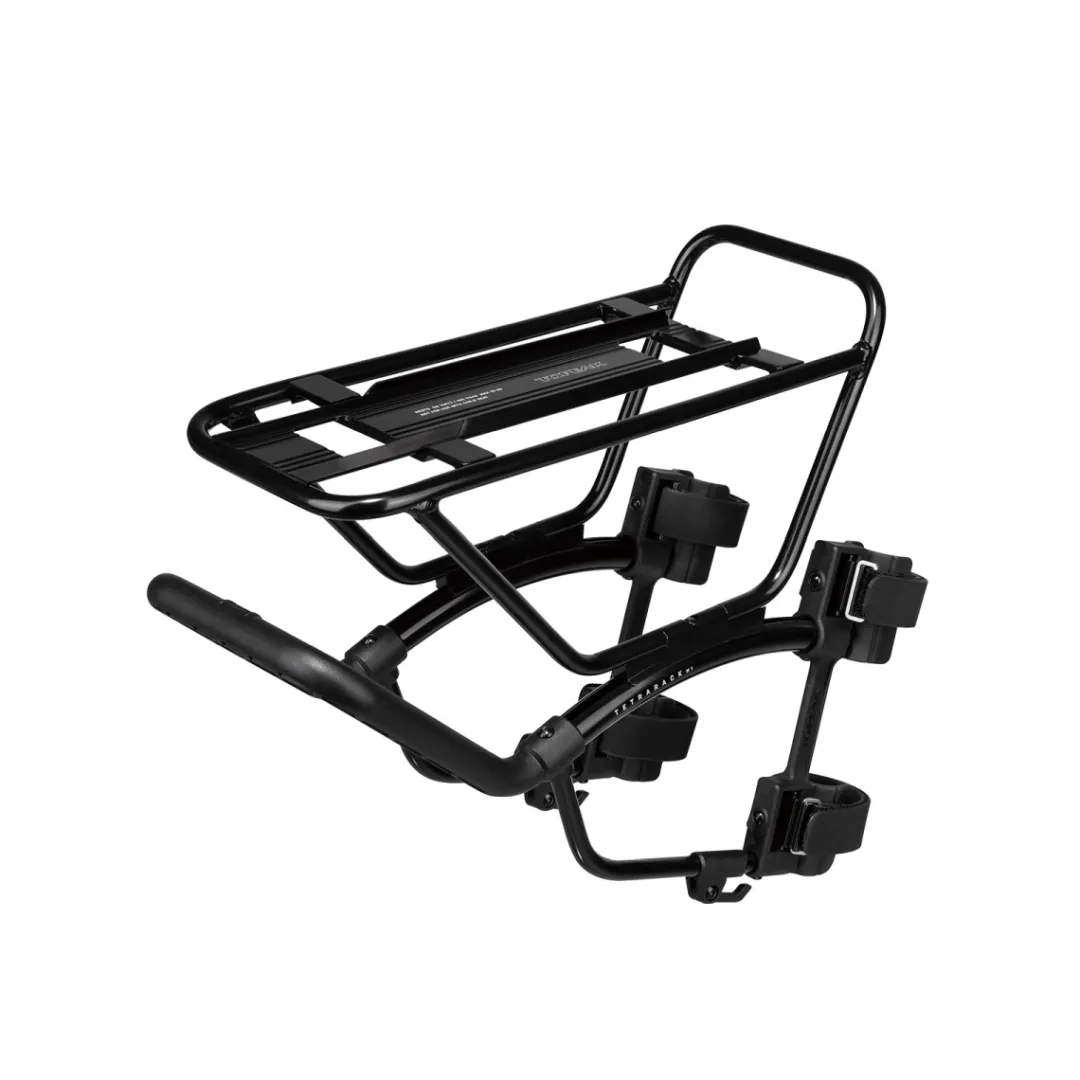

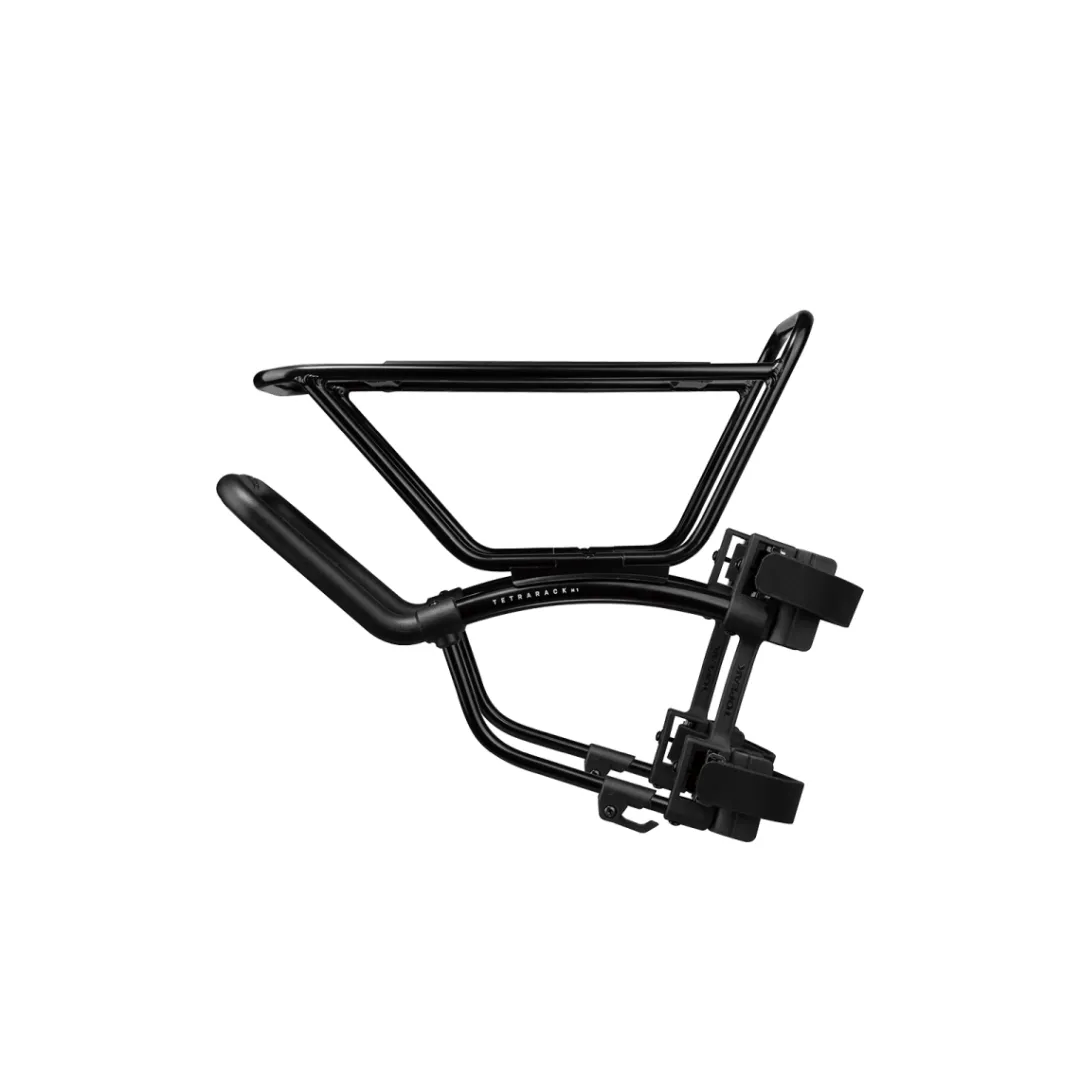

The TetraRack M1 front rack system by Topeak can be mounted on MTB suspension forks or rigid forks even without rack eyelets. Its quick mounting system with velcro straps is compatible with a wide range of bicycles and frame geometries. With a simple sliding mechanism, the top plate can be adjusted perfectly – independent of the fork angle.

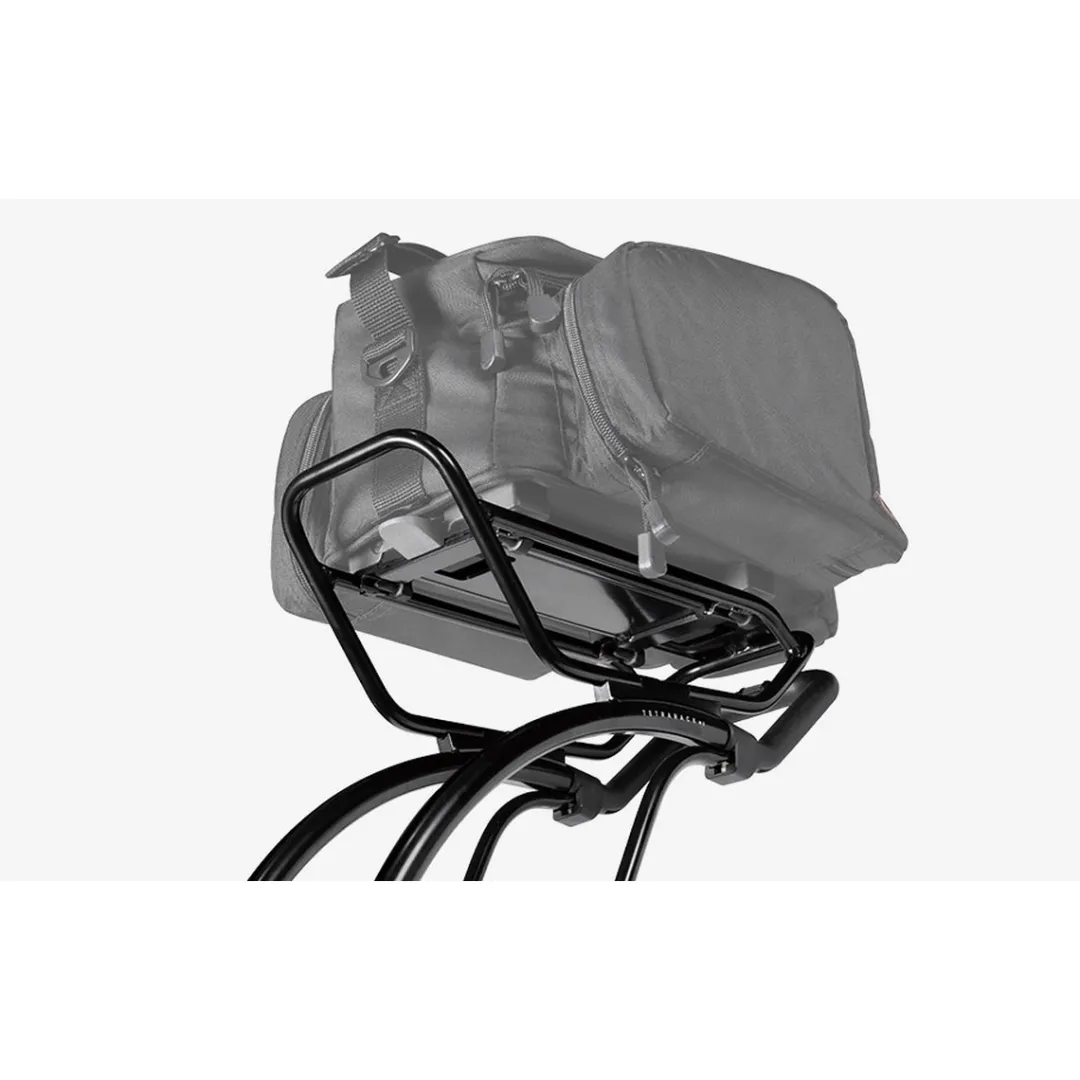

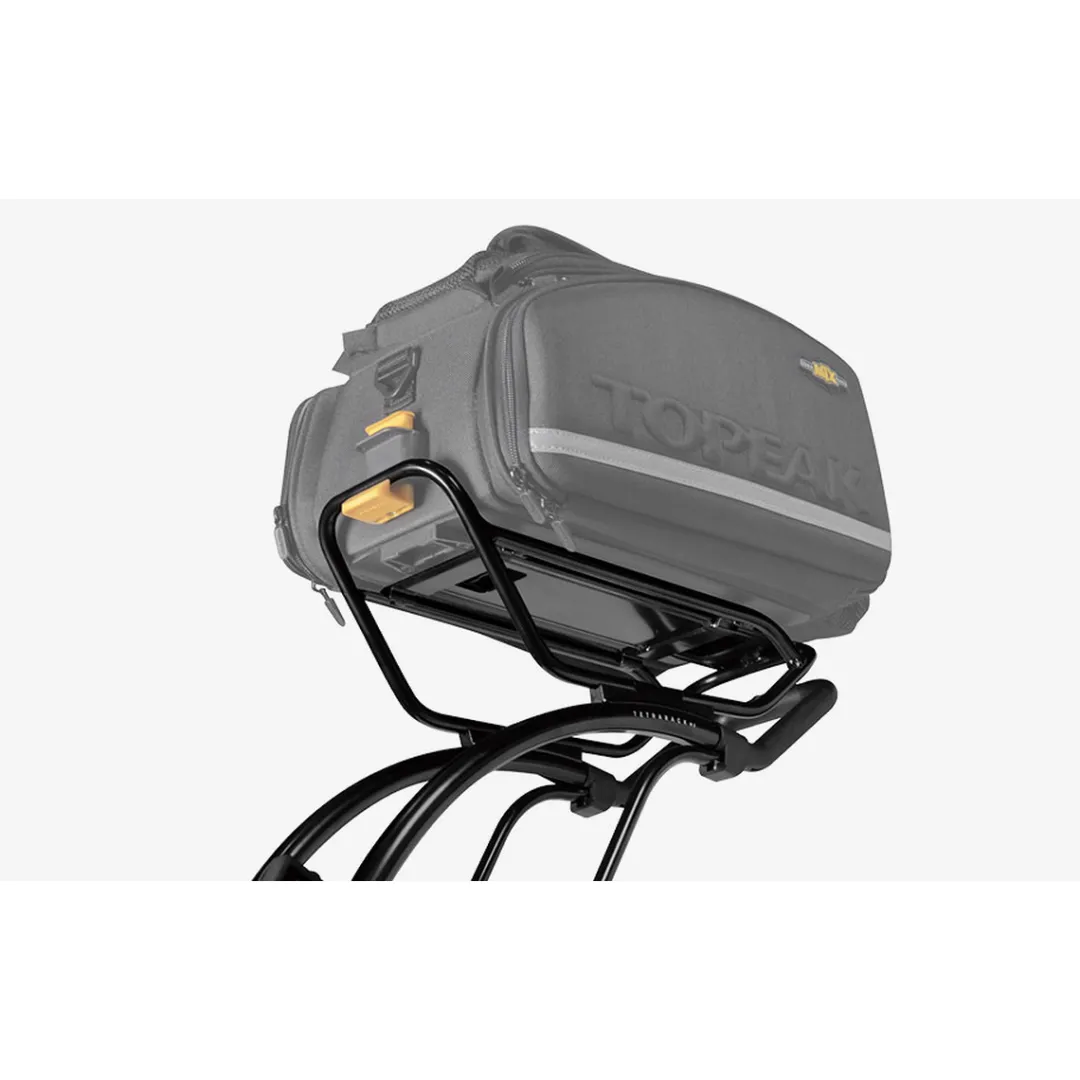

The integrated QuickTrack™ system allows Topeak TrunkBags to slide and lock into place and be released again at the push of a button.

Tip:
The TetraRack M2 (prod. code 2296725) is a matching rear rack system, that attaches to the rear stay of hardtail or full-suspension mountain bikes.

Details:

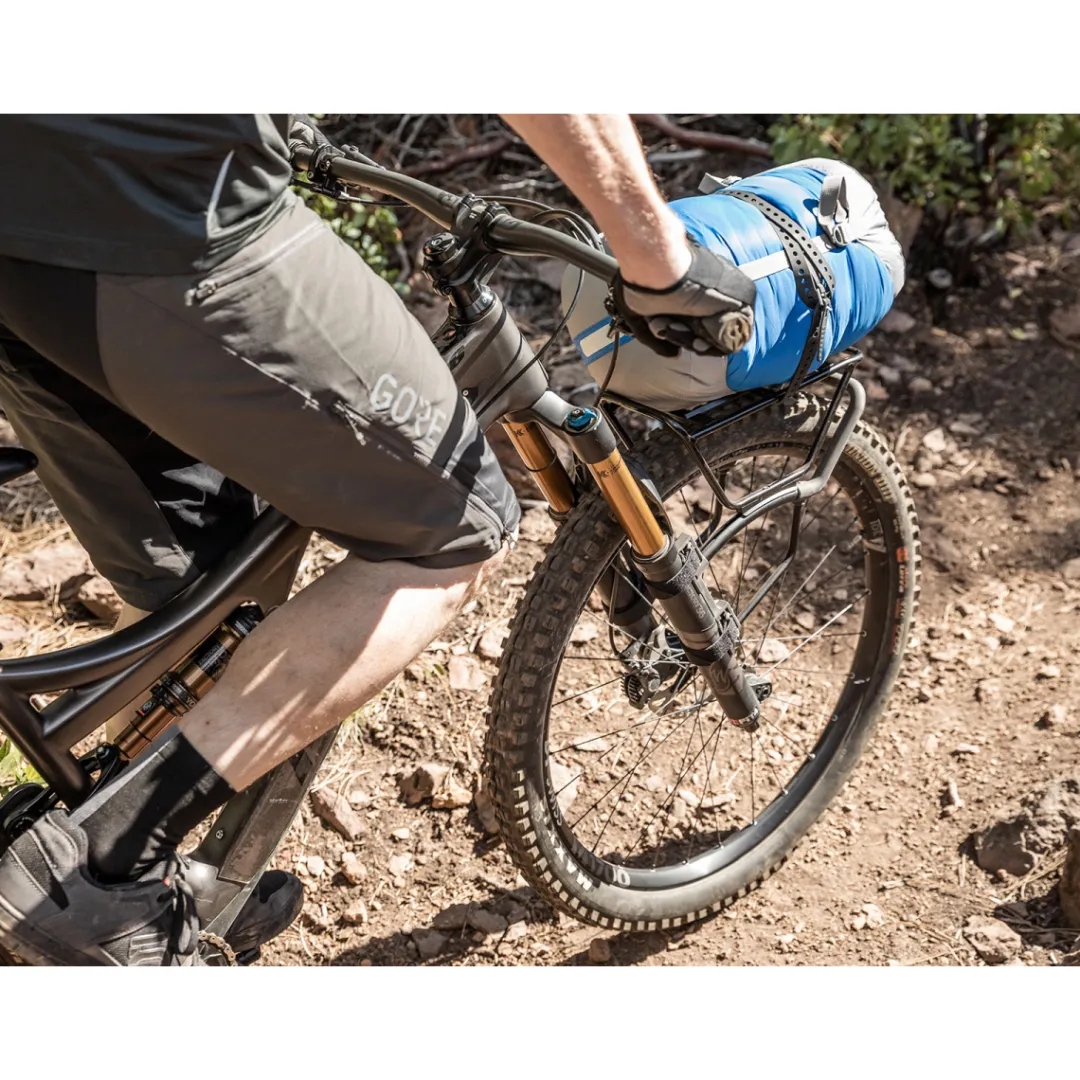

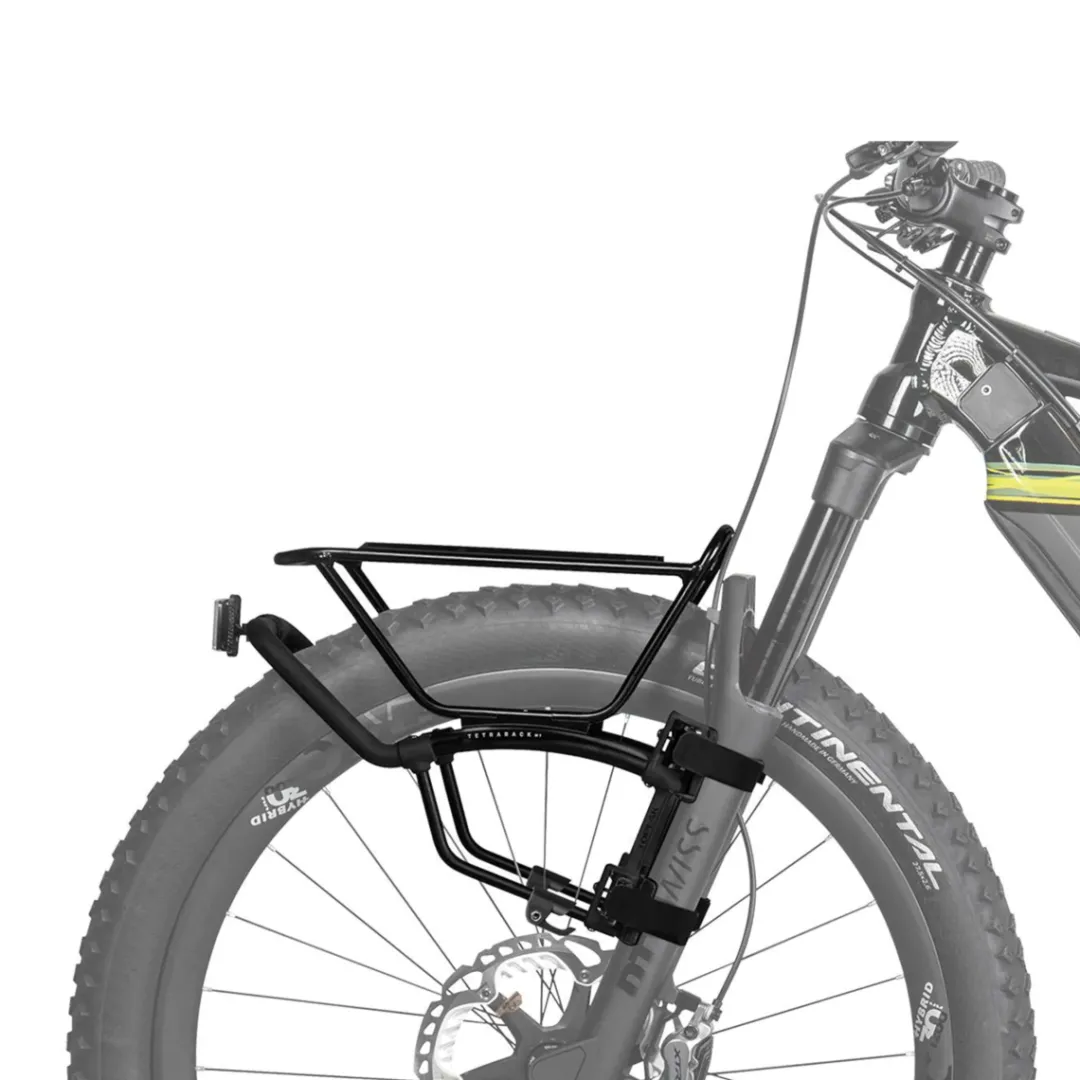

• Rack attaches to mountain bike suspension forks or rigid forks
• Quick mounting with velcro straps (requires no rack eyelets)
• Universal size, fits most frame geometries

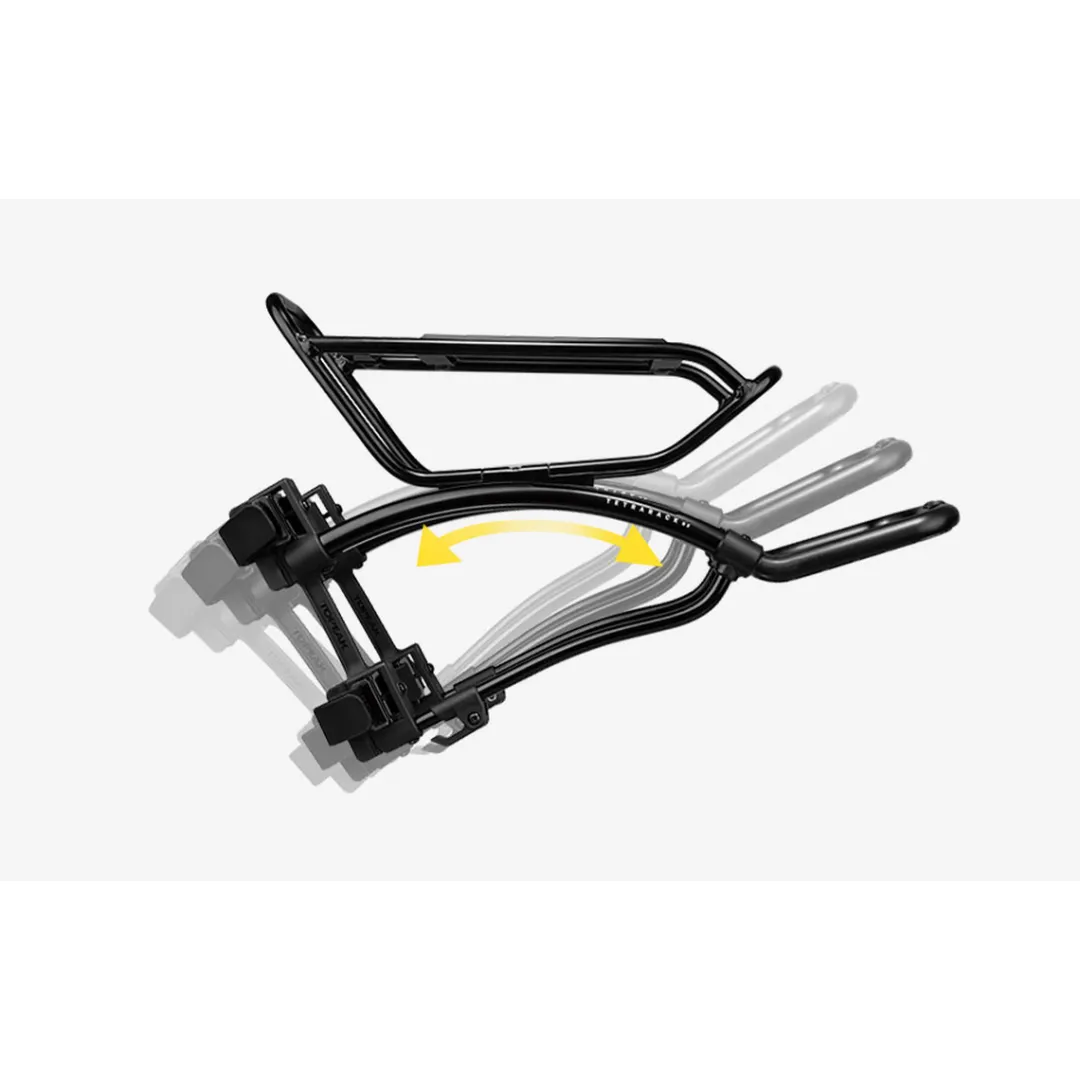

• Sliding mechanism for easy levelling of top plate
• Topeak QuickTrack™ system for compatible Topeak Trunk Bags
• Also compatible with KLICKfix® / RackTime® Snapit or Vario System bags
• Including bracket to attach reflectors or lamps
• Allows for optional upgrade with side frames for panniers (prod. code 2338590)

Technical details:
• Intended use: MTB, Hybrid (incl. e-bike)
• Material: aluminium, fibreglass composite, polyamide

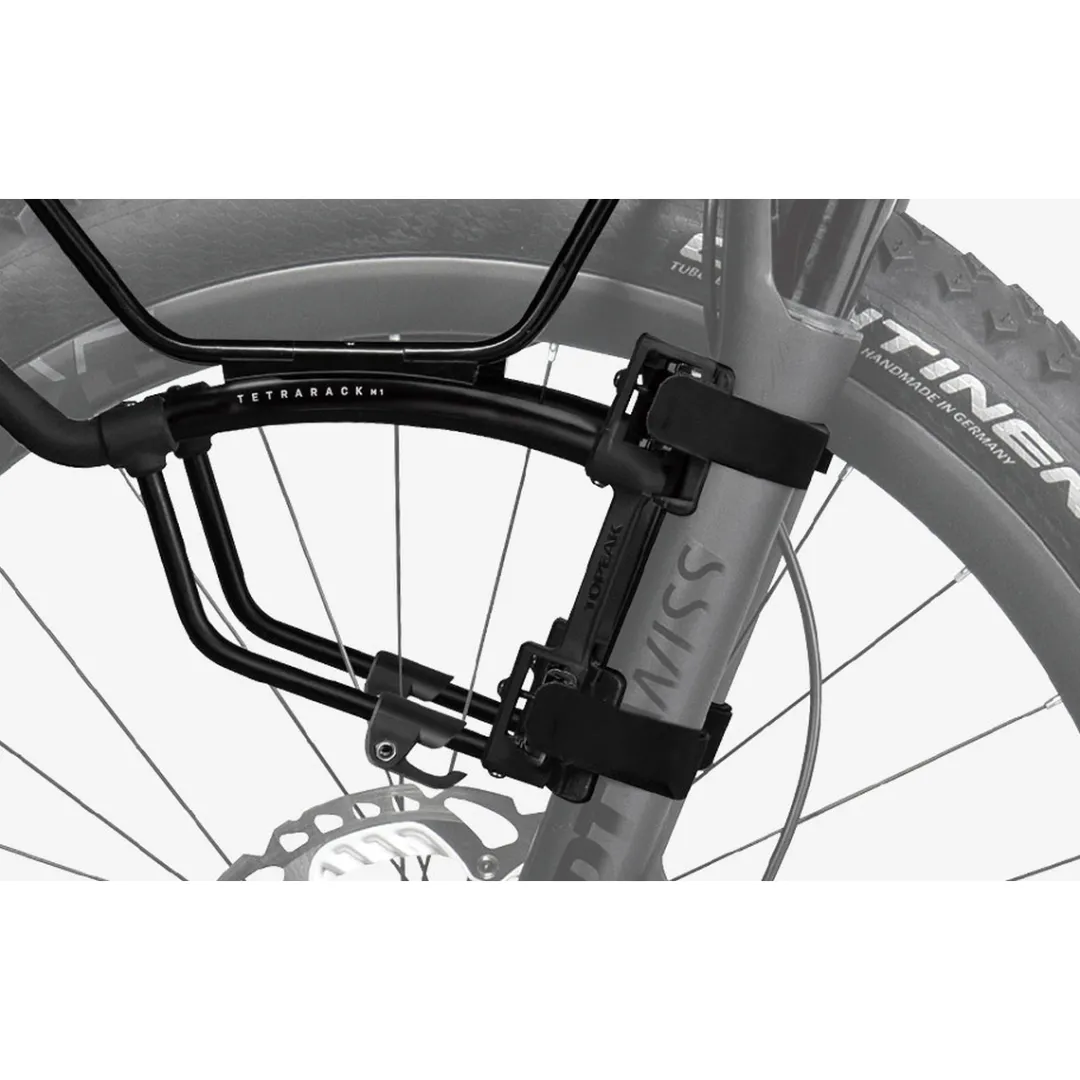

• Attachment: attaches to fork with velcro straps
• Compatibility: Topeak MTX/RX TrunkBags, KLICKfix® / RackTime® Snapit or Vario System bags
• Maximum load: 10 kg
• Compatible wheel sizes: 27.5“ to 29“
• Compatible tyre width: up to 2.8“ (71 mm)
• Size: approx. 37.4 x 32.2 x 16.5 cm
• Weight: approx. 910 g

Mounting requirements:
• Required free mounting space: approx. 200 mm
• Fork width: approx. 115 – 145 mm

Compatible Topeak TrunkBags available at ROSE:
• Topeak MTX TrunkBag DX (product code: 2183352)
• Topeak MTX TrunkBag EX (product code: 2183370)

In the box:
• 1 Topeak TetraRack M1 front rack system
• 1 bracket for reflectors or lamps
• 1 hex wrench, 2.5 mm

Note:
Mounting the rack on carbon forks is NOT recommended.

ATTENTION:
NOT compatible with V-brakes and cantilever brakes!

Tip:
You can find a matching spring clamp for the rack under prod. code: 2352549.
