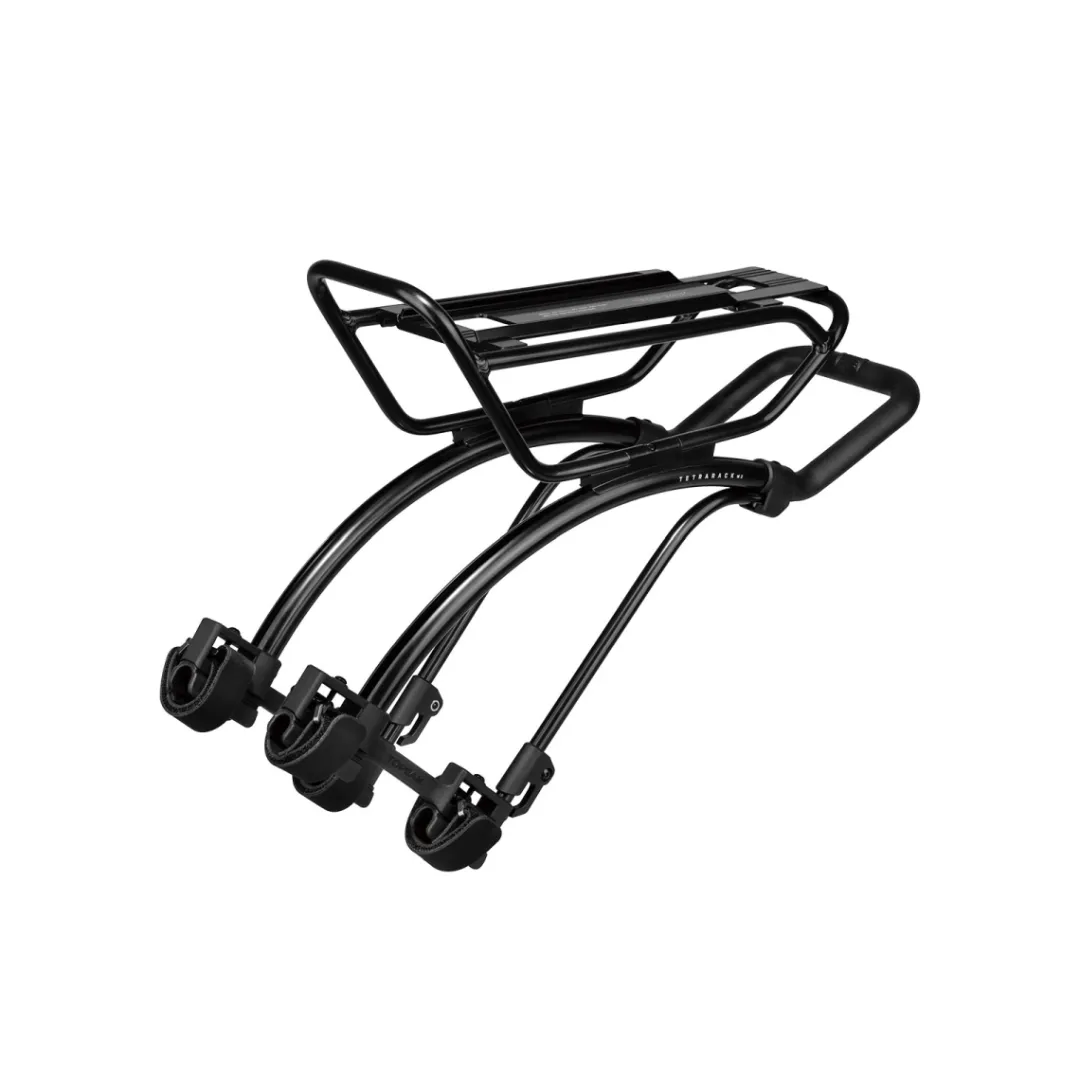

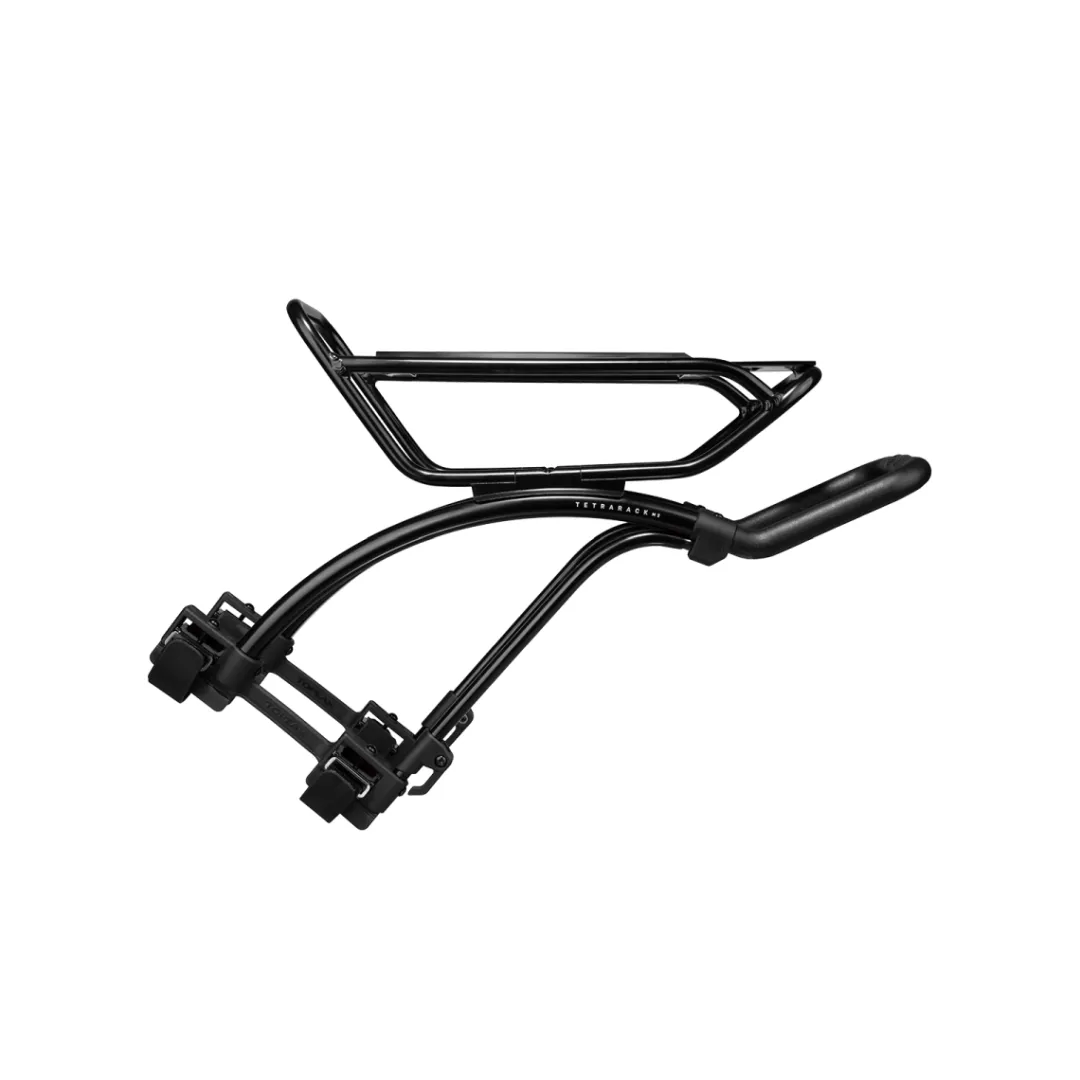

ROSE Bikes TetraRack M2 MTB Rear Rack System| Rear Racks

The TetraRack M2 rear rack system by Topeak attaches to the rear stay of full-suspension or hardtail MTBs even without rack eyelets. Its quick mounting system with velcro straps is compatible with a wide range of bicycles and frame geometries. With a simple sliding mechanism, the top plate can be adjusted perfectly – independent of the fork angle.

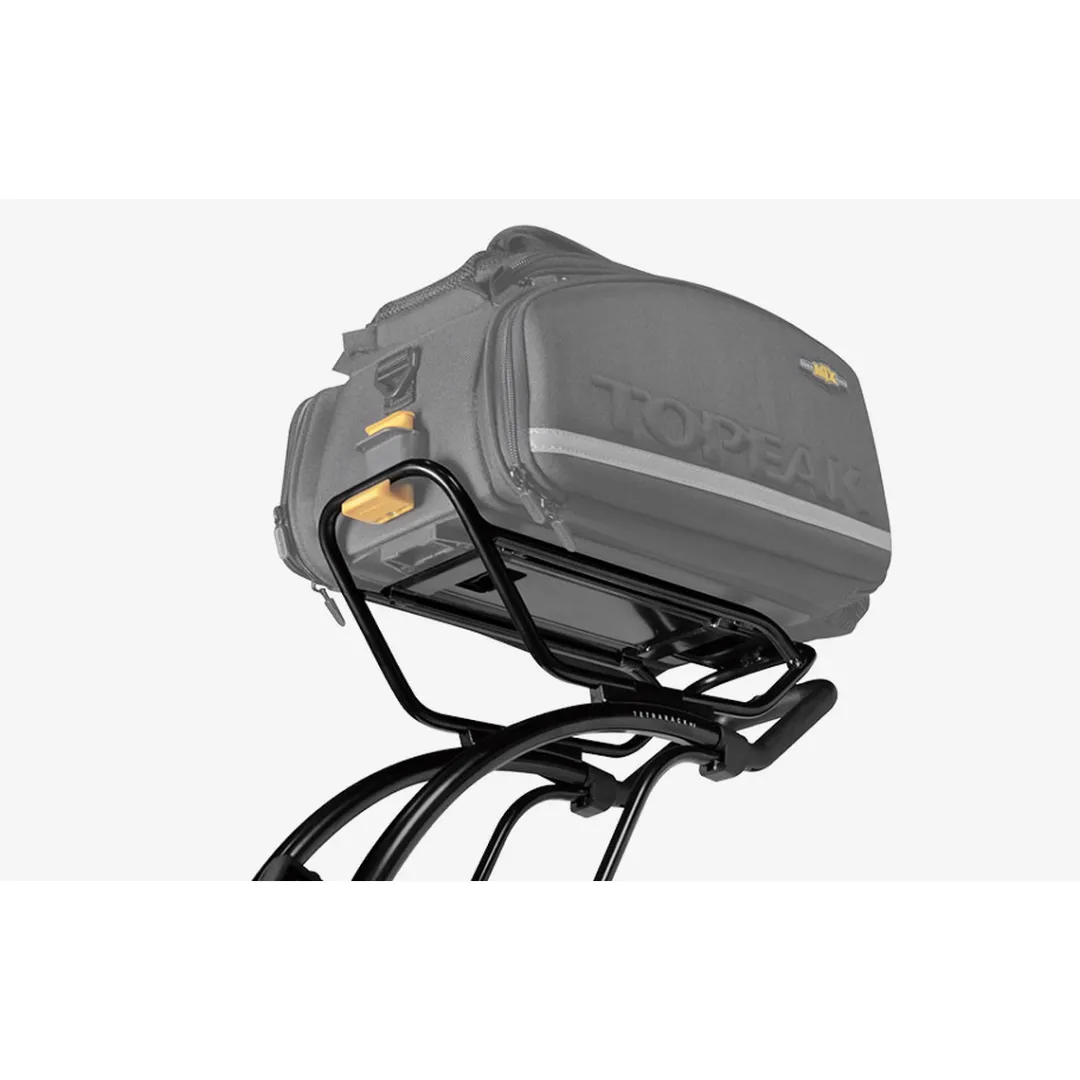

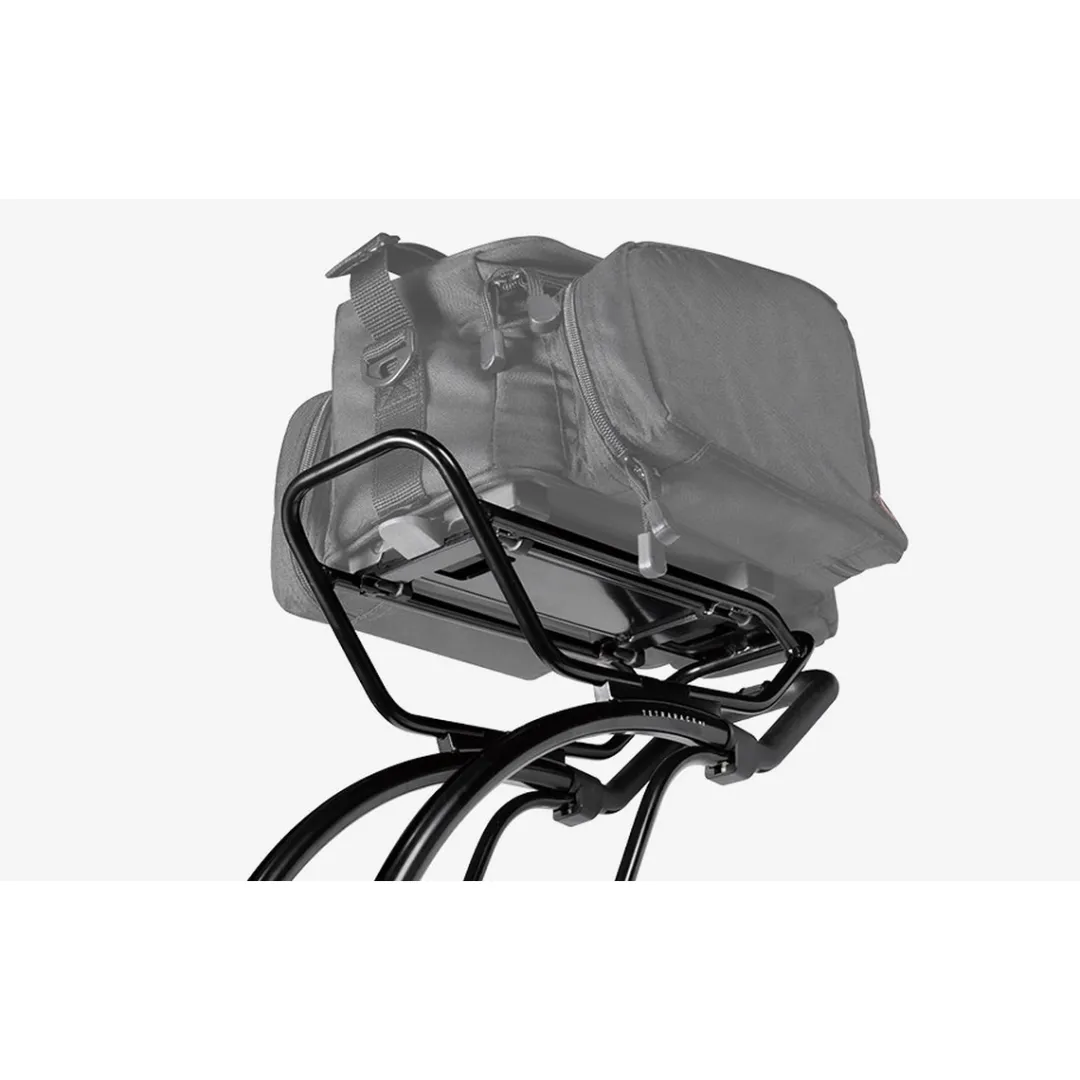

The integrated QuickTrack™ system allows Topeak TrunkBags to slide and lock into place and be released again at the push of a button.
Details:

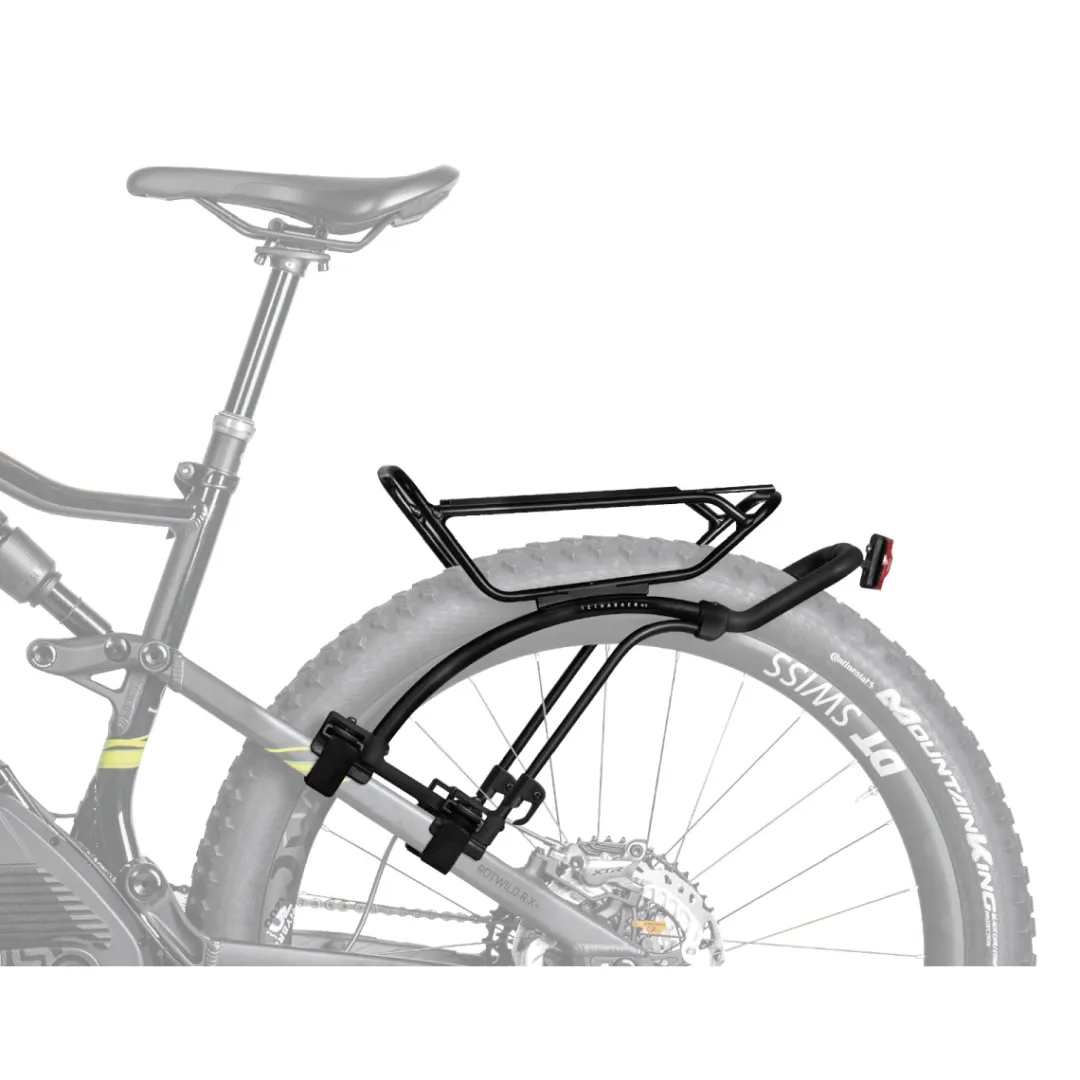

• Rack attaches to rear stays of full-suspension or hardtail MTBs
• Quick mounting with velcro straps (requires no rack eyelets)
• Universal size, fits most frame geometries

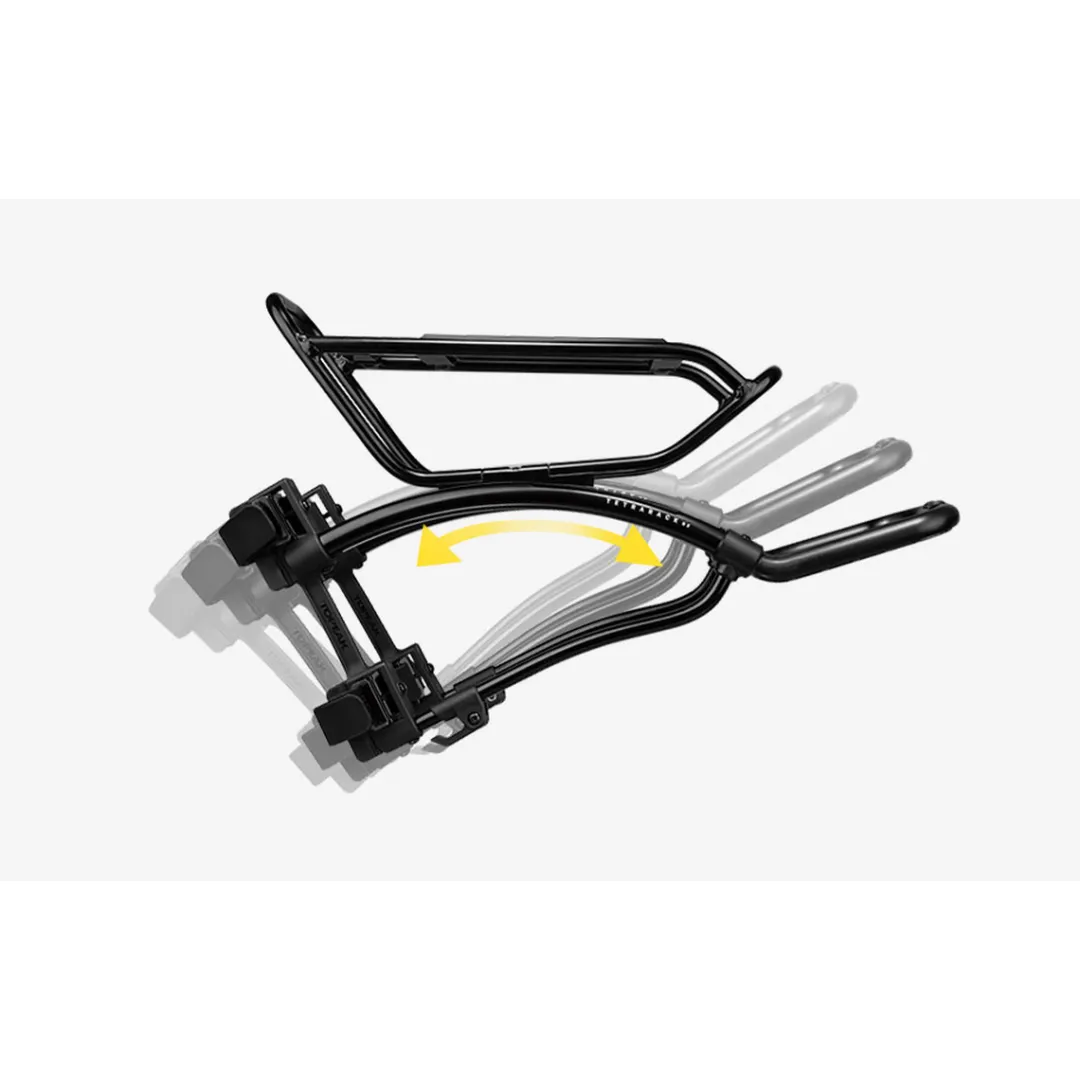

• Sliding mechanism for easy levelling of top plate
• Topeak QuickTrack™ system for compatible Topeak TrunkBags and rear baskets
• Also compatible with KLICKfix® / RackTime® Snapit or Vario System bags
• Including bracket to attach reflectors or lamps
• Allows for optional upgrade with side frames for panniers (prod. code 2338590)
Technical details:
• Intended use: MTB, Hybrid (incl. e-bike)
• Material: aluminium, fibreglass composite, polyamide
• Attachment: attaches to rear stay with velcro straps
• Compatibility: Topeak MTX/RX TrunkBags, Topeak MTX rear baskets, KLICKfix® / RackTime® Snapit or Vario System bags
• Maximum load: 12 kg
• Compatible wheel sizes: 26“ to 29“
• Compatible tyre width: up to 2.8“ (71 mm)
• Dimensions: approx. 42 x 33.2 x 14.5 cm
Weight: approx. 960 g
Mounting requirements:
• Minimum seat stay angle: 30°
• Minimum tube diameter: 15 mm
• Required free mounting space: approx. 200 mm
• Seat stay spacing: approx. 95 – 125 mm
Compatible Topeak TrunkBags and bike baskets available at ROSE:
• Topeak MTX TrunkBag DX (product code: 2183352)
• Topeak MTX TrunkBag EX (product code: 2183370)
• Topeak MTX Basket Rear (product code: 762113)
Tip:
With the Topeak TetraRack Side Frame Set (prod. code 2338590) you can also use the TetraRack system with panniers!
In the box:
• 1 Topeak TetraRack M2 rear rack system
• 1 bracket for reflectors or lamps
• 1 hex wrench, 2.5 mm
Note:
Mounting the rack on carbon frames is NOT recommended. Compatibility cannot be guaranteed for extraordinary frame geometries (e.g. seat stays run at an angle to the wheel axle).
ATTENTION:
NOT compatible with V-brakes and cantilever brakes!

Tip:
The TetraRack M1 (prod. code 2296723) is a matching front rack system, that can be mounted on MTB rigid forks or suspension forks.
You can find a matching spring clamp for the rack under prod. code: 2352550.
If you want to protect yourself and your luggage from dirt and water, we recommend the Topeak TetraRack Full Fender M2 mudguard (prod. code: 2352548), which is mounted underneath the TetraRack M2 luggage rack.
