ROSE Bikes THRU AXLE M6-CONNECTOR Adapter Thru Axle| Accessories

The THRU AXLE M6-CONNECTOR adapter thru axle from ORTLIEB is a practical part for mounting your ORTLIEB QUICK-RACK pannier rack if your bike frame does not have M5/M6 mounting points for pannier racks.

To do this, your existing thru axle is replaced by the THRU AXLE M6-CONNECTOR, which then offers M6 threads on both sides for mounting the QUICK RACK mounting points.
The connector can replace axles up to 180mm in length. Thanks to the spacers supplied, you can customise the length of the thru axle.

Details:
Thru axle adapter for all standard 12mm frame thru axles
Replaces the previously installed thru axle (up to 180mm axle length)
Integrated M6 threads at both ends for mounting the QUICK-RACK mounting points
Including spacers for length adjustment (165mm conical / 168 – 180mm adjustment range)

Technical details:
Material: Aluminium
For rear dropout spacing: 12 mm thru axle (up to 180 mm length)
Thread length: approx. 28 mm
Length: approx. 165/168 – 180mm (adjustable using supplied spacers)

Available thread pitch:
M12 x 1.0mm
M12 x 1.5mm
M12 x 1.75mm
Please indicate your choice.

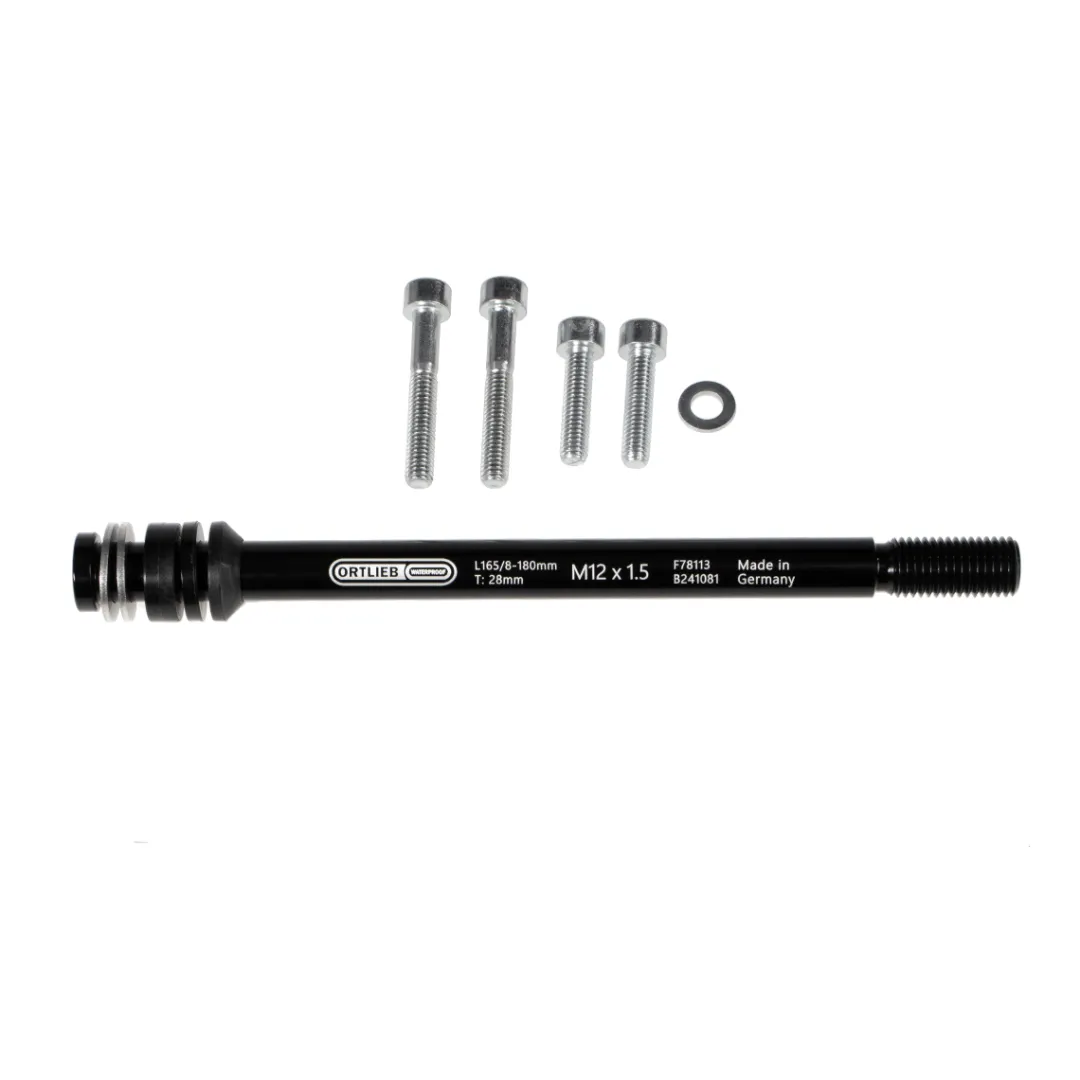

In the box:
1 ORTLIEB THRU AXLE M6-CONNECTOR thru axle
Incl. spacers for length adjustment (2 x 1.5mm, 1 x 3mm, 1 x 6mm, 1 x 3mm conical)
2 x M6 x 40mm, 2 x M6 x 25mm screws
M6 washer

ATTENTION:
Thread length and/or thread pitch as well as axle length are frame-specific and do NOT always fit every bike!
Please keep in mind the length, the thread length and the axle’s thread pitch and request relevant product information from the manufacturer, if need be.
Shorter axle lengths are compatible if the axle can be screwed through the frame (out of the thread).
